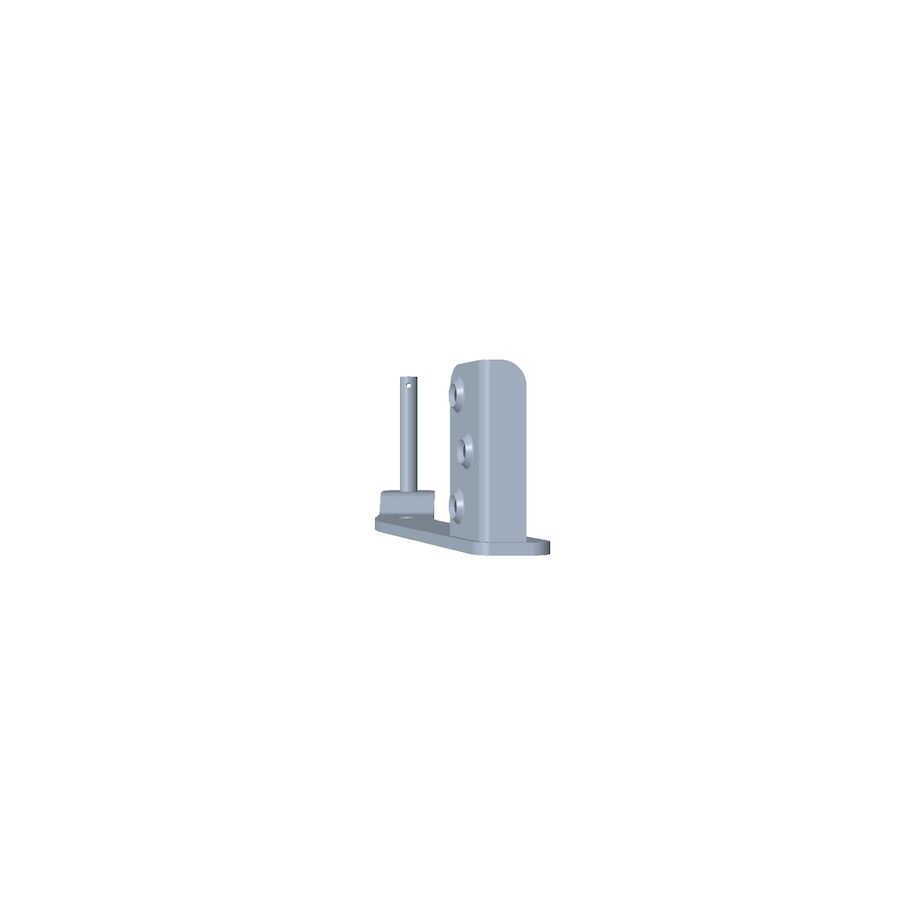

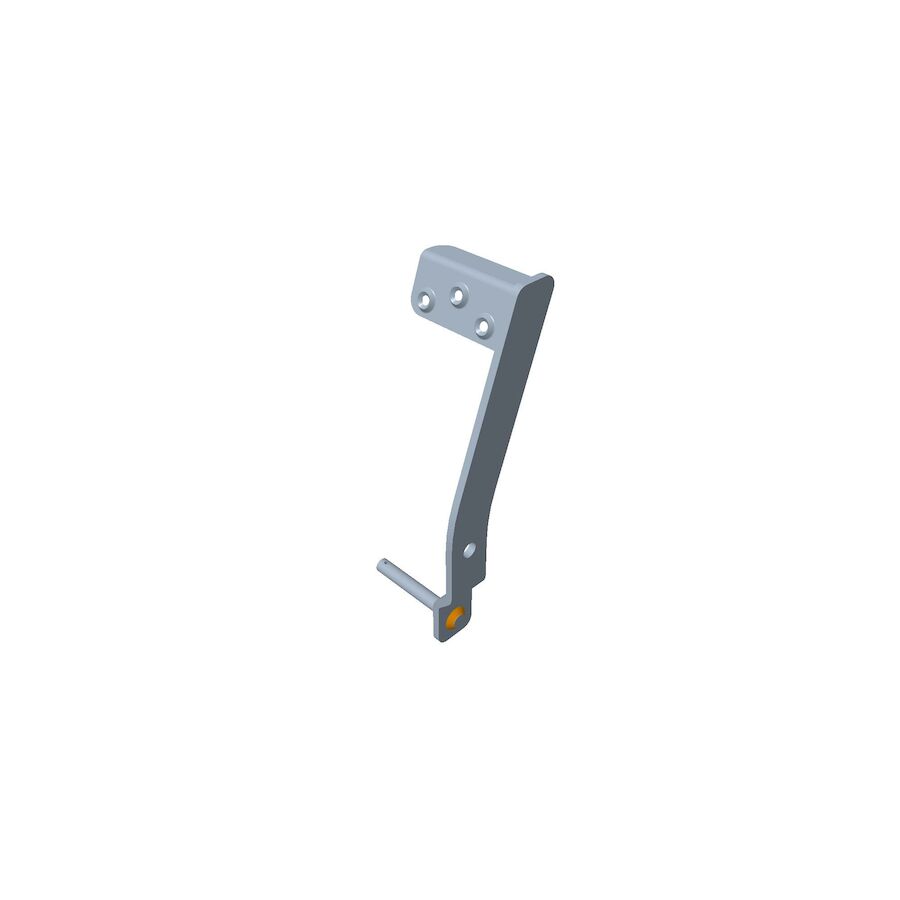

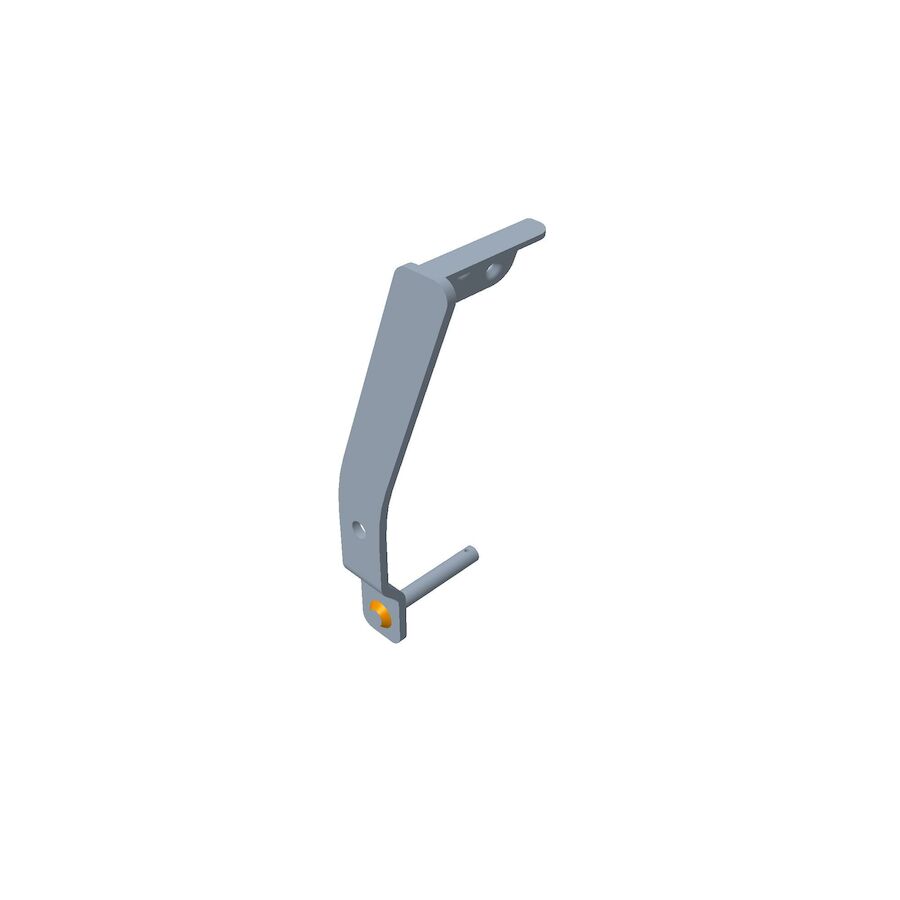

Toro OEM 132-6939-03 Mower Deck Foot Pedal Assist Lift Fits Toro Timecutter 32" SS, SW, ZS - 34" MX - 42" MX, SS, SW, ZS - 50" MX, SS, SW, SWX, ZS - 54" SS - 60" MX Models.

Toro

Price:
Sale price$25.99

Pickup available, Usually ready in 24 hours

Description

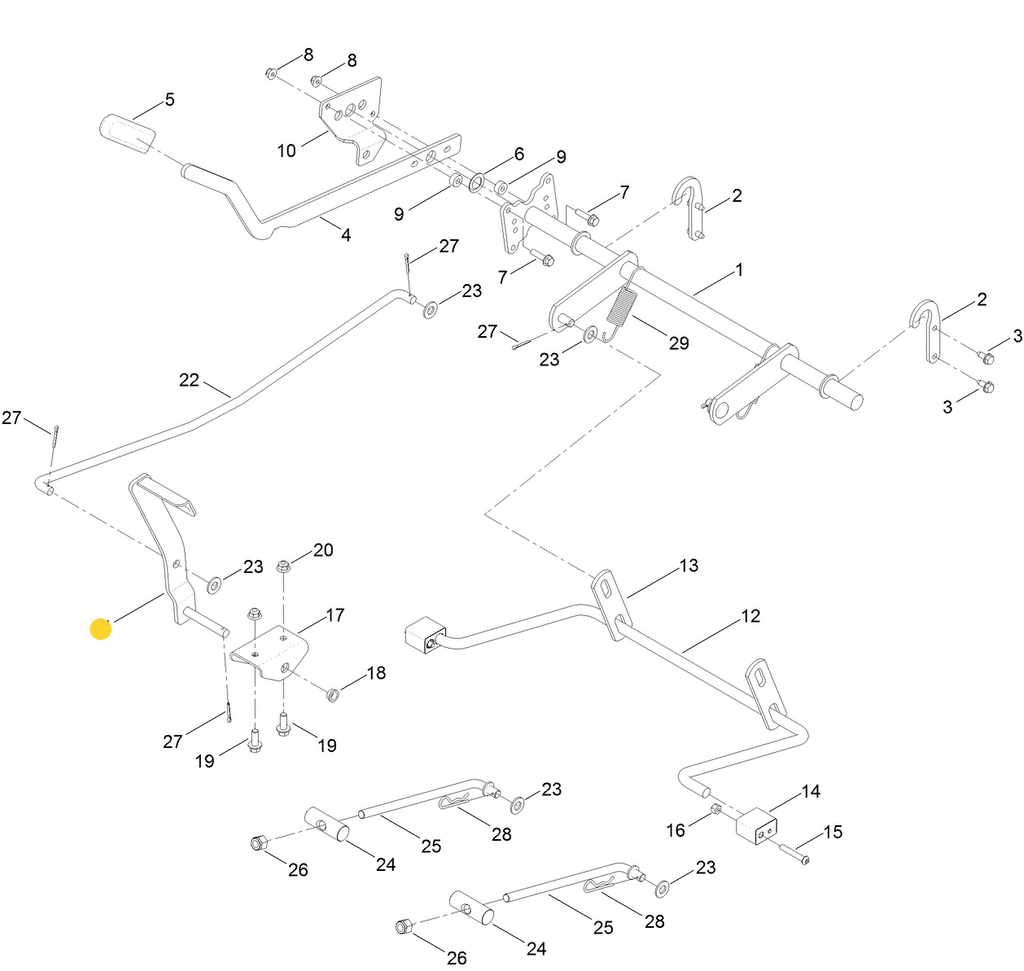

Toro OEM 132 6939 03 Mower Deck Lift Assist Foot Pedal enhances operator efficiency by utilizing leg leverage to assist in raising the mower deck. This foot pedal assembly connects to the mower deck lift arm/handle assembly through specialized brackets and a rod system, significantly reducing the physical effort required during deck height adjustments on Toro Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, ZS), 50" (MX, SS, SW, SWX, ZS), 54" (SS) and 60" (MX) Timecutter Models. Toro Foot Assist Pedal can be added to Units Listed Bellow in the Model Fit Chart. In Order add it to Models That Did Not Come with it Factory Installed You Will Need to Order the Complete Parts List as Listed in the Part Reference Chart Below. For Factory Installed or For Individual Replacement Parts Refer to the Part Reference Chart Below as well for a Complete List of Individual Part. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.













Specification

Product Number:

139693903

Brand:

Toro

Length:



12.000 IN (30.480 CM)

Width:



4.000 IN (10.160 CM)

Height:



1.500 IN (3.810 CM)

Weight:



1.740 LB (0.789 KG)





Model Fit:





* Models that come with it Factory Installed:



74387, 74626, 74632, 79010, 74390, 74640, 74641, 74395, 74636, 74638, 74642, 74643, 74760, 74770, 74750, 74771, 74777, 74774





 * Mower Models with Optional Installation:





TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793





TIMECUTTER 60” MX Series – Model Numbers – 74777
