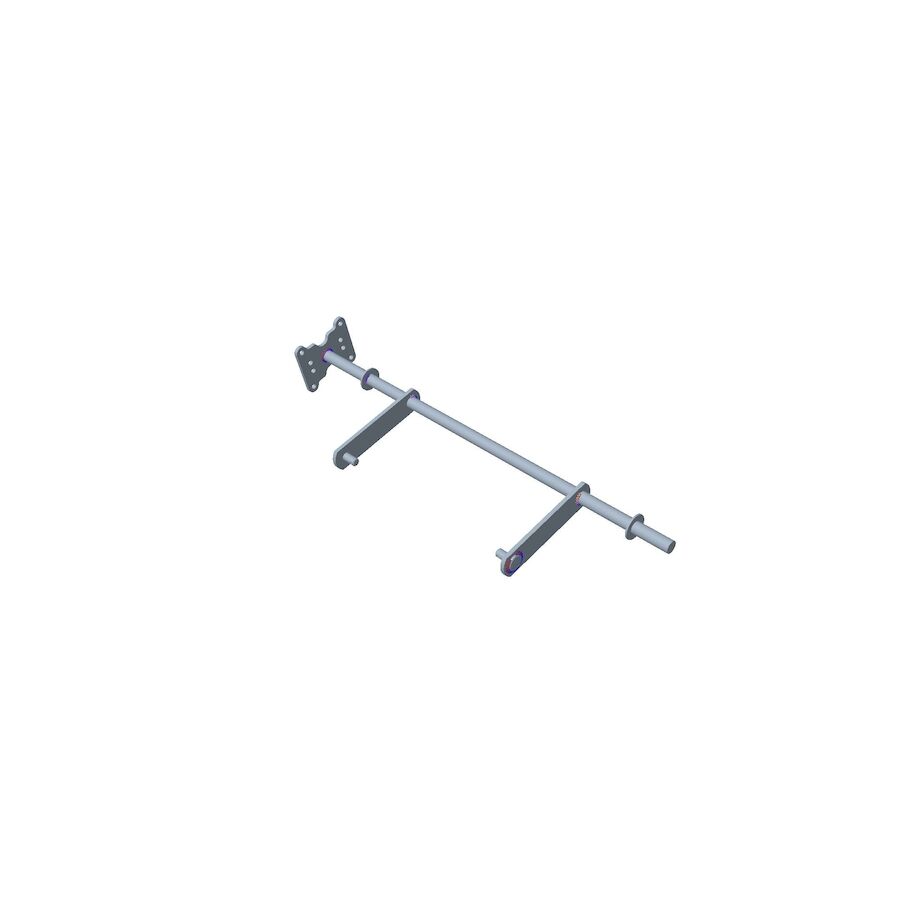

Toro OEM 132-6878-03 Mower Deck Lift/Leverage Arm Fits Toro Late/Early 50" Timecutter MX, SS, SW, SWX, ZS - Late/Early 54" Timecutter SS, SW - Models.

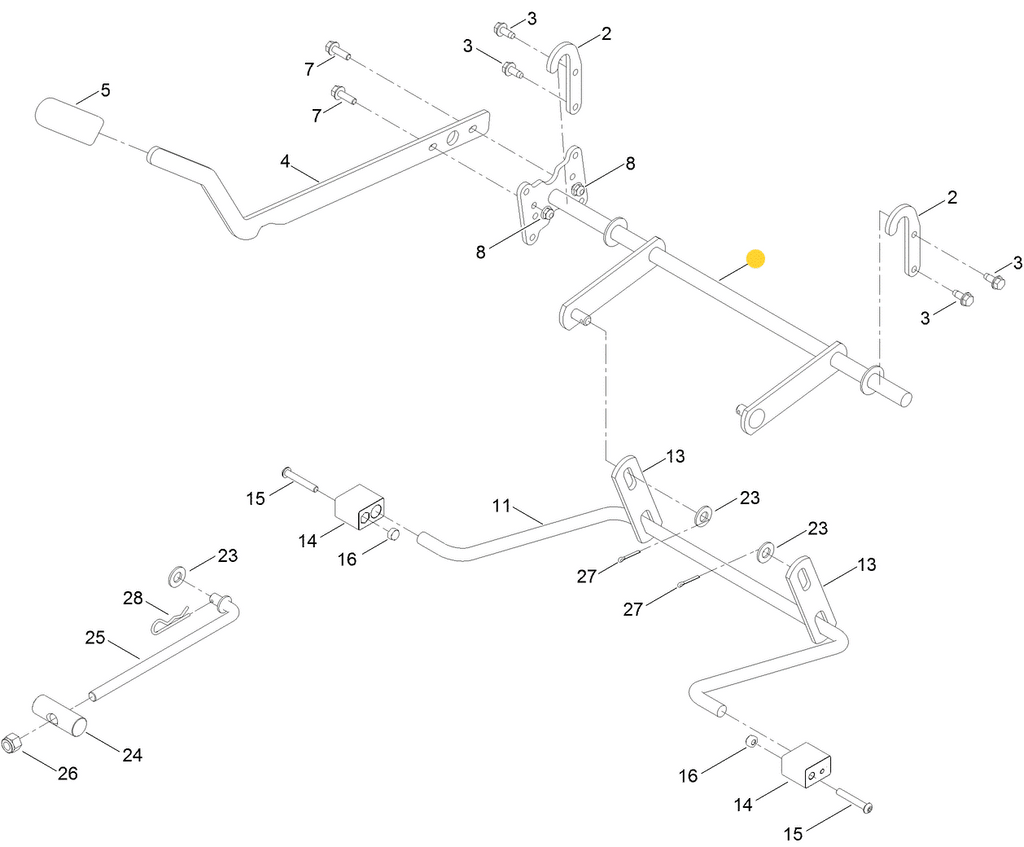

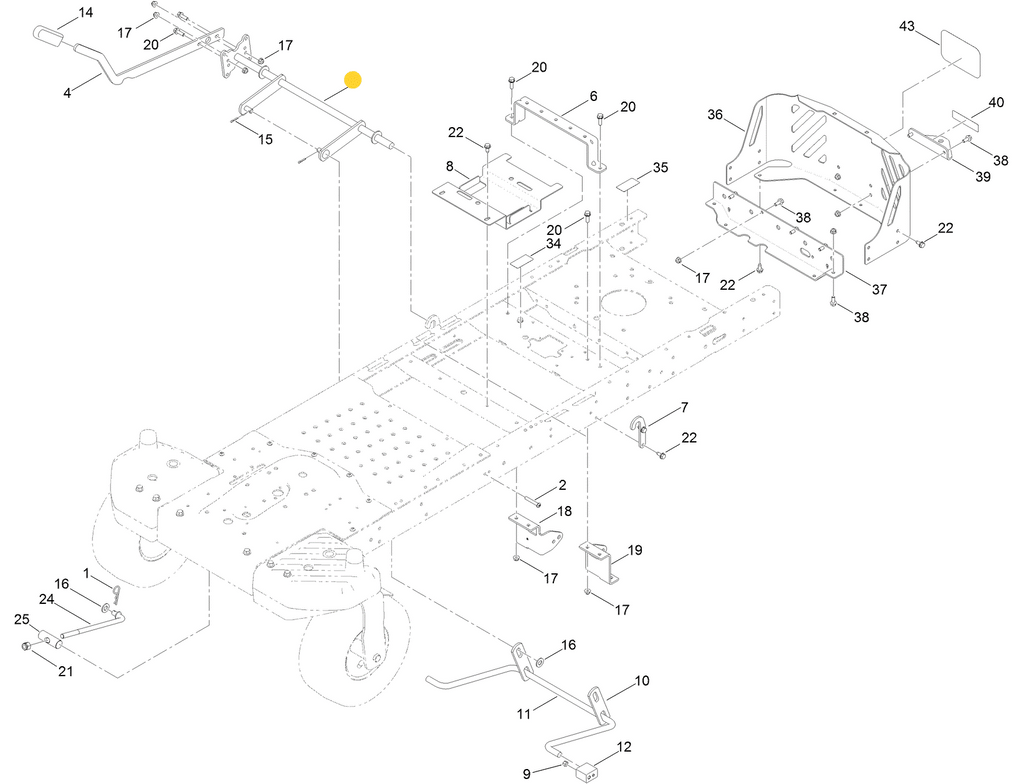

Toro OEM 132 6878 03 Mower Deck Lift/Leverage Arm Is a Rod That Travels across the Frame of the Mower and Attaches to the Mower Deck Lift Handle and Mower Deck Lift Linkage. Toro OEM 132 6878 03 Arm Rotate across the Frame of the Mower as the Operator Lower's and Raise's Their Mower Deck. This type Design help Leverage some of the Mower Deck Weight as well and makes for an easier Raising and Lowering of the Mower Deck. 132-6878-03 Mower Deck Lift/Leverage Rod is Designed for Select Toro Early/Late 50" (MX, SS, SW, SWX, ZS) and 54" (SS, SW) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit. Part Numbers 119-3424-03 Supersede to Part Number 132-6878-03.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 132-6878-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

* Models Without Foot Pedal Assist Associated Part Only





1. 138-7233 - LIFT BRACKETS - (Retains Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Lift/Leverage Arm
2. 32144-70 - WASHER HEAD BOLT - (Retains Mower Deck Lift/Leverage Arm Retaining Lift Brackets) x2 Per Lift Bracket
3. 119-3427-03 - MOWER DECK LIFT HANDLE - (Fastens to Mower Deck Leverage Arm) x1 Per Unit
4. 3234-29 - FLANGE BOLTS - (Retains Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Handle
5. 104-8300 - FLANGE LOCK NUT - (Retains Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Handle
6. 138-7235 - MOWER DECK LIFT LINK - (Links the Mower Deck Lift/Leverage Arm to the Mower Deck Lift Arm) x2 Per Mower Deck Lift/Leverage Arm
7. 139-2611 - FLAT WASHER - (Supports Cotter Pin Fastener - Lift Link to Mower Deck Lift/Leverage Arm) x2 Per Lift Link
8. 139-2614 - COTTER PIN - (Retains Lift Linkage - Lift Link/Mower Deck Lift?Leverage Arm) x2 Per Lift Link

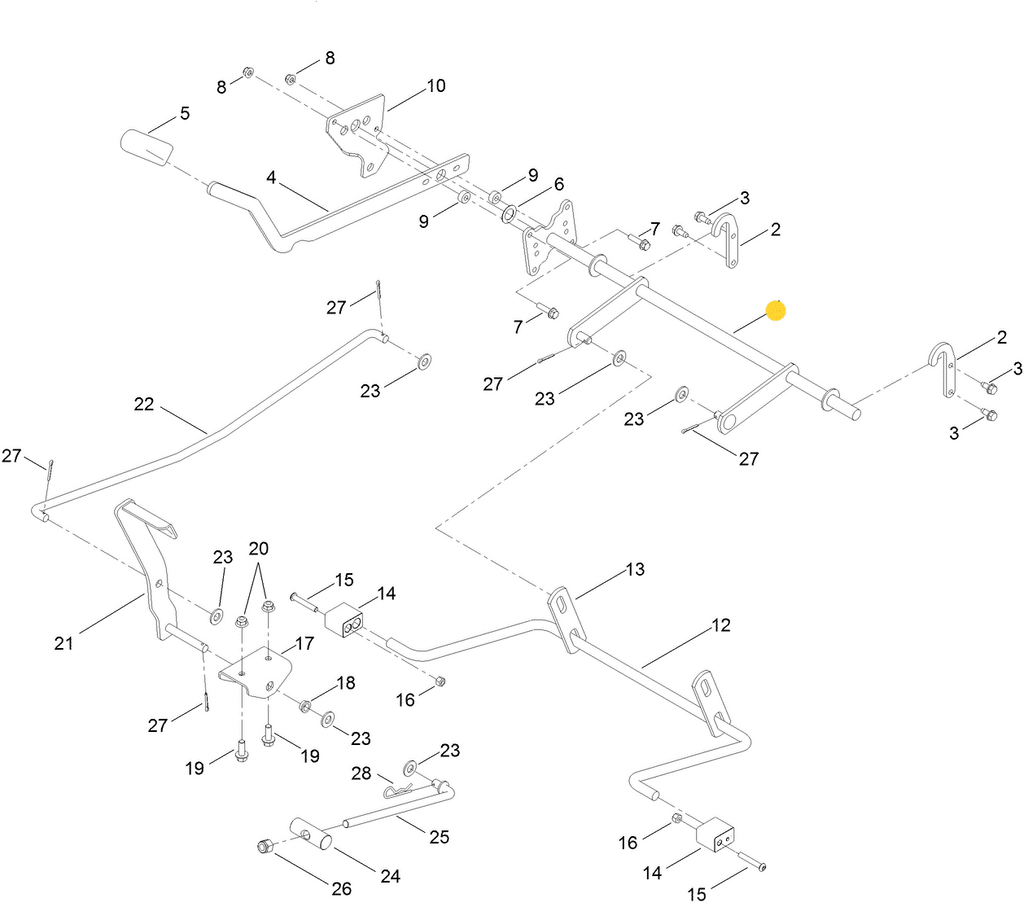

NOTE: Refer to Chart Below for Models with Foot Pedal Assist Part Differentials and Foot Pedal Parts Group - for Mower Deck Lift Handle and Foot-Pedal Assist Combo Part References.













 Specification

Product Number:	119342403, 132687803
Brand:	Toro
Length:	28.500 IN (72.390 CM)
Width:	8.500 IN (21.590 CM)
Height:	3.750 IN (9.525 CM)
Weight:	5.875 LB (2.665 KG)





Model Fit:



TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793
