Toro OEM 132-6872-03 Mower Deck Lift/Leverage Arm Fits Toro Late/Early 42" Timecutter MX, SS, SW, SWX, ZS - Late/Early 34" Timecutter MX - Late/Early 32" Timecutter SS, SW, ZS Models.

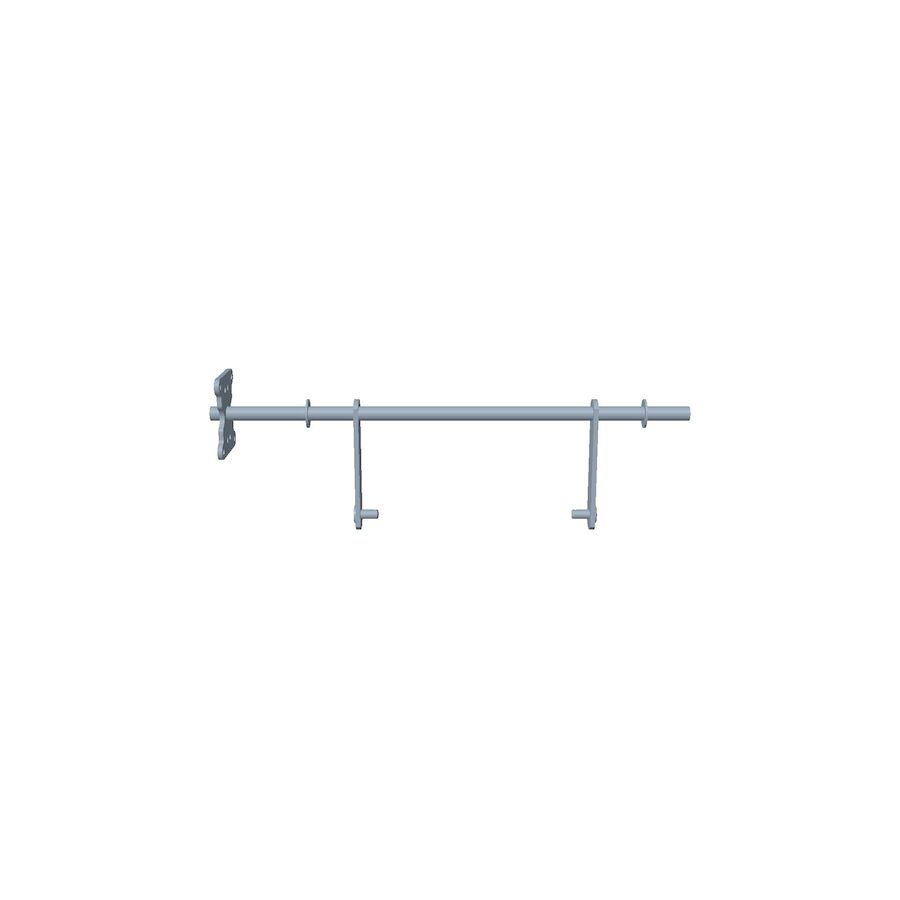

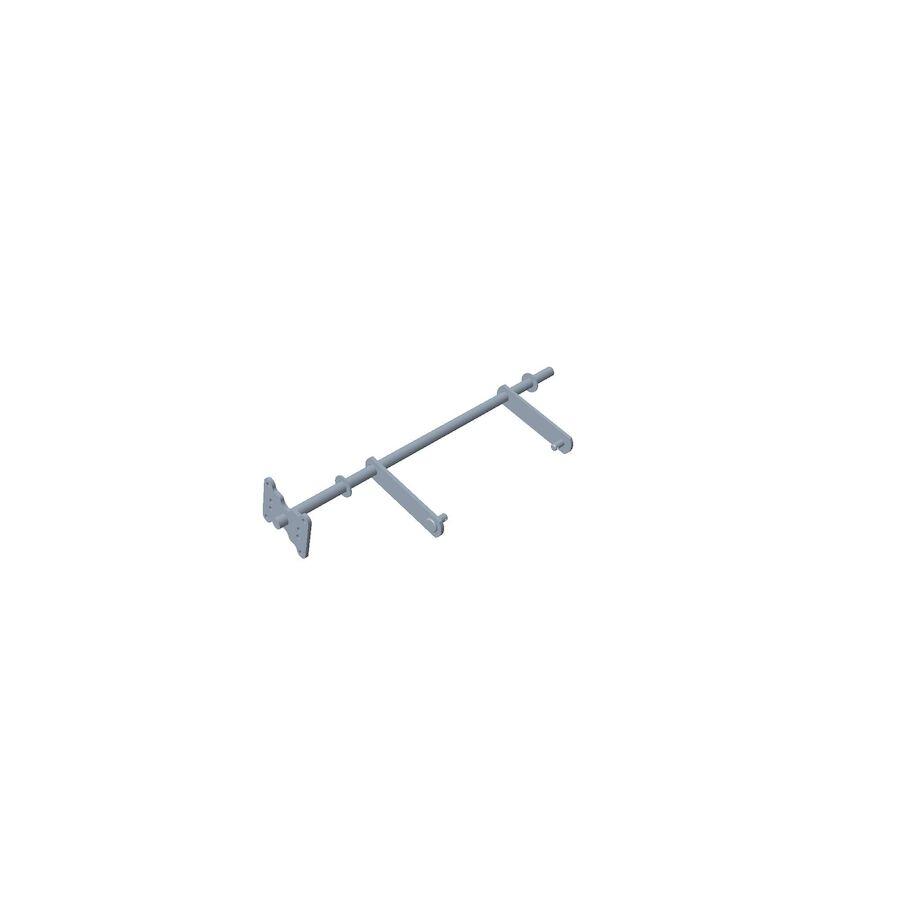

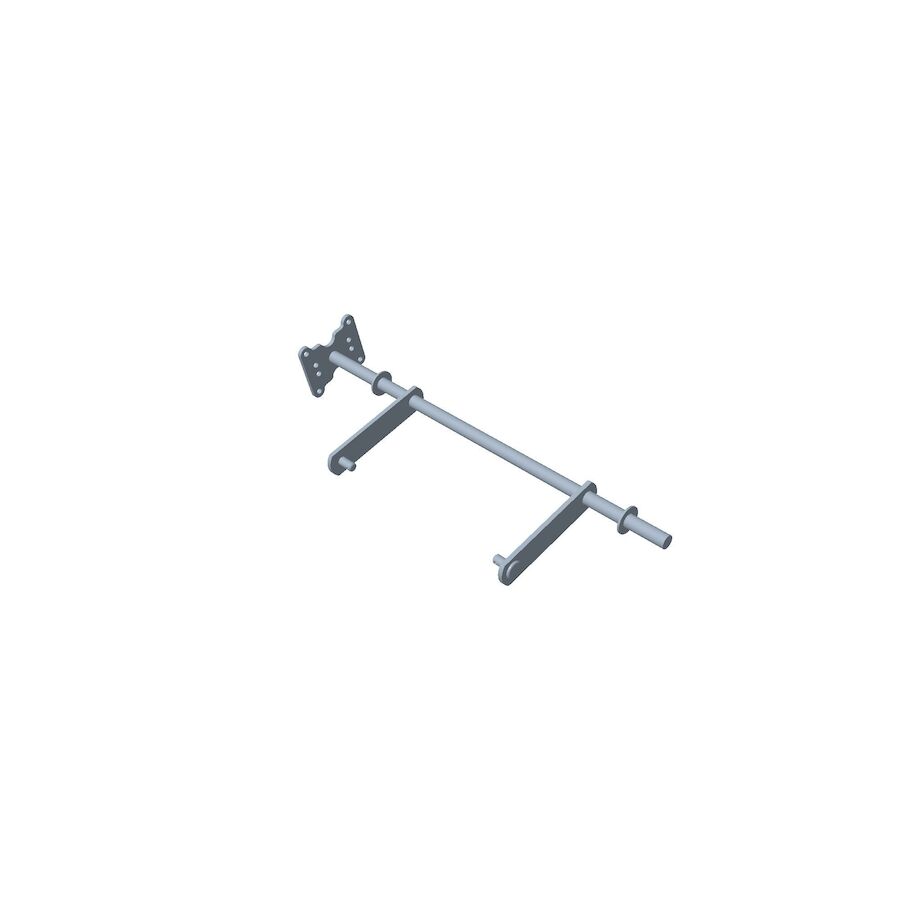

Toro OEM 132 6872 03 Mower Deck Lift/Leverage Arm Is a Rod That Travels across the Frame of the Mower and Attaches to the Mower Deck Lift Handle and Mower Deck Lift Linkage. Toro OEM 132 6872 03 Arm Rotate across the Frame of the Mower as the Operater Lower's and Raise's Their Mower Deck. This type Design help Leverage some of the Mower Deck Weight as well and makes for an easier Raising and Lowering of the Mower Deck. 132-6872-03 Mower Deck Lift/Leverage Rod is Designed for Select Toro 32" (SW, SS, ZS), 34" (MX), 42" (SW, SWX, SS, ZS, MX) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers 117-7346-03 Supersede to Part Number 132-6872-03.

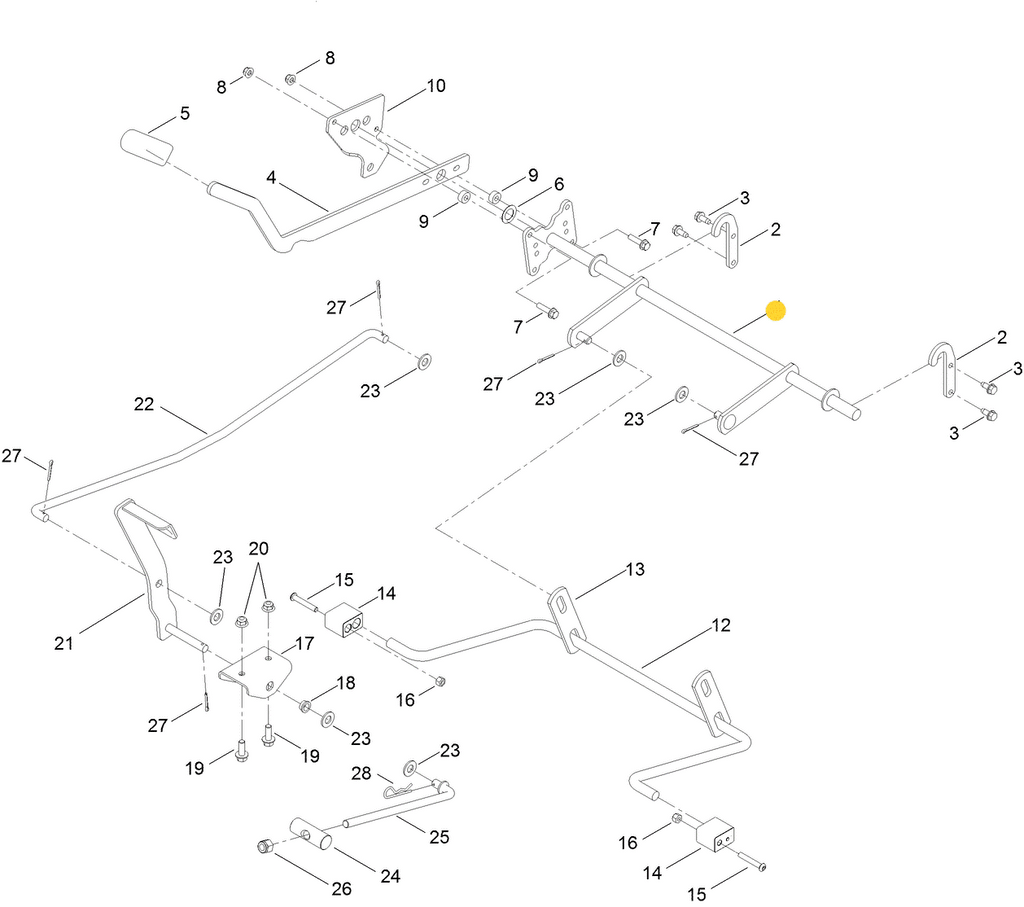

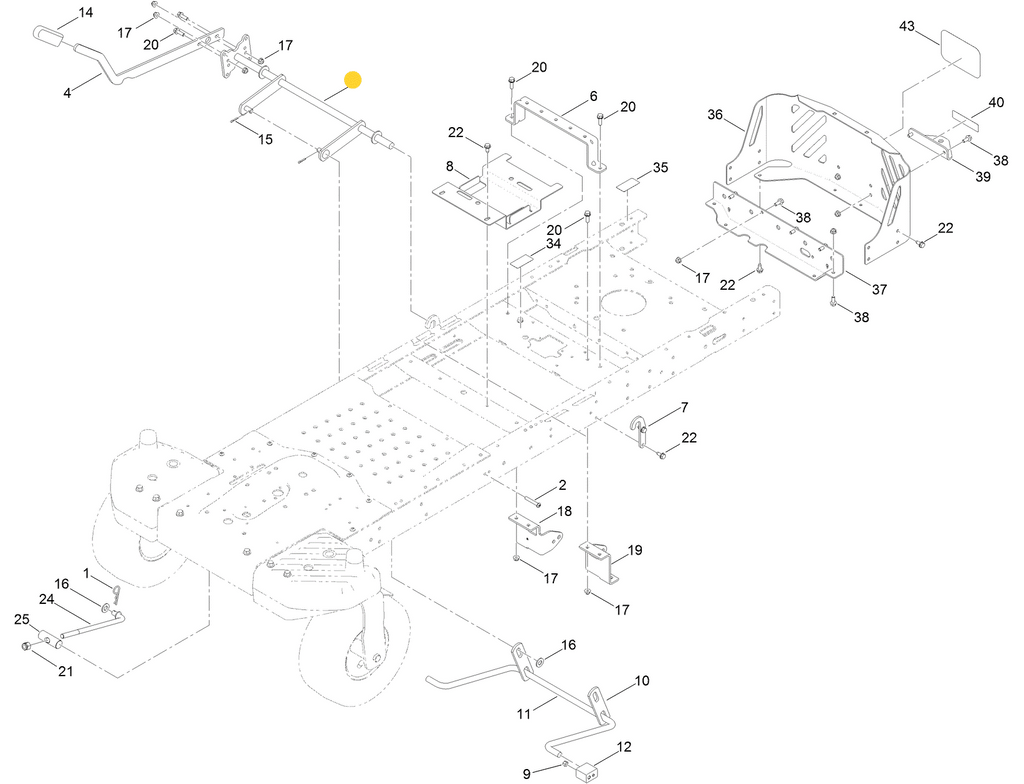

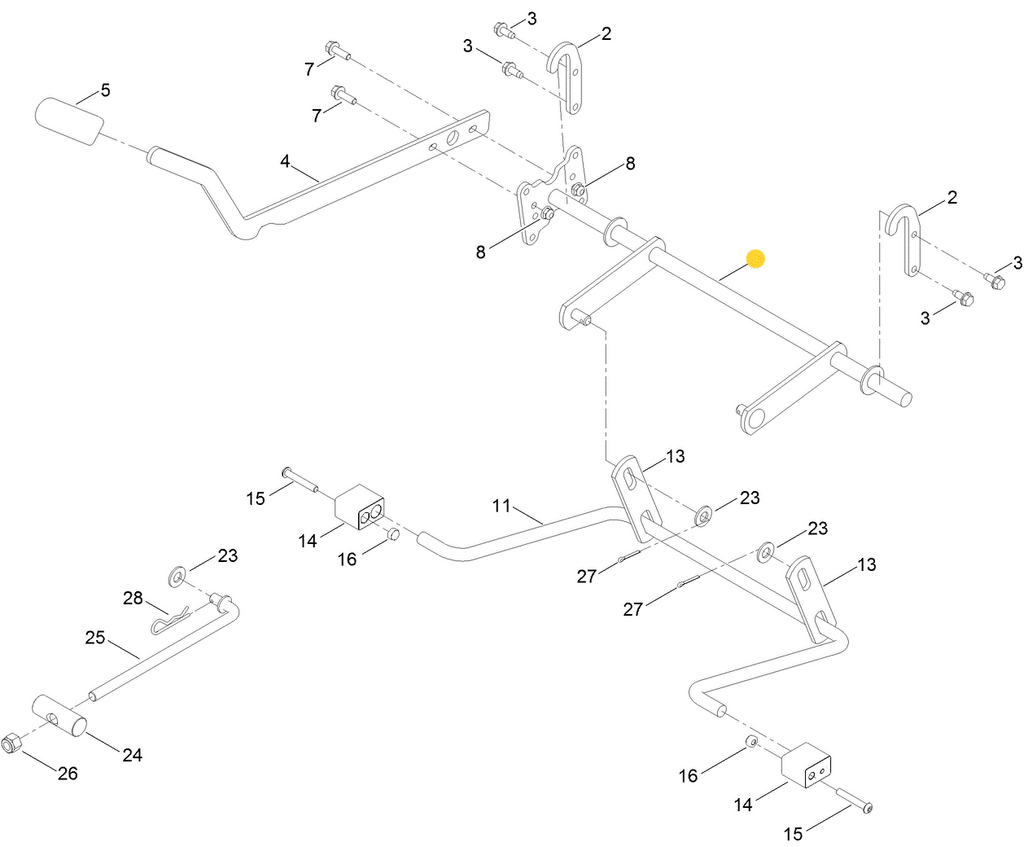

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 132-6872-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-7233 - LIFT BRACKETS - (Retains Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Lift/Leverage Arm
2. 32144-70 - WASHER HEAD BOLT - (Retains Mower Deck Lift/Leverage Arm Retaining Lift Brackets) x2
3. 119-3427-03 - MOWER DECK LIFT HANDLE - (Fastens to Mower Deck Leverage Arm) x1 Per Unit
4. 3234-29 - FLANGE BOLTS - (Retains Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Handle
5. 104-8300 - FLANGE LOCK NUT - (Retains Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Handle
6. 138-7235 - MOWER DECK LIFT LINK - (Links the Mower Deck Lift/Leverage Arm to the Mower Deck Lift Arm) x2 Per Mower Deck Lift/Leverage Arm
7. 139-2611 - FLAT WASHER - (Supports Cotter Pin Fastener - Lift Link to Mower Deck Lift/Leverage Arm) x2 Per Lift Link
8. 139-2614 - COTTER PIN - (Retains Lift Linkage - Lift Link/Mower Deck Lift?Leverage Arm) x2 Per Lift Link





NOTE: Refer to Chart Below for Models with Foot Pedal Assist Part Differentials and Foot Pedal Parts Group - for Mower Deck Lift Handle and Foot-Pedal Assist Combo Part References.













Specification

Product Number:	117734603, 132687203
Brand:	Toro
Length:	25.000 IN (63.500 CM)
Width:	9.250 IN (23.495 CM)
Height:	4.000 IN (10.160 CM)
Weight:	5.512 LB (2.500 KG)





Model Fit:



TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650

TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710

TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781



TIMECUTTER 34” MX Series – Model Numbers – 74750



TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74649, 74760, 74765, 74766

TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686

TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726

TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788

TIMECUTTER 42” SWX Series – Model Numbers – 74787
