Description

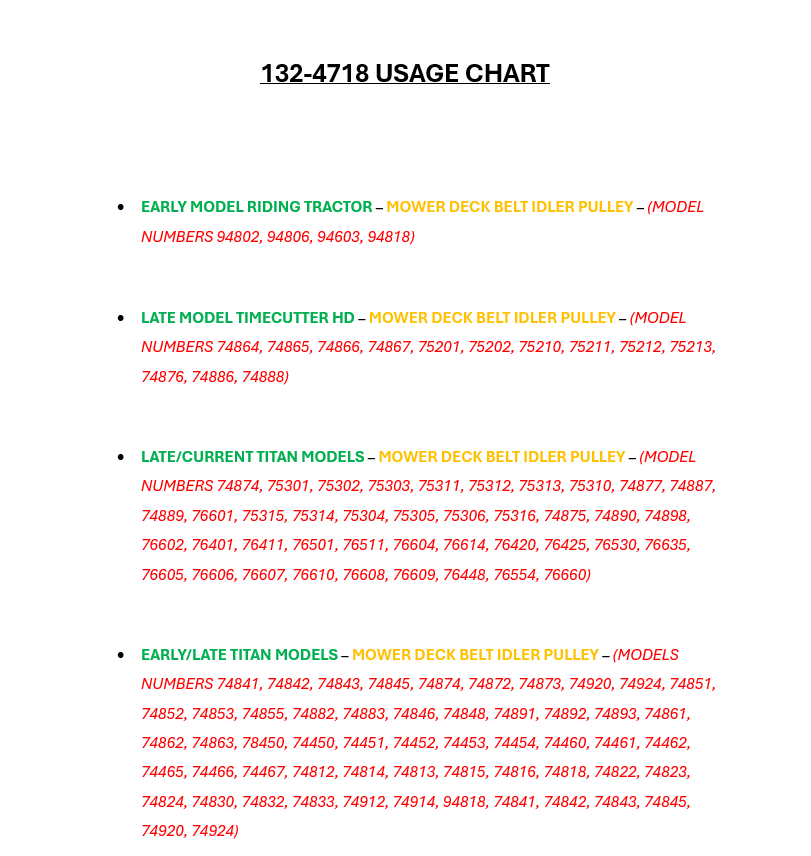

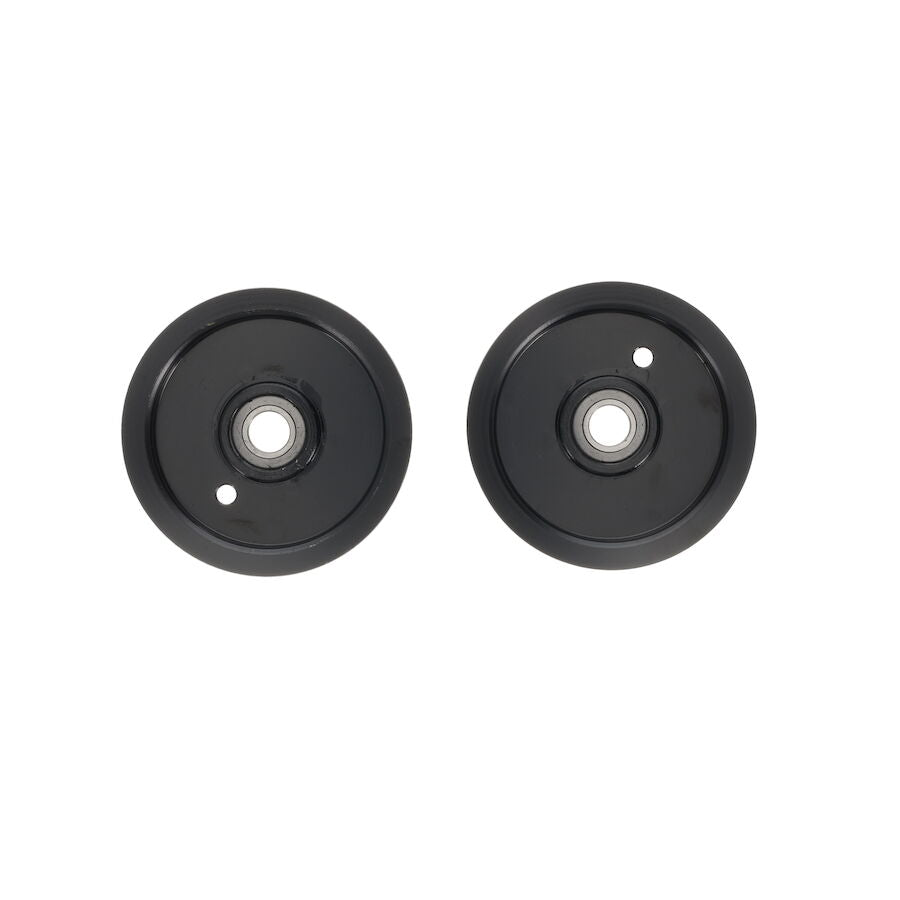

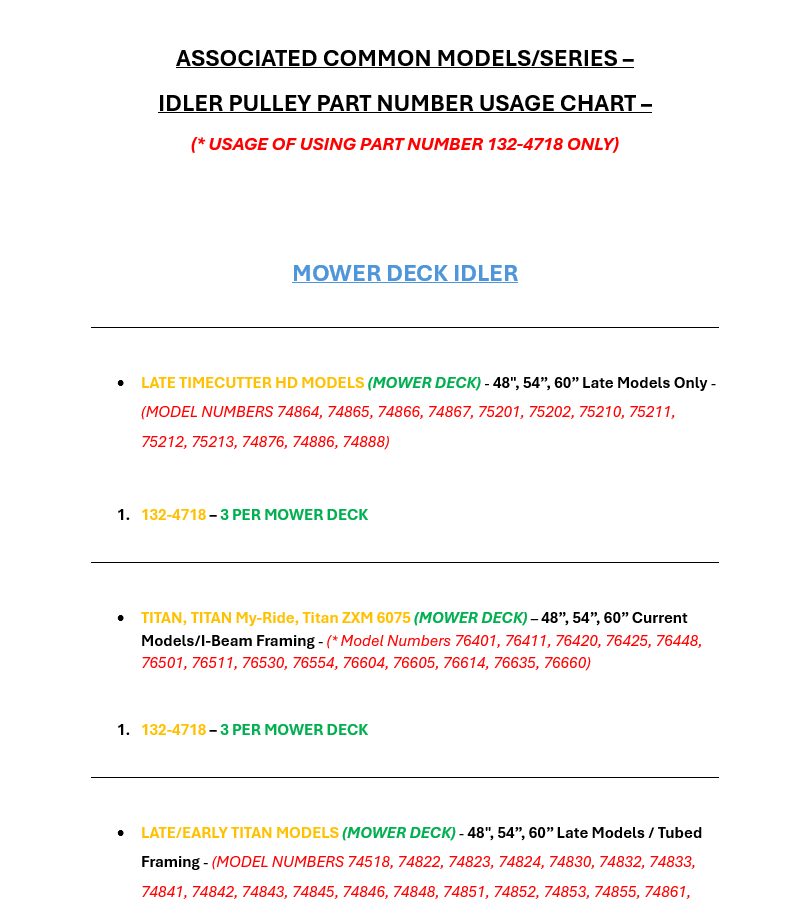

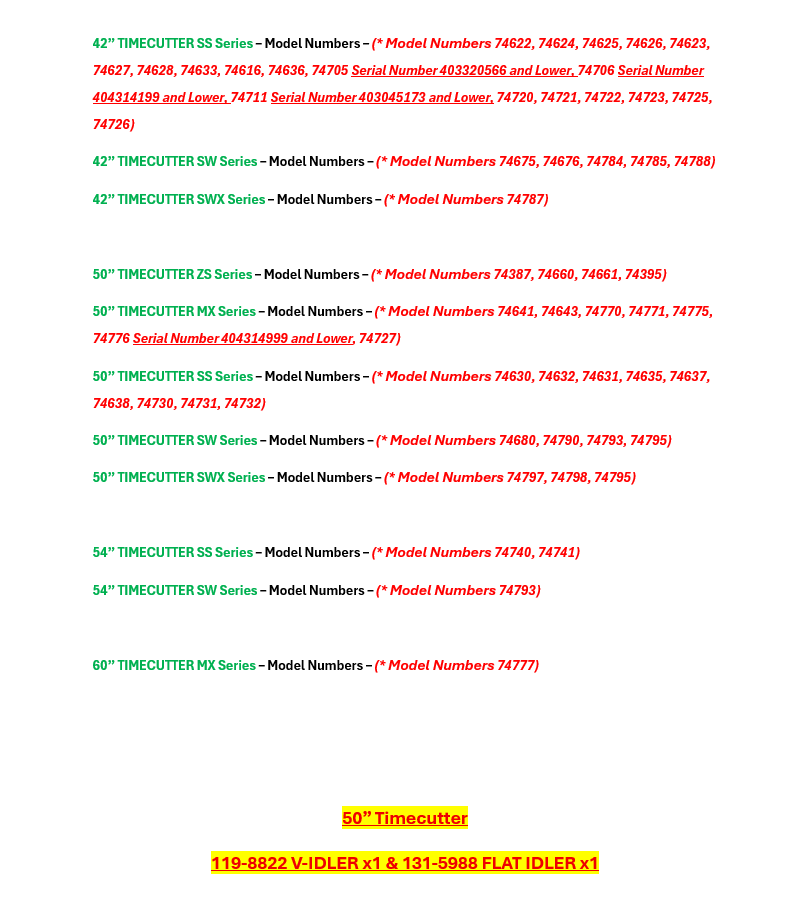

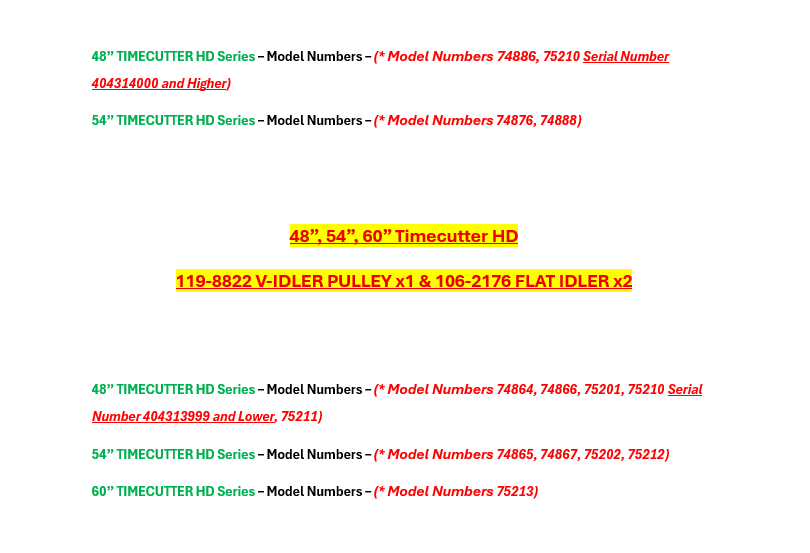

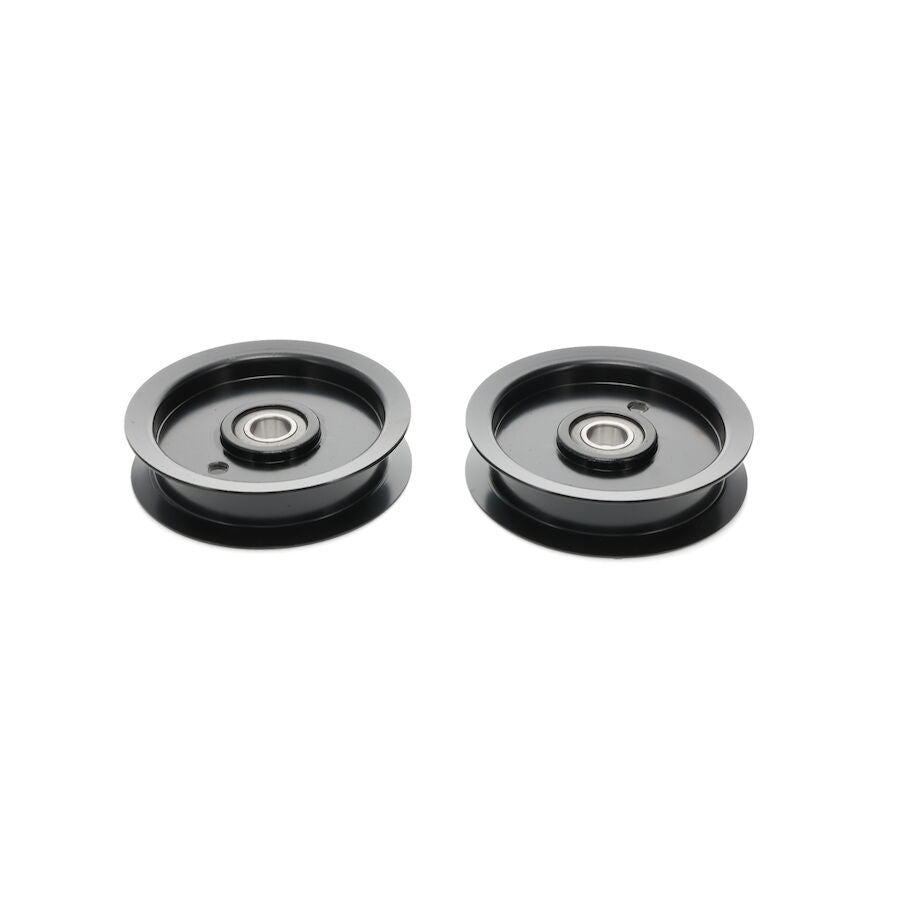

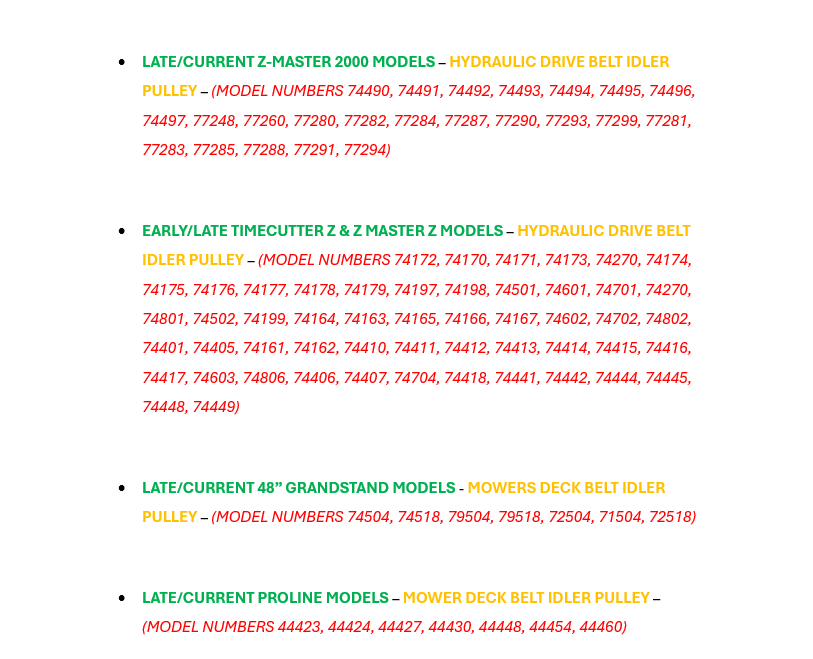

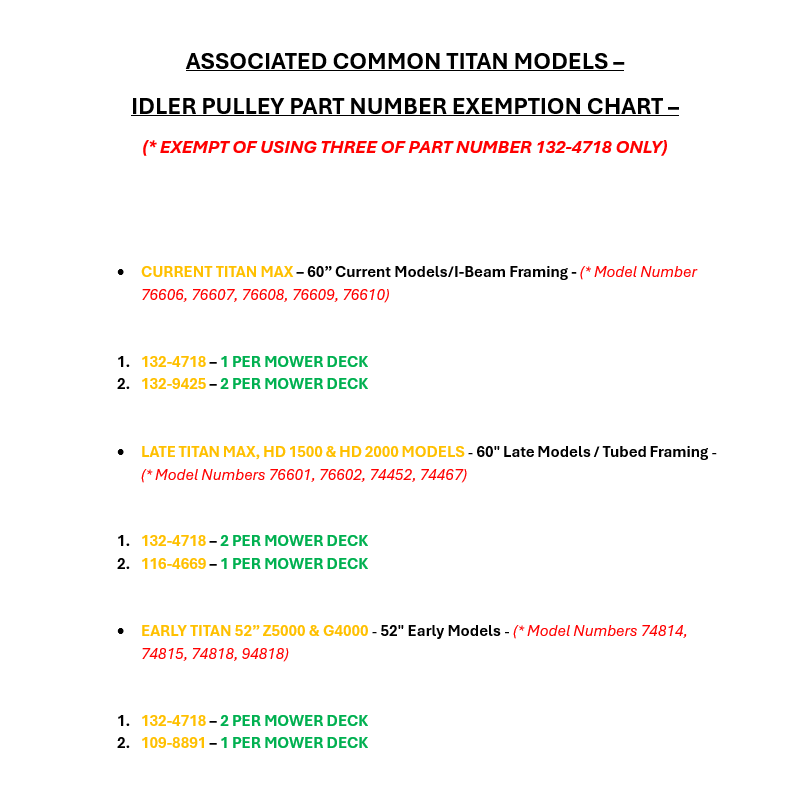

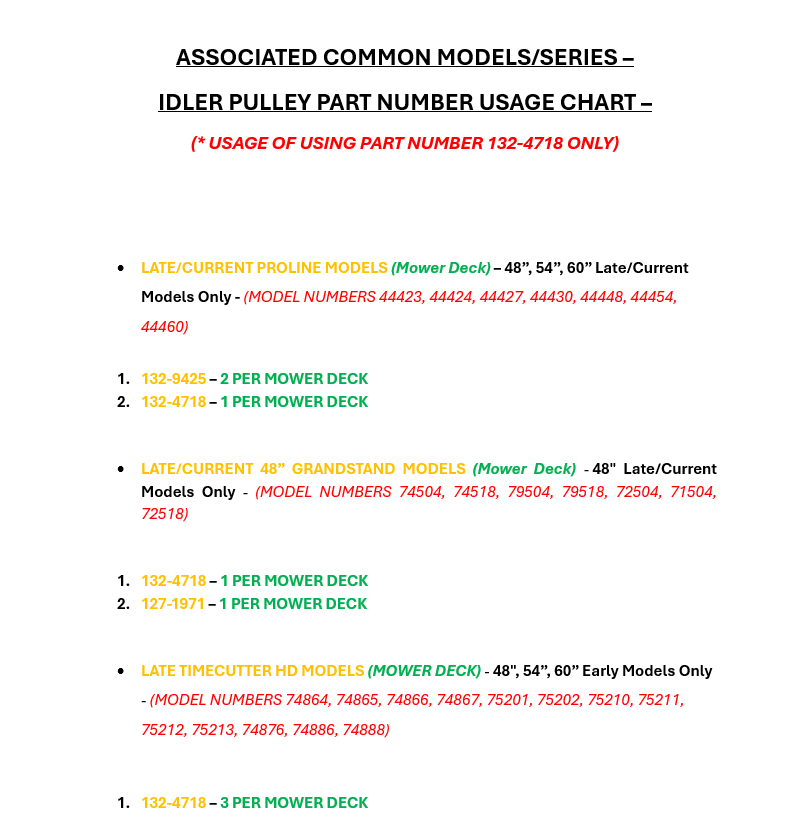

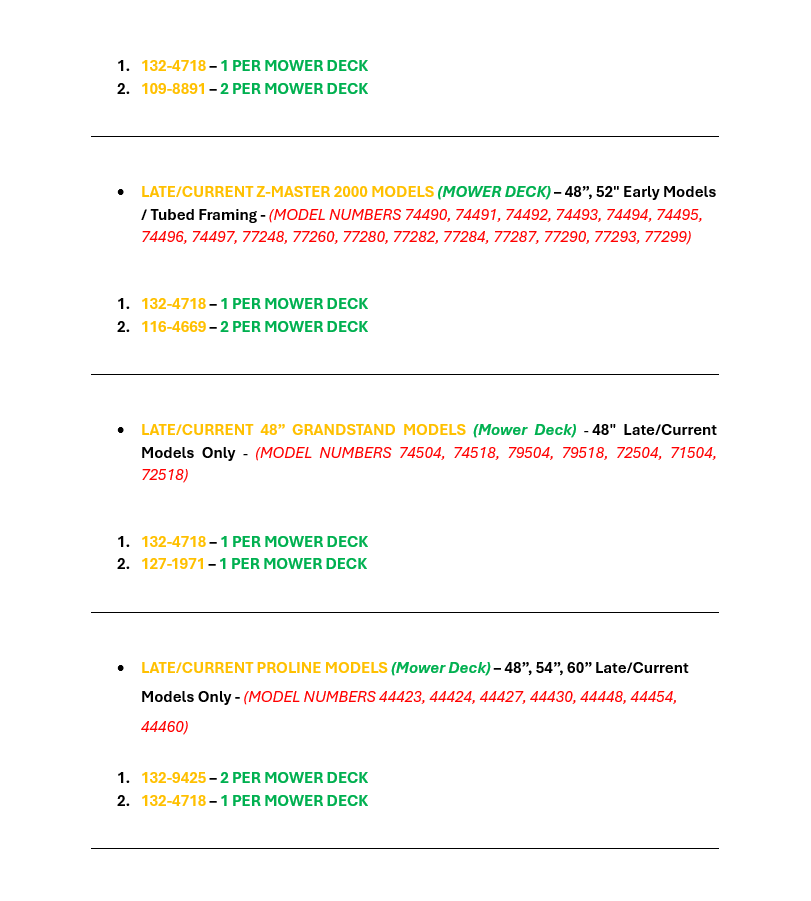

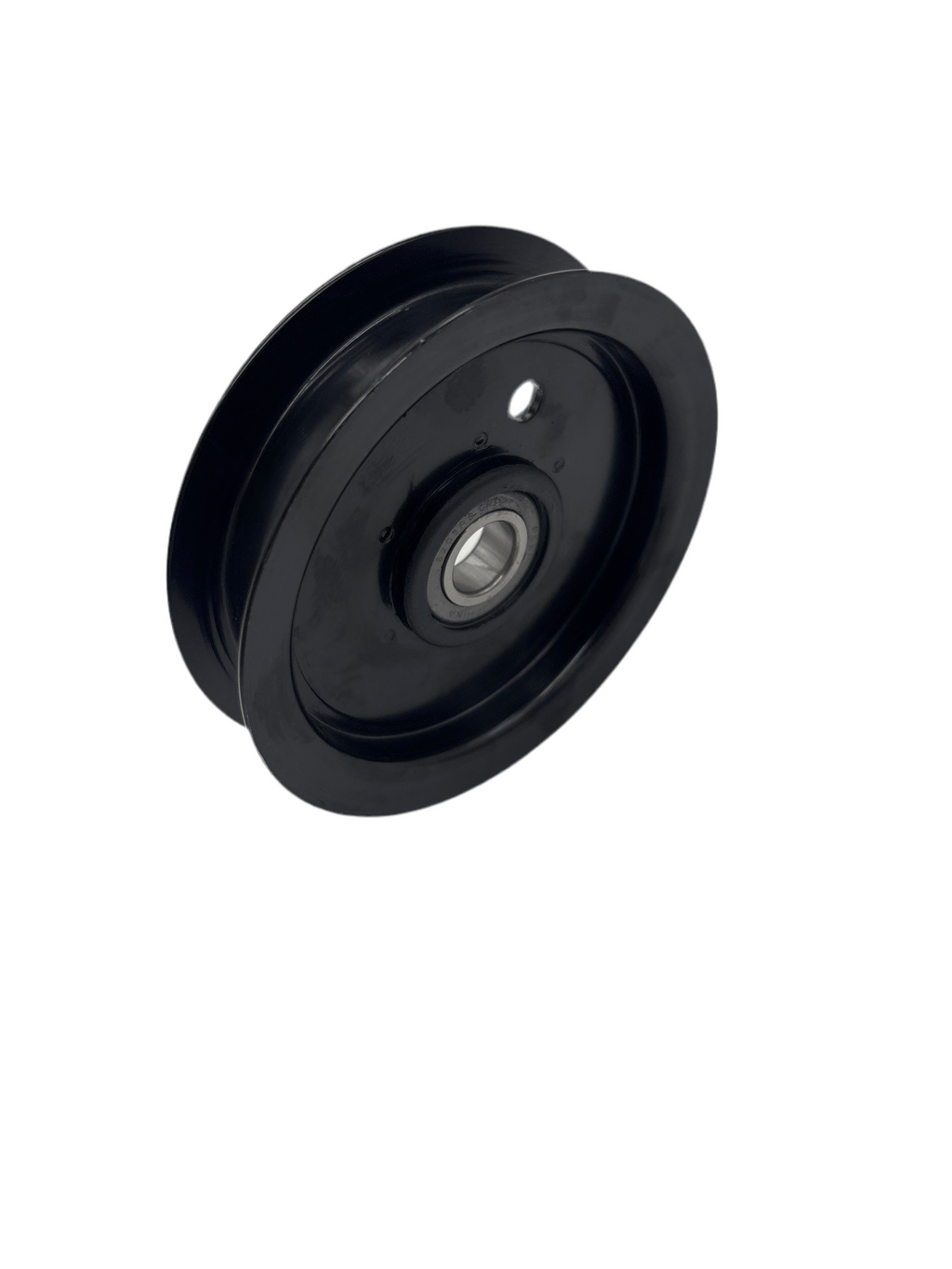

The Toro 132 4718 (Engineered to fit Heavy-Duty Metal Flat Idler) is constructed using durable steel alloy and high-quality ball bearings. This exceptional design enables the idler to endure long hours of operation in hot and dirty conditions without compromising its high-performance capabilities. The Toro 132 4718 OEM Mower Deck Flat Idler is specifically designed to fit the Toro 48", 54", 60" Late Timecutter HD Models (Mower Deck) - Early Timcutter ZX Models (Hydraulic Drive) Late/Current 48", 54", 60" TITAN, TITAN MAX Models (* Mower Deck - Tube and I Beam Framing Models - With Exception of the Titan MAX Model 76606) Late/Current 48", 54", 60" PROLINE Models (Mower Deck) - Late/Current 48" Grandstand Models (Mower Deck) - Late/Current Z Master 2000 Models (Mower Deck or Hydraulic Drive Depending on Model) - Early Z Master Z Models (Hydraulic Drive) - and More... Idler Pulley 132-4718 is Used as Hydrostatic Drive Idler on some Models and on the Mower Deck on other Models, Therefore Refer to the 132-4718 Usage Chart Below and Model Fit Guide for Additional Model Information and the Correct Idler Pulleys Usages. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions. Part Number 132-7543, 116-3626, E603843 and 1-603843 Supersedes to Part Number 132-4718.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.
Specification
|
Product Number: |
1327543, 1163626, E603843, 1603843, 1324718 |
|
Brand: |
Toro |
|

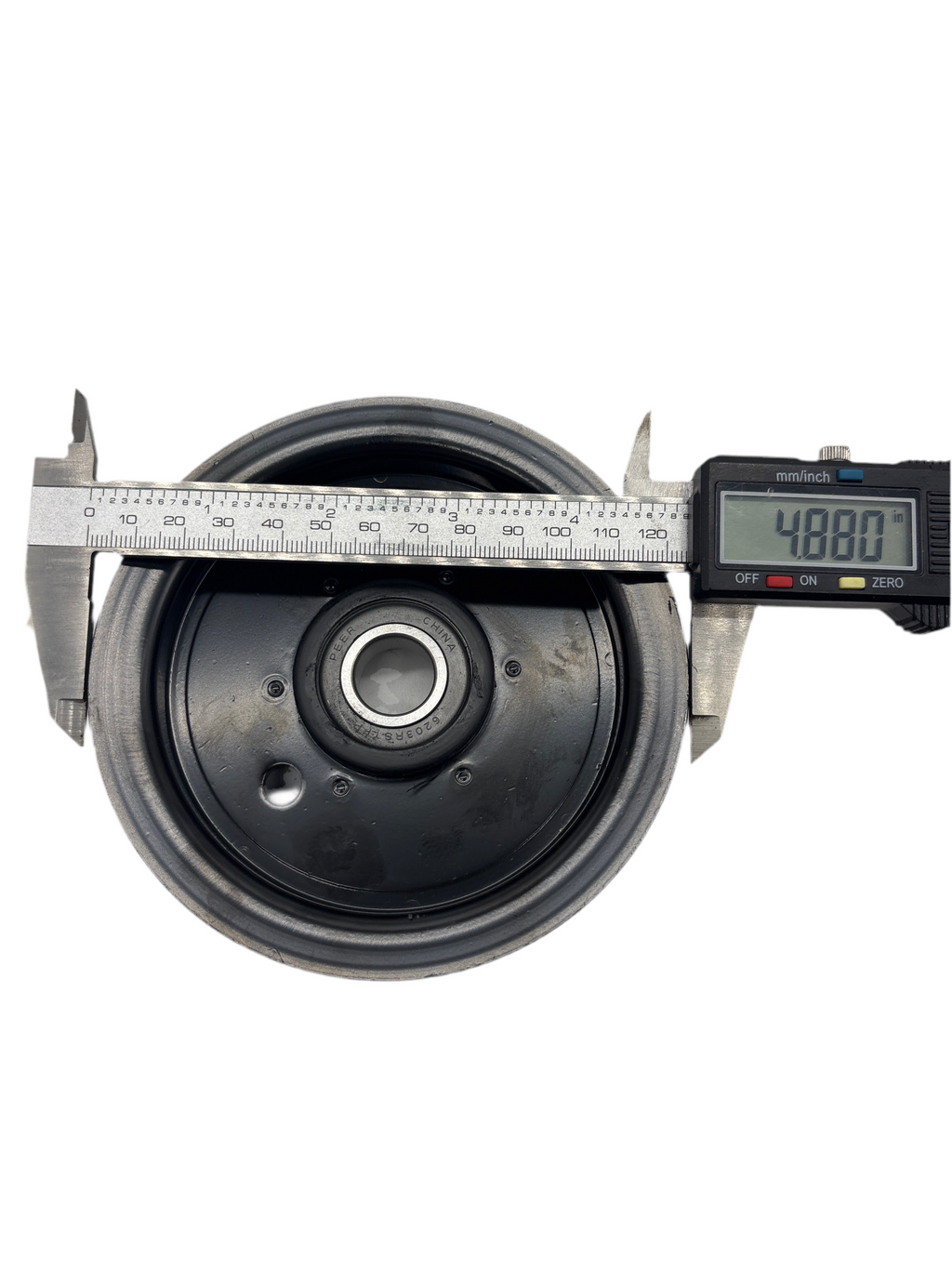

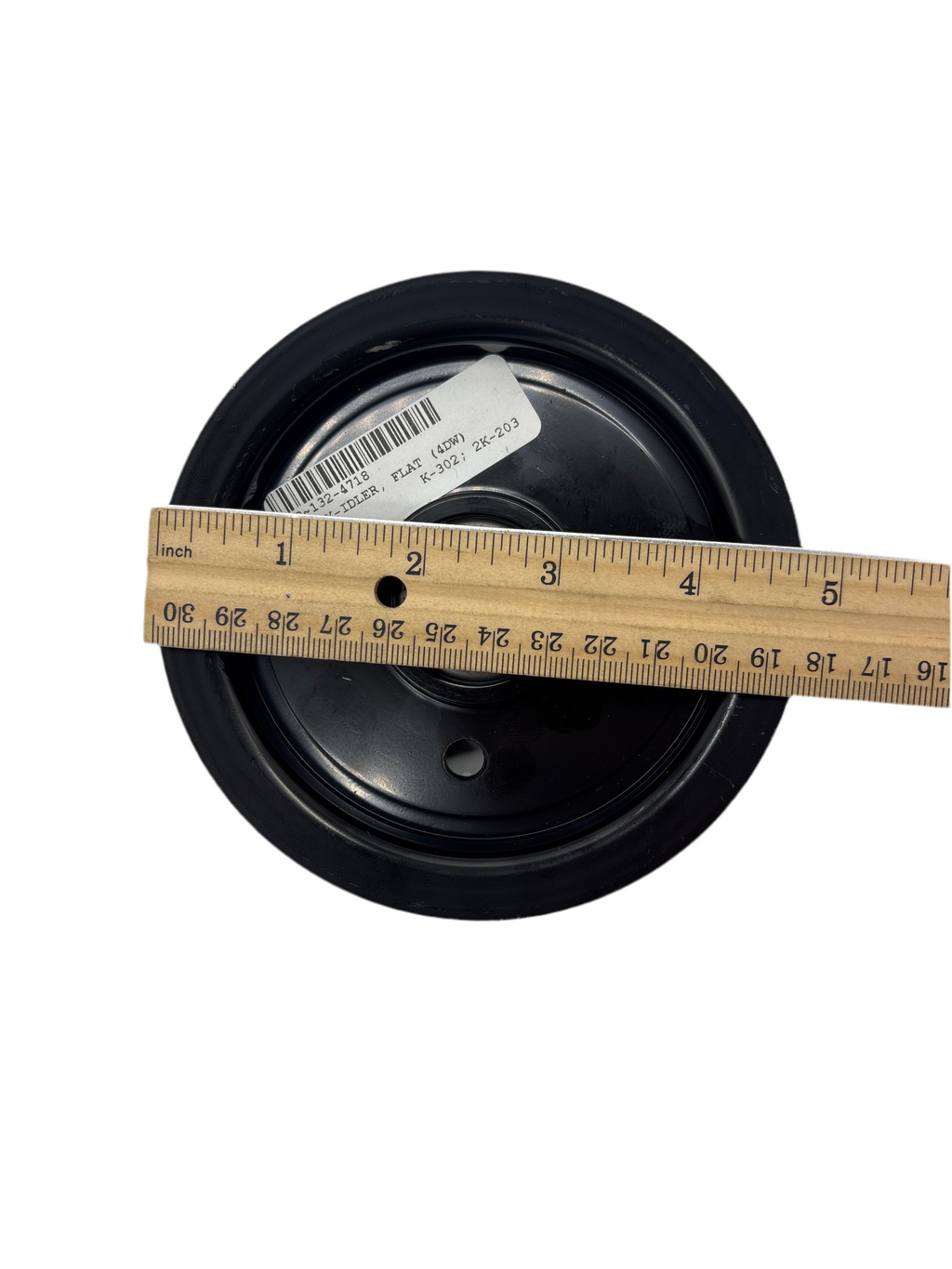

Length: |

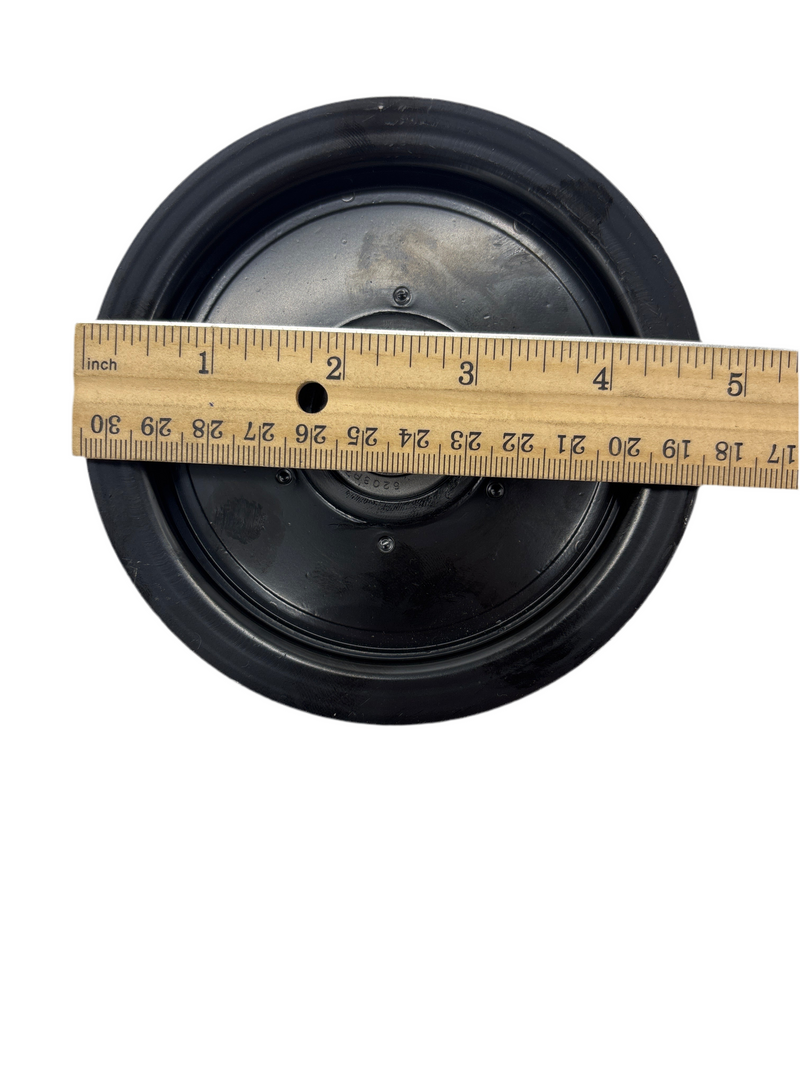

4.875 IN (12.383 CM) |
|
Width: |
4.875 IN (12.383 CM) |
|

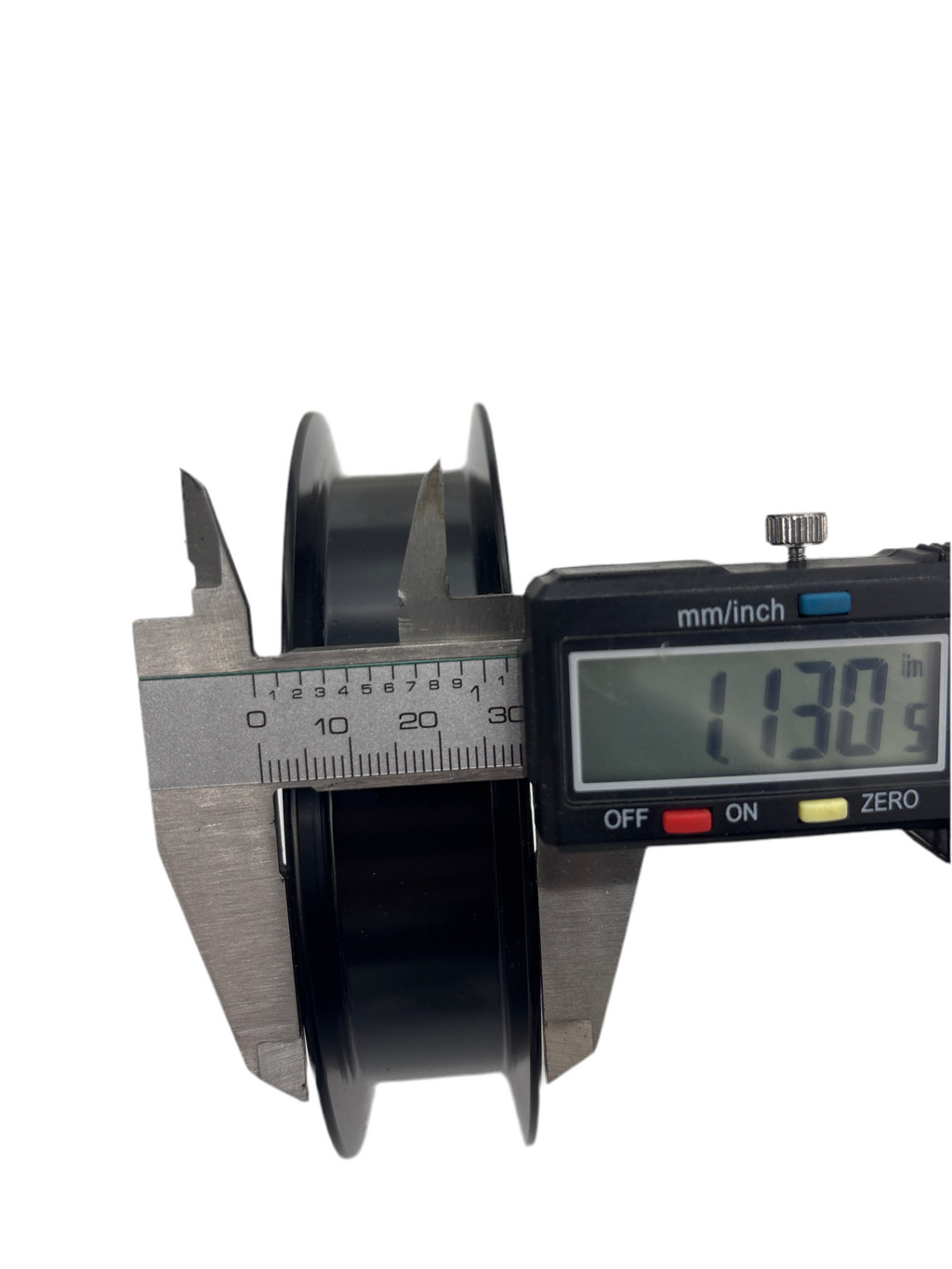

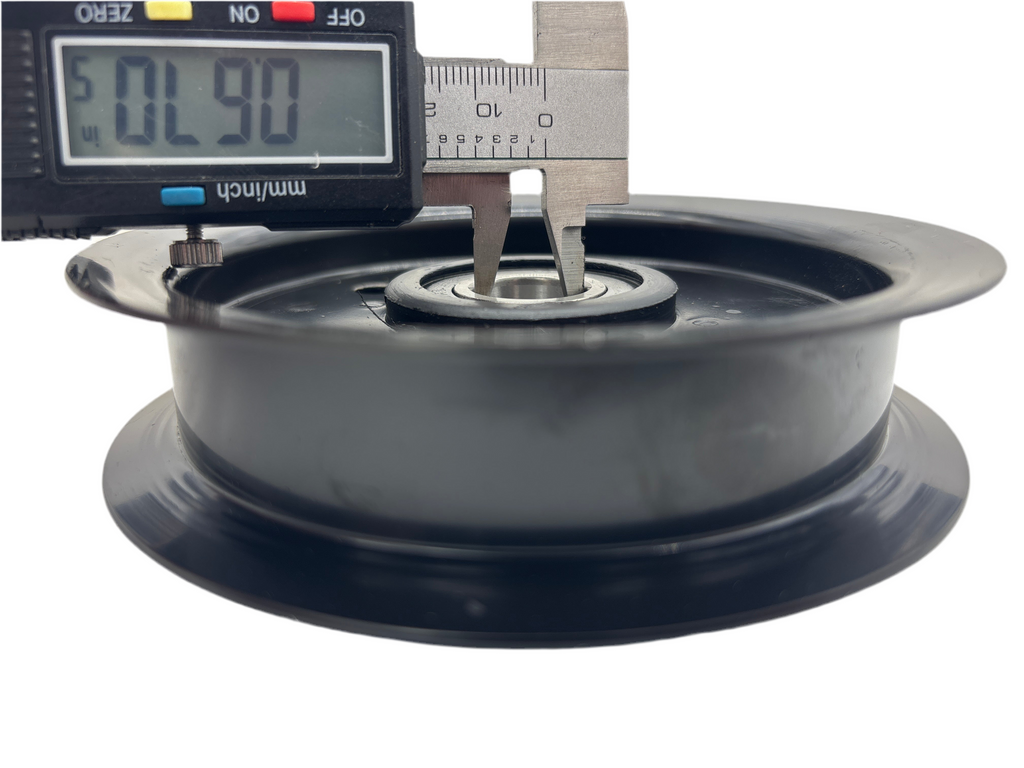

Height: |
1.250 IN (3.175 CM) |
|
Weight: |
1.236 LB (0.561 KG) |
Model Fit:

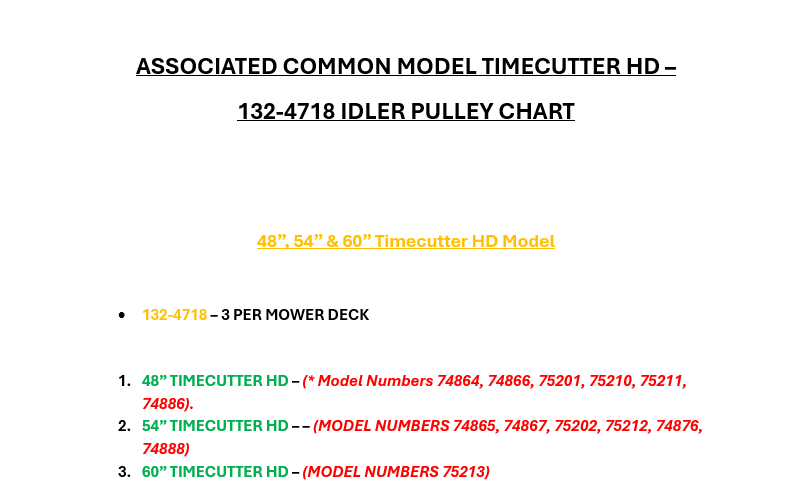

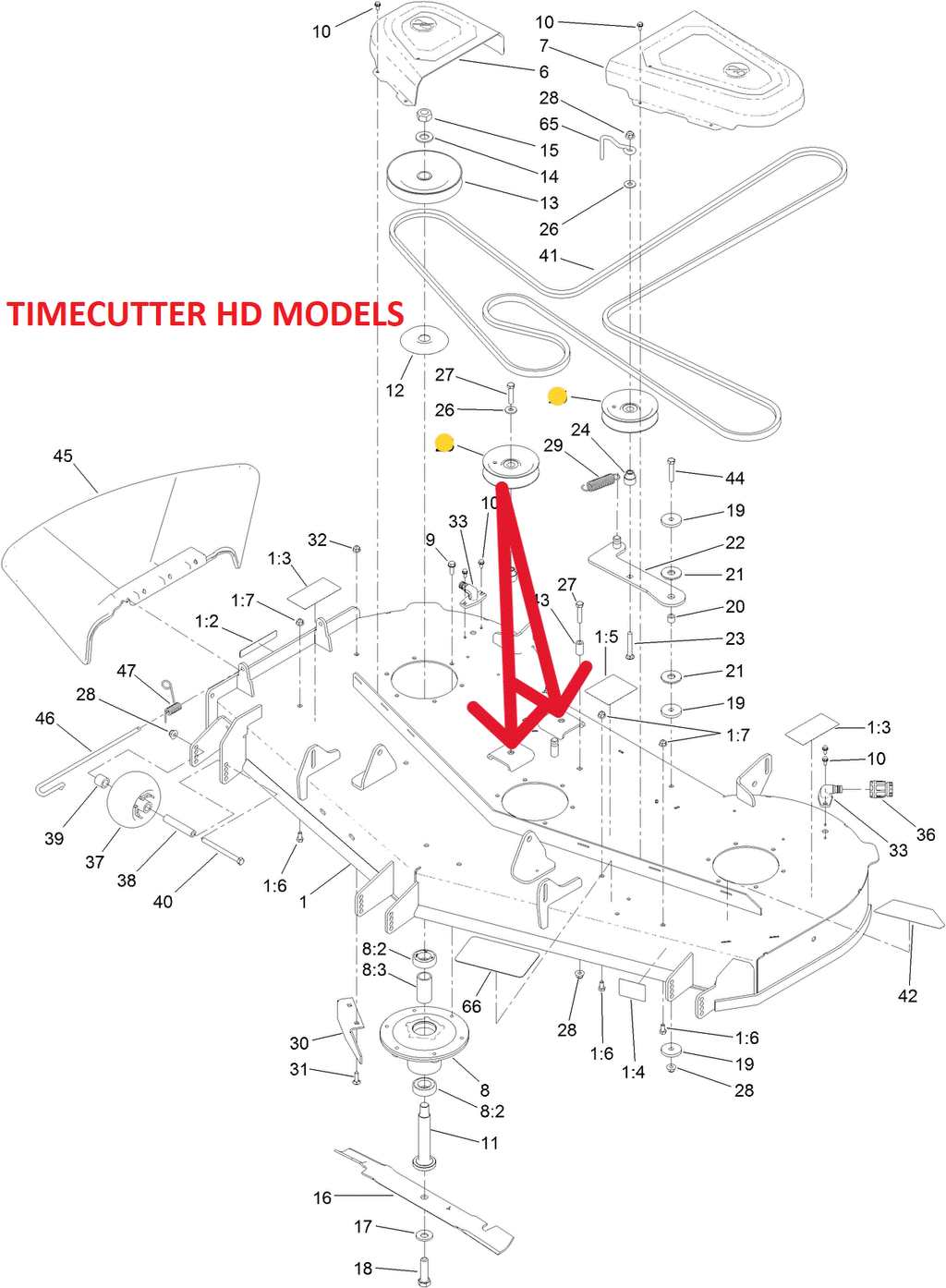

· LATE TIMECUTTER HD MODELS (MOWER DECK) - 48", 54”, 60” Late Models Only - (MODEL NUMBERS 74864, 74865, 74866, 74867, 75201, 75202, 75210, 75211, 75212, 75213, 74876, 74886, 74888)

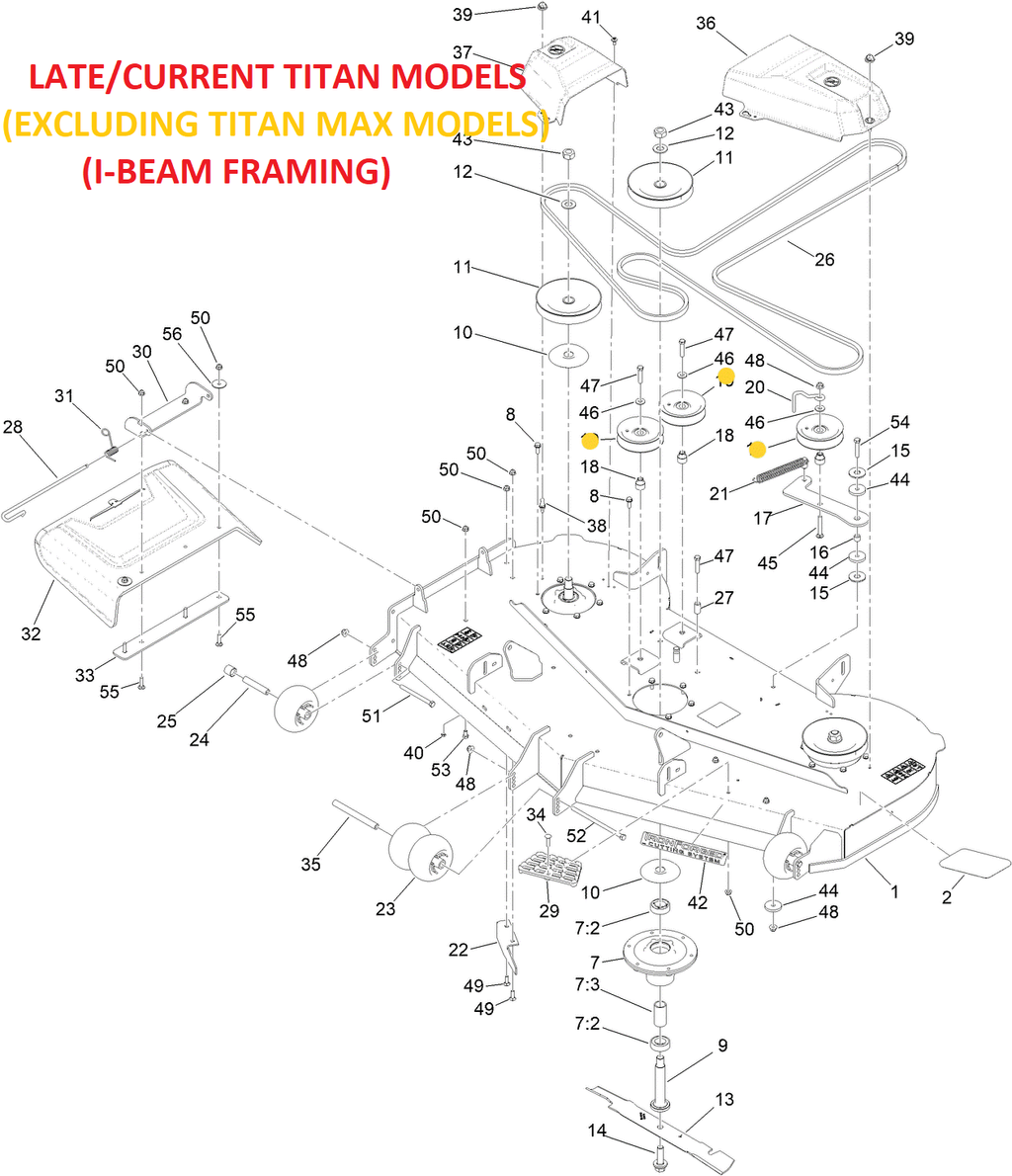

TITAN, TITAN My-Ride, Titan ZXM 6075 (MOWER DECK) – 48”, 54”, 60” Current Models/I-Beam Framing - (* Model Numbers 76401, 76411, 76420, 76425, 76448, 76501, 76511, 76530, 76554, 76604, 76605, 76614, 76635, 76660)
· LATE/EARLY TITAN MODELS (MOWER DECK) - 48", 54”, 60” Late Models / Tubed Framing - (MODEL NUMBERS 74518, 74822, 74823, 74824, 74830, 74832, 74833, 74841, 74842, 74843, 74845, 74846, 74848, 74851, 74852, 74853, 74855, 74861, 74862, 74863, 74871, 74872, 74873, 74874, 74877, 74875, 74876, 74882, 74883, 74886, 74887, 74888, 74889, 74890, 74891, 74892, 74893, 74898, 74912, 74914, 74920, 74924, 75301, 75302, 75303, 75304, 75305, 75306, 75311,75310, 75312, 75313 75314, 75315, 75316)

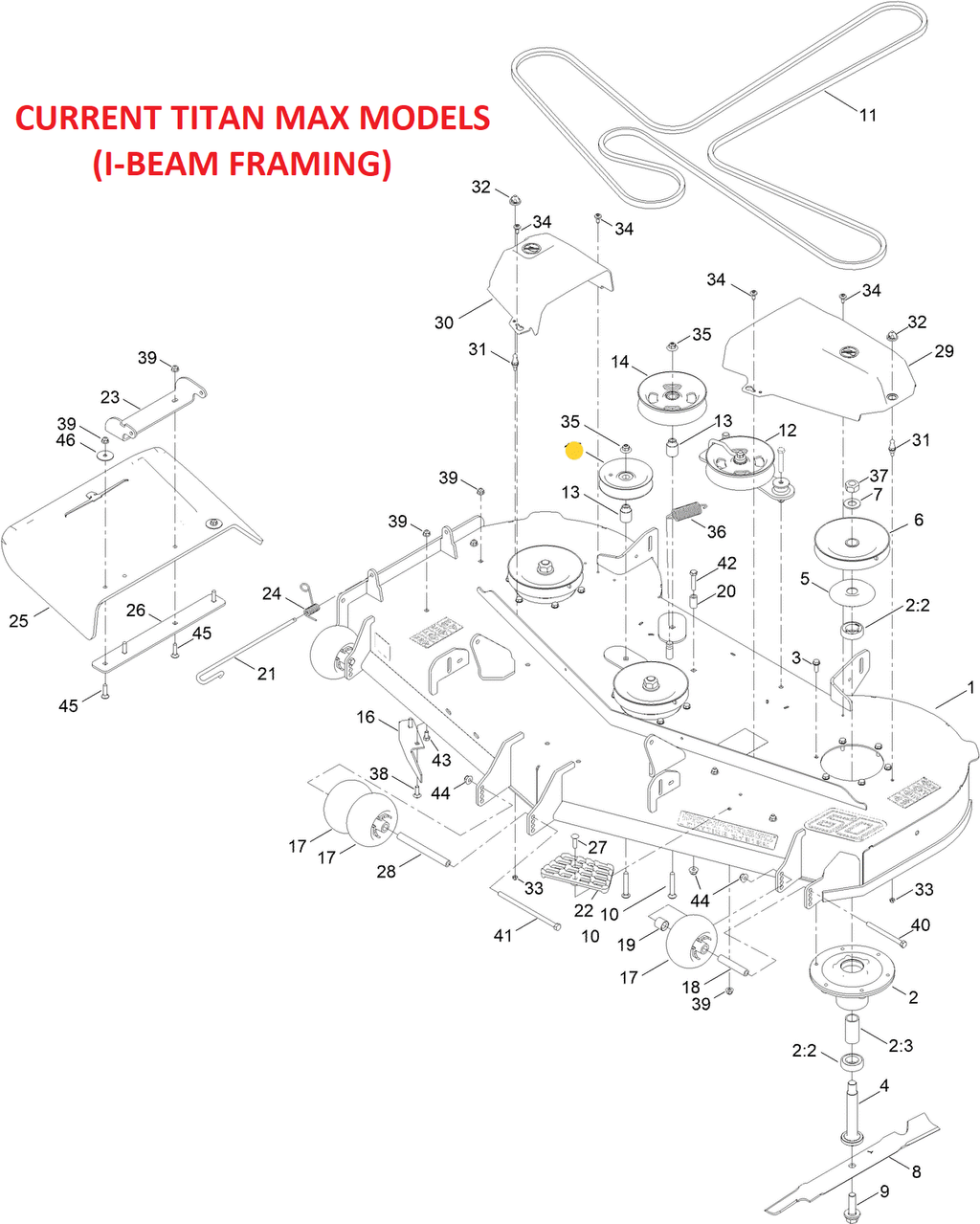

· CURRENT TITAN MAX (MOWER DECK) – 60” Current Models/I-Beam Framing - (* Model Number 76606, 76607, 76608, 76609, 76610)

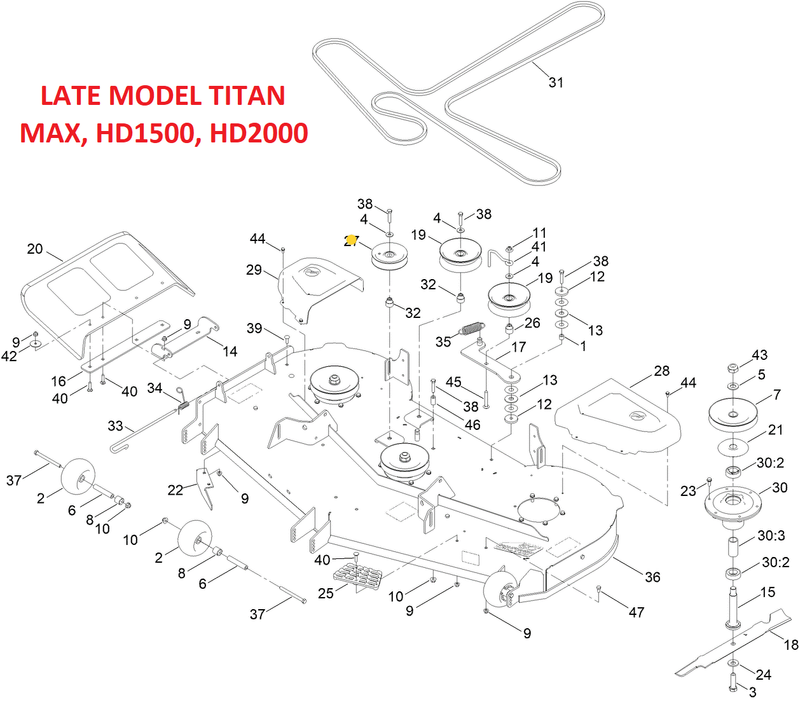

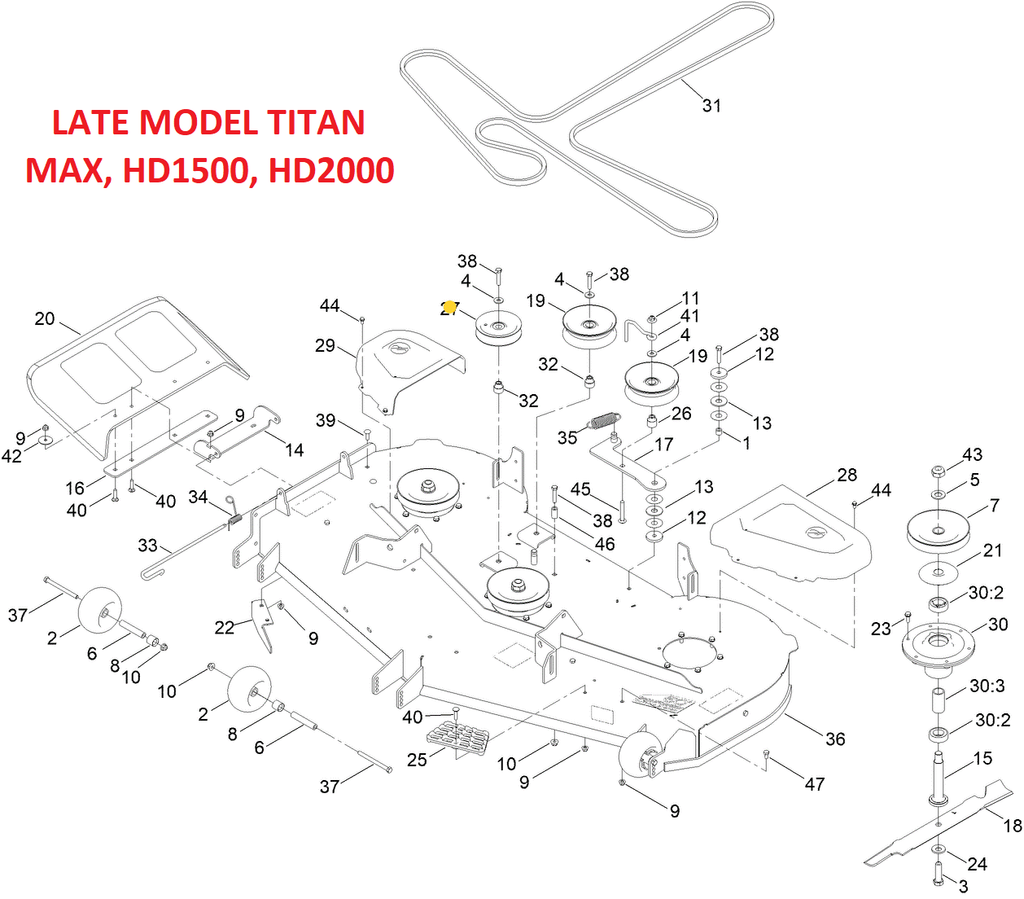

· LATE TITAN MAX, HD 1500 & HD 2000 MODELS (MOWER DECK) - 48" Late Models / Tubed Framing - (* Model Numbers 74450, 74453, 74460, 74465, 78450,)
· LATE TITAN MAX, HD 1500 & HD 2000 MODELS (MOWER DECK) - 52" Late Models / Tubed Framing - (* Model Numbers 74451, 74454, 74461, 74466)
· LATE TITAN MAX, HD 1500 & HD 2000 MODELS (MOWER DECK) - 60" Late Models / Tubed Framing - (* Model Numbers 76601, 76602, 74452, 74462, 74467)
EARLY TITAN 48”, 52” Z5000 & G4000 (MOWER DECK) – 48”, 52" Early Models / Tubed Framing - (* Model Numbers 74812, 74813, 74814, 74815, 74816, 74818, 94818, 725058076)
· LATE/CURRENT Z-MASTER 2000 MODELS (MOWER DECK) – 48”, 52" Early Models / Tubed Framing - (MODEL NUMBERS 74490, 74491, 74492, 74493, 74494, 74495, 74496, 74497, 77248, 77260, 77280, 77282, 77284, 77287, 77290, 77293, 77299)

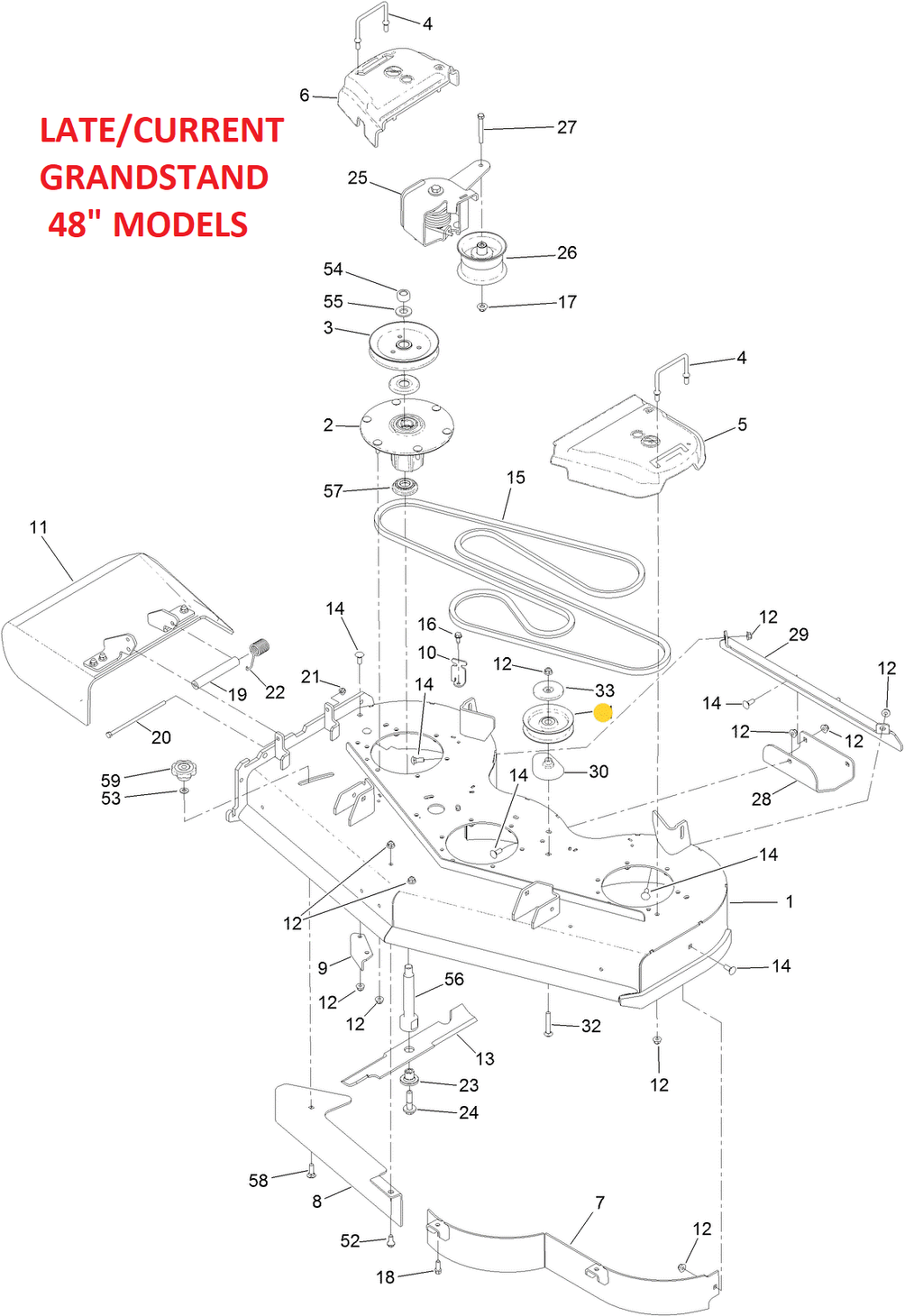

· LATE/CURRENT 48” GRANDSTAND MODELS (Mower Deck) - 48" Late/Current Models Only - (MODEL NUMBERS 74504, 74518, 79504, 79518, 72504, 71504, 72518)

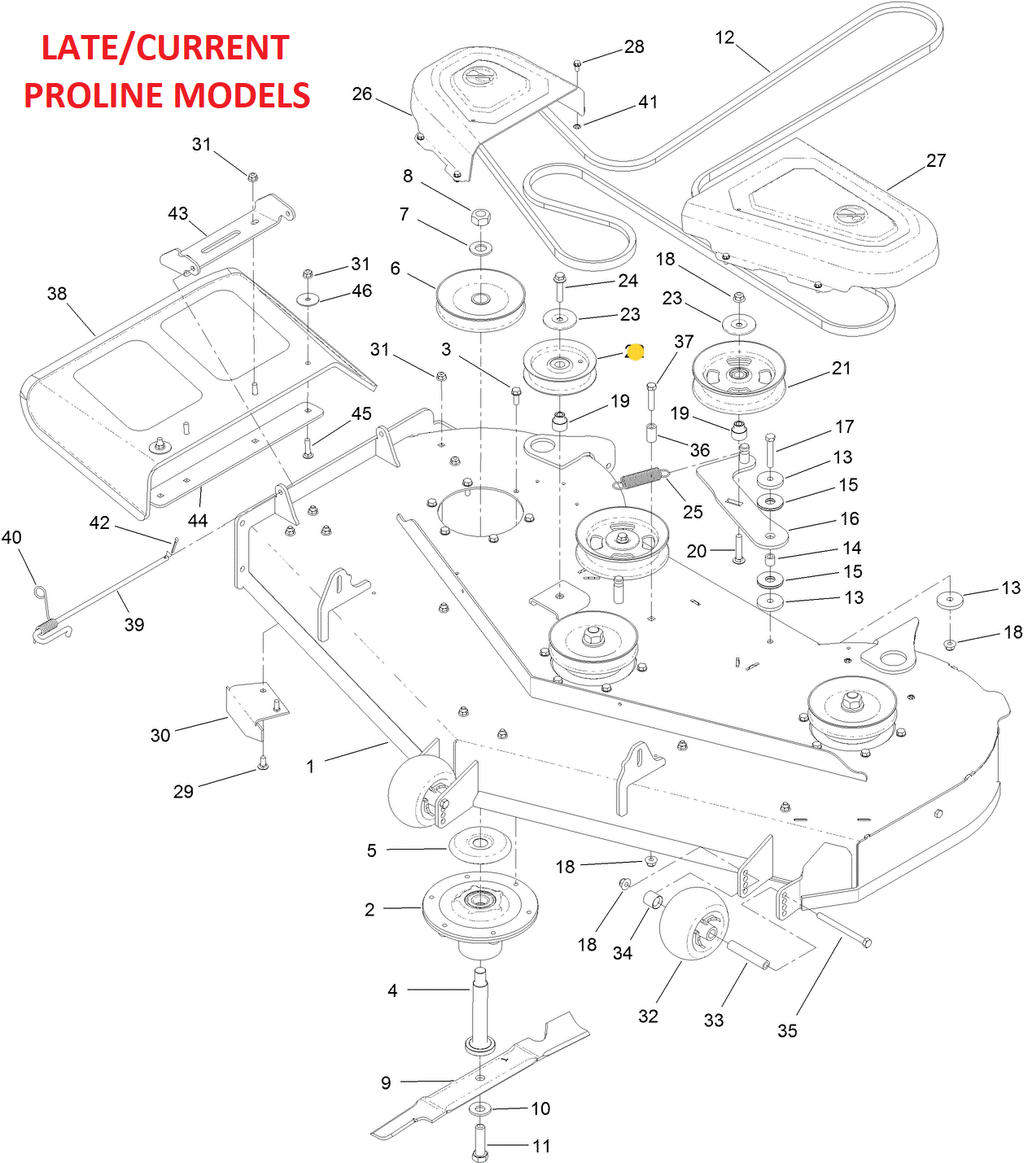

· LATE/CURRENT PROLINE MODELS (Mower Deck) – 48”, 54”, 60” Late/Current Models Only - (MODEL NUMBERS 44423, 44424, 44427, 44430, 44448, 44454, 44460)

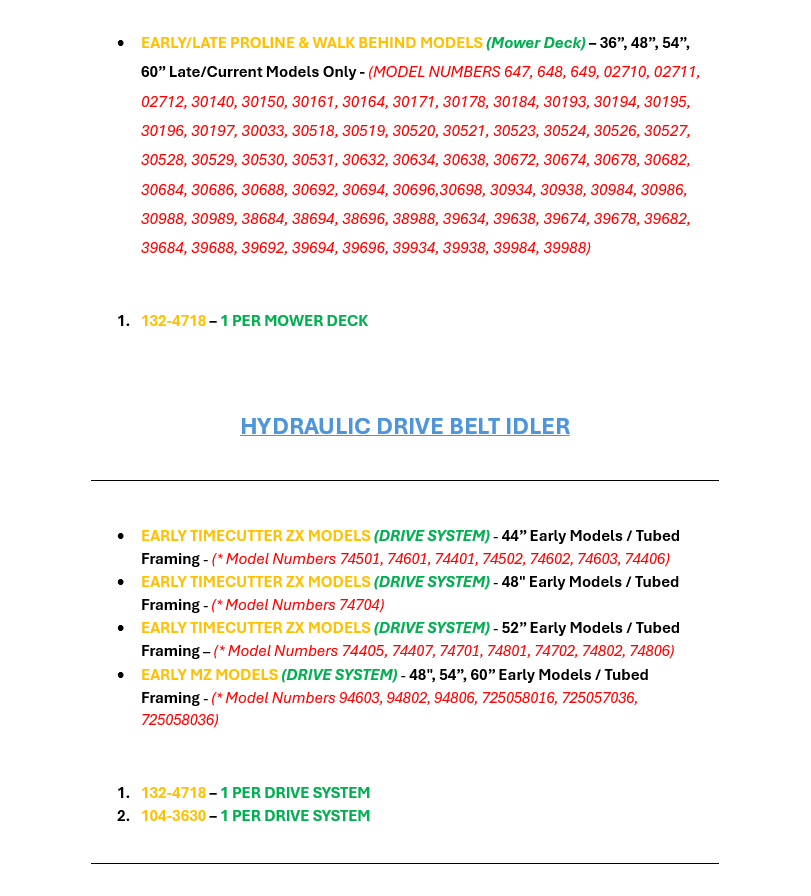

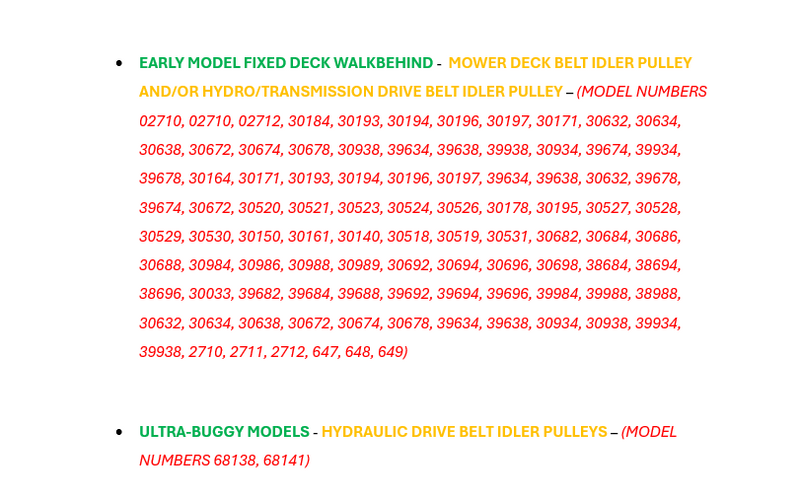

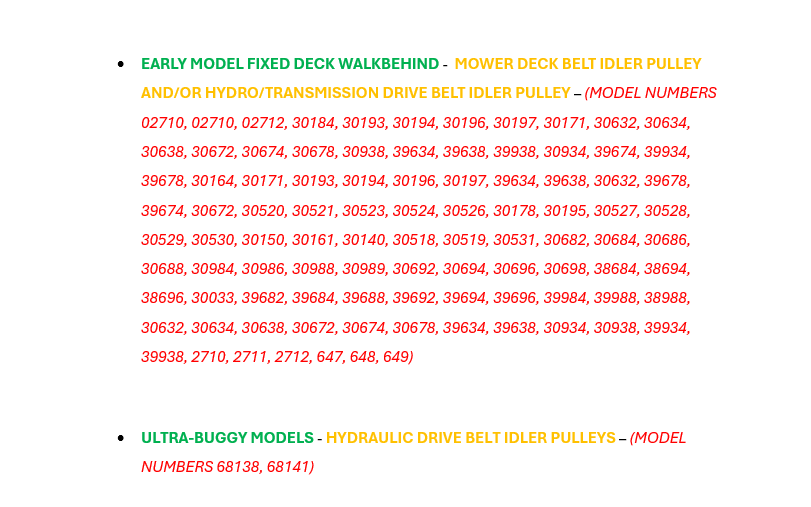

· EARLY/LATE PROLINE & WALK BEHIND MODELS (Mower Deck) – 36”, 48”, 54”, 60” Late/Current Models Only - (MODEL NUMBERS 647, 648, 649, 02710, 02711, 02712, 30140, 30150, 30161, 30164, 30171, 30178, 30184, 30193, 30194, 30195, 30196, 30197, 30033, 30518, 30519, 30520, 30521, 30523, 30524, 30526, 30527, 30528, 30529, 30530, 30531, 30632, 30634, 30638, 30672, 30674, 30678, 30682, 30684, 30686, 30688, 30692, 30694, 30696,30698, 30934, 30938, 30984, 30986, 30988, 30989, 38684, 38694, 38696, 38988, 39634, 39638, 39674, 39678, 39682, 39684, 39688, 39692, 39694, 39696, 39934, 39938, 39984, 39988)
·
· EARLY TIMECUTTER ZX MODELS (DRIVE SYSTEM) - 44” Early Models / Tubed Framing - (* Model Numbers 74501, 74601, 74401, 74502, 74602, 74603, 74406)
· EARLY TIMECUTTER ZX MODELS (DRIVE SYSTEM) - 48" Early Models / Tubed Framing - (* Model Numbers 74704)
· EARLY TIMECUTTER ZX MODELS (DRIVE SYSTEM) - 52” Early Models / Tubed Framing – (* Model Numbers 74405, 74407, 74701, 74801, 74702, 74802, 74806)
· EARLY MZ MODELS (DRIVE SYSTEM) - 48", 54”, 60” Early Models / Tubed Framing - (* Model Numbers 94603, 94802, 94806, 725058016, 725057036, 725058036)

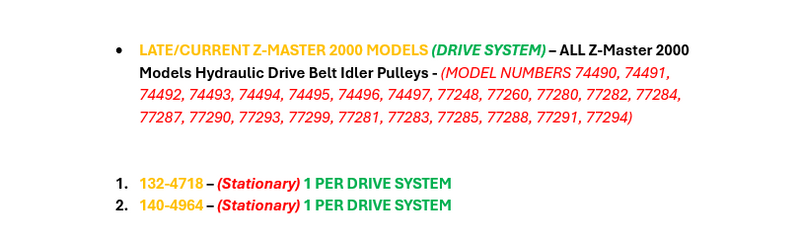

· LATE/CURRENT Z-MASTER 2000 MODELS (DRIVE SYSTEM) – 48", 54”, 60” Current Models / I-BEAM Framing - (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)
· EARLY/LATE Z-MASTER Z MODELS (DRIVE SYSTEM) – Early Models - (MODEL NUMBERS 74161, 74162, 74163, 74164, 74165, 74166, 74167, 74170, 74171, 74172, 74173, 74174, 74175, 74176, 74177, 74178, 74179, 74197, 74198, 74199, 74270, 74410, 74411, 74412, 74413, 74414, 74415, 74416, 74417, 74418, 74441, 74442, 74444, 74445, 74448, 74449)
· ULTRA-BUGGY MODELS (DRIVE SYSTEM) – (MODEL NUMBERS 68138, 68141)
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 132-4718 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT

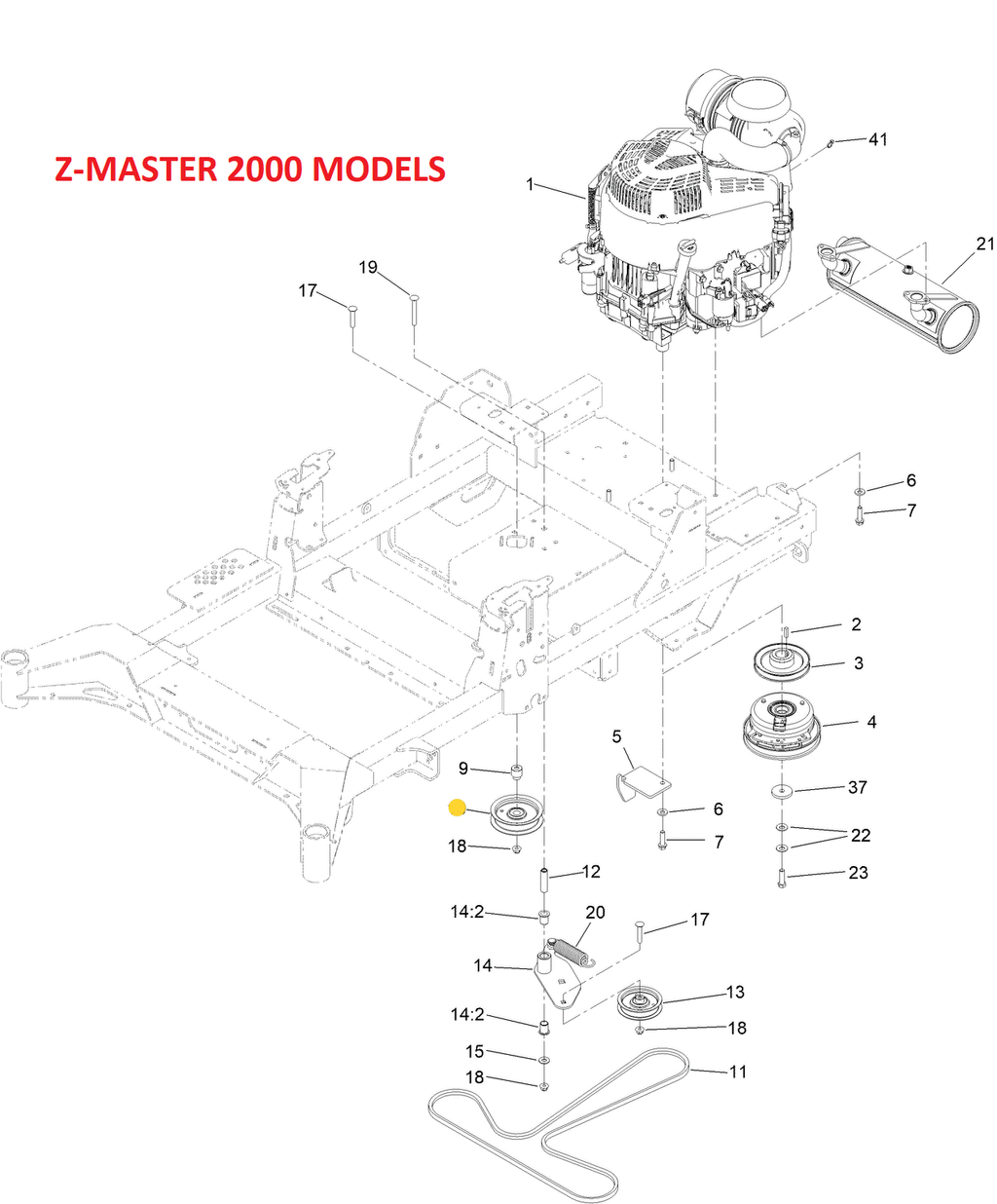

Z-MASTER 2000 (I-BEAM Framing) * Stationary Hydraulic Belt Idler Pulley Only
- 3231-42 - IDLER PULLEY CARRIAGE BOLT - (Retains Flat Idler/Idler Arm) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.
- 132-4718 - IDLER PULLEY SPACER - (Enables Hydraulic Flat Idler to be Tightened Within Correct Spacing from Mower Frame/Engine Platform) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.
- 104-8301 - IDLER PULLEY FLANGE NUT - (Retains Idler/Idler Arm) x1 Per Idler Pulley
