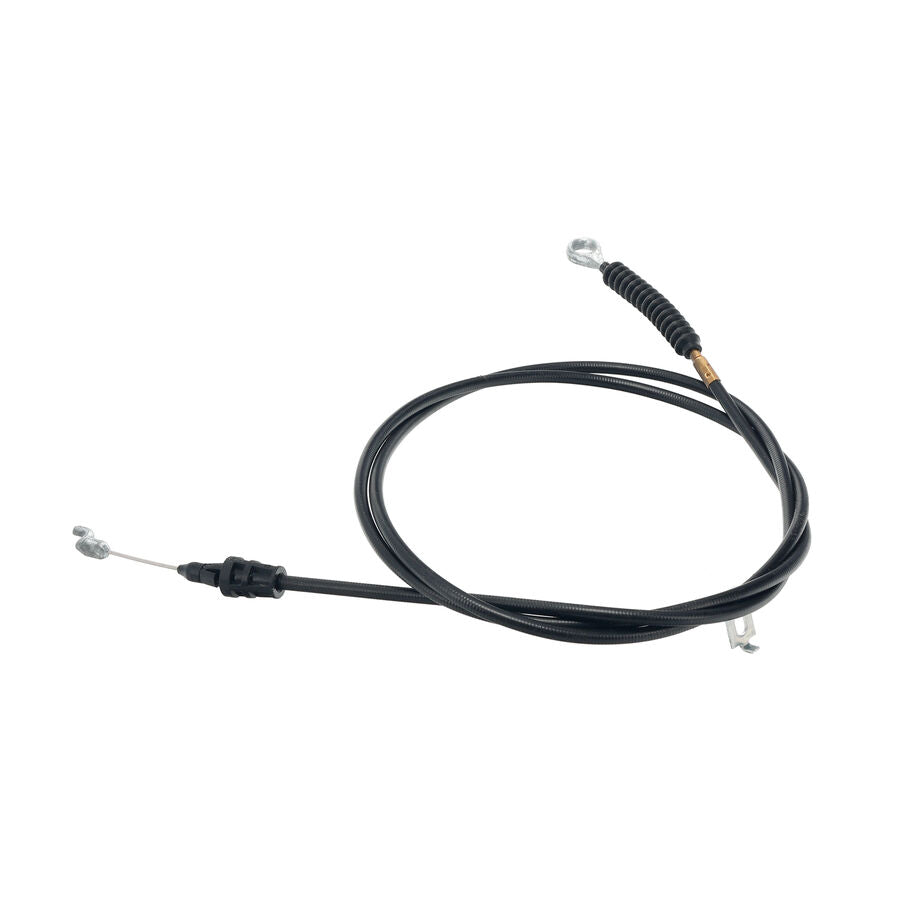

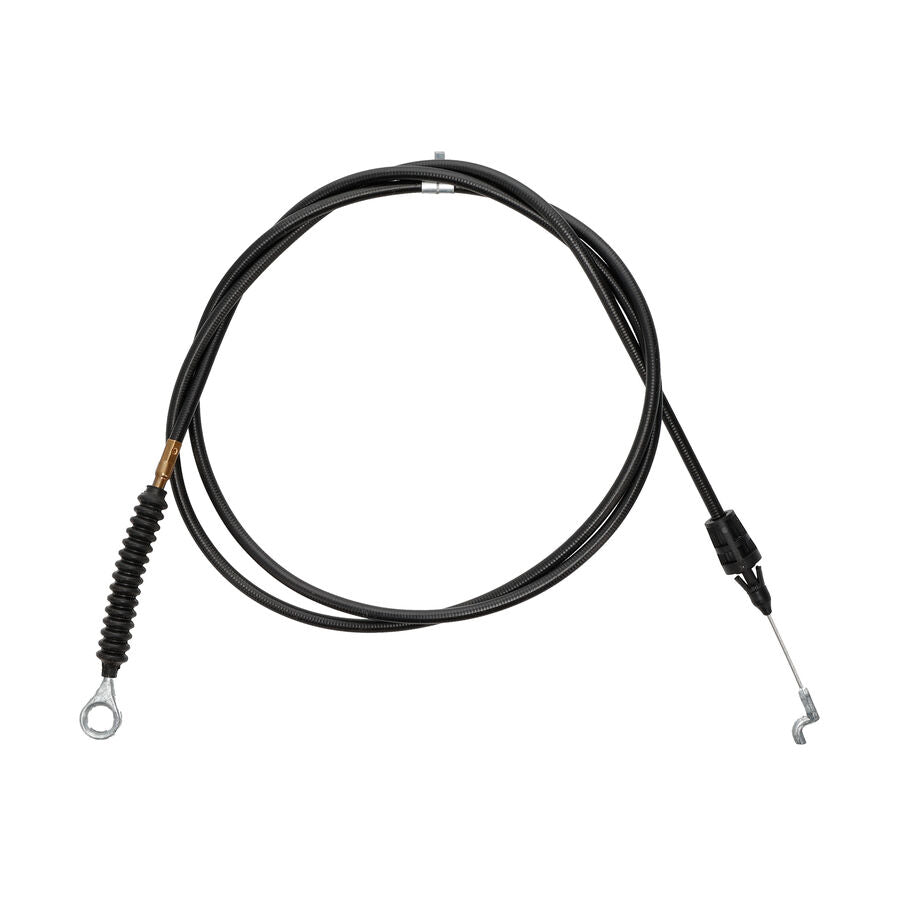

Toro OEM 131-6471 Snowblower Chute Deflector Control Cable Fits Select Standard Power Max Snowblower Models (Plastic Chute).

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Model Number 37779 & 37780 Does Contain a Serial Number Break in Requiring Correct Part Number Usage - Review the Model Fit Chart to Ensure Correct Part Number. if it is the Incorrect Part Number Refer to Part Number 121-6839





• PRODUCT NUMBER AND VARIATIONS: 131-6471, 131 6471, 1316471
• PRODUCT TYPE: Chute Deflector Control Cable
• SIZE: Length N/A - Width N/A - Height N/A - Weight 0.378 lbs.

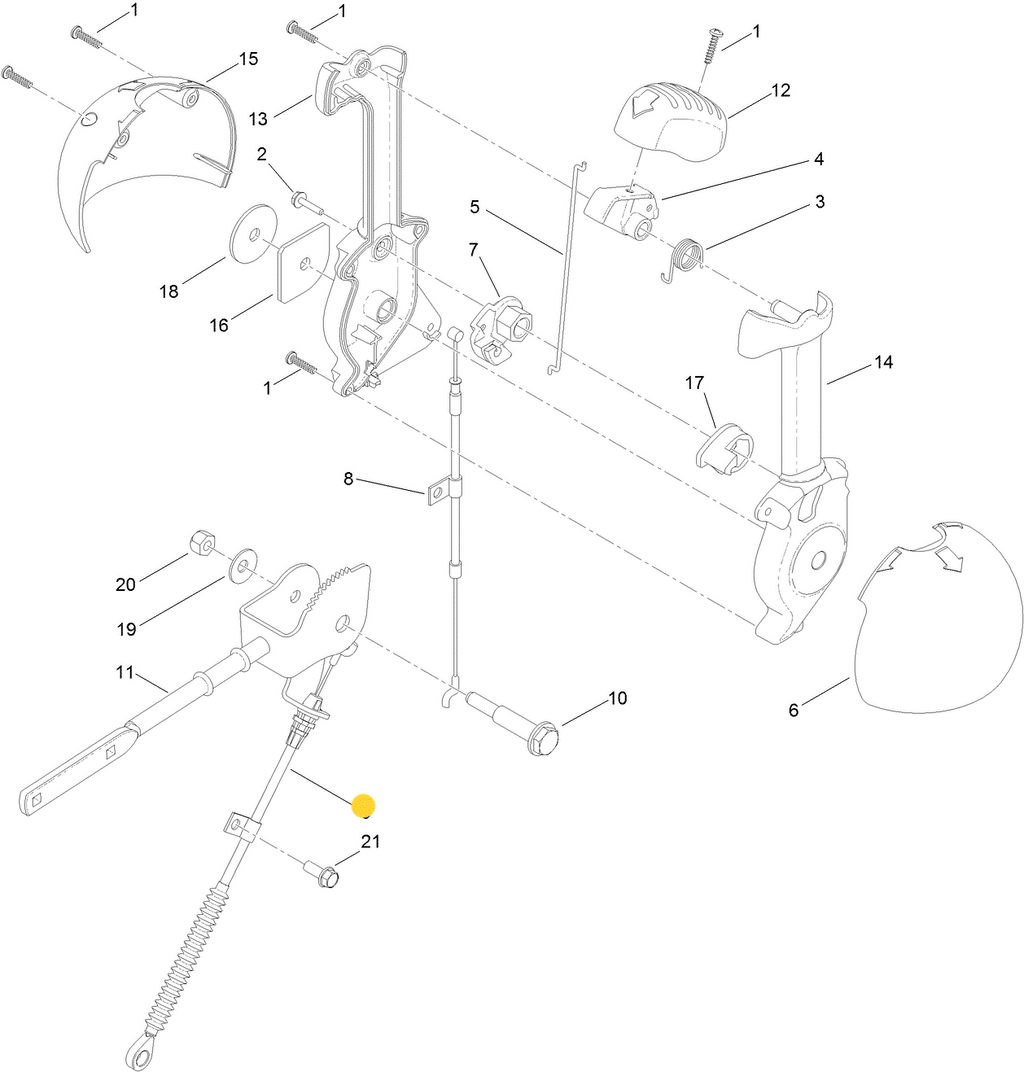

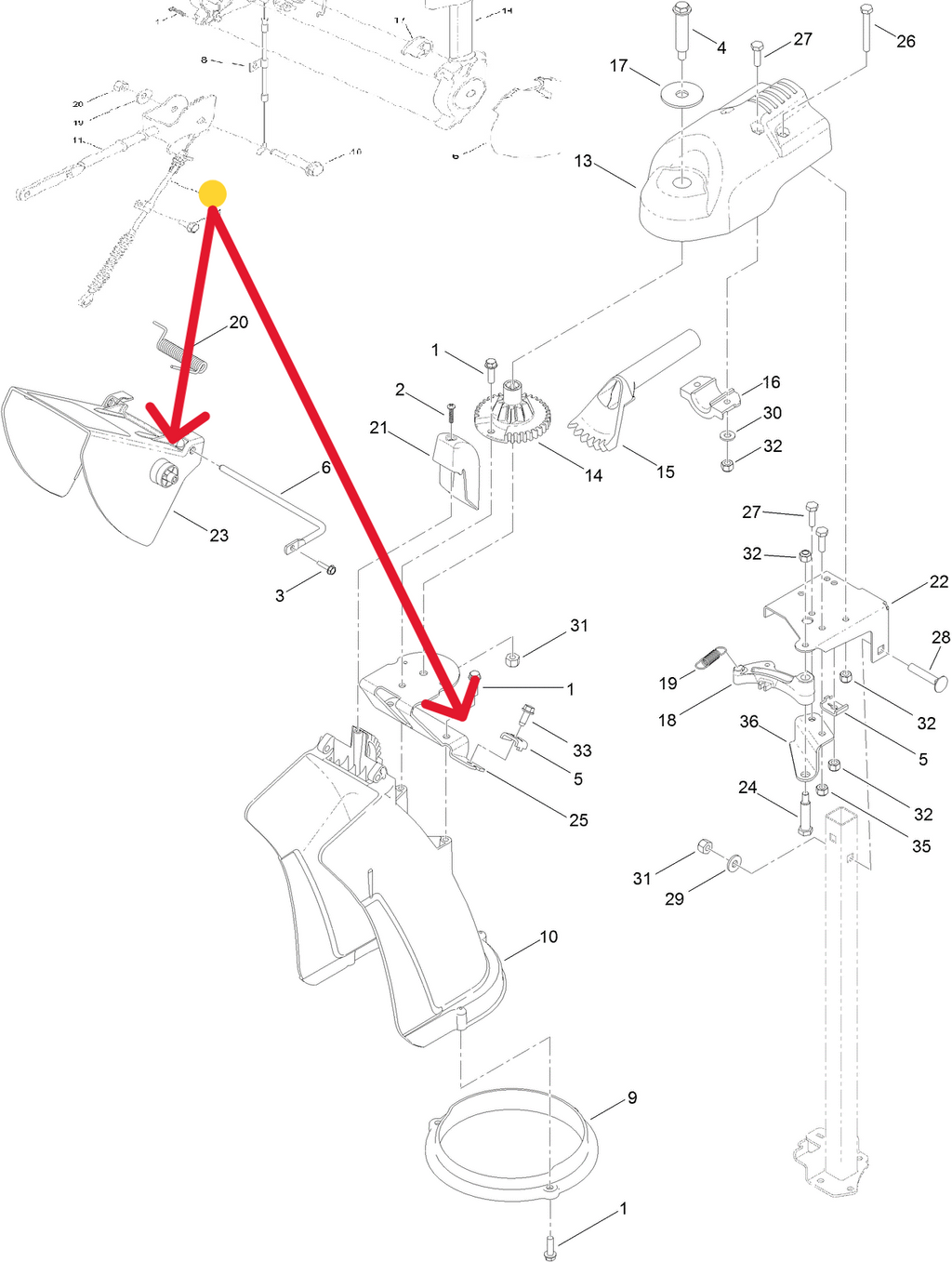

• NOTES & DETAILS: Toro OEM  131-6471 IS COMMINLY USED - 131-6471 Cable Ends - Hook or Shoe End Inserts into the Control Rod/Bracket that Mounts to the Chute Control Handle the Eyelet End Fastens to the Chute Deflector with the Chute Deflector Pivot Rod. - 131-6471 The Cable Itself - Fastens through a Series of Fasteners and Clamps that retain it to the Snowblower Assembly. Cable is routed around the Engine Erea and Retained to the Frame Using the Factory Installed Cable's Clamp Via a Washer Head Bolt - Next the Cable Feeds through a Cable Clamp and Fastener that Attaches to the Cable & Chute Gear Mount Bracket that Attaches to the Plastic Discharge Chute. - 131-6471 Deflector Cable Assembly - Only Serves the Purpose of Lowering and Raising the Deflector as the Operator Pushes and Pulls the Chute Control Handle Foward and Backward this Also Enables the Operator to Control the Distance of Snow Travel Preventing Blowing Snow and Debris Against Vehicles or other Object, Items and Areas.
• COMMON SERIES APPLICATIONS: Toro Select Standard Power MAX Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 37779 Serial Number 400000000 and Higher, 37780 Serial Number 400000000 and Higher, 37781, 37793, 37797, 38815)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 131-6471 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 136-7128 - Chute Control Rod Bracket (Whole for Cable Shoe or Hook) x1
2. 32144-85 - Washer Head Bolt (Retains the Cable to the Snowblower Main Frame Using the Factory Installed Cable Clamp Via the Bolt) x1
3. 121-1237-03 - Cable & Chute Gear Mount Bracket (Retains Cable to the Discharge Chute) x1
4. 136-7191 - Cable Clamp (Retains the Cable to the Cable & Chute Gear Mount Bracket Via the Washer Head Bolt) x1
5. 32144-10 - Washer Head Bolt (Retains Cable Clamp and Cable to Cable & Chute Gear Mount Bracket) x1
6. 121-1215 - Deflector Chute - Plastic (Retains the Cable's Eyelet End & Deflector Pivot Rod Via the Bolt and Molded Flange/Whole on the Side of the Chute Deflector) x1
7. 98-1375 - Washer Head Bolt (Retains the Cable Eyelet with the Chute Pivot Rod to the Deflector Chute) x1
