Toro OEM 131-5924 Snowblower Transmission/Drive Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models.

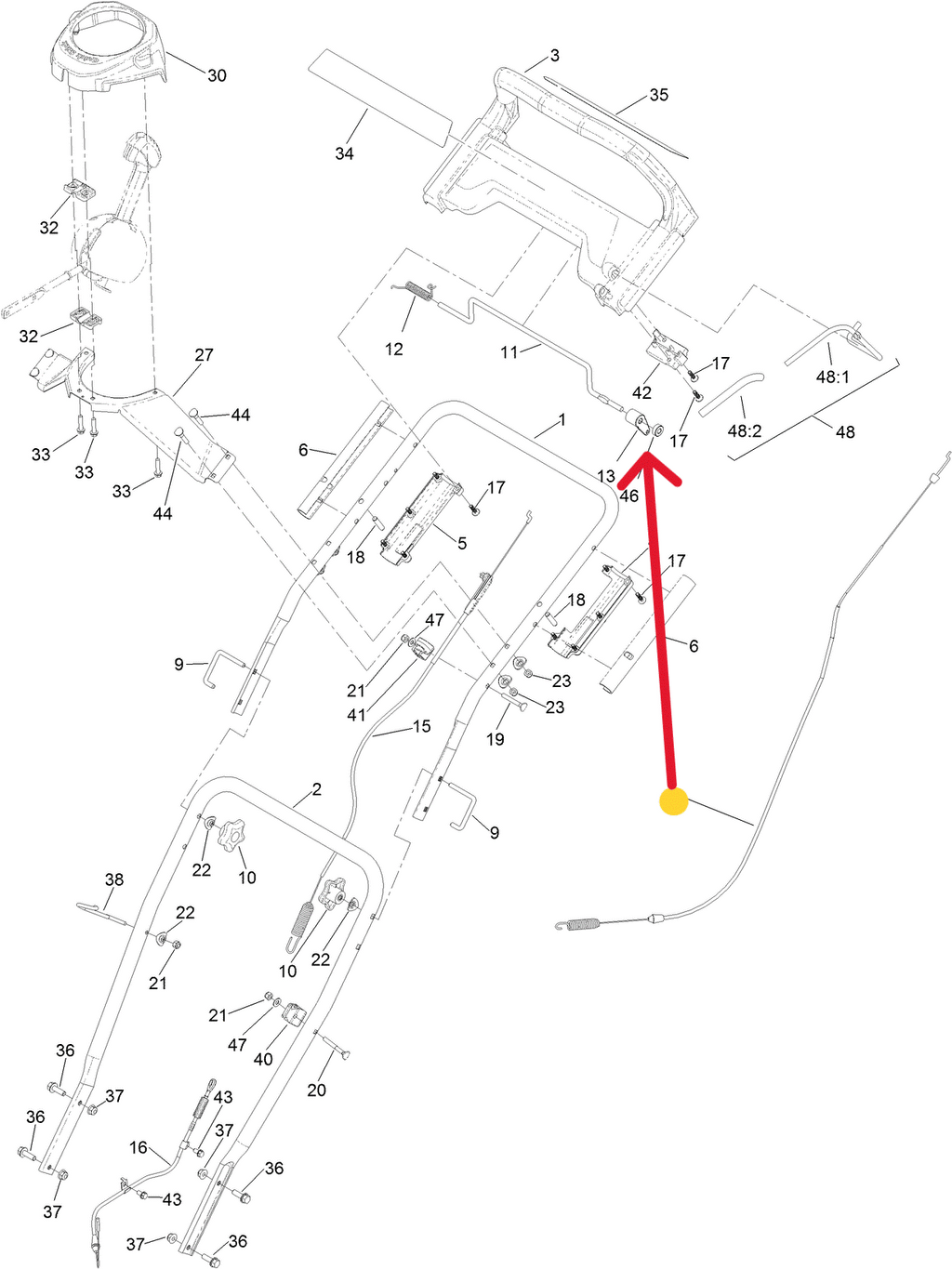

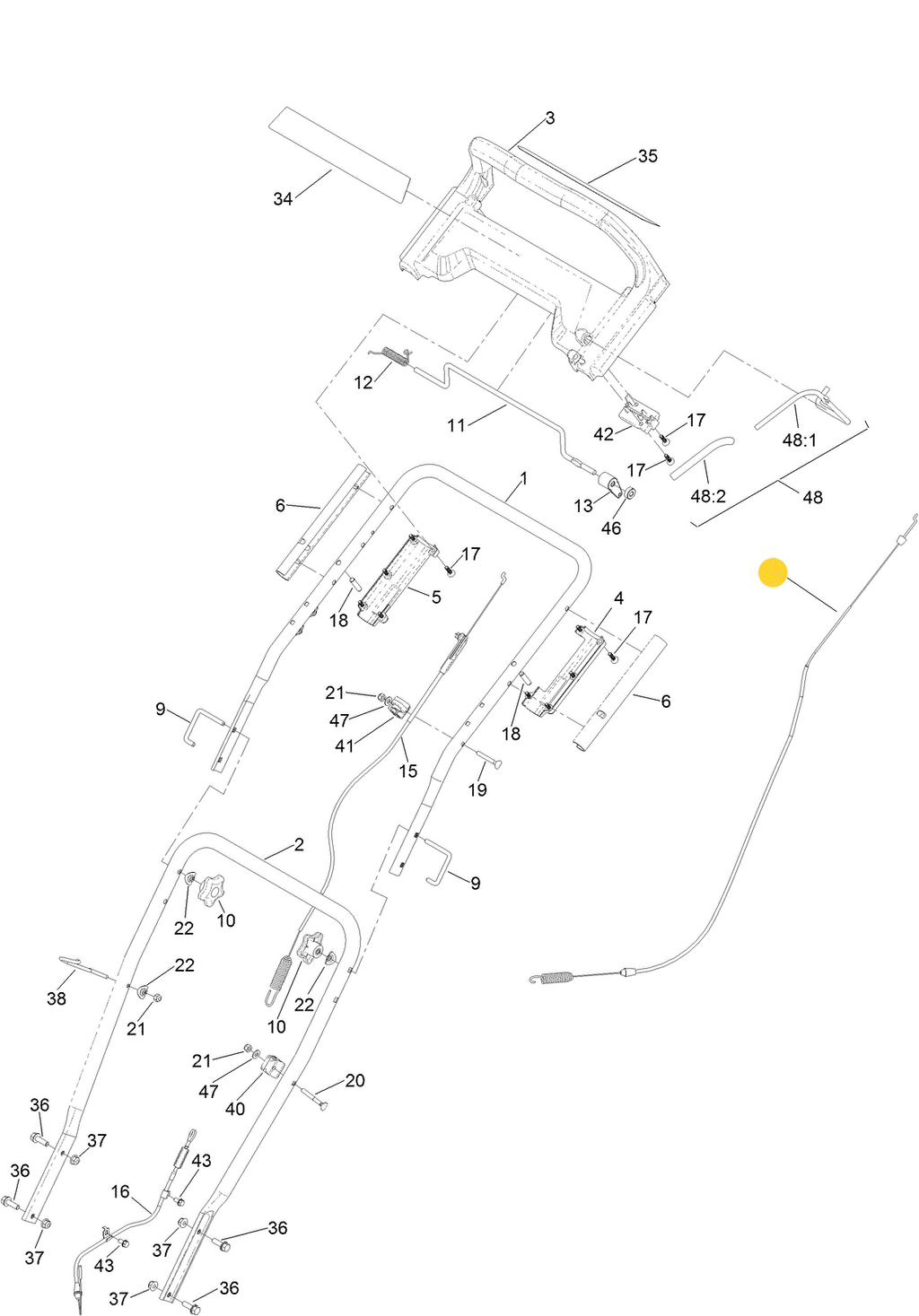

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 131-5924, 131 5924, 1315924
• PRODUCT TYPE: Traction/Drive Cable
• SIZE: Length N /A - Width N/A - Height N/A - Weight 0.294 lbs.

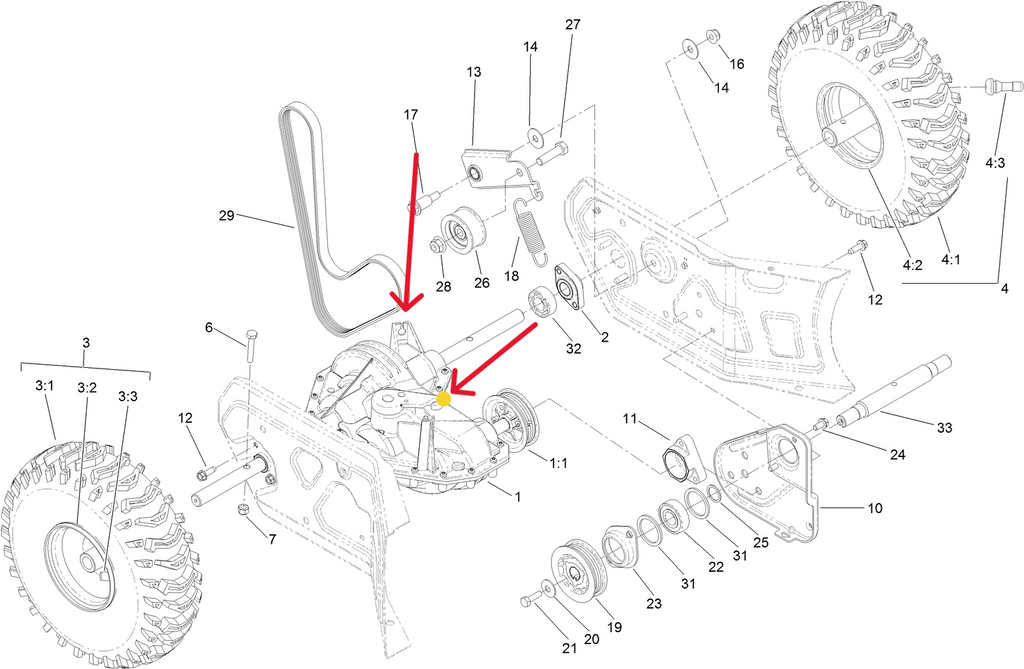

• NOTES & DETAILS: Toro OEM  131-5924 IS COMMINLY USED - 139-5924 Transmission Cable End Inserts into the Operator's Variable Control Handle's Plastic Traction Lever 131-5917 - 139-5924 Transmission Cable's Spring End is Equipped with Retaining Plastic Clips and Pushes into and is Retained by a Plastic Tab Molded onto the Transmission Housing, While the Spring of the Cable End Hooks into the Forward Transmission Lever. The Forward Transmission Lever Remains in Neutral positions Until the Operator Presses Forward on the Variable Speed Handle Initiating Tension on the Cable and Pulling the Forward Lever on the Transmission. This Enables the Snowblower Unit to Drive only as Fast as the Operator Pushes the Variable Speed Handles. As the Operator Leaves off the Handle the Transmission Foward Lever will return to the Neutral Position Via a Torsion Spring Assembled in the Forward Transmission Lever as well as the Variable Speed Handlebar 131-5921. Tension on the Drive Belt 131-5968 Remains Constant as well as the Transmission Pulley 131-5973 Rotation. Forward Travel of the Snowblower is Directly Controlled by the Variable Speed Handle 131-5921 Via the Cable to the Transmission 130-9642. Click on the Associated Part Numbers to Be Redirected.
• COMMON SERIES APPLICATIONS: Toro Select E - Snow Master, Snow Master, Snow Thrower, E - Snow Max & Snow MAX Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)

E-SNOW MASTER Series – Model Numbers – (* Model Numbers 39914, 39915, 39915T)

SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711, 38712)

SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)

E-SNOW MAX Series – Model Numbers – (* Model Numbers 31860)
