Description

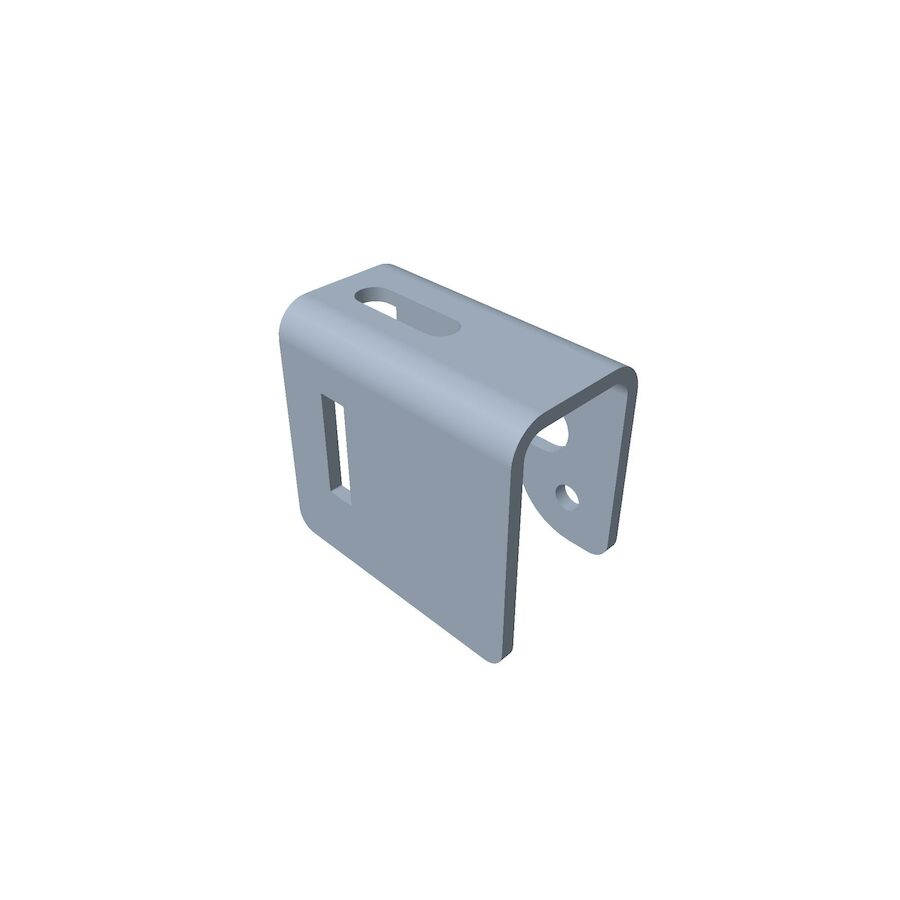

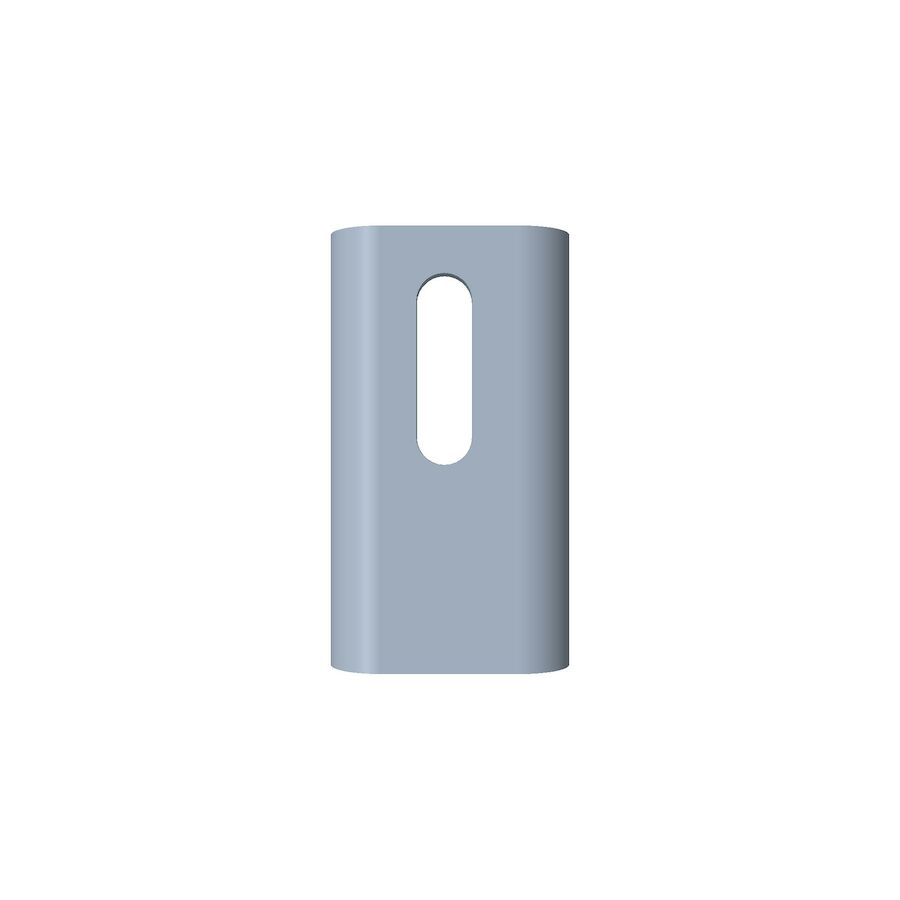

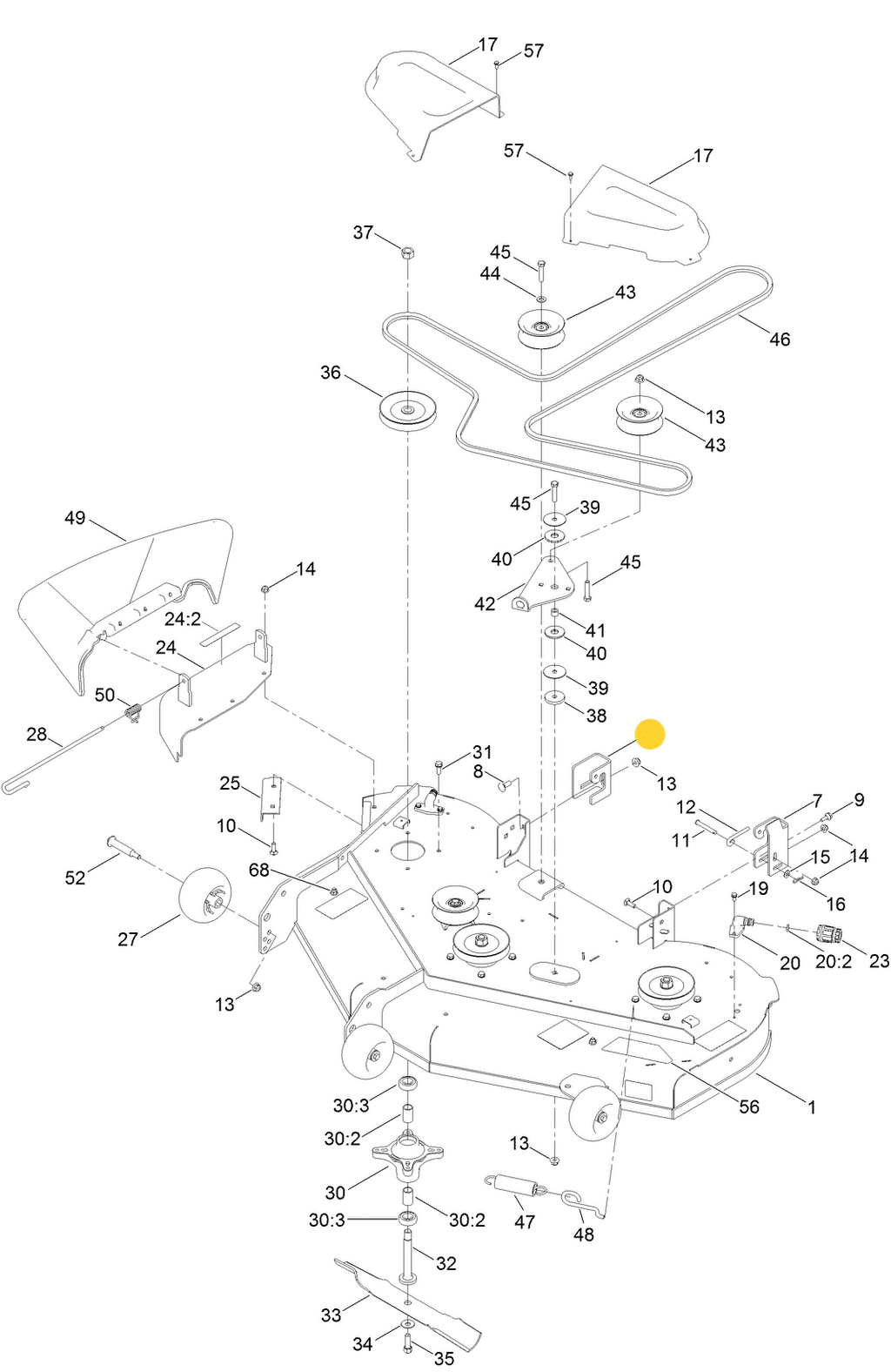

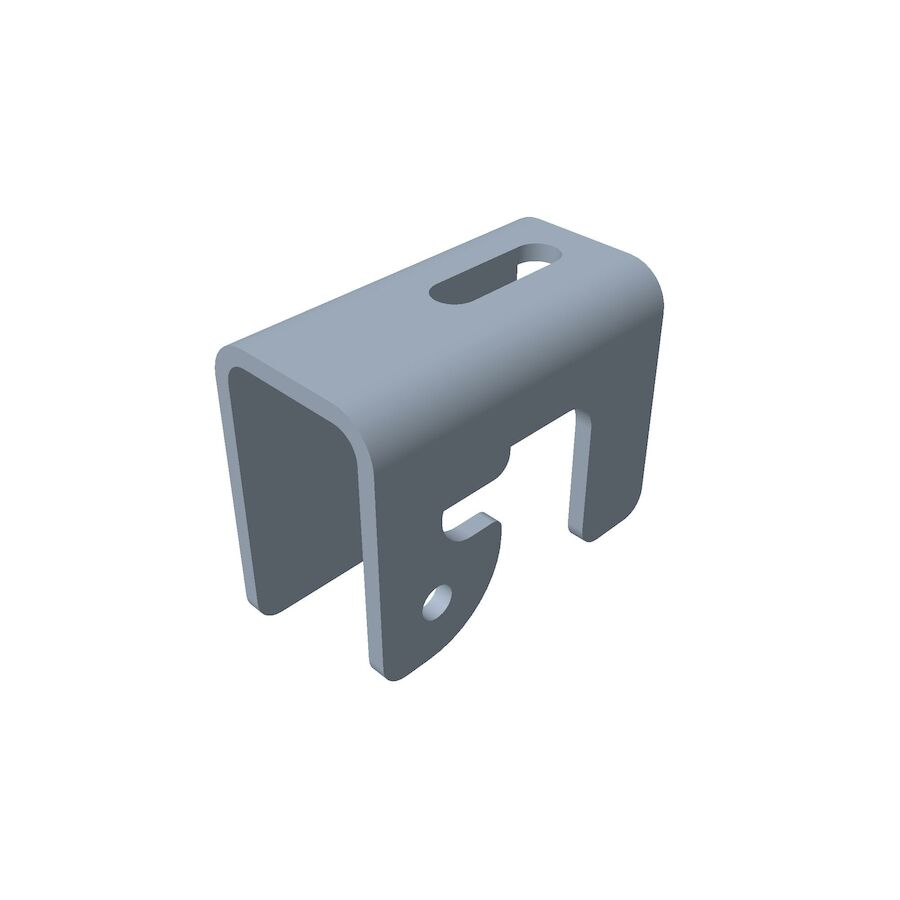

Toro OEM 131-4138 Right-Hand Mower Deck Hanger Bracket is Designed to Be Replaceable and Enables you to take your Mower Deck on and off easily. 131 4138 is installed on the Right-Hand Side of your Mower Deck as you sit on the Operator Seat and Fits Timecutter 32", 34", 42", 50", 54", 60" MX, SS, SWX and ZS Models. Toro OEM 131 4138 Hanger Bracket Allows your Deck to Free Float and Gives your Mower Deck mounting point a necessary Pivot Point for Raising and lowering your Mower Deck. It is Essential to Replace Hanger Bracket if Necessary to keep your Mower Deck Belt tight and maintain an even cut given they are a wear Item. To be Redirected to Left-Hand Mounting Bracket click on Part Number 131-1091 or 131-3935 to be Redirected. Part Number 119-3494 Supersedes to Part Number 131-4138. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
ASSOCIATED FASTNERS FOR PART NUMBER 131-4138 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
3231-2 - CARRIAGE BOLT
104-8301 - LOCKING FLANGE NUT
Specification
|
Product Number: |
1193494, 1314138 |
|
Brand: |
Toro |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
1.066 LB (0.484 KG) |
Model Fit:
74385, 74386, 74387, 74388, 74389, 74390, 74395, 74616, 74620, 74621, 74622, 74623, 74624, 74625, 74626, 74627, 74628, 74629, 74630, 74631, 74632, 74633, 74635, 74636, 74637, 74638, 74640, 74641, 74642, 74643, 74650, 74655, 74656, 74657, 74660, 74661, 74665, 74667, 74670, 74675, 74676, 74680, 74705, 74706, 74710, 74711, 74720, 74721, 74722, 74723, 74725, 74726, 74727, 74730, 74731, 74732, 74740, 74741, 74750, 74760, 74765, 74766, 74768, 74770, 74771, 74772, 74773, 74774, 74775, 74776, 74777, 74778, 74780, 74781, 74784, 74785, 74787, 74788, 74790, 74793, 74795, 74797, 74798
32” Timecutter and Timecutter MX, SS, SW, ZS Series - Early - Late Models Only (* Model Numbers 74388, 74385, 74620, 74621, 74623, 74629, 74640, 74650, 74670, 74710, 74780, 74781)
34" Timecutter MX Series - Late Models Only (* Model Numbers 74750)
42" Timecutter Standard and Timecutter MX, SS, SW, SWX, ZS Series - Early - Late Models Only (* Model Numbers 74386, 74389, 74390, 74616, 74622, 74625, 74624, 74626, 74627, 74628, 74640, 74642, 74633, 74636, 74676, 74711, 74726, 74705, 74665, 74667, 74706, 74725, 74760, 74766, 74722, 74765, 74723, 74784, 74720, 74655, 74656, 74657, 74675, 74788)
50" Timecutter Standard and Timecutter MX, SS, SW, SWX, ZS Series - Early - Late Models Only (* Model Numbers 74387, 74630, 74632, 74641, 74631, 74395, 74635, 74637, 74638, 74643, 74730, 74770, 74660, 74680, 74790, 74797, 74731, 74798, 74732, 74775, 74661, 74771, 74776, 74795, 74727, 74772, 74773, 74774, 74778)
54" Timecutter SW Series - Early - Late Models Only (* Model Numbers 747740, 74793, 74741)
60" Timecutter MX Series - Late Models Only (* Model Numbers 74777)
