Toro OEM 131-4058-03 Mower Deck Front Pivot Lift Arm/Foot Lift Assist Pedal Combo Fits Toro Late Titan MX, ZX Models (Tube Framing).

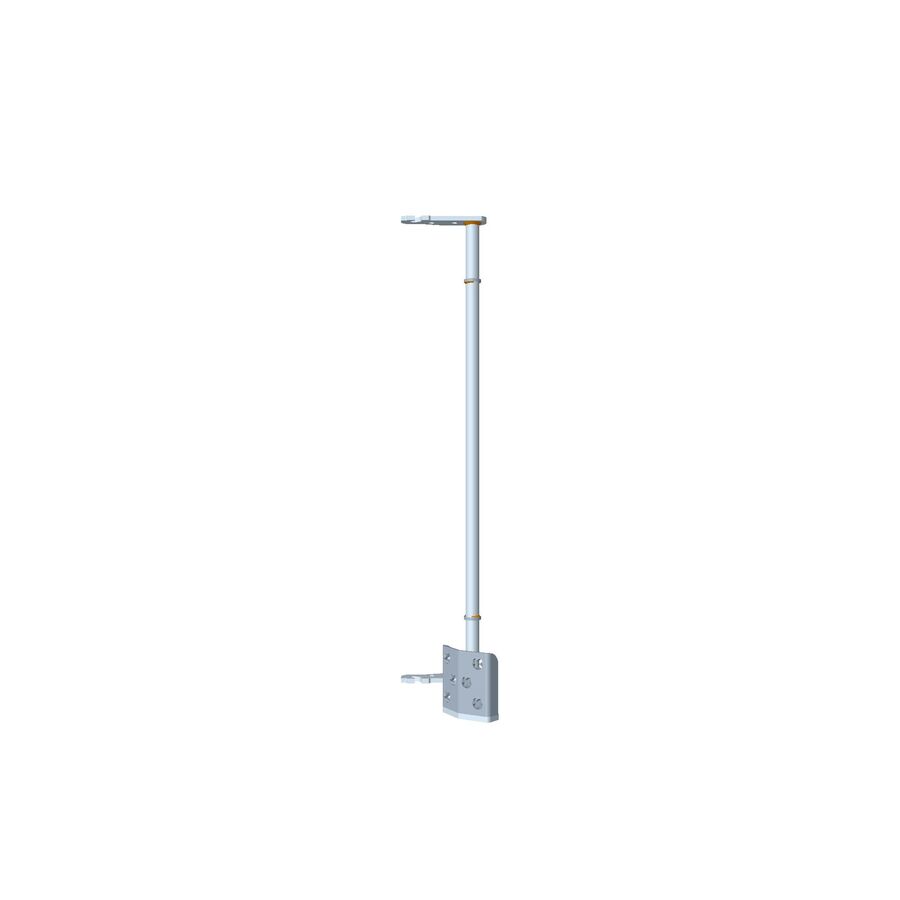

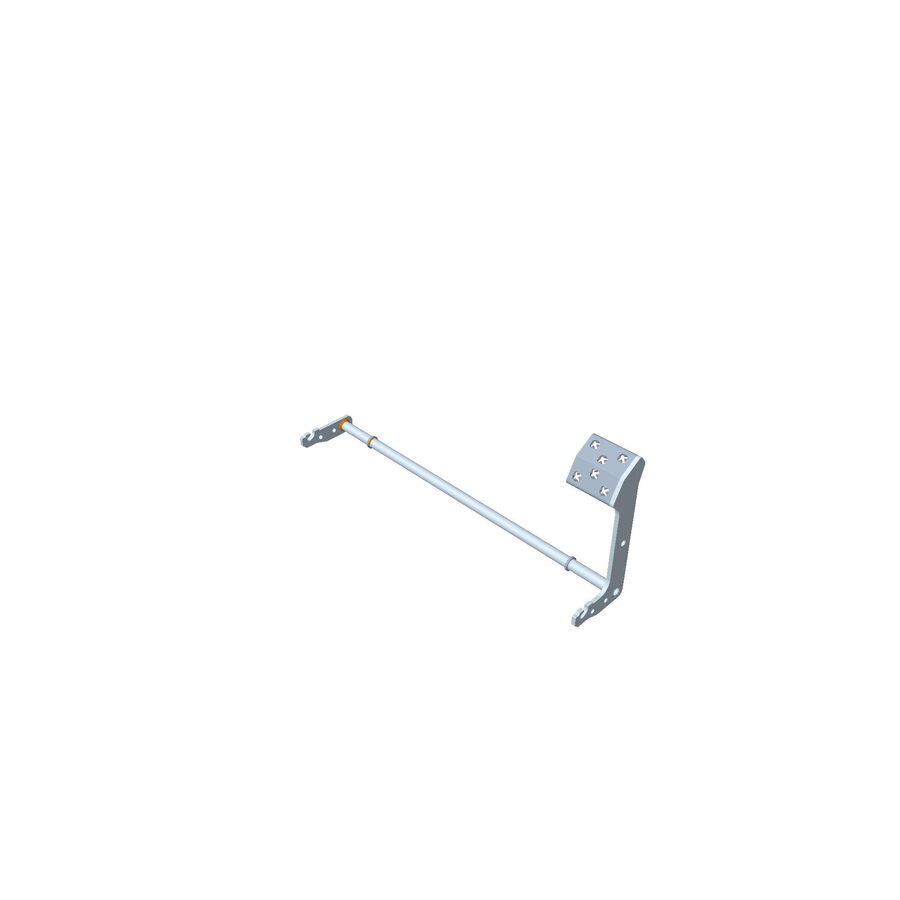

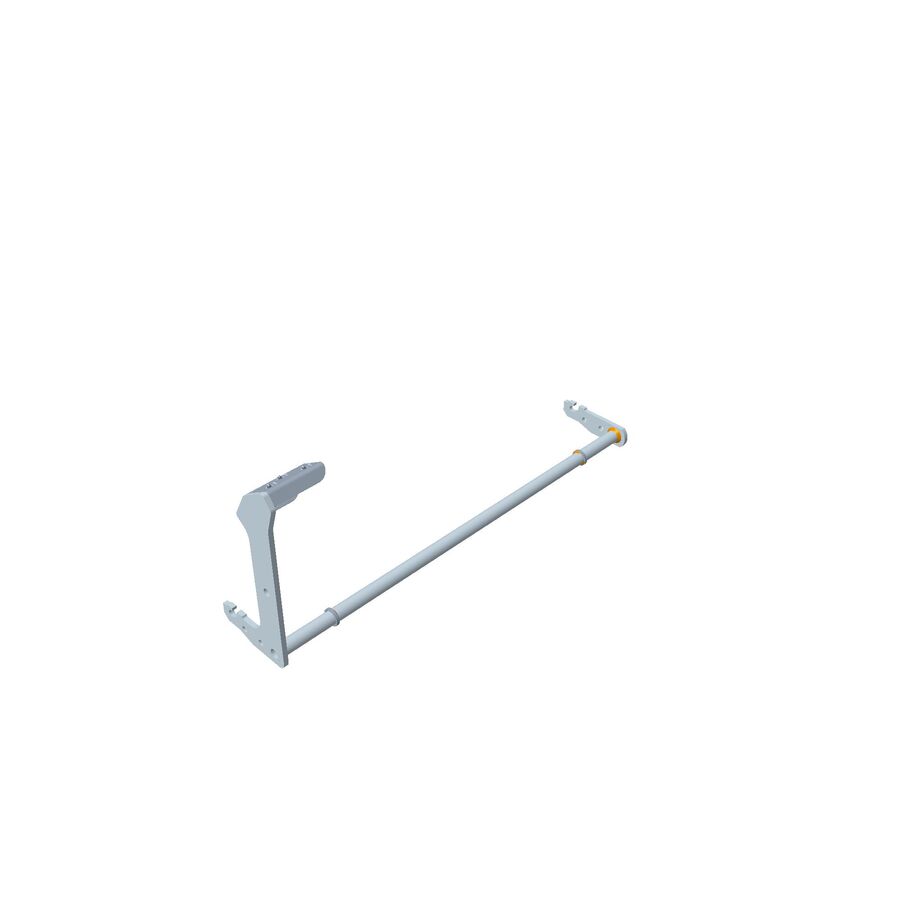

Toro OEM 131 4058 03 Mower Deck Front Pivot Lift/Leverage Arm and Foot Assist Lift Pedal Is a Pedal/Rod Assembly That Travels across the Frame of the Mower and Attaches to the Mower Deck Using the Mower Deck Lift Linkage Chains. Toro OEM 131 4058 03 Pivot Arm Rotate across the Frame of the Mower as the Operator Lower's and Raise's Their Mower Deck. This type of Design helps Leverage some of the Mower Deck Weight as well and makes for an easier Raising and Lowering of the Mower Deck. 131-4058-03 Mower Deck Pivot Rod is Designed for Toro Late TITAN MX, ZX Models (Models with Tube Framing). Part Number 130-0657-03 Supersedes to Part Number 131-4058-03. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 131-4058-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 131-4058-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Foot Lift Pedal) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 131-4059-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
3. 130-0668 - LIFT LINK CHAINS - (Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck - The Lift Link Chains Enable the Mower Deck to Free Float - Bolts to the Mower Deck and Connects to the Mower Deck Pivot Lift Arm Via the Hook on the Pivot Lift Arm) x2 Per Mower Deck Pivot Lift/Leverage Arm
4. 130-0742 - FLANGE SHOULDER BOLT - (Retains Mower Deck Lift Link Chain to the Mower Deck as well as Retaining the Height of Cut Link to the Front Mower Deck Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Lift Link Chain - x2 Per Height of Cut Link
5. 43-0940 - FLAT SPACER/SUPPORT WASHER - (Assembled Between the Mower Deck Fastner Ear and the Lift Link Chain - Assist in Retaining Lift Link Chain Due to the Larger Adjustment Slotted Hole in the Mower Deck Fastner Ear or Bracket as well as Spaces the Lift Link Chain Away From the Mower Deck and Allows The Mower Deck More Forgiveness to Move as Needed when Coming in contact with Something or Just Simply Raising and Lower the Mower Deck) x4 Per Mower Deck
6. 104-8301 - FLANGE NUT - (Retains Flat Spacer/Support Washer, Lift Link Chain and Shoulder Bolt to the Mower Deck as well as Retaining the Flang Bolt and Height of Cut Link to the Front Mower Deck Lift Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link Chain - x2 Per Height of Cut Link
7. 104-8300 - FLANGE NYLON LOCK NUT - (Retains Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Mower Deck Pivot Arm Cross Support Frame Weldment) x2 Per Bracket
8. 322-6 - HEX HEAD BOLT - (Retains the Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Mower Deck Pivot Arm Cross Support Frame Weldment) x2 Per Bracket
9. 115-5065 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT BEARING/BUSHING - (Attaches with the Lower Mower Deck Pivot Arm Support Gusset/Bracket to the Upper Mower Deck Pivot Arm Cross Support Bracket and Allows for the Mower Deck Pivot Arm to Rest into it and Rotate in a Replaceable Bearing Flange Instead of Rotating Against Metal on Metal) x4 Per Unit
10. 116-2887 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT GUSSET/BRACKET - (Attaches with the Lower Mower Deck Pivot Arm Support Bearing/Bushing to the Upper Mower Deck Pivot Arm Cross Support Bracket and Allows for the Mower Deck Pivot Arm to Rest into it and Rotate in a Replaceable Bearing Flange as well as retaining the Bearing/Bushing and Mower Deck Pivot Arm) x4 Per Unit
11. 127-3390-03 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut Assembly and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit
12. 115-9652 - TENSION SPRING - (Connect to the Front Mower Deck Pivot Arm Foot Pedal/Combo and Front Mower Deck Pivot Pan and Retains Tension on it) x1 Per Front Mower Deck Pivot Arm/Foot Pedal Combo







 Specification

Product Number:	131405803, 13065703
Brand:	Toro
Length:	30.250 IN (76.835 CM)
Width:	12.250 IN (31.115 CM)
Height:	5.500 IN (13.970 CM)
Weight:	5.930 LB (2.690 KG)





Model Fit:



TITAN



48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74851, 74855, 74846, 74891, 74861)



54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74852, 74882, 74848, 74892, 74862)



60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74853, 74863, 74883, 74893)
