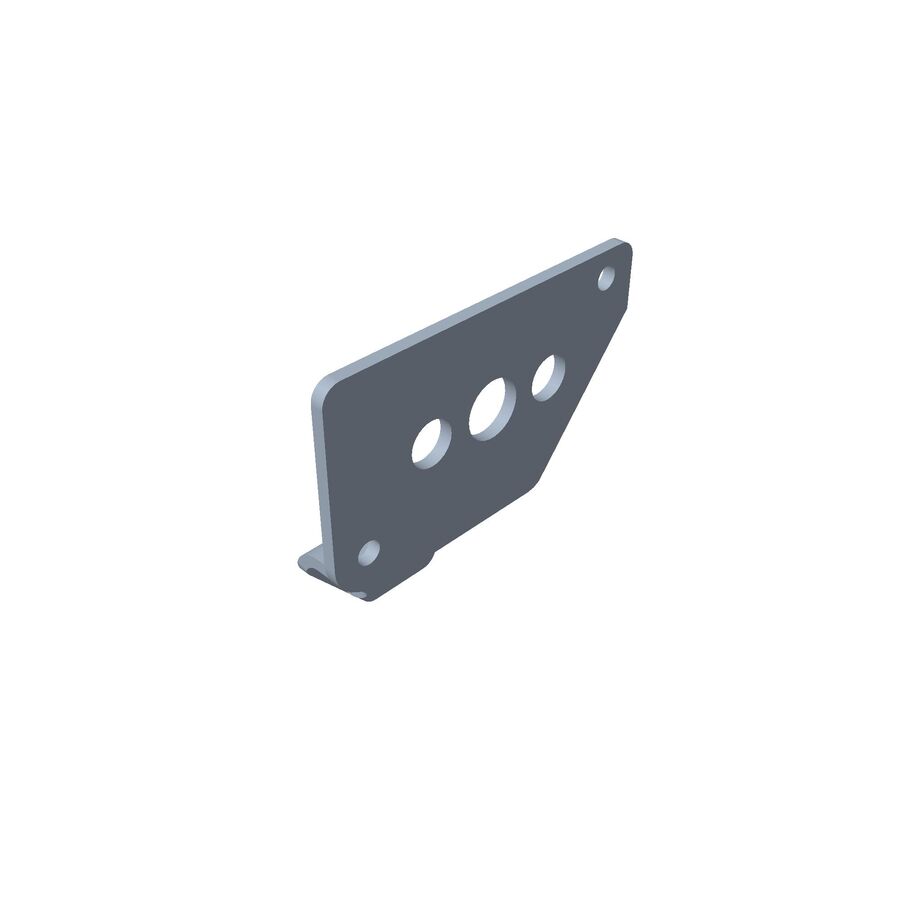

Toro OEM 131-3933 Footlift Plate Fits Toro Timecutter 32" SS, SW, ZS - 34" MX - 42" MX, SS, SW, ZS - 50" MX, SS, SW, SWX, ZS - 54" SS - 60" MX Models.

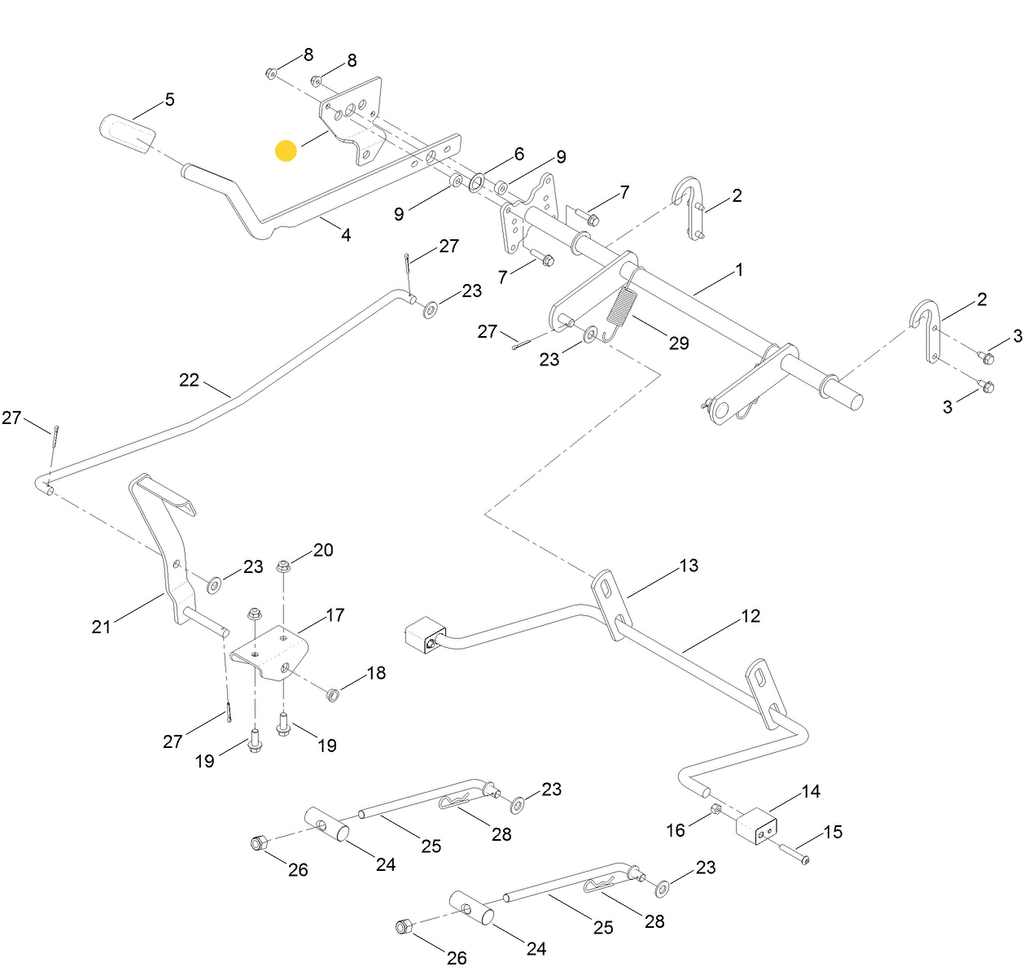

Toro OEM 131 3933 Footlift Plate Is Designed to Slide over the Shaft and Bolt to the Outside Flange of the Mower Deck Lift Leverage Arm on Toro Timecutter Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, ZS), 50" (MX, SS, SW, SWX, ZS), 54" (SS) and 60" (MX) Timecutter Models. Toro OEM131 3933 makes it Possible to Connect the Mower Deck Lift Handle with to the Foot Assist Pedal by Using the Wholes on the Footlift Plate to Connect the Footlift Rod. The Added Benefit of the Additional Mower Deck Assist Pedal Parts helps Make the Lift Weight of the Mower Deck a little more Forgivable and allows for the Operator to use their Leg Leverages to help assist in Lifting the Mower Deck Weight. Toro Foot Assist Pedal can be added to Units Listed Bellow in the Model Fit Chart. In Order add it to Models That Did Not Come with it Factory Installed You Will Need to Order the Complete Parts List as Listed in the Part Reference Chart Below. For Factory Installed or For Individual Replacement Parts Refer to the Part Reference Chart Below as well for a Complete List of Individual Part. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.













Specification

Product Number:	1313933
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.871 LB (0.395 KG)





Model Fit:



* Models that come with it Factory Installed:



74387, 74626, 74632, 79010, 74390, 74640, 74641, 74395, 74636, 74638, 74642, 74643, 74760, 74770, 74750, 74771, 74777, 74774





 * Mower Models with Optional Installation:





TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793





TIMECUTTER 60” MX Series – Model Numbers – 74777
