Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 131-1753, 131 1753, 1311753

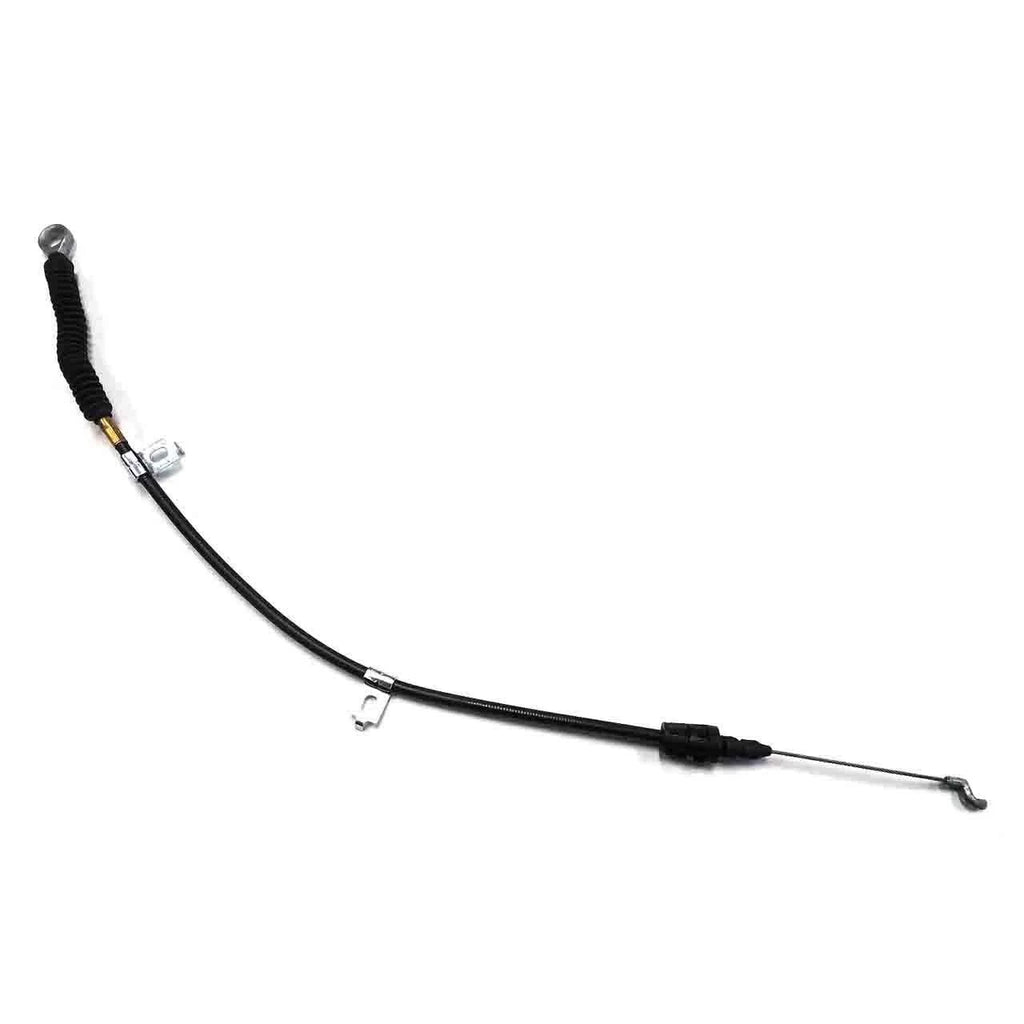

- PRODUCT TYPE: Lower or Secondary Auger/Rotor Cable
- SIZE: Length 21.0600 in. - Width 1.600 in. - Height 0.400 in. - Weight 0.124 lbs.

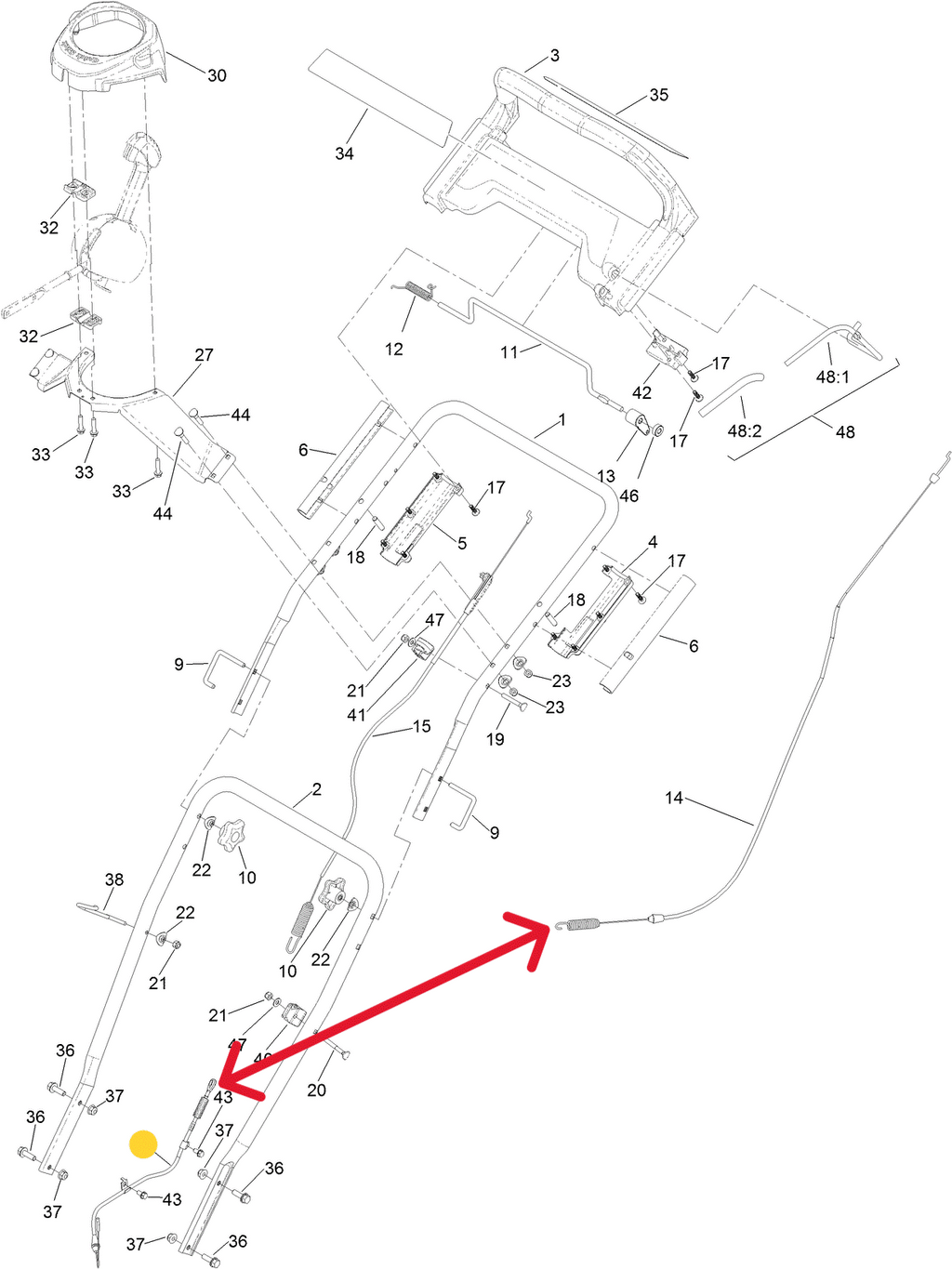

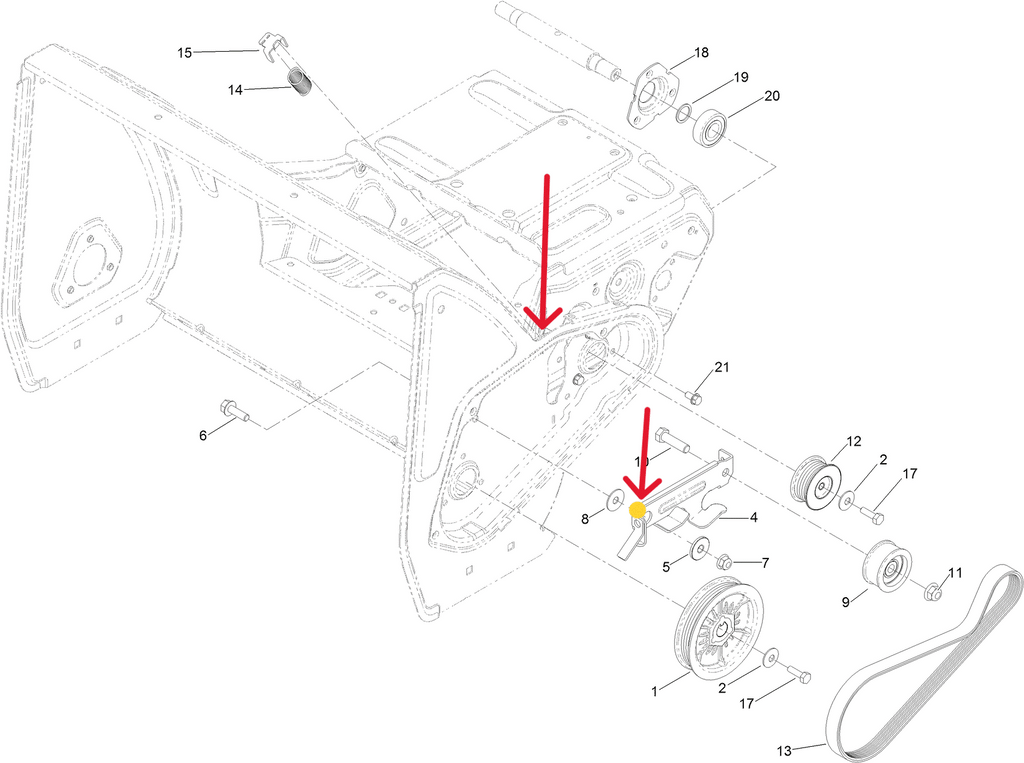

- NOTES & DETAILS: Toro OEM 131-1753 IS COMMINLY USED - 131-1753 Secondary or Lower Auger Cable is a One of a Two-Part Cable System. - PRIMARY/UPPER AUGER CABLE - 120-2338 Upper or Primary Auger/Rotor Cable's Hook or Shoe End Contains A plastic Clip that Clips in the Variable Speed Handle 131-5921 While the Hook or Shoe Hooks into the Operator's Auger Bail Handle 120-2345-03 or Auger Bail Handle Assembly 131-5943 - (120-2338 Upper/Primary Auger Cable's Lower Spring End Hooks Into The Eyelet of the Lower/Secondary Auger Cable 131-1753) - LOWER/SECONDARY AUGER CABLE - 131-1753 Lower or Secondary Auger/Rotor Cable Contains A Flanged Plastic Base that Slide into or Rest into a Slot or Whole in the frame by the Belt Cover above the Idler Pulley Arm while the Cable Hook or Shoe Hooks into the Idler Pulley Arm 131-5958. The Two Clamps that are Crimped or Assembled on the Lower Auger Cable Contain Bolts Holes that Use Bolt 32144-4 to retain the Cable to the Frame - 120-2338 & 131-0973 Auger Cable Enables Tightening/Engaging the Auger Belt 131-5967 when the Operator Engages the Auger/Rotor Bail Lever - The Tightening Action of the Cable and Belt Engages the Auger/Rotors. When Tension on the Bail Handle is Released the Return Spring on the Idler Pulley Releases Tension Between the Auger Belt and Idler Pulley 131-5929. Click on the Associated Part Numbers to Be Redirected.
- COMMON SERIES APPLICATIONS: Toro Select E - Snow Master, Snow Master, Snow Thrower, E - Snow Max & Snow MAX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)
E-SNOW MASTER Series – Model Numbers – (* Model Numbers 39914, 39915, 39915T)
SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711, 38712)
SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)
E-SNOW MAX Series – Model Numbers – (* Model Numbers 31860)
