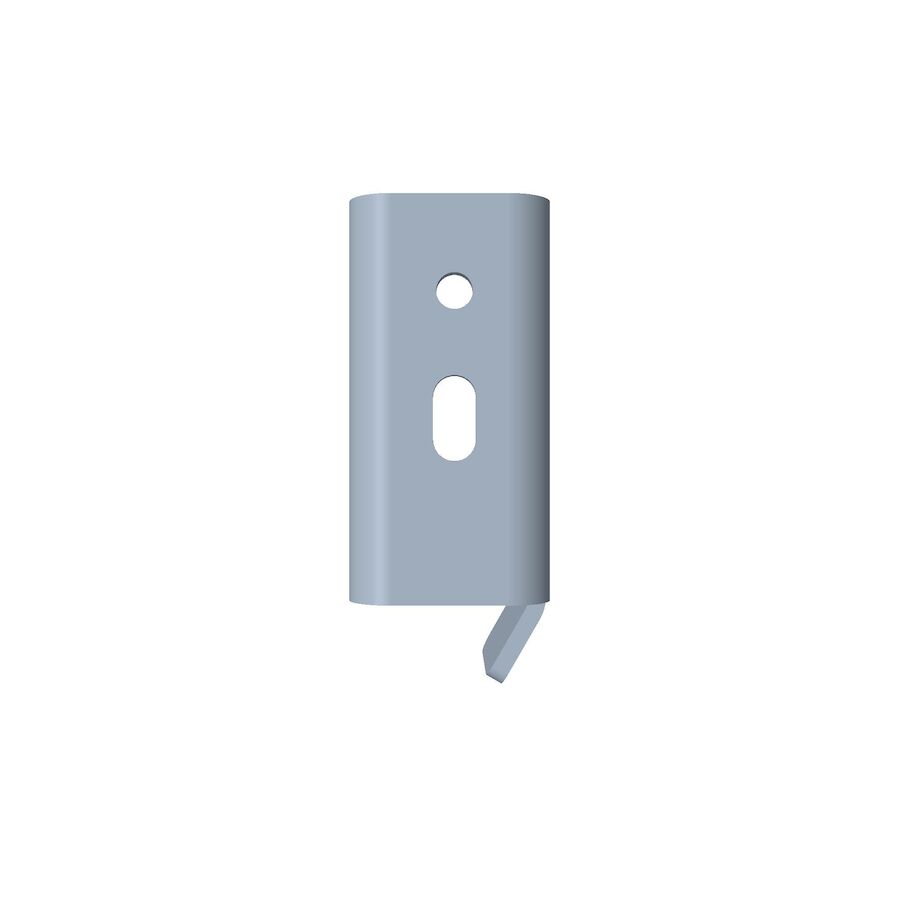

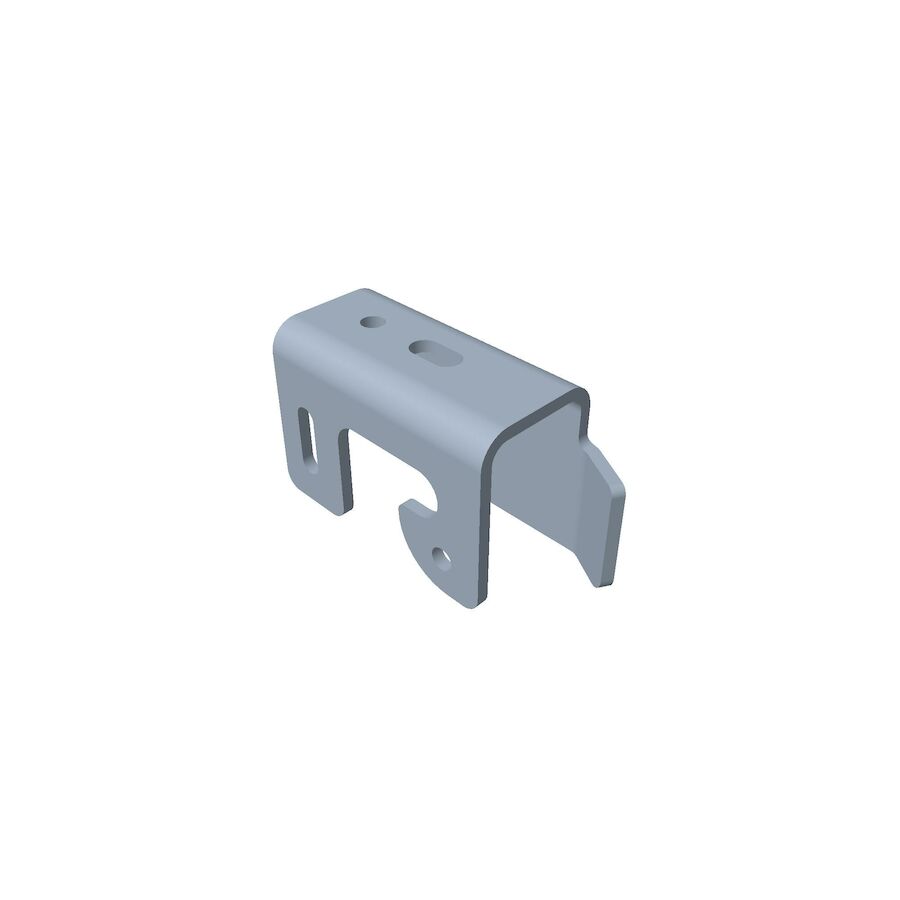

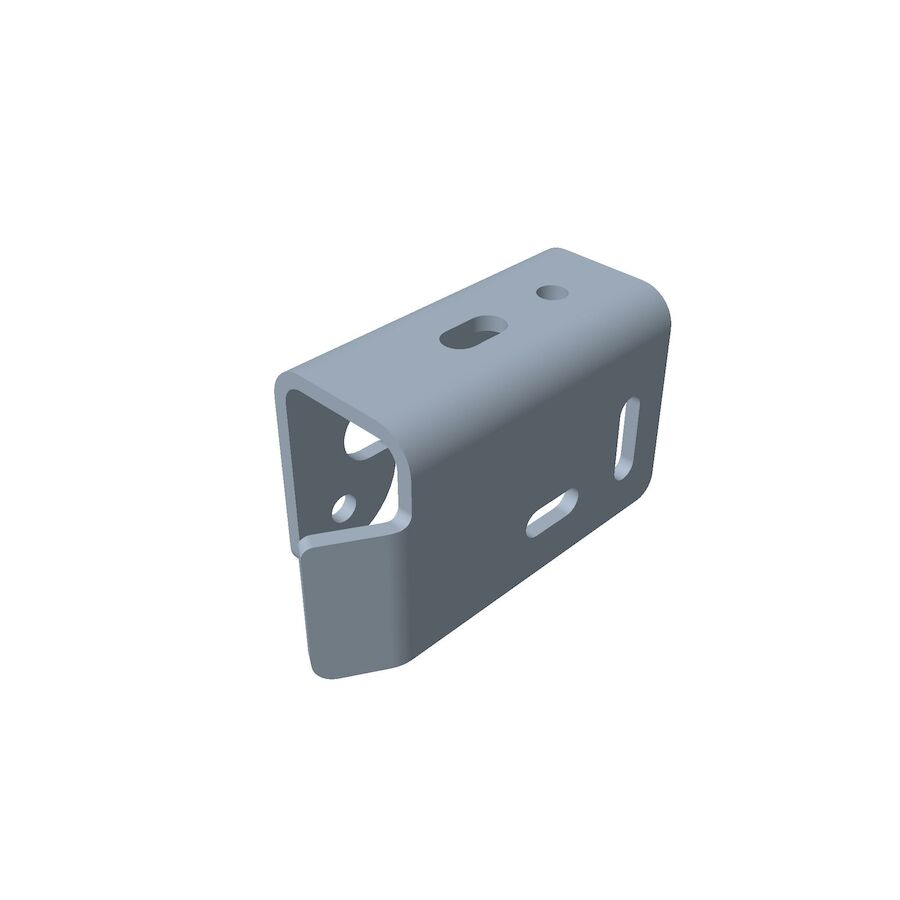

Toro OEM 131-1091 Left-Hand Mower Deck Hanger Bracket Fits Timecutter 32", 34", 42", 50" MX, SS, SW, SWX and ZS Models.

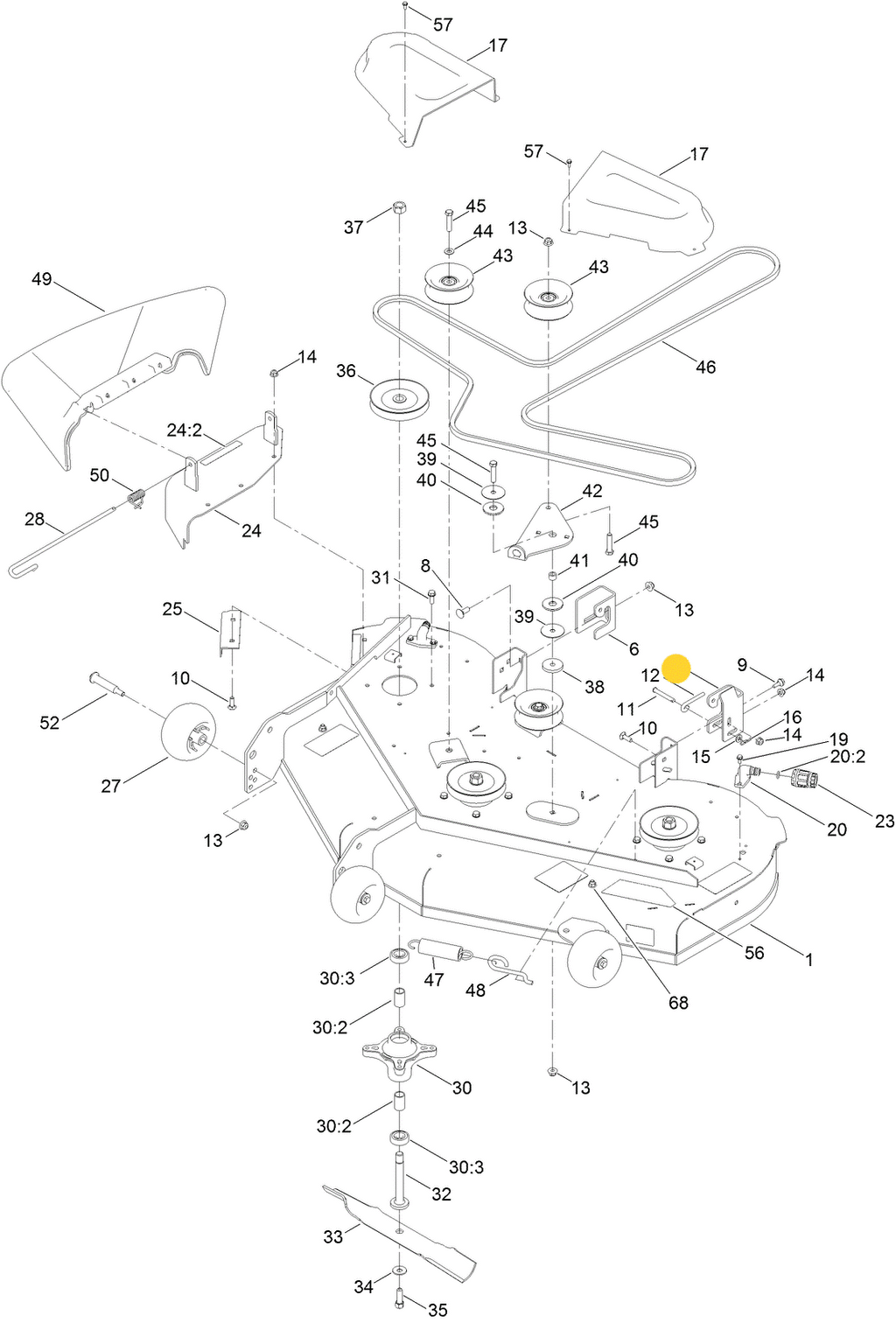

Toro OEM 131-1091 Left-Hand Adjustable Mower Deck Hanger Bracket is Designed to Be Replaceable and Enables you to take your Mower Deck on and off easily. 131 1091 is installed on the Left-Hand Side of your Mower Deck as you sit on the Operator Seat and Fits Timecutter 32", 34", 42", 50" MX, SS, SWX and ZS Models. Toro OEM 131 1091 Hanger Bracket Allows your Deck to Free Float and Gives your Mower Deck mounting point a necessary Pivot Point for Raising and lowering your Mower Deck. It is Essential to Replace Hanger Bracket if Necessary to keep your Mower Deck Belt tight and maintain an even cut given they are a wear Item. To be Redirected to Right-Hand Mounting Bracket click on Part Number 131-4138 to be Redirected. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







ASSOCIATED FASTNERS & ROD ADJUSTMENT PARTS FOR PART NUMBER 131-1091 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 3230-22 - CARRIAGE BOLT (Retains Hanger Bracket 131-1091)
2. 104-8300 - LOCKING FLANGE NUT (Carriage Bolt)
3. 104-8301 - LOCKING FLANGE NUT (Adjustment Rod)
4. 131-0955 - ADJUSTMENT ROD
5. 110-0618 - CLEVIS PIN (Retains Adjustment Rod)
6. 1-806003 - COTTER PIN (Retains Clevis Pin)
7. 3256-23 - FLAT WASHER (Cotter Pin Support)
8. 120-7024 - FLANGE BOLT (Lock Adjustment on Hanger Bracket)







Specification

Product Number:	1311091
Brand:	Toro
Length:	4.500 IN (11.430 CM)
Width:	2.500 IN (6.350 CM)
Height:	2.000 IN (5.080 CM)
Weight:	1.157 LB (0.525 KG)





Model Fit:



32” Timecutter and Timecutter MX, SS, SW, ZS Series - Early - Late Models Only (* Model Numbers 74650, 74670, 74710, 74780, 74781)



34" Timecutter MX Series - Late Models Only (* Model Numbers 74750)



42" Timecutter Standard and Timecutter MX, SS, SW, SWX, ZS Series - Early - Late Models Only (* Model Numbers 74676, 74711, 74726, 74705, 74665, 74667, 74706, 74725, 74760, 74766, 74721, 74722, 74765, 74723, 74784, 74720, 74655, 74656, 74657, 74675, 74785, 74787, 74788)



50" Timecutter Standard and Timecutter MX, SS, SW, SWX, ZS Series - Early - Late Models Only (* Model Numbers 74660, 74680, 74790, 74730, 74731, 74732, 74775, 74661, 74795, 74772, 74773)
