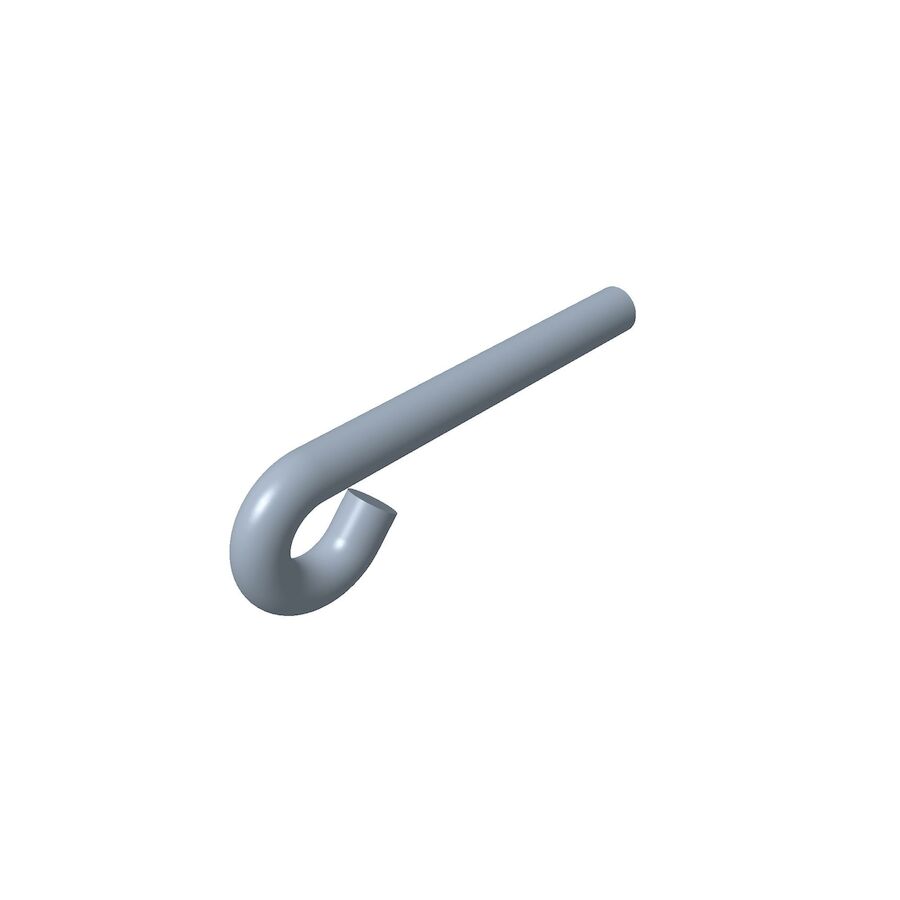

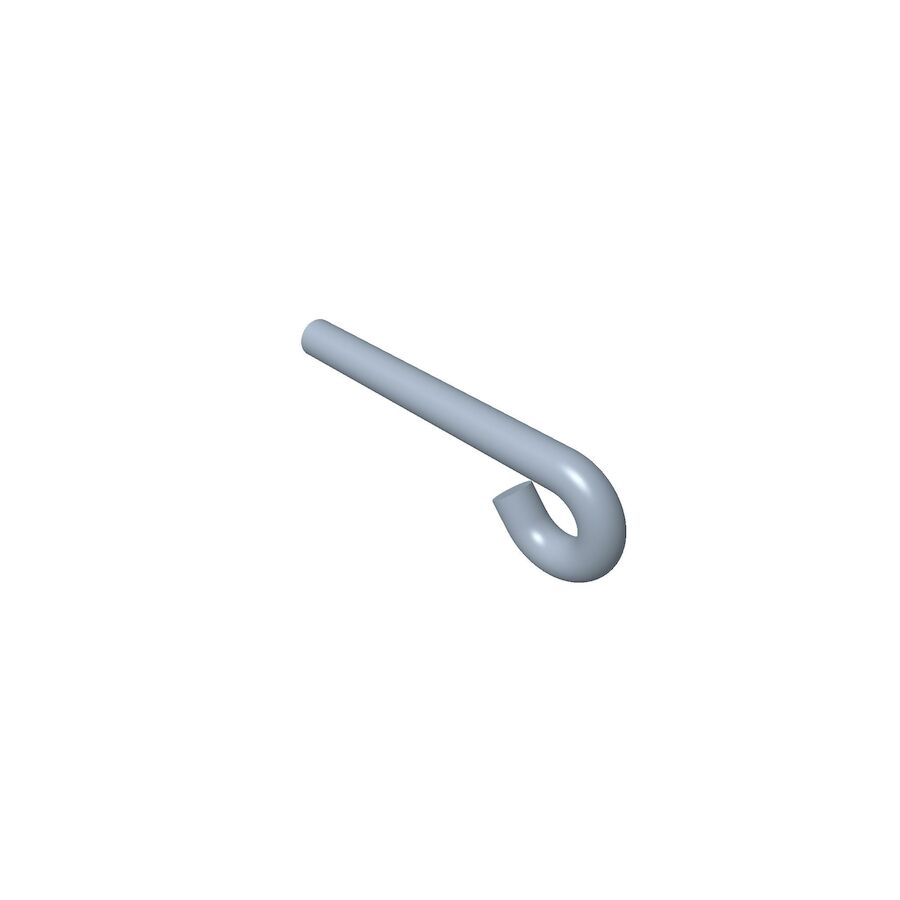

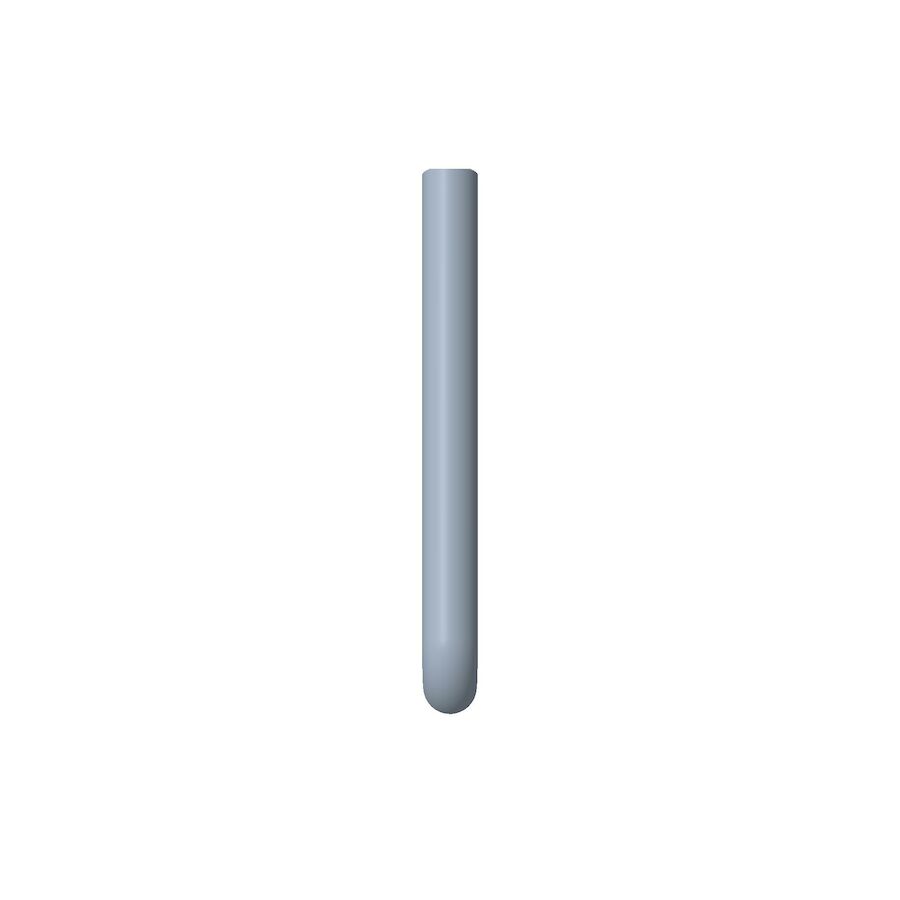

Toro 131-0955 Left Hand Mower Deck Hanger Adjustment Rod Fits Toro 32", 34", 42", 50", 54", 60" Timecuter MX, SS, SW, SWX and ZS Models.

Toro OEM 131 0955 Left-Hand Mower Deck Adjustment Rod is a Toro Specific Part and is Designed to be used on the Left-Side DECK Hanger as you Sit on the Operator Seat on Toro Timecutter 32", 34", 42", 50", 54", 60" ZS, SWX, SW, SS, and MX Models. Below in the Model Fit Chart is a detailed breakdown of Models Associated to Part Number 131 0955. Toro OEM 131-0955 Allows you to Keep those Mower Deck Mowing Level and Keeps your yard looking Fresh. Please refer to the Images above; Product Specifications, Part association Chart and the Model Fit guide below to ensure proper fit.

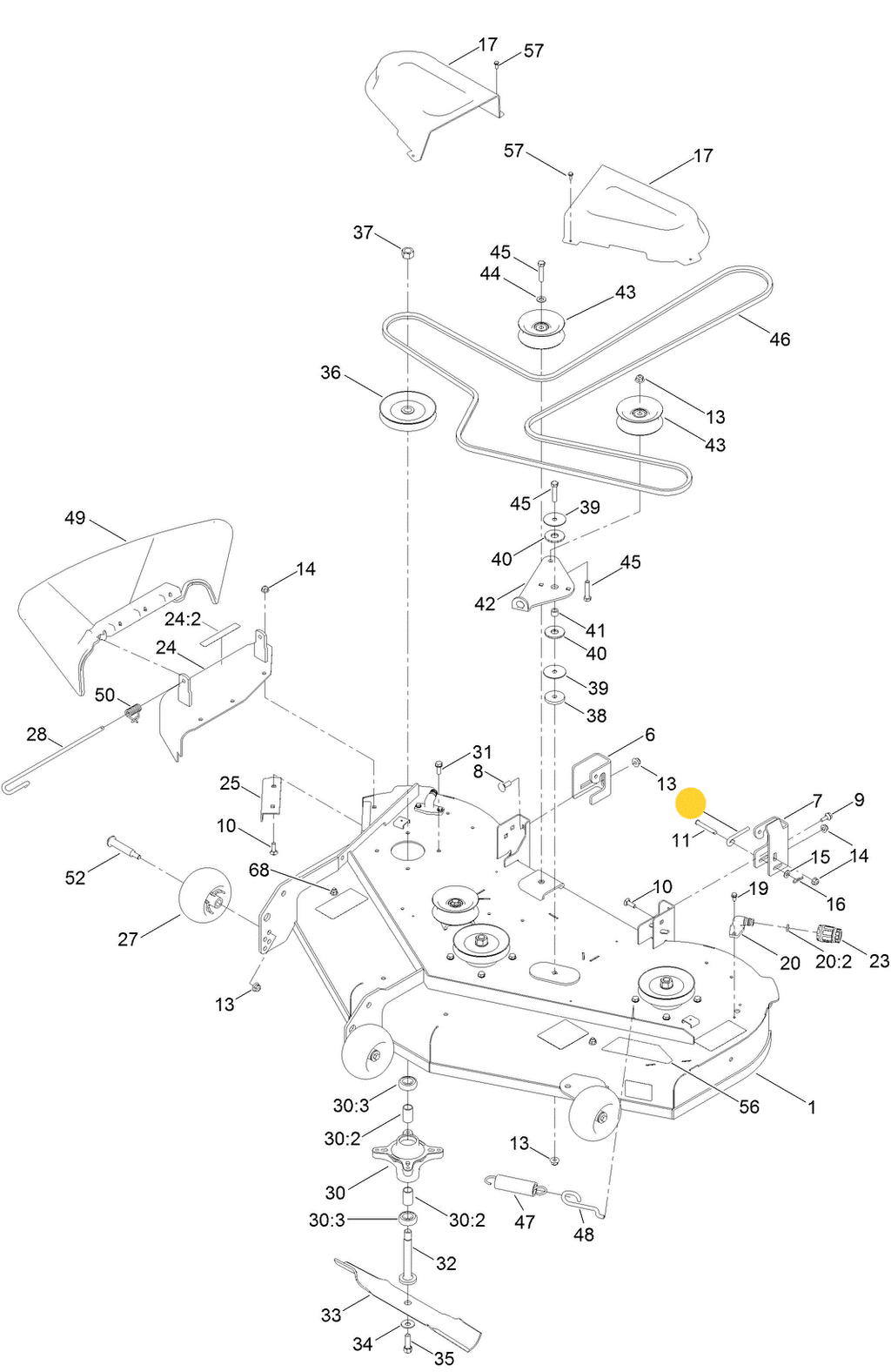

ASSOCIATED FASTNERS & MOWER DECK HANGER PARTS FOR PART NUMBER 131-0955 CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 3230-22 - CARRIAGE BOLT (Retains Hanger Bracket 131-1091 & 131-3935)
2. 104-8300 - LOCKING FLANGE NUT (Carriage Bolt)
3. 104-8301 - LOCKING FLANGE NUT (Adjustment Rod)
4. 131-1091 - LEFT-HAND MOWER DECK HANGER BRACKET (32", 34", 42", 50", Timecutter MX, SS, SW, SWX Models)
5. 131-3935 - LEFT HAND MOWER DECK HANGER BRACKET (50", 54", 60", Timecutter MX, SS, SW, SWX Models)
6. 110-0618 - CLEVIS PIN (Retains Adjustment Rod)
7. 1-806003 - COTTER PIN (Retains Clevis Pin)
8. 3256-23 - FLAT WASHER (Cotter Pin Support)
9. 120-7024 - FLANGE BOLT (Lock Adjustment on Hanger Bracket)







Specification

Product Number:	1310955
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.061 LB (0.028 KG)





Model Fit:





32” Timecutter and Timecutter MX, SS, SW, ZS Series - Early - Late Models Only (* Model Numbers 74650, 74670, 74710, 74780, 74781)



34" Timecutter MX Series - Late Models Only (* Model Numbers 74750)



42" Timecutter Standard and Timecutter MX, SS, SW, SWX, ZS Series - Early - Late Models Only (* Model Numbers 74676, 74711, 74726, 74705, 74665, 74667, 74706, 74725, 74760, 74766, 74722, 74765, 74723, 74770, 74784, 74785, 74787, 74720, 74721, 74655, 74656, 74657, 74675, 74788)



50" Timecutter Standard and Timecutter MX, SS, SW, SWX, ZS Series - Early - Late Models Only (* Model Numbers 74730, 74770, 74660, 74680, 74790, 74797, 74731, 74798, 74732, 74775, 74661, 74771, 74776, 74795, 74727, 74768, 74772, 74773, 74774, 74778)



54" Timecutter SW Series - Early - Late Models Only (* Model Numbers 74740, 74793, 74741)



60" Timecutter MX Series - Late Models Only (* Model Numbers 74777)
