Description

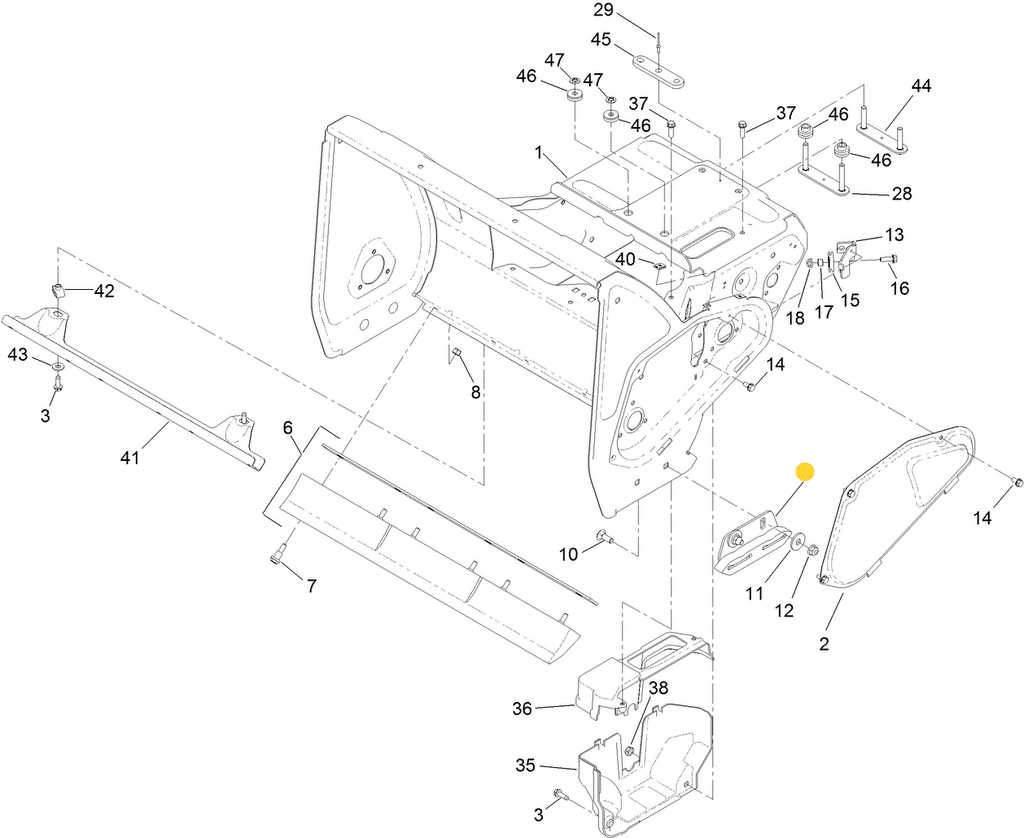

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 130-9619, 130 9619, 1309619

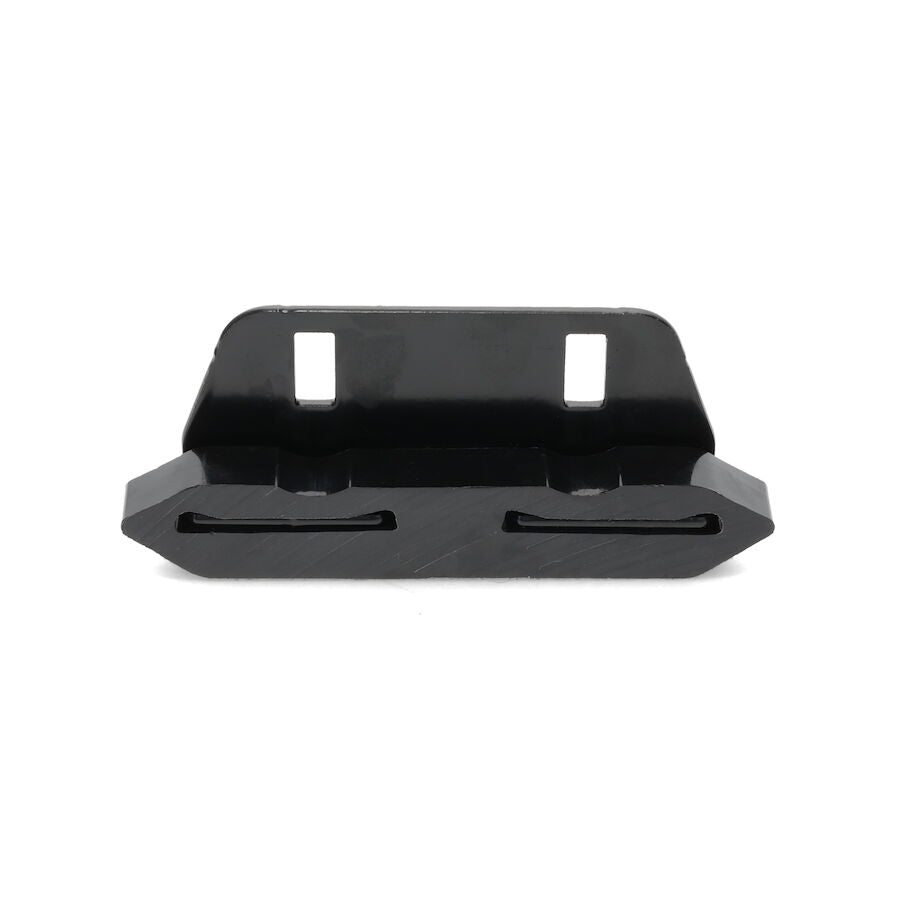

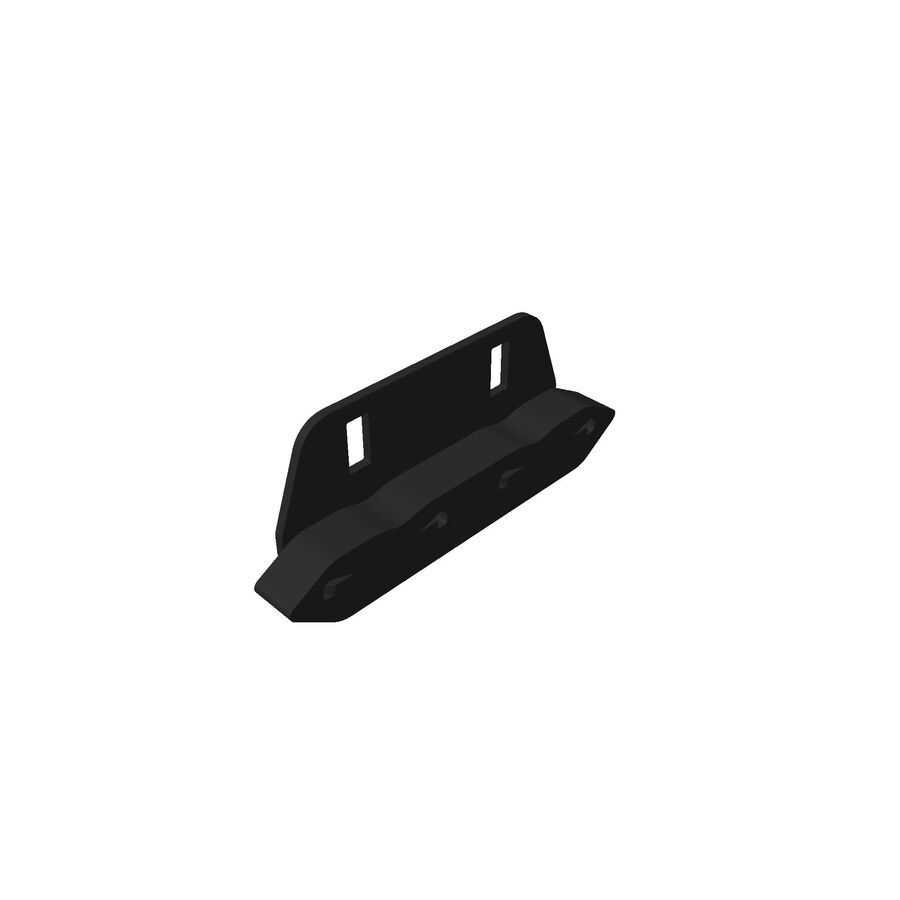

- PRODUCT TYPE: Replaceable Individual Non-Marking Poly Skid Shoe
- SIZE: Length 6.00 in. - Width 0.700 in. - Height 2.400 in. - Weight 0.488 lbs.
- NOTES & DETAILS: Toro OEM 130-9619 IS COMMINLY USED - 130-9619 Individual Replaceable Poly Skid Shoe - Mount one on Each Side of the Auger Housing and are a Replaceable as well as Adjustable. 130-9619 Most Commonly Serves the Purpose of Adjusting the Depth of Spacing Between Cleaning Surface and the Lower Auger Scraper Bar that Travels Across the Bottom of the Snowblower Auger Housing. Skid Shoe are Commonly Used - 1 - (Although for a Cleaner Surface Scraper Bars Can Travel Against the Hard Surface) However Commonly Used to Prevent Premature Wear to the Scraper Bar on Hard Surface Driveways/Walkways By Giving it a Small Air Gap Between the Scraper Bar on the Bottom of the Auger Housing and the Cleaning Surface - 2 - Used to Space The Scraper Bar on the Bottom of the Auger Housing at a Greater Distance for a Loose Gravel to Prevent the Scraper Bar from Accumulating Gravel and Other Debris into the Auger/Auger Housing Erea and Discharging them Creating Greater Liability and Possible Damages. Individual Replaceable Poly Skid Shoes 130-9619 are Available in a Complete Skid Shoe Kit 130-9619P. Poly Skid Shoe Kit Contains 2 x Skids Shoes 130-9613 (One for Each Side), 4 x Carriage Bolts 137-3059 (Two for Each Side), 4 x Flat Washer 119-4150 (Two for Each Side), 4 x Flange Nuts 119-4041 (Two for Each Side) Click on Associated Part Numbers to be Redirected.
- COMMON SERIES APPLICATIONS: Select Toro Snowthrower, Snow Master, Snow MAX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711, 38712)
SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)
E - SNOW MASTER Series – Model Numbers – (* Model Numbers 39914, 39914T, 39915, 39915T)
SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)
E - SNOW MAX Series – Model Numbers – (* Model Numbers 31860)
