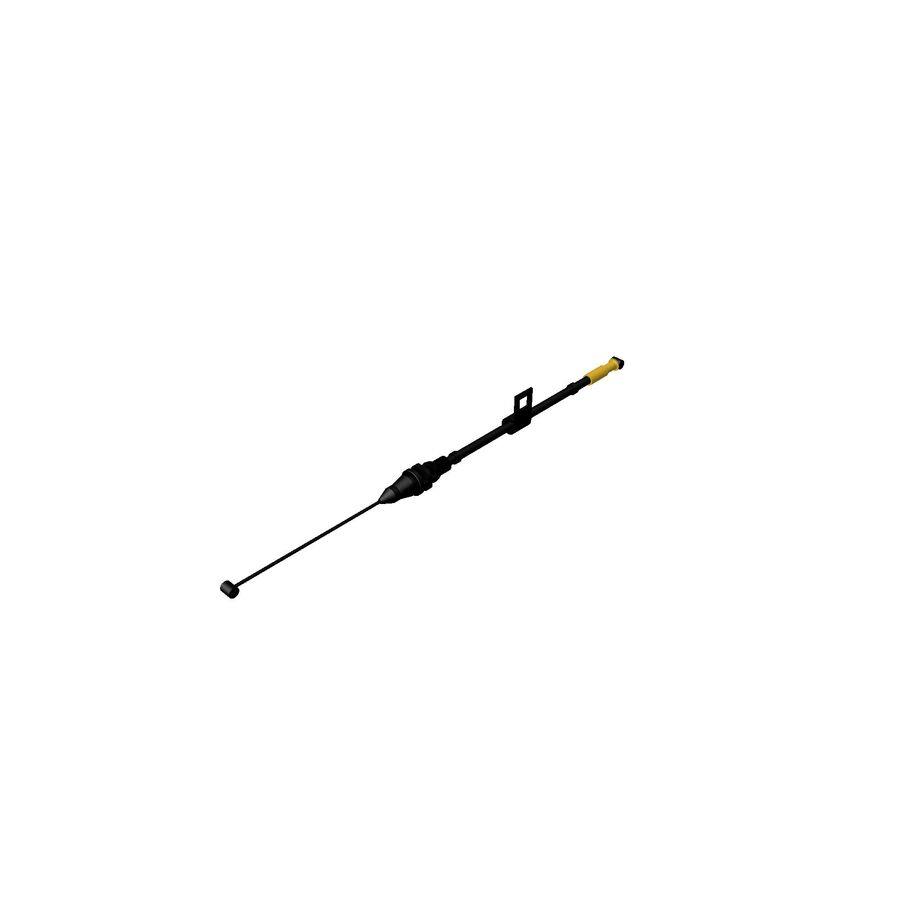

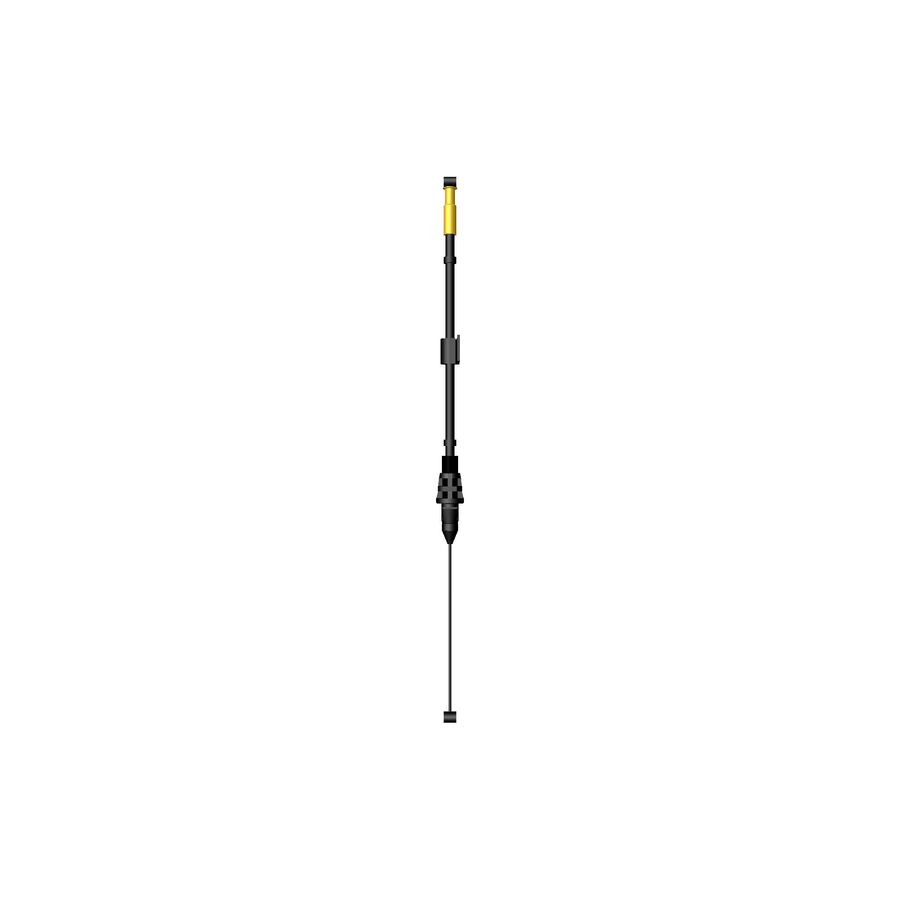

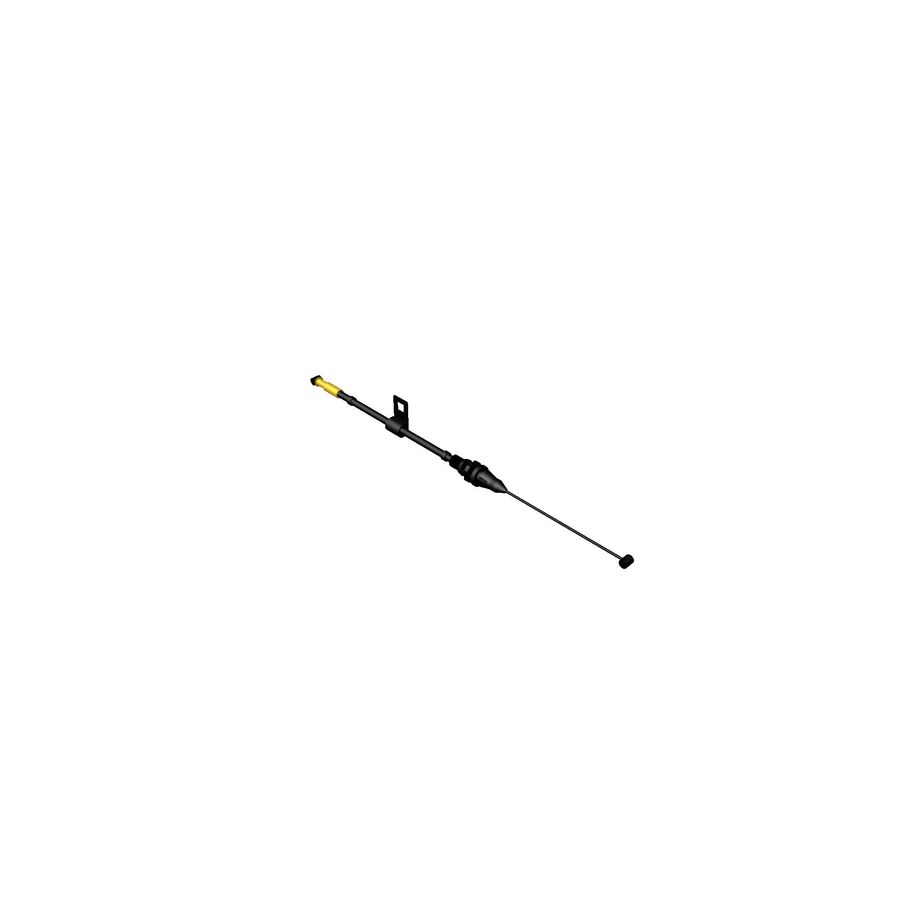

Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Roll over image to zoom in Click on image to zoom
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).
Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).

Toro OEM 130-9614 Snowblower Chute Release Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).

ToroSKU: 130-9614
Price:
$22.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

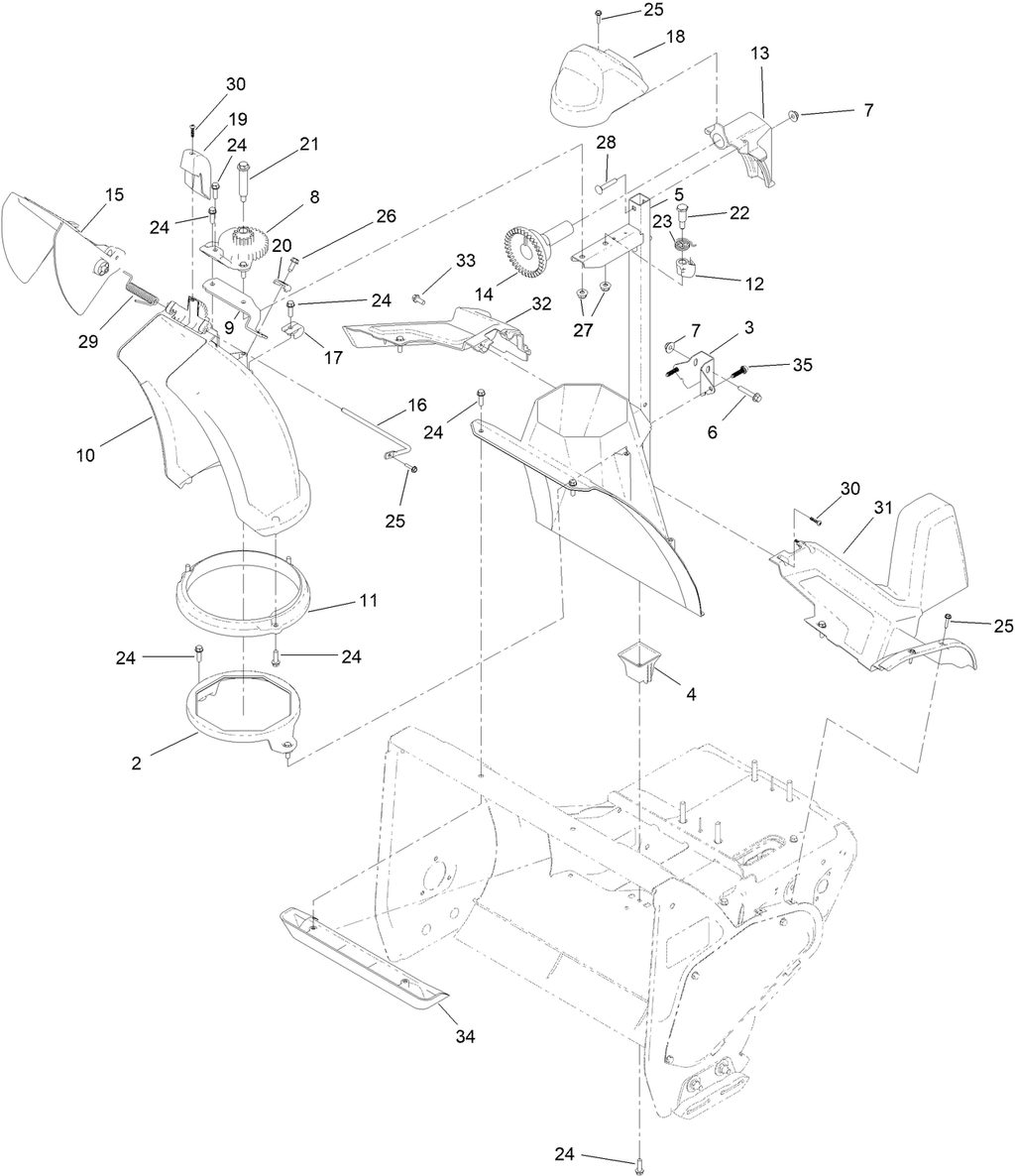

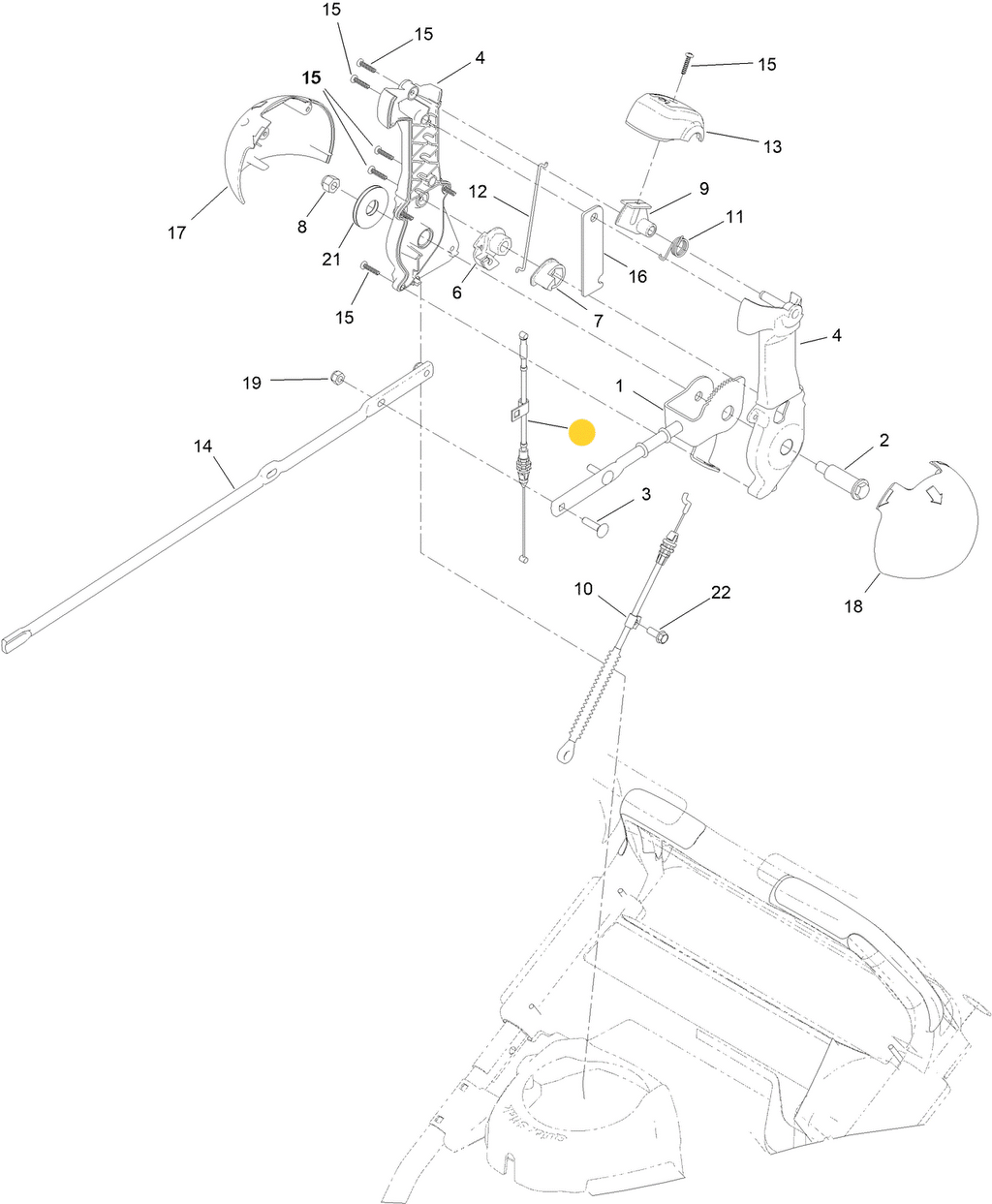

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





  • PRODUCT NUMBER AND VARIATIONS: 130-9614, 130 9614, 1309614
  • PRODUCT TYPE:  Discharge Chute Latch Release Cable
  • SIZE: Length N/A - Width N/A - Height N/A - Weight 0.240 lbs.

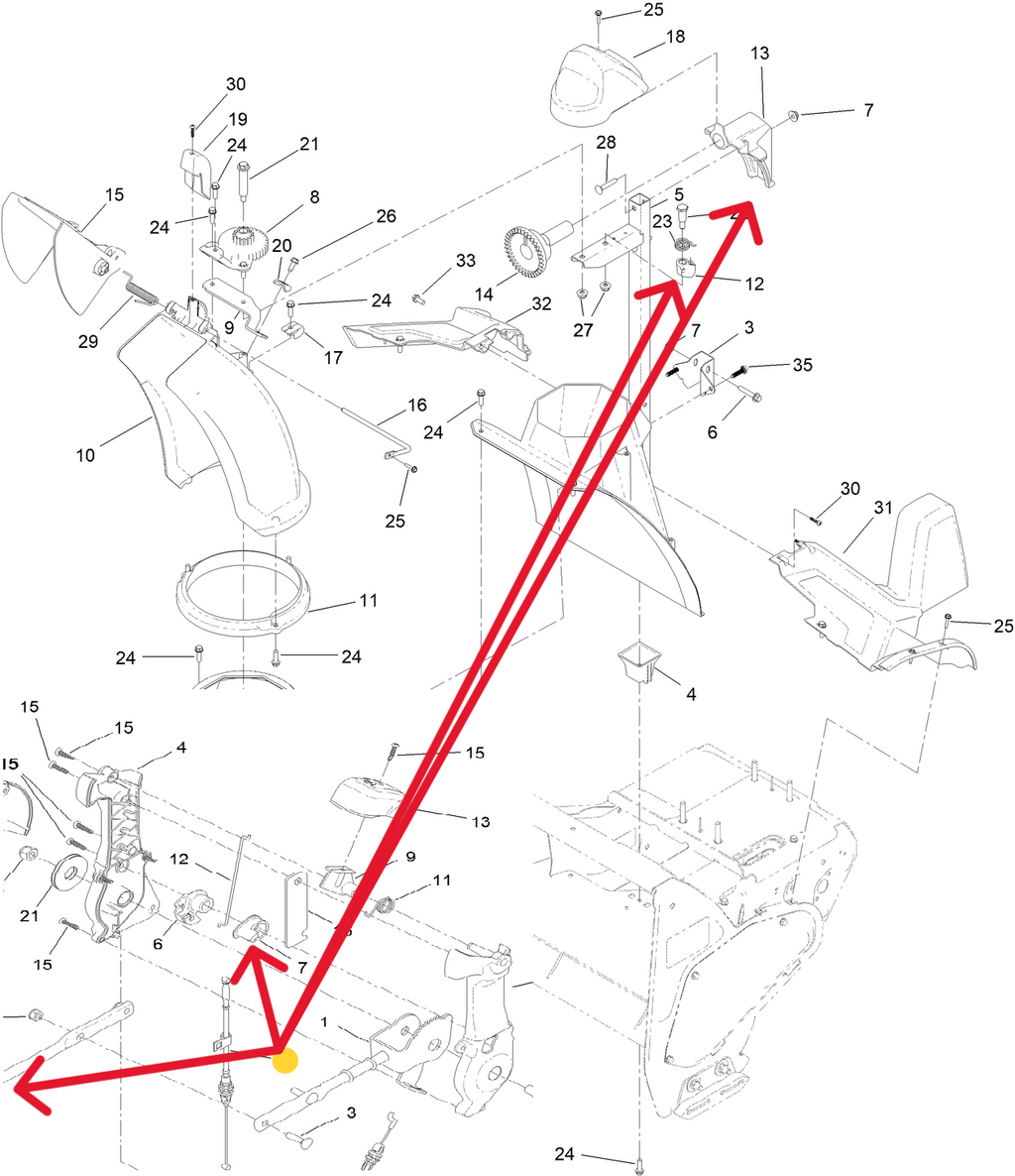

  • NOTES & DETAILS: Toro OEM  130-9614 IS COMMINLY USED - 130-9614 Cable Ends - 130-9614 Chute Release Cable Attaches to the Chute Release Cable's QuickStick or Latch Lever 105-9988 that is Assembled inside the Handle or Quickstick assembly. The Lower End of the Chute Release Cable (With the Plastic Insert Clips) Attaches to the Quickstick Chute Latch 130-9607 (Latch is Responsible from Disabling the Discharge Chute to Rotation). - 130-9614 The Cable Itself - 130-9614 Chute Release Cable is Routed from the Chute Control Lever or Quistick Assembly Across the Discharge Chute Rod 144-1236 and Fastened to the Chute Control Rod with the Factory Installed Cable Clamp By Using the Spare Bolt Whole on the Chute Control Rod and Carriage Bolt 137-3056 and Nylon Lock Nut 137-3094 - Next the Cable Continues Its Route Directly to and Insert Into the Chute Gear Mount 130-9608 Using The Factory Molded Retaining Tabs on the Chute Release Cable. - 130-9614 Deflector Cable Assembly - Enable the Operator to Push on the Blue Lever/Button on the Control Handle or Quick stick, By Pushing the Button/Lever the Cable Pulls the Toothed Latch Away from the Discharge Chute Gear Allowing the Discharge Chute to Rotate Left to Right as the Operator Rotate the Quickstick Left to Right. Click on the Associated Part Numbers to Be Redirected.
  • COMMON SERIES APPLICATIONS: Toro Select E - Snow Master, Snow Master, Snow Thrower, E - Snow Max & Snow MAX Snow Blower Models.





  • MODEL FIT CHART:



SNOWBLOWER’S



SNOW MASTER Series – Model Numbers – (* Model Numbers 36002, 36003)



E-SNOW MASTER Series – Model Numbers – (* Model Numbers 39914, 39914T, 39915, 39915T)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38711, 38712)



SNOW MAX Series – Model Numbers – (* Model Numbers 38721)



E-SNOW MAX Series – Model Numbers – (* Model Numbers 31860)
