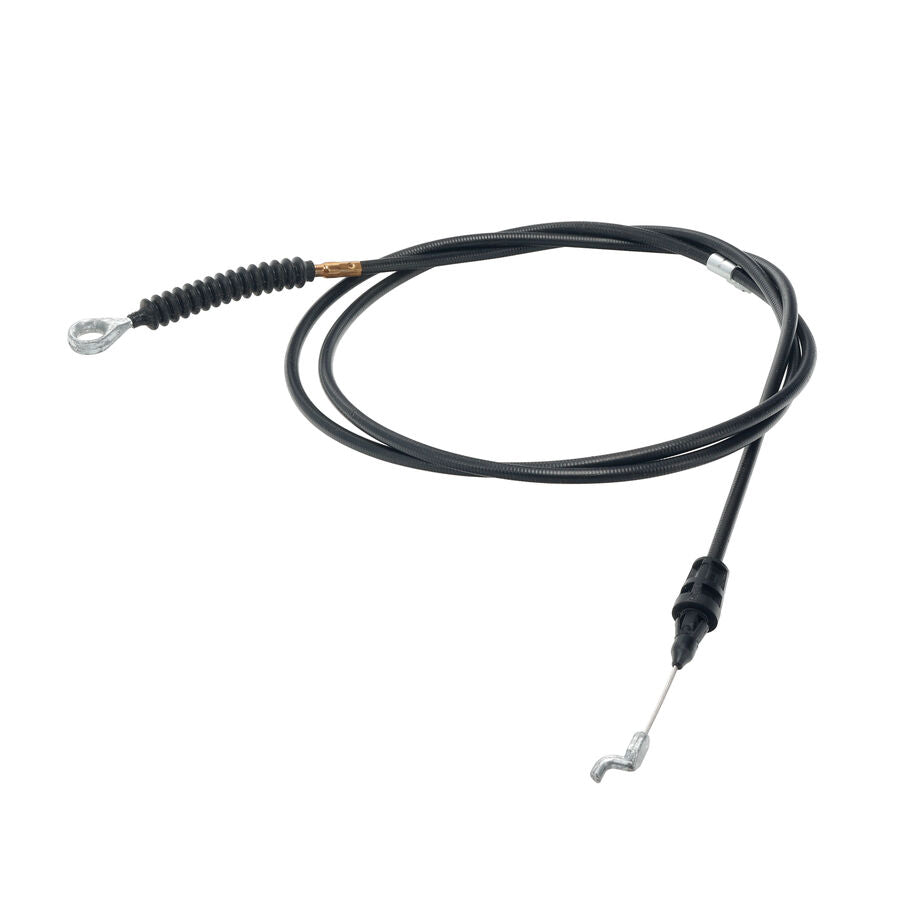

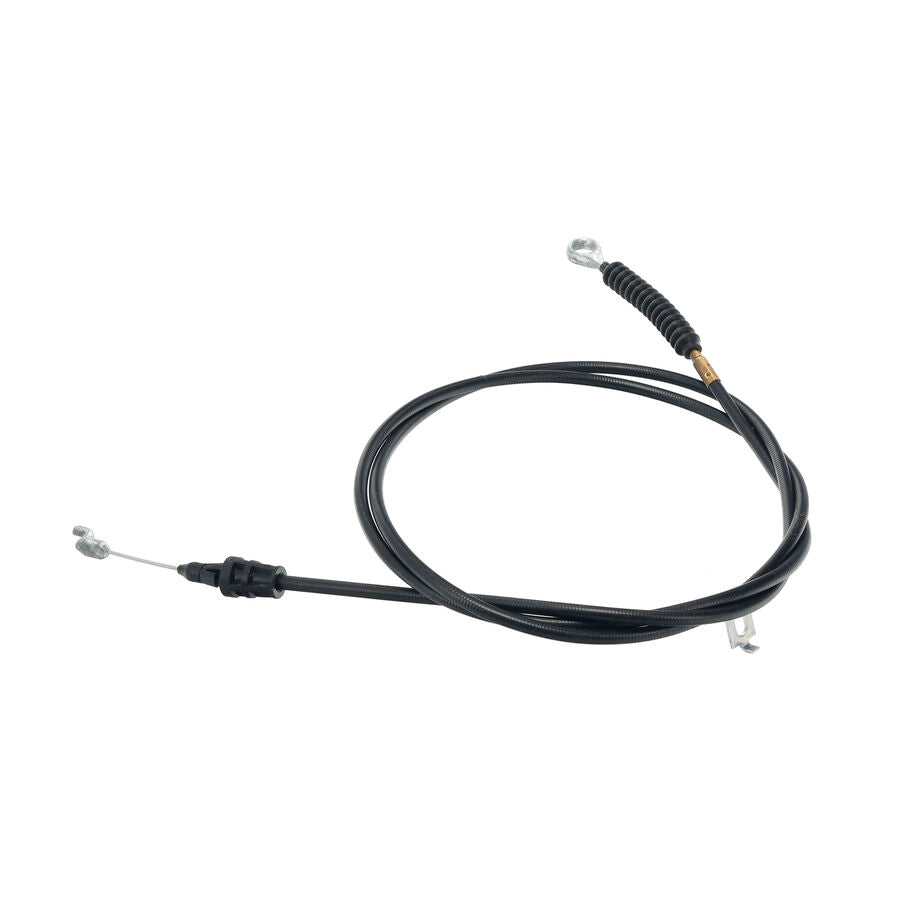

Toro OEM 130-9613 Snowblower Chute Deflector Control Cable Fits Select SnowMaster, Snow MAX, Snowthrower Models (Plastic Chute).

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 130-9613, 130 9613, 1309613
• PRODUCT TYPE: Chute Deflector Control Cable
• SIZE: Length 84.000 in. - Width 0.500 in. - Height 0.500 in. - Weight 0.460 lbs.

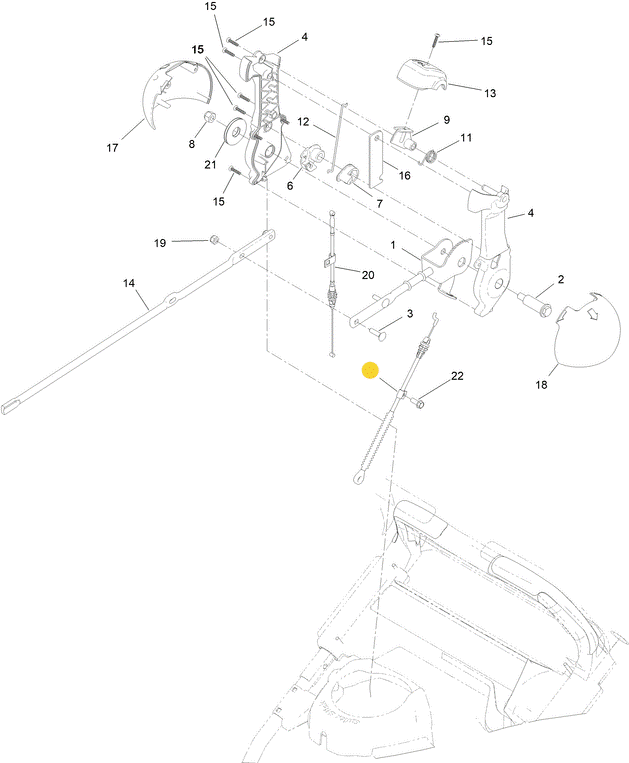

• NOTES & DETAILS: Toro OEM  130-9613 IS COMMINLY USED - 130-9613 Cable Ends - Hook or Shoe End Inserts into the Control Rod/Bracket that Mounts to the Chute Control Handle the Eyelet End Fastens to the Chute Deflector. - 130-9613 The Cable Itself - Fastens through a Series of Fasteners and Clamps that retain it to the Snowblower Assembly. Cable is routed around the Engine Erea and Retained to the Frame Using the Factory Installed Cable's Clamp Via a Washer Head Bolt - Next it Feeds Through the Cable Guide Fastened to the Discharge Chute - Next the Cable Feed through a Cable Clamp and Fastener that Attaches to the Cable Bracket that Attaches to the Discharge Chute. - 130-9613 Deflector Cable Assembly - Only Serves the Purpose of Lowering and Raising the Deflector as the Operator Pushes and Pulls the Chute Control Handle Foward and Backward this Also Enables the Operator to Control the Distance of Snow Travel Preventing Blowing Snow and Debris Against Vehicles or other Object, Items and Areas.
• COMMON SERIES APPLICATIONS: Toro Select E - Snow Master, Snow Master, Snow Thrower, E - Snow Max & Snow MAX Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



SNOW MASTER Series – Model Numbers – (* Model Numbers 36002, 36003)



E-SNOW MASTER Series – Model Numbers – (* Model Numbers 39914, 39914T, 39915, 39915T)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38711, 38712)



SNOW MAX Series – Model Numbers – (* Model Numbers 31860, 38721)



E-SNOW MAX Series – Model Numbers – (* Model Numbers 31860)

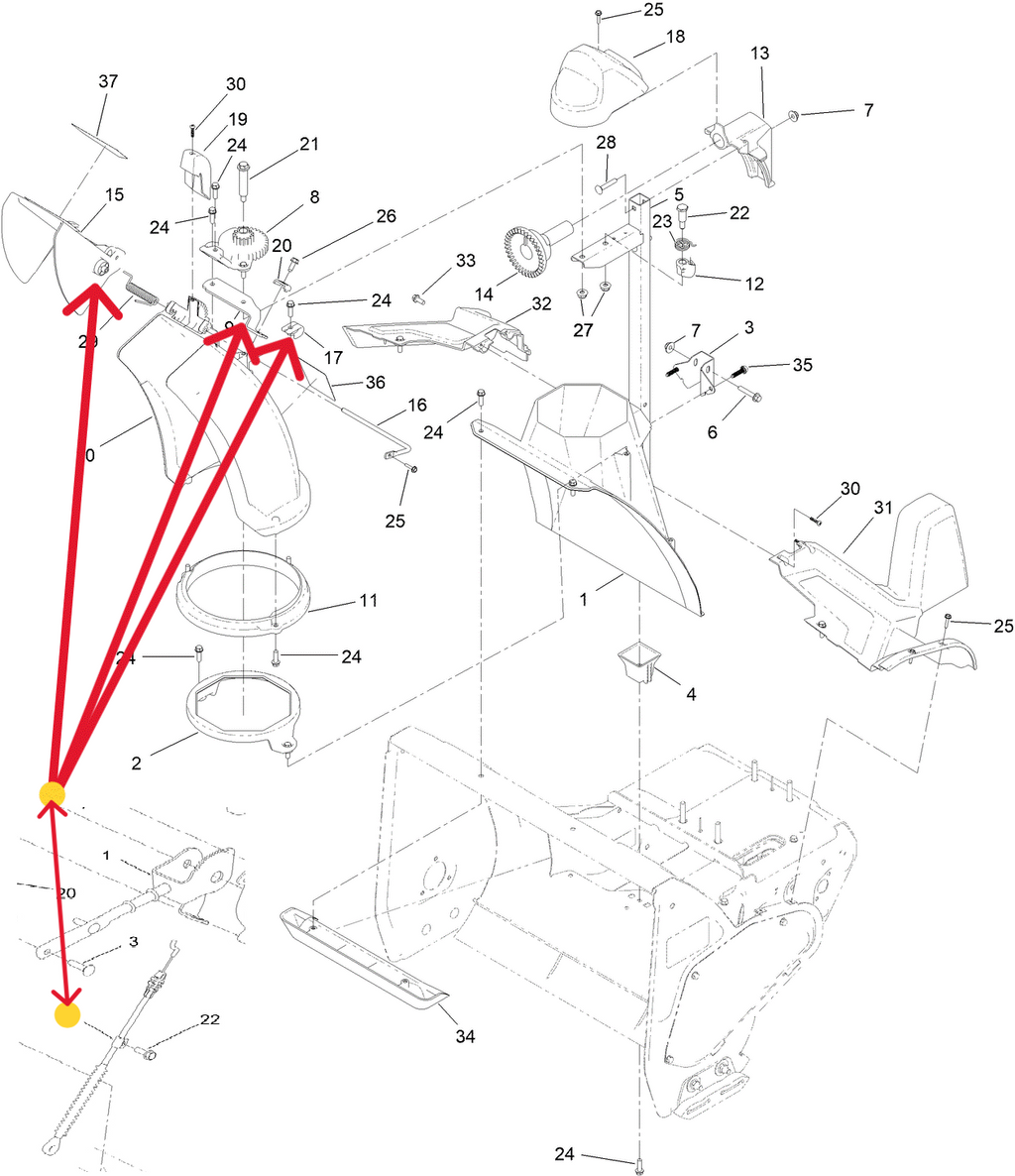

• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 130-9613 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-0662 - Chute Control Rod Bracket (Whole for Cable Shoe or Hook) x1
2. 32144-85 - Washer Head Bolt (Retains the Cable to the Snowblower Main Frame Using the Factory Installed Cable Clamp Via the Bolt)- x1
3. 130-9609 - Cable Guide (Fastens to the Discharge Chute Via a Bolt and Guides the Cable to be Directed Properly) x1
4. 137-3099 - Washer Head Bolt (Retains the Cable Guide to the Discharge Chute) x1
5. 136-7170 - Cable Bracket (Retains Cable to the Discharge Chute) x1
6. 136-7191 - Cable Clamp (Retains the Cable to the Cable Bracket Via the Washer Head Bolt) x1
7. 137-3043 - Washer Head Bolt (Retains Clamp and Cable to Cable Bracket) x1
8. 147-9467 - Deflector Chute - Plastic (Retains the Eyelet End of the Cable Via the Bolt) x1
9. 137-3043 - Washer Head Bolt (Retains the Eyelet to the Deflector Chute) x1
