Toro OEM 130-8362 Hydraulic and Flat Idler Fits Current 52", 60", 72" Grandstand HDX Models - Early Prolines and Walk Behind Models - Late/Current Grandstand and GroundMaster Debris Blowers.

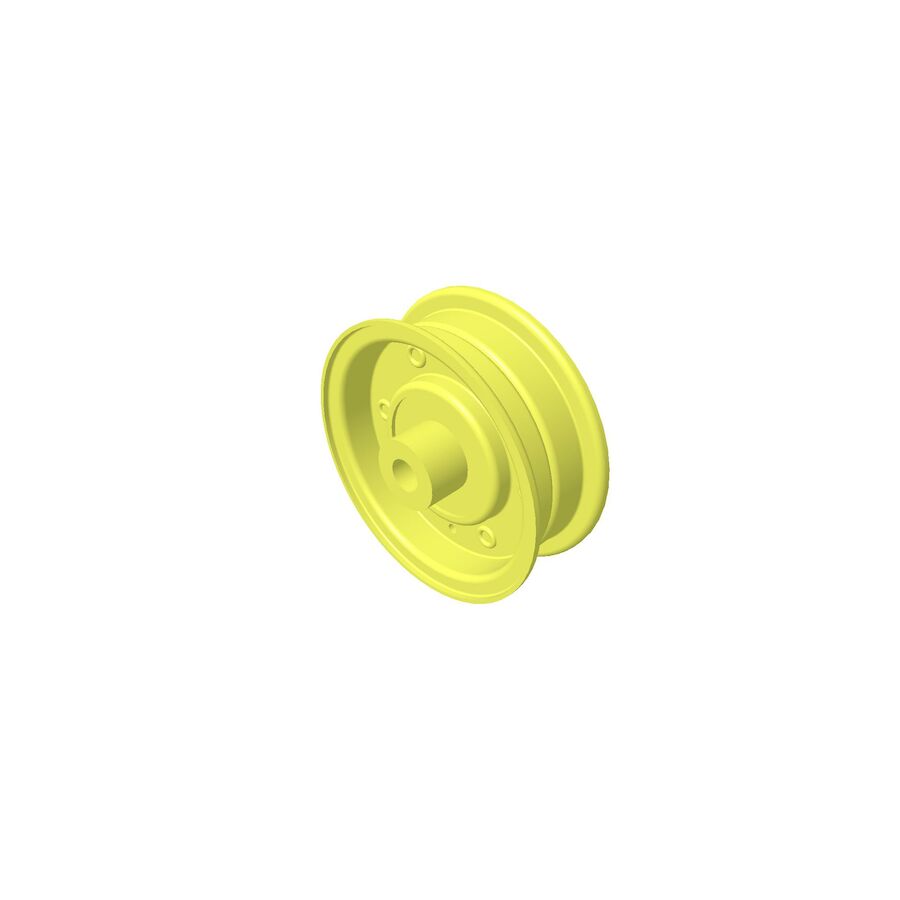

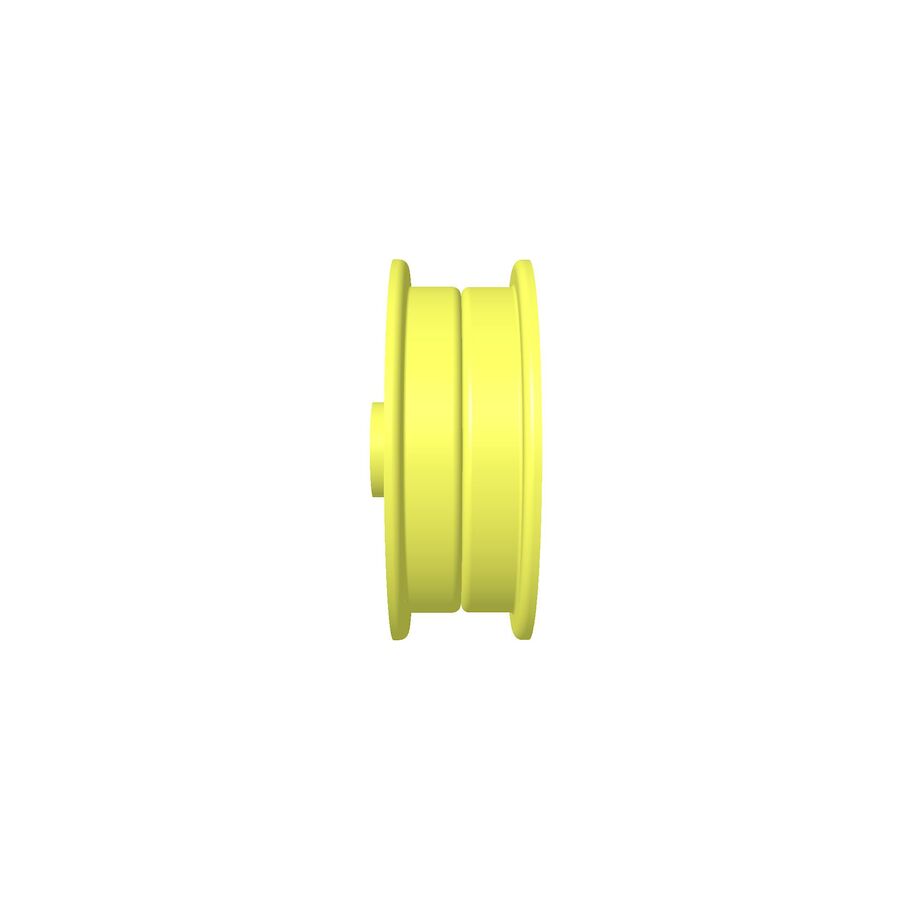

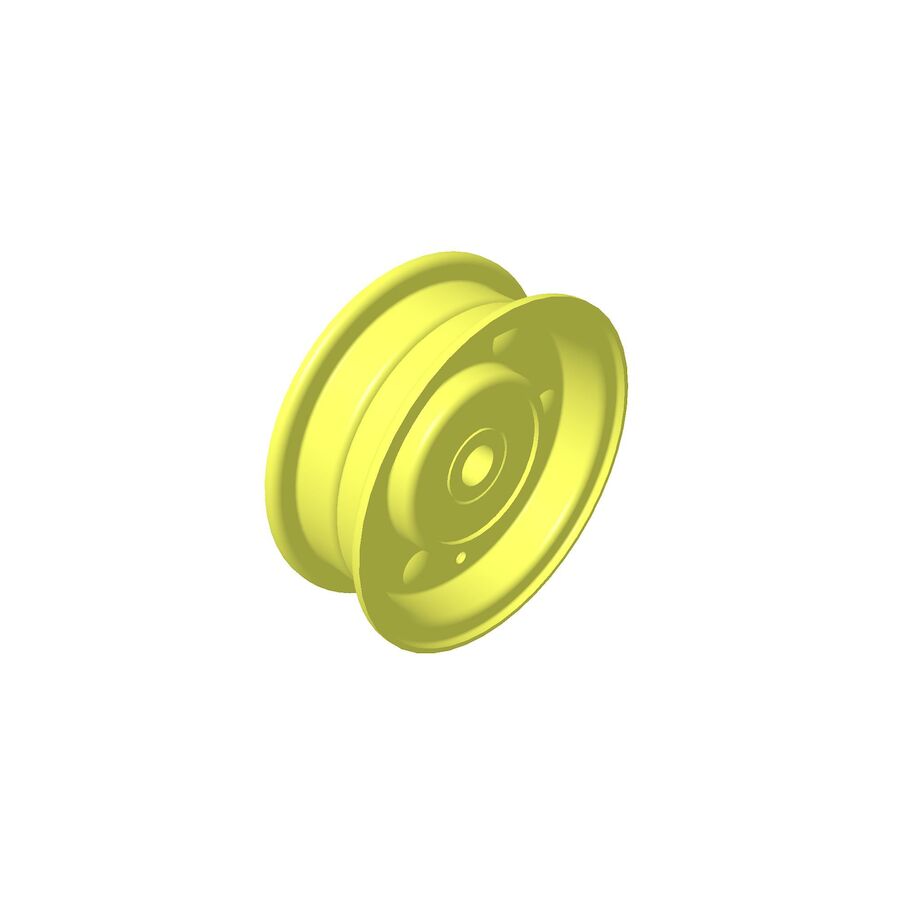

The Toro OEM 130 8362 Hydraulic Drive Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 130 8362 OEM Flat Idler is compatible with a variety of Toro models, including the Current 52",60", 72" Grandstand HDX Models (Mounts to Left Hand Hydrostatic Pump/Transmision - as you Stand on the Operators Platform)- Early PROLINE & Walk Behind Models (Set of Model Numbers may not be listed on the Proline Idler Pulley Usage Chart) - Current/Late Debris Blower (Multi-Force & Ground Master Model. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 130-8362 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions. Part Number 1-323285 and E323285 Supersedes to Part Number 130-8362.

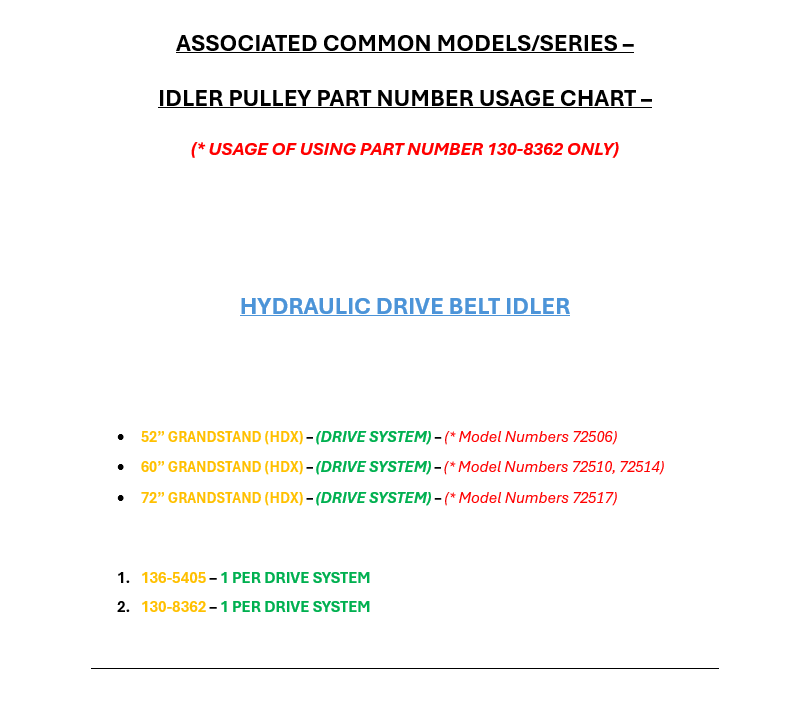

NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.







Specification

Product Number:	1323285, E323285, 1308362
Brand:	Toro
Length:	1.310 IN (3.327 CM)
Width:	3.200 IN (8.128 CM)
Height:	3.200 IN (8.128 CM)
Weight:	0.495 LB (0.225 KG)





Model Fit:





HYDRAULIC DRIVE BELT IDLER

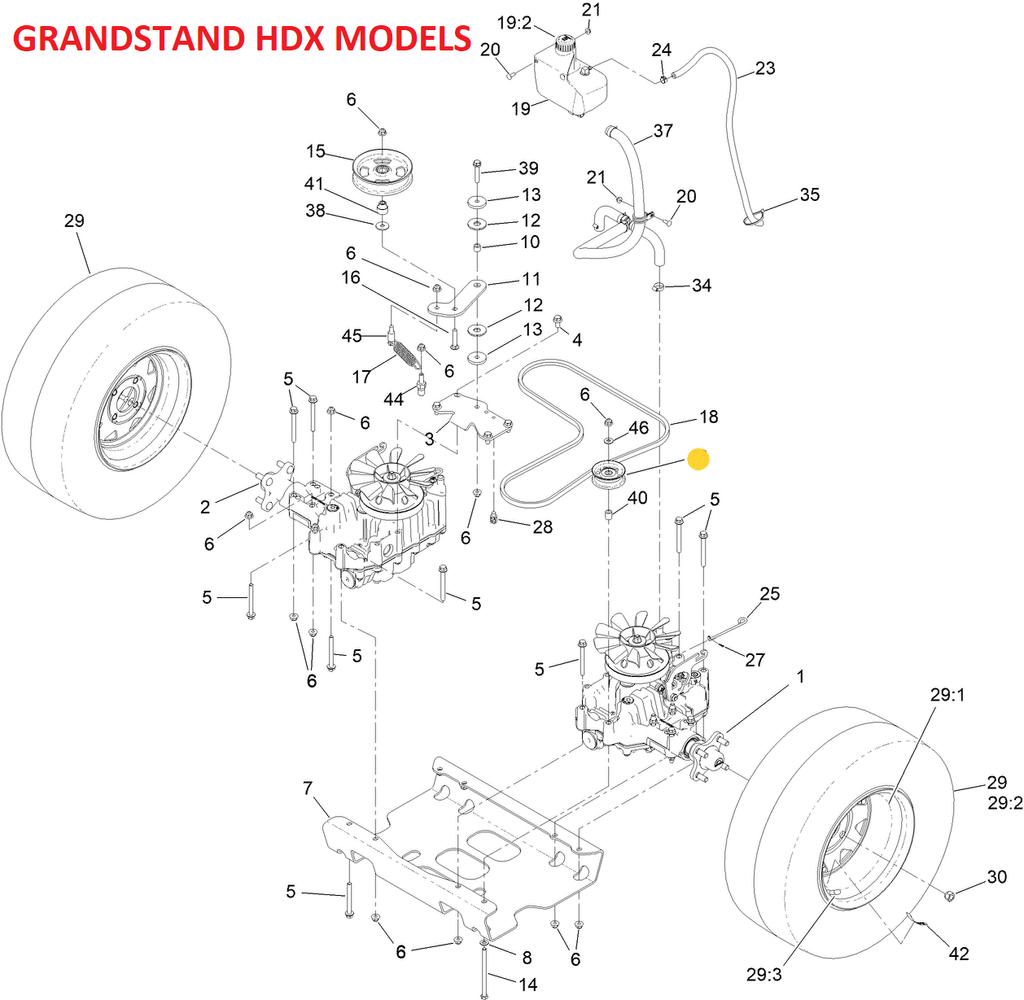

52” GRANDSTAND (HDX) – (DRIVE SYSTEM) – (* Model Numbers 72506)

60” GRANDSTAND (HDX) – (DRIVE SYSTEM) – (* Model Numbers 72510, 72514)

72” GRANDSTAND (HDX) – (DRIVE SYSTEM) – (* Model Numbers 72517)

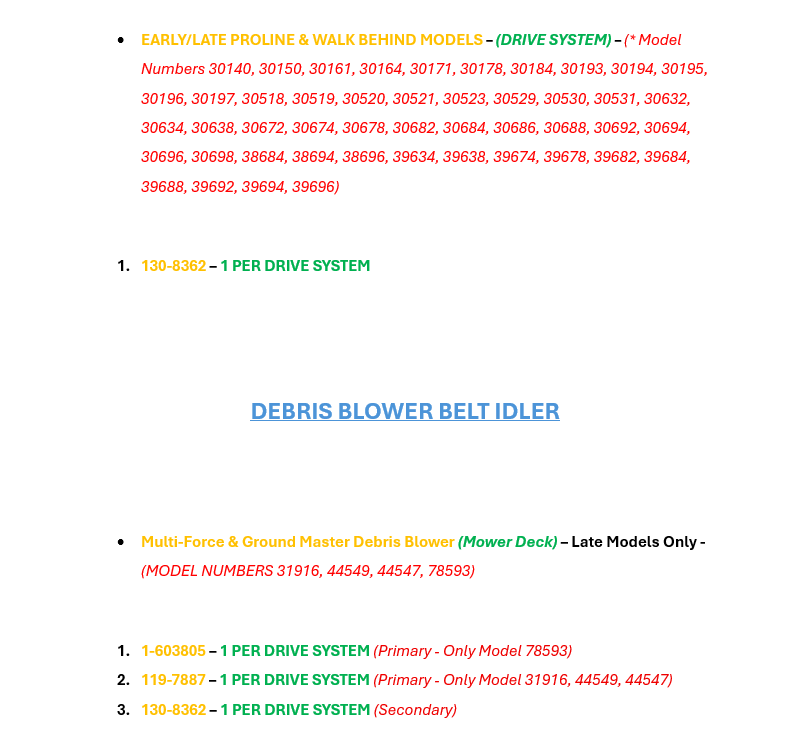

EARLY/LATE PROLINE & WALK BEHIND MODELS – (DRIVE SYSTEM) – (* Model Numbers 30140, 30150, 30161, 30164, 30171, 30178, 30184, 30193, 30194, 30195, 30196, 30197, 30518, 30519, 30520, 30521, 30523, 30529, 30530, 30531, 30632, 30634, 30638, 30672, 30674, 30678, 30682, 30684, 30686, 30688, 30692, 30694, 30696, 30698, 38684, 38694, 38696, 39634, 39638, 39674, 39678, 39682, 39684, 39688, 39692, 39694, 39696)







DEBRIS BLOWER BELT IDLER

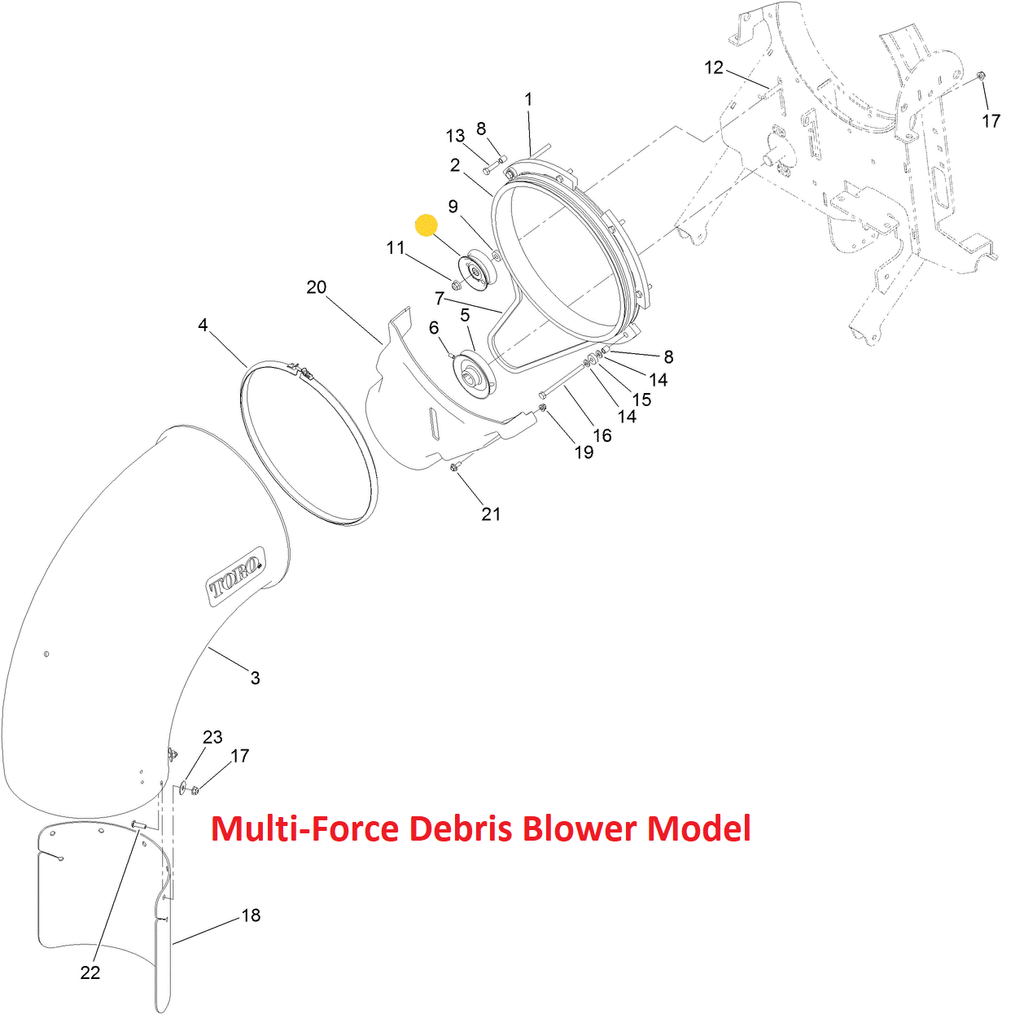

Multi-Force & Ground Master Debris Blower (Mower Deck) – Late Models Only - (MODEL NUMBERS 31916, 44549, 44547, 78593)







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 130-8362 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT





GRANDSTAND HDX MODELS ONLY (* Hydraulic Idler References Only)



1. 104-8301 - IDLER PULLEY FLANGE NUT - (Retains Idler) x1 Per Idler Pulley
2. 3256-3 - IDLER PULLEY WASHER - (Enables the Correct Tightening Diameter on the Flat Idler Bearing Surface) x1 Per 130-8362 Flat Idler Pulley
3. 115-1451 - IDLER PULLEY SPACER - (Enables Hydraulic Flat Idler to be Tightened Within Correct Spacing from Left Side Hydrostatic Pump) x1 Per 130-8362 Flat Idler Pulley.
4. 3256-24 - FLAT WASHER - (Supports Hydrostatic Pump Plate/ Idler Pulley Bolt - Used Between the Hydro Support Plate and Bolt Head) x1 Per 130-8362 Flat Idler Pulley
5. 323-25 - IDLER PULLEY HEX BOLT - (Retains Flat Idler to Left Hand Hydro - Bolt Runs Through Hydro Support Plate as well as The Hydro Itself) x1 Per Flat Idler Pulley Fastened to the Hydrostatic Pump.
