Description

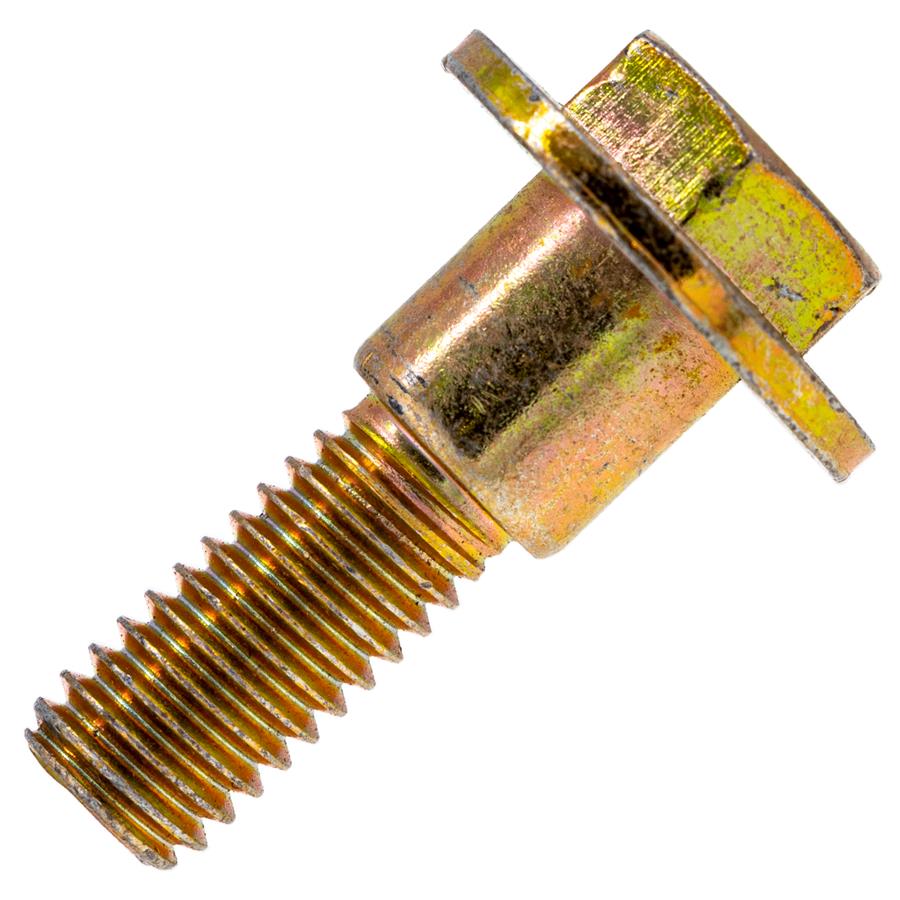

- TYPE: TORO OEM Hex Head Flange, Shoulder Bolt
- SIZE: Standard 3/8 Thread Pattern
- APPLICATIONS: 130 0742 is used in Select Vac & Collection System or Kit BUT IS PRIMARILY Used in Mower Deck Lift Linkage to Fasten the Lift Link or Lift Link Chain to Mower Deck and in Some Models and Series to the Mower Deck Pivot Lift/Leverage Arm/Shaft as well - In some Model 130-0742 is also used to Fasten the Mower Deck Pivot Pan to the Frame and in Some Case to the Mower Deck as well Depending on Model/Series.
- COMMON SERIES APPLICATIONS: Current Timecutter MAX & Late Timecutter HD Models - Late Titan MX, ZX, X, XS, 4800, 5400, 6000, Standard, My-Ride, Models - Late Titan MAX, HD1500, HD2000, HD2500 Models (Tube Framing) - Current TITAN Standard and My-Ride Models (I-Beam Framing) - Current Titan MAX Models (I-Beam Framing) - ZMASTER 2000 (I-Beam Framing & Tube Style Framing) - Z Master 4000 & Revolution Models - Grandstand Models (Multi-Force, Revolution, Standard, HDX, HDM or Compact) - Proline Models - Select Vac & Collection Kits or Systems.

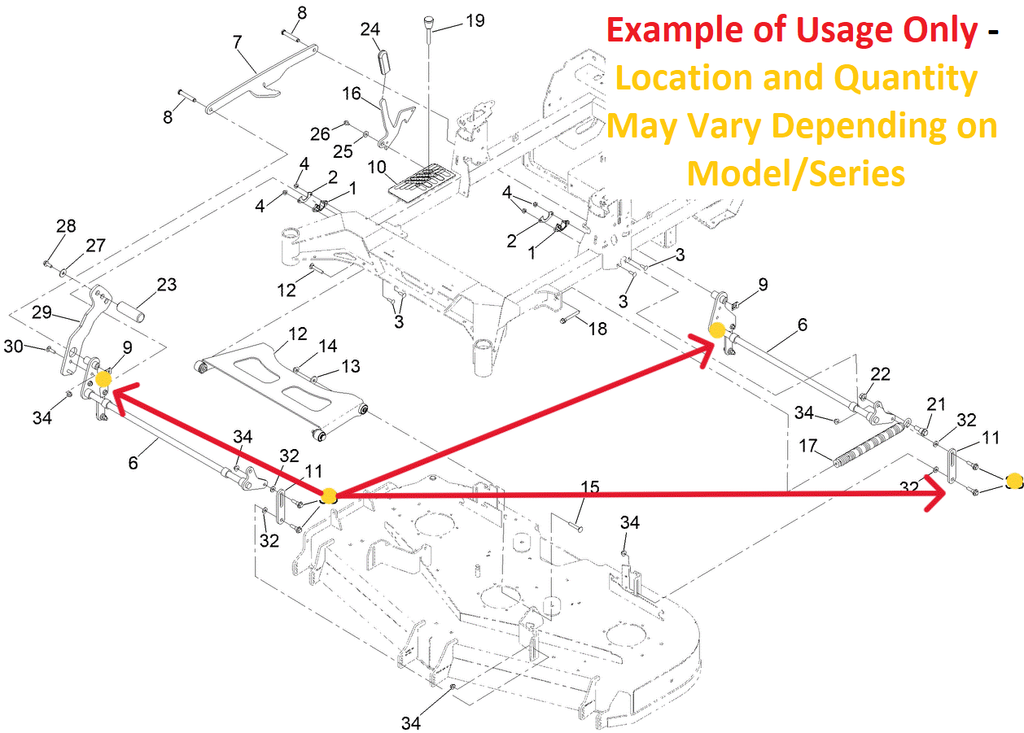

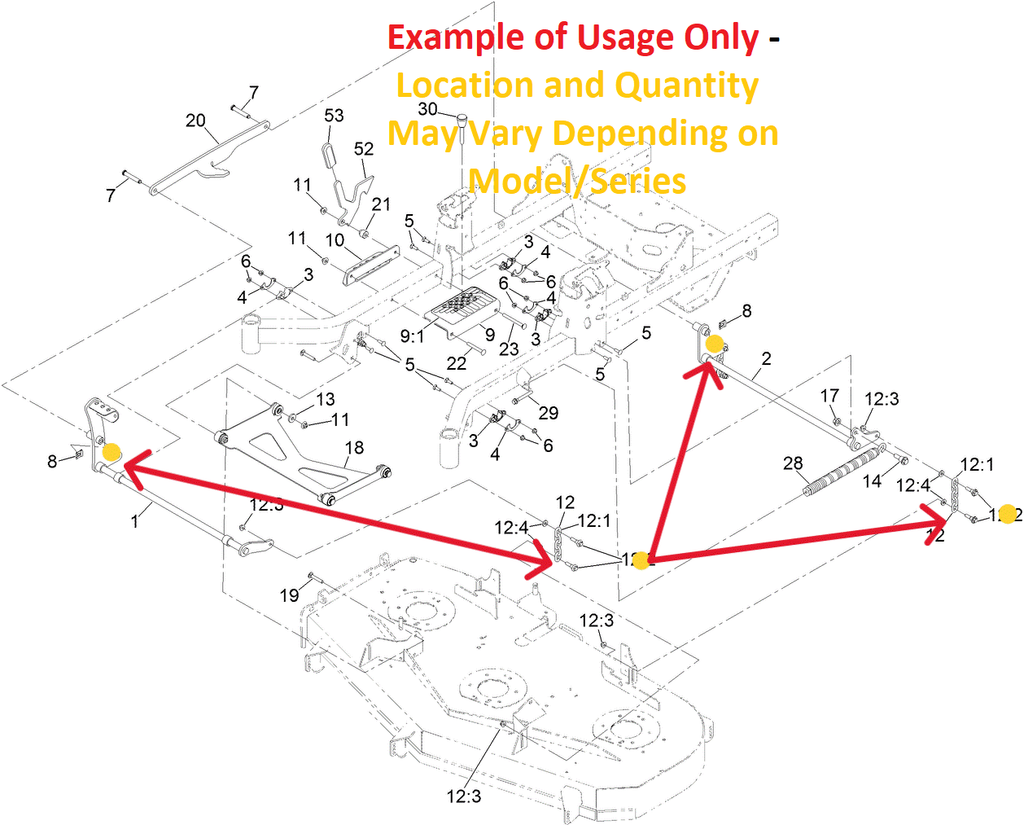

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
Specification
|
Product Number: |
130 0742, 1300742 |
|
Brand: |
Toro |
|
Length: |
1.900 IN (4.826 CM) |
|
Width: |
1.000 IN (2.540 CM) |
|
Height: |
1.000 IN (2.540 CM) |
|
Weight: |
0.090 LB (0.041 KG) |
Model Fit:
TIMECUTTER
42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)
42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)
48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 74886, 75201, 75210, 75211)
50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)
50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)
54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)
54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)
54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 74876, 74888, 75202, 75210, 75212)
60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)
60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)
60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)
TITAN & TITAN MAX
48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)
48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)
48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)
48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74851, 74855, 74846, 74891, 74861)
54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)
54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)
54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)
54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74852, 74882, 74848, 74892, 74862)
60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)
60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74853, 74863, 74883, 74893)
60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
60” TITAN MAX (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 76601, 76602)
TITAN HD
48” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 48" Late Models / Tubed Framing - (* Model Numbers 78450, 74465, 74460, 74453, 74450, 77248, 77280)
52” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 52" Late Models / Tubed Framing - (* Model Numbers 74451, 74454, 74461, 74466, 77282, 77290)
60” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74452, 74462, 74463, 74467, 74480, 77260, 77284, 77287, 77293, 77299)
60” TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74470, 74471, 74472, 78472)
Z-MASTER
CURRENT/LATE MODELS
Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)
Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74024, 74035, 74050, 74052, 74054, 74055, 74057)
Z MASTER REVOLUTION MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 18748, 18752, 18760, 18762, 18765)
EARLY/LATE MODELS
Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74141, 74143, 74145, 74490, 74491, 74492, 74493, 74494, 74495, 74496, 74497, 77248, 77280)
GRANDSTAND
48” GRANDSTAND – (Standard) – (* Model Numbers 71504, 72504, 72518, 74504, 74518, 79504, 79518)
48” E - GRANDSTAND – (Revolution) – (* Model Numbers 18562)
52” GRANDSTAND – (Standard) – (* Model Numbers 71505, 72505, 72507, 72519, 74505, 74519, 74529, 79505)
52” GRANDSTAND – (Multi-Force) – (* Model Numbers 72529, 72530)
52” E - GRANDSTAND – (Revolution) – (* Model Numbers 18560)
60” GRANDSTAND – (Standard) – (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523)
60” GRANDSTAND – (Multi-Force) – (* Model Numbers 72523, 72524)
60” E - GRANDSTAND – (Revolution) – (* Model Numbers 18564)
32” GRANDSTAND – (HDM) – (* Model Numbers 74532)
36” GRANDSTAND – (HDM) – (* Model Numbers 74535)
52” GRANDSTAND – (HDX) – (* Model Numbers 72506)
60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)
72” GRANDSTAND – (HDX) – (* Model Numbers 72517)
PROLINE
36” Proline Series – 36” Current/Late Models Only - (* Model Numbers 44409, 44410, 44436)
48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)
54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)
60” Proline Series – 60” Current/Late Models Only - (* Model Numbers 44430, 44460)
VAC & COLLECTION SYSTEM
MOWER DECK & MISC. MODELS – (* Model Numbers 79345, 79346, 139-7860)
MOWER DECK LIFT ASSIST KITS
MOWER DECK LIFT ASSIST KITS – (* Part Numbers 132-6850, 140-5123)
