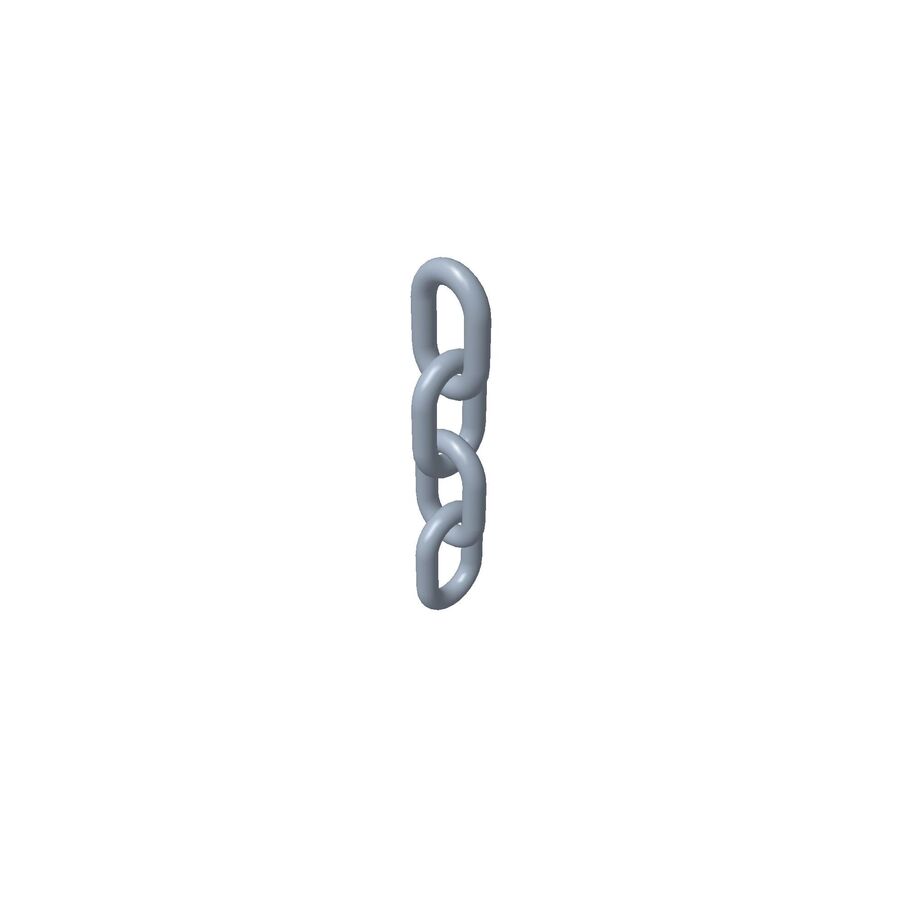

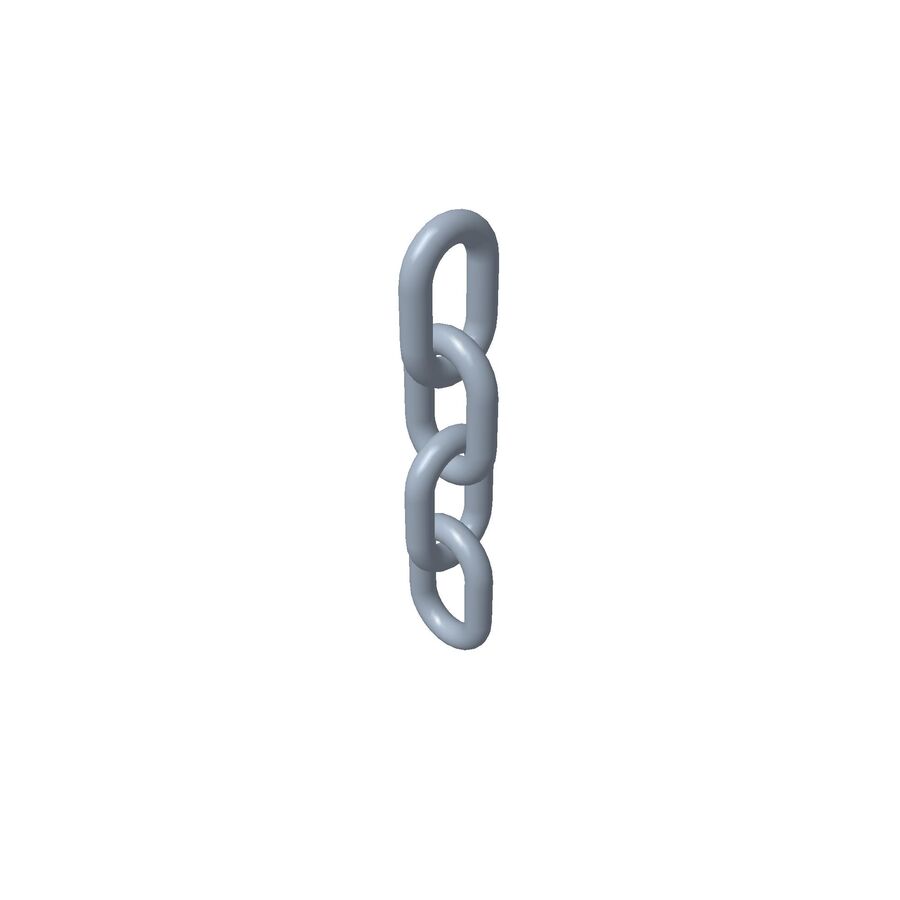

Toro OEM 130-0668 Mower Deck Lift Link Chain Fits Toro Select Late Timecutter HD Models - Select Late Titan MX, ZX Models (With Tube Style Framing).

Toro OEM 130 0668 Mower Deck Lift Chain Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck. 130 0668 Lift Link Chains Bolts to the Mower Deck and Connects to the Mower Deck Pivot Lift Arm Via the Hook on the Pivot Lift Arm. Toro OEM 130-0668 Mower Deck Lift Chains Enable the Mower Deck to Free Float (with the Help of the Anti Scalp wheels) while Traversing Rough Terrain as well as allowing more Forgiveness if the Mower Deck Was to Come into Come Contact with any Obstruction. Toro OEM 130-0668 Fits Toro Select Late Timecutter HD Models - Late Titan MX, ZX Models (With Tube Style Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

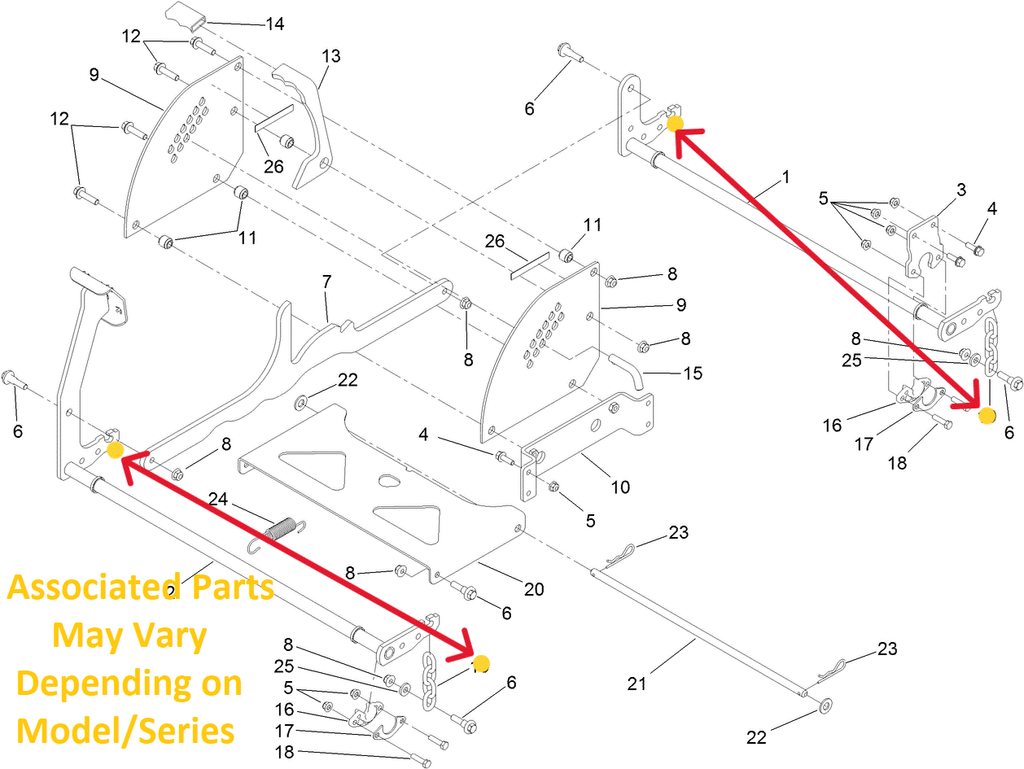

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 130-0668 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





TITAN & TIMECUTTER HD MODELS ONLY



1. 130-0668 - LIFT LINK CHAINS - (Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck - The Lift Link Chains Enable the Mower Deck to Free Float - Bolts to the Mower Deck and Connects to the Mower Deck Pivot Lift Arm Via the The Hook on the Pivot Lift Arm) x2 Per Mower Deck Pivot Lift/Leverage Arm
2. 130-0742 - FLANGE SHOULDER BOLT - (Retains Mower Deck Lift Link Chain to the Mower Deck as well as Retaining the Height of Cut Link to the Front Mower Deck Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Lift Link Chain
3. 43-0940 - FLAT SPACER/SUPPORT WASHER - (Assembled Between the Mower Deck Fastner Ear and the Lift Link Chain - Assist in Retaining Lift Link Chain Due to the Larger Adjustment Slotted Hole in the Mower Deck Fastner Ear or Bracket as well as Spaces the Lift Link Chain Away From the Mower Deck and Allows The Mower Deck More Forgiveness to Move as Needed when Coming in contact with Something or Just Simply Raising and Lower the Mower Deck) x4 Per Mower Deck
4. 104-8301 - FLANGE NUT - (Retains Flat Spacer/Support Washer, Lift Link Chain and Shoulder Bolt to the Mower Deck as well as Retaining the Flang Bolt and Height of Cut Link to the Front Mower Deck Lift Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link Chain





PIVOT ARMS - TIMECUTTER HD MODELS ONLY



1. 133-4430-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Foot Lift Pedal) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 137-2020-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit





PIVOT ARMS - TITAN MODELS ONLY



1. 131-4058-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Contains the Foot Lift Pedal) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 131-4059-03 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit







Specification

Product Number:	1300668
Brand:	Toro
Length:	1.500 IN (3.810 CM)
Width:	1.500 IN (3.810 CM)
Height:	1.200 IN (3.048 CM)
Weight:	0.219 LB (0.099 KG)





Model Fit:



TIMECUTTER



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 75201, 75210, 75211)



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 75202, 75212)



60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)



TITAN



48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74851, 74855, 74846, 74891, 74861)



54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74852, 74882, 74848, 74892, 74862)



60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74853, 74863, 74883, 74893)
