Description

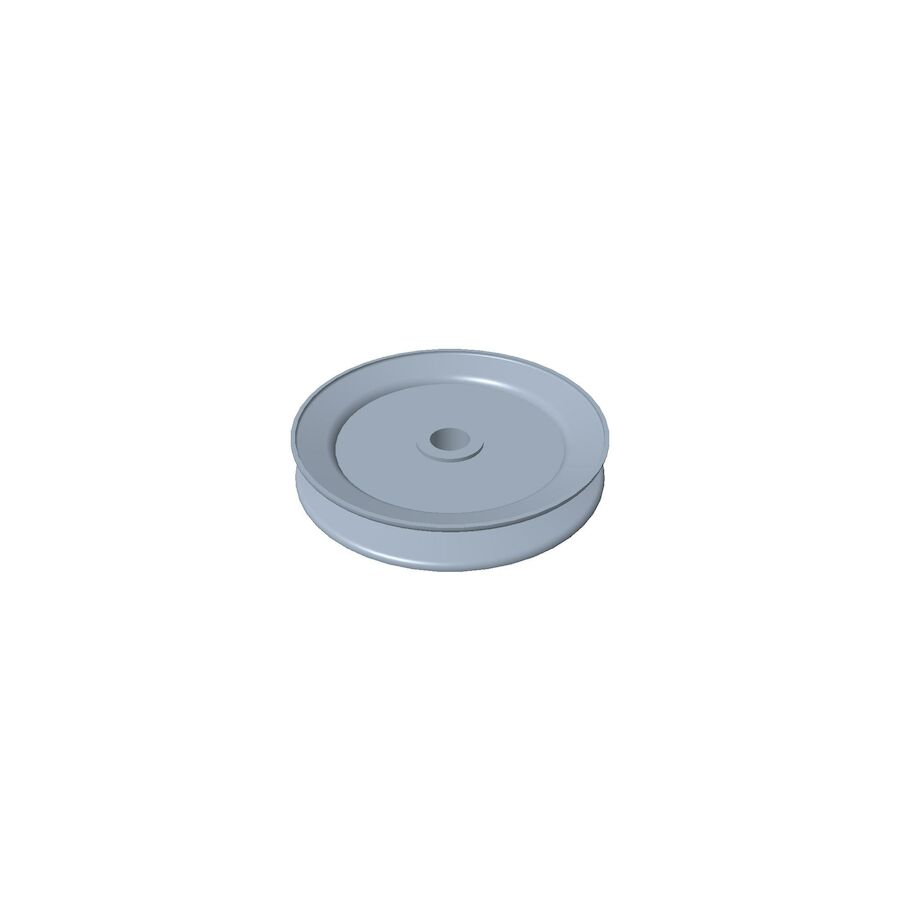

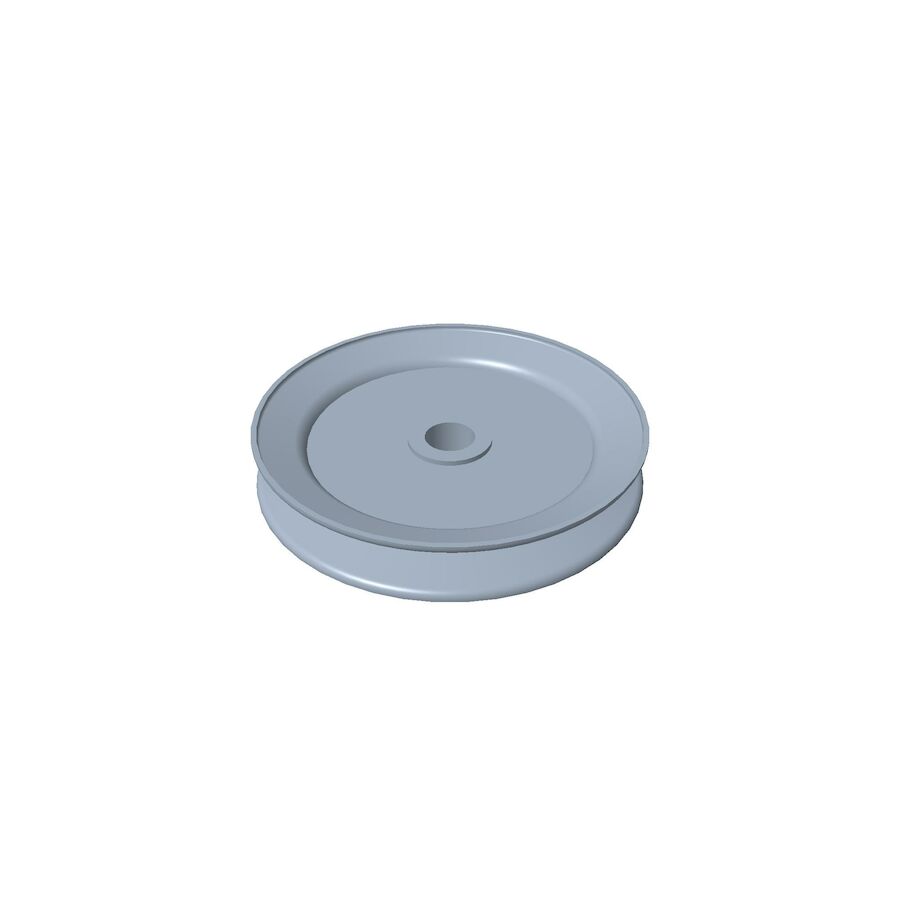

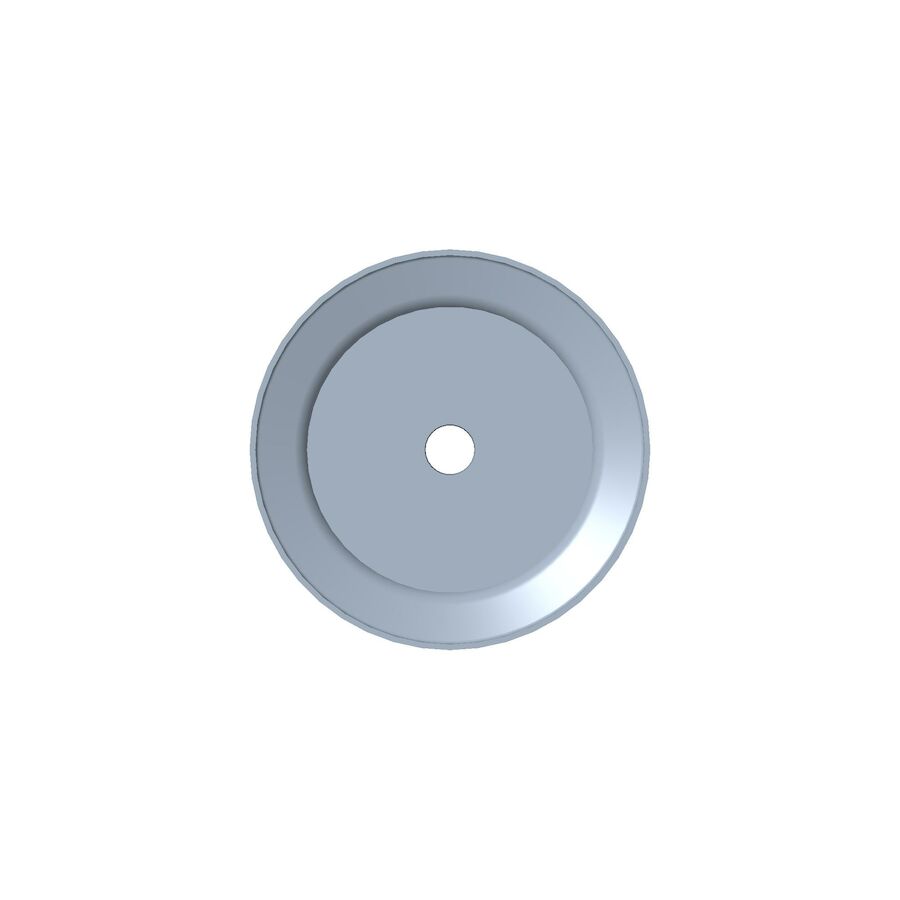

Expertly crafted from durable metal, the Toro OEM 130 0656 Spindle Assembly Pulley is designed for precision and efficiency. Specifically made to fit Toro Spindle Assemblies on all Toro 54" Timecutter SS & SW Models (* Models Contains Stamped or Pressed Mower Decks). The Toro 130-0656 high-quality pulley ensures accurate blade speed for optimal performance. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
NOTE: To Gain a better understanding of part number variations for Timecutter Models Refer to the 54" Spindle Pulley Chart below. The chart also includes Models/Series not listed within the Timecutter Model/Series to clarify their corresponding part numbers.

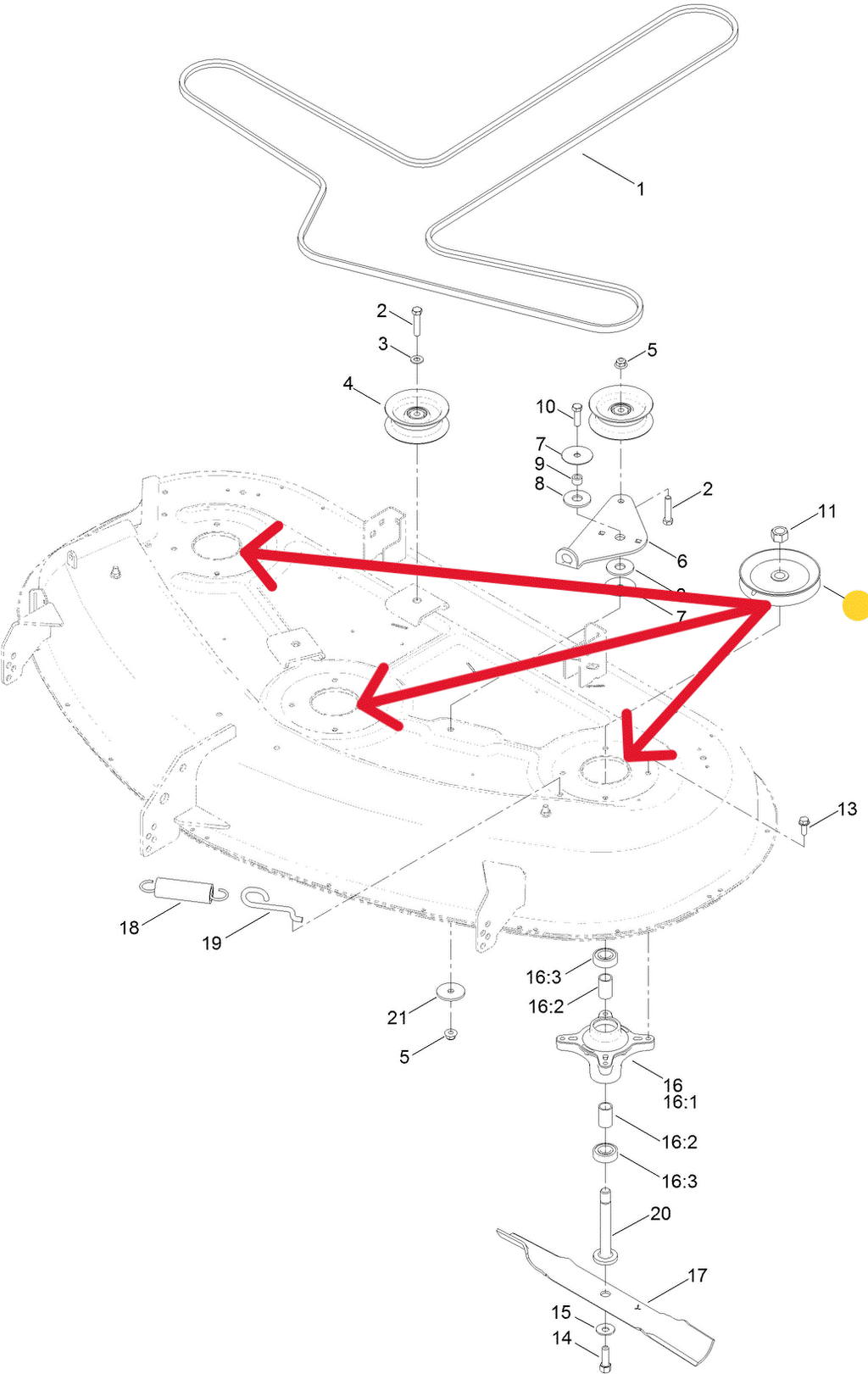

ASSOCIATED MOWER DECK SPINDLE ASSEMBLY FOR PART NUMBER 130-0656
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
* 54" TIMECUTTER SS & SW MODELS ONLY
133-1199 - SPINDLE ASSEMBLY - REQUIRES THREE PER MOWER DECK
|
Product Number: |
1300656 |
|
Brand: |
Toro |
|
Length: |
5.250 IN (13.335 CM) |
|
Width: |
5.250 IN (13.335 CM) |
|
Height: |
0.875 IN (2.223 CM) |
|
Weight: |
1.090 LB (0.494 KG) |
Model Fit:
1. Timecutter and Timecutter SS and SW Series - Early - Late Models Only (* Model Numbers 74793, 74740, 74741)
