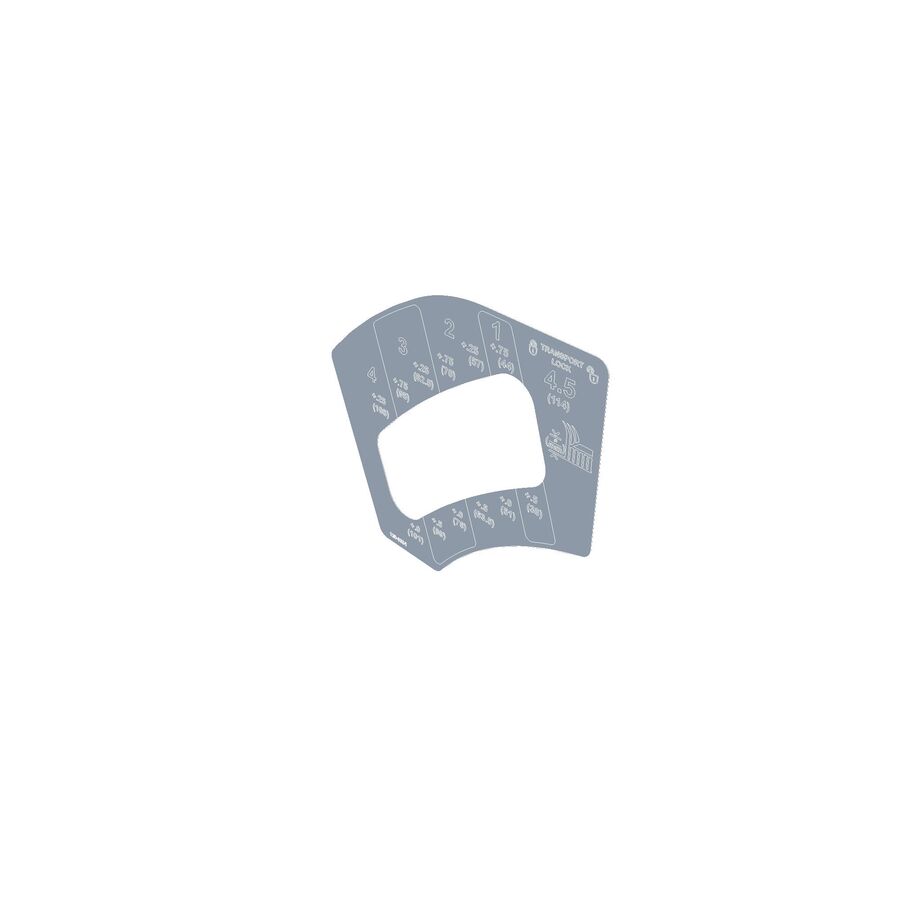

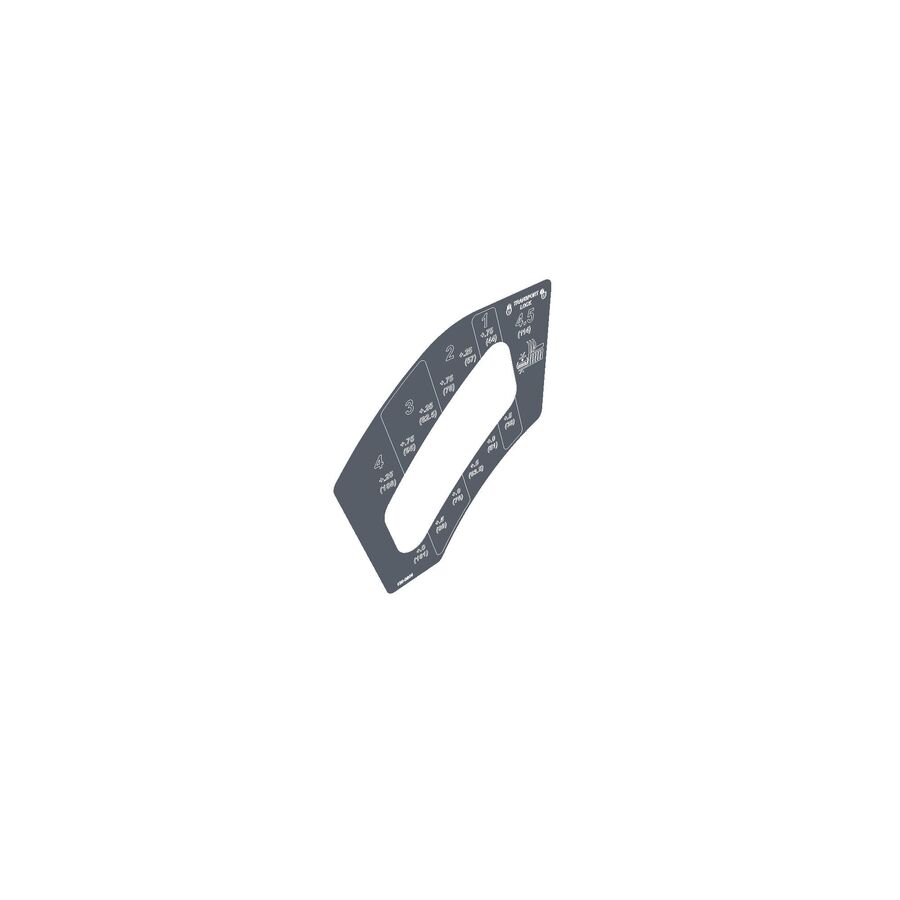

Toro OEM 130-0654 Height of Cut (HOC) Decal Fits Toro Late Timecutter HD Models - Select Late Titan MX, ZX Models (With Tube Style Framing).

Toro OEM 130 0654 Height of Cut (HOC) Decal is a Numerical Decal and Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting. Toro OEM 130 0654 is Installed on the Operator-Side Surface of the (HOC) Bracket and Fits Toro Late Timecutter HD Models - Late Titan ZX, MX Models (With Tube Style Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

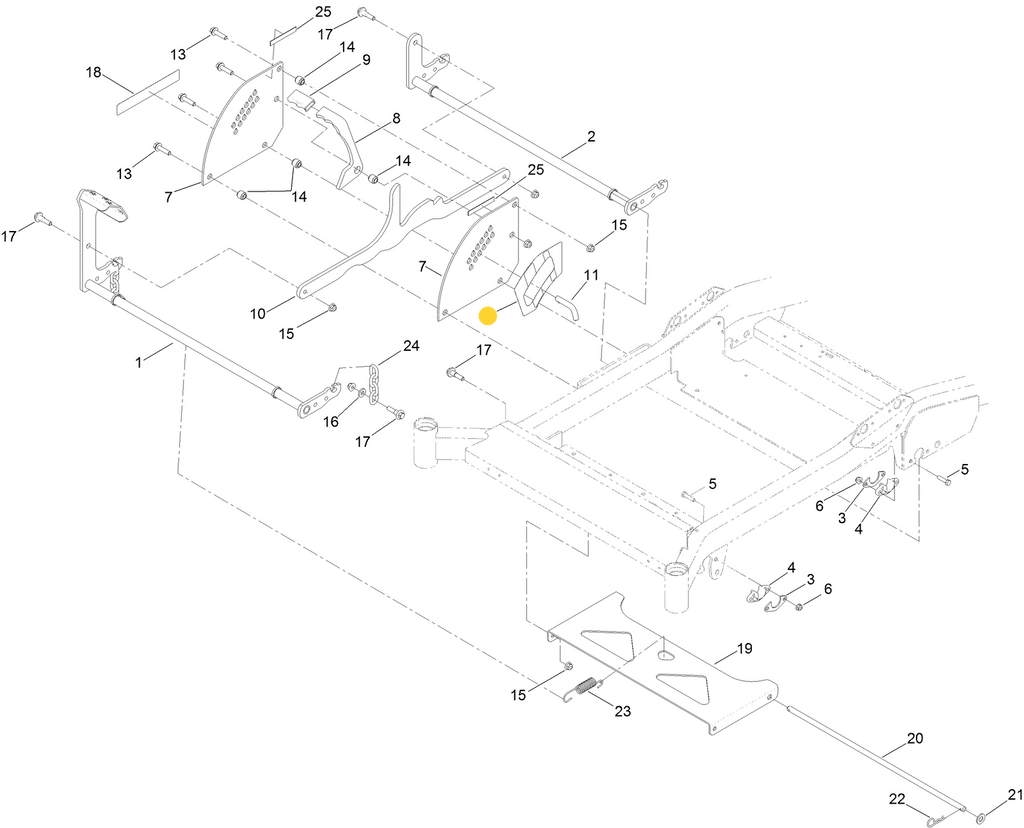

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 130-0654 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



TIMECUTTER HD & TITAN MODELS





1. 127-3389-03 - LIFT PLATE or HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO IDENTICAL PLATES that Bolt together using Spacers In-Between Both (HOC) Plates or Lift Plates and Allows the Height of Cut (HOC) Link to Travel Between Both Lift Plate or (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x2 Per Unit
2. 130-0654 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Operator-Side Surface of the (HOC) Selection Plate) x1 Per (HOC) Selection Plate
3. 116-5584 - (HOC) Pin - (Fits into the (HOC) Selection Plate, providing a stable resting point for the Height Adjustment Link Notch to Rest Against at the operator’s chosen setting) x1 Per Transport Latch Handle *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
4. 138-7203 - (HOC) Pin - (Fits into the (HOC) Selection Plate, providing a stable resting point for the Height Adjustment Link Notch to Rest Against at the operator’s chosen setting) x1 Per Transport Latch Handle *ONLY TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.







Specification

Product Number:	1300654
Brand:	Toro
Length:	6.500 IN (16.510 CM)
Width:	6.250 IN (15.875 CM)
Height:	0.020 IN (0.051 CM)
Weight:	0.008 LB (0.004 KG)





Model Fit:



TIMECUTTER



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 74886, 75201, 75210, 75211)



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 74876, 74888, 75202, 75212)



60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)



TITAN



48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74851, 74855, 74846, 74891, 74861)



54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74852, 74882, 74848, 74892, 74862)



60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74853, 74863, 74883, 74893)
