Toro OEM 127-9395 Carburetor Rebuild Kit Fits 800 Series Power Clear, Snow Master, Snow Thrower, Power MAX Snowblower Models and Select Super Recycler Walk Behind Mower Models - Toro Dealer.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



NOTE: Carburetor Rebuild Kits is the Cost-Effective Approach for Fixing Carburetor Issue - However, Hilly Ridge cannot Guarantee that a Carburetor Repair Kit will be an Effective Approach in Repairing your Carburetor Problems - Sometimes a Complete Carb. Assembly is the only Necessary to Repair Carburetor Issues.



• PRODUCT NUMBER AND VARIATIONS: 127-9395, 127 9395, 1279395
• PRODUCT TYPE: Carburetor Repair Kit
• SIZE: Weight 0.020 lbs.
• NOTES & DETAILS: Toro OEM  127-9395 IS COMMINLY USED -



Most Common Reason for Snowblower and Walk Behind Mower Repairs is a Fuel/Carburetor Issue in Which Fuel Commonly Causes Carburetor issues due to Ethanol and/or Gas Going Stale in The Carburetor Causing Engine Start and/or Run Failure and Possible Gas Spills or Leaks.



127-9395 Carburetor Rebuild Kit Contains Necessary Parts to Rebuild Select Carburetors Listed Below.



1. 133-1534 - Snow Master, Snow Thrower, Power MAX 800 Series (Select Models Only - Review Models Listed Under Part Numbers)
2. 139-0700 - Power Clear 800 Series (Only Power Clear Models 38755, 38757)
3. 133-9900 - Super Recycler Walk Behind Mower Models (Select Models Only - Review Models Under Listed Part Numbers)

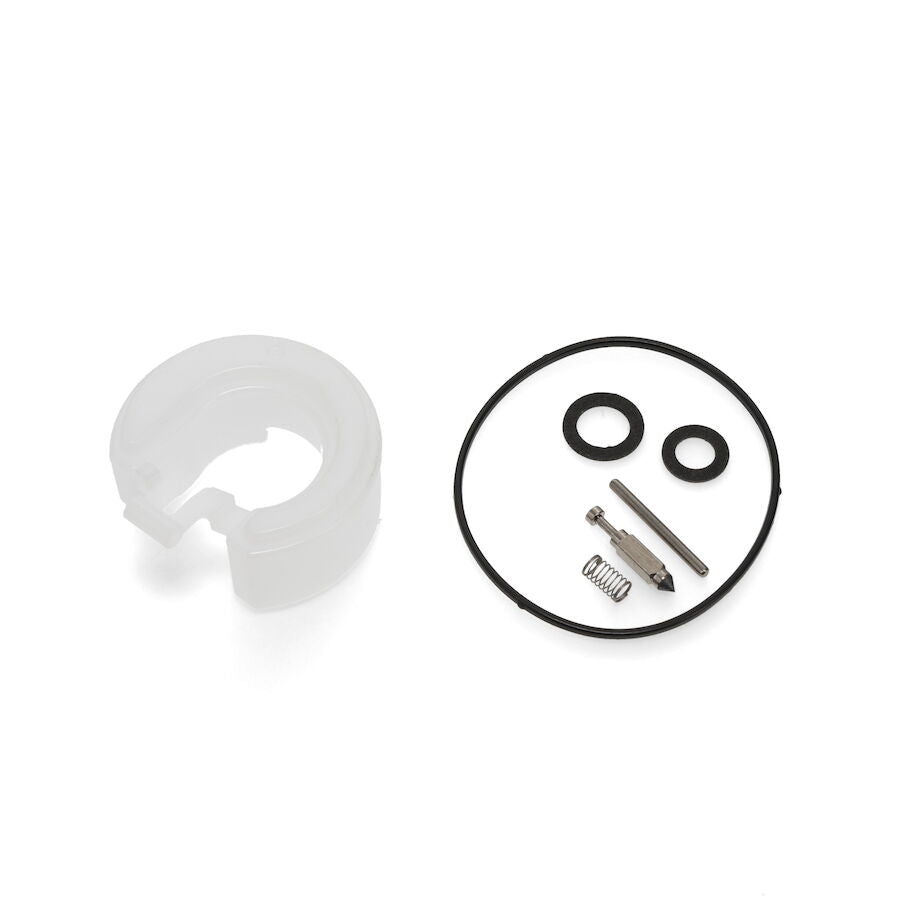

127-9395 Carburetor Repair Kits Come Contain the Following Part



1. Float or Inlet Needle
2. Inlet Needle Return Spring
3. Float Retaining Pivot Pin
4. Float
5. Bowl Sealing O-Ring
6. Bowl Retaining Bolt Gasket



• COMMON SERIES APPLICATIONS: Toro Select 800 Series Power Clear, SnowMaster, SnowThrower and Power MAX Snow Blower Models & Select Super Recycler Walk behind Model





• MODEL FIT CHART:



SNOWBLOWER’S



POWER CLEAR Series – Model Numbers – (* Model Numbers 38755, 38757)



POWER MAX Series – Model Numbers – (* Model Numbers 37798, 37799, 37780, 37781, 37793, 37797, 37802, 37805, 38805, 38815, 38819, 38838)



SNOW MASTER Series – Model Numbers – (* Model Numbers 36003)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38712)



WALK BEHIND MOWER'S



SUPER RECYCLER Series – Model Numbers – (* Model Numbers 20357, 20372, 20373, 20374, 20381, 20383, 20384, 21381, 21383, 21385, 22289)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-9395 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY





1. 133-1534 - Snow Master, Snow Thrower, Power MAX 800 Series (Select Models Only - Review Models Listed Under Part Numbers)
2. 139-0700 - Power Clear 800 Series (Only Power Clear Models 38755, 38757)
3. 133-9900 - Super Recycler Walk Behind Mower Models (Select Models Only - Review Models Under Listed Part Numbers)






ASOCCIATED INDIVIDUAL PARTS & KITS

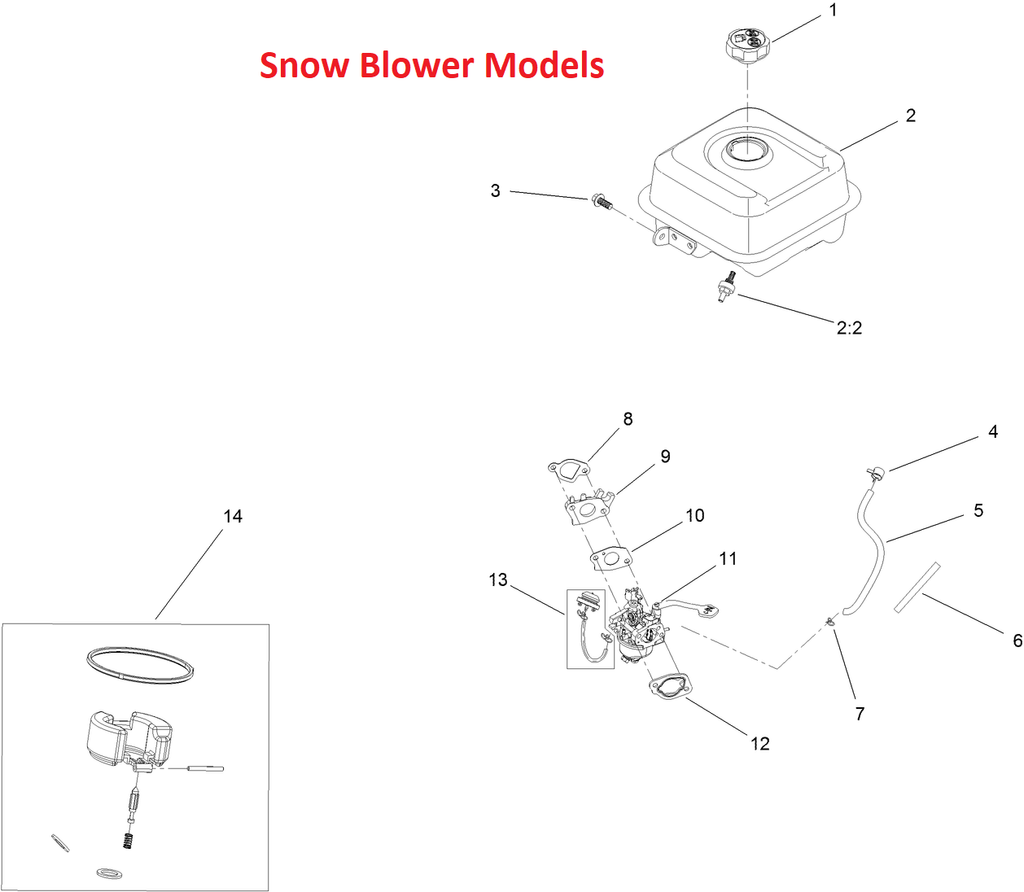

SNOWBLOWER’S ONLY



1. 133-1531 - INSUALTOR GASKET (Gasket That is Assembled Between the Isolator and Engine Block) x1 Per Carburetor
2. 133-1532 - INSULATOR - CARBURETOR (Insulator Assembled Between the Carburetor and Engine Block as well as Between 133-1531 Insulator Gasket and 133-1533 Carburetor Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
3. 133-1533 - CARBURETOR GASKET (Gasket That is Assembled Between the Carburetor and Insulator) x1 Per Carburetor
4. 121-0080 - CARBURETOR SHROUD or HEAT BOX GASKET (Gasket That is Assembled Between the Carburetor and Heat Box) x1 Per Carburetor
5. 127-9112 - CARBURETOR SHROUD or HEAT BOX (Installed Over the Carburetor to Enable the Carburetor to Retain Heat After Startup as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor
6. 121-0308 - CARBURETOR & HEAT BOX RETAINING NUT (Retains the Carburetor Assembly, Gasket and Heat Box to the Snowblower Engine) x2 Per Carburetor
7. 133-1535 - CARBURETOR/GOVENOR ROD (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor
8. 133-1536 - CARBURETOR/GOVERNOR ROD TENSION SPRING or THROTTLE RETURN SPRING (Installed Between the Carburetor and Governor Linkage with the Governor Rod - Eliminates Play in Connection Between the Governor Rod, Governor Linkage and Carburetor Linkage - This Eliminates Throttle Surge) x1 Per Carburetor
9. N/A - *Only Available with Complete Carburetor Kit - CHOKE LEVER (Inserts into the Choke Linkage and Enables the Operator to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures) x1 Per Carburetor
10. 127-9079 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit
11. 121-0087 OR 147-7077 - FUEL LINE CLAMP - CARB. & FUEL VALVE (Retains the Incoming Fuel Line Hose to the Carburetor & Fuel Valve) x3 *For Models with Fuel Valve x2 *For Models Without Fuel Valve
12. 133-1537 - FUEL LINE HOSE - CARB. to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor *Only Models 38755, 38757
13. 136-7773 - FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Tank Fuel Filter, Hose Clamps are Include in the Kit *Only Models 38755, 38757
14. 127-9489 OR 147-7086 - FUEL LINE HOSE - CARB. to FUEL VALVE (Enables the Fuel to Travel from the Fuel Valve to the Carburetor Bowl - Fuel Line Only Connects to the Fuel Valve and the Carburetor) x1 Per Carburetor *All Models Excluding 38755, 38757
15. 127-9117 - FUEL VALVE (Enables the Operator to Eliminate Fuel Traveling to the Carburetor Bowl) x1 Per Fuel Tank *All Models Excluding 38755, 38757
16. 133-1556 OR 147-7087 - FUEL LINE HOSE - FUEL VALVE to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Fuel Valve - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connects to the Fuel Valve - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Fuel Tank *All Models Excluding 38755, 38757
17. 133-9997 OR 147-7088 - FUEL LINE ABRASIVE SLEEVE (Insert over the Fuel Line Hose and Protects the Fuel Line from Abrasive Edge) x1 Per Fuel Line *All Models Excluding 38755, 38757
18. 127-9120 OR 147-7077 - FUEL LINE CLAMP - FUEL TANK (Retains the Fuel Line to the Bottom of the Fuel tank via the Screw-In Fuel Filter) x1 Per Carburetor *Only for Model with Fuel Valve

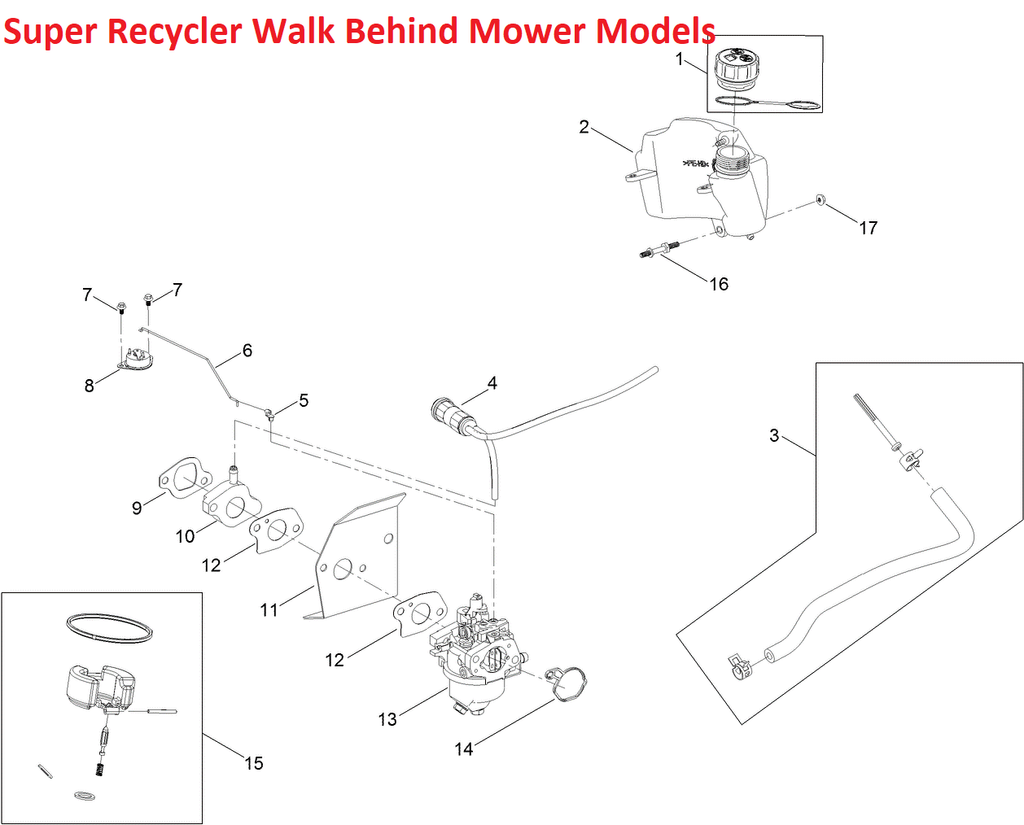

SUPER RECYCLER WALK-BEHIND ONLY



1. 121-4183 - INSULATOR GASKET (Gasket That is Assembled Between the Isolator and Engine Block) x1 Per Carburetor
2. 133-9902 - INSULATOR - CARBURETOR (Insulator Assembled Between the Carburetor and Engine Block as well as Between 121-4183 Insulator Gasket and 121-4184 Heat Insulator Plate Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
3. 121-4184 - HEAT INSULATOR DEFLECTOR PLATE GASKET (Gasket That is Assembled Between the Isolator and Heat Insulator Plate) x2 Per Carburetor *Same as Carburetor Gasket
4. 133-9901 - HEAT INSULATOR PLATE - CARBURETOR (Heat Insulator Plate is Assembled Between the Carburetor and Engine Block as well as Between 121-4184 Heat Insulator Plate Gasket and 121-4184 Carburetor Gasket - Is Essential for Deflecting Heat and Exhaust from the Fuel and Carburetor Components) x1 Per
5. 121-4184 - CARBURETOR GASKET (Gasket That is Assembled Between the Carburetor and Heat Insulator Plate) x2 Per Carburetor *Same as Heat Insulator Plate Gasket
6. 133-9899 - AIR FILTER BASE GASKET/O-RING (Gasket/O-Ring That is Assembled Between the Carburetor and Air Filter Base) x1 Per Carburetor
7. 133-9928 - AIR FILTER BASE (Installed Over the Carburetor to Enable the Carburetor to Draw Air Through a Filter - Eliminating Dirt Ingestion into the Engine) x1 Per Carburetor
8. 120-4236 - CARBURETOR & HEAT BOX RETAINING NUT (Retains the Carburetor Assembly, Gaskets and Air Filter Base to the Mower Engine) x2 Per Carburetor
9. 133-9892 - CARBURETOR/GOVENOR ROD (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor
10. 121-0023 - CARBURETOR/GOVERNOR ROD TENSION SPRING or THROTTLE RETURN SPRING (Installed Between the Carburetor and Governor Linkage with the Governor Rod - Eliminates Play in Connection Between the Governor Rod, Governor Linkage and Carburetor Linkage - This Eliminates Throttle Surge) x1 Per Carburetor
11. 133-9909 - CHOKE ROD (Inserts into the Choke Linkage and Enables the Auto Choke System to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures- Auto Choke Operate off of Engine Temp.) x1 Per Carburetor
12. 120-4451 - CHOKE ROD RETAINING LOCK (Retains the Choke Rod to the Carburetor Choke Linkage) x1 Per Carburetor
13. 133-9874 - CARBON CANISTER KIT (Controls Carb. Vacuum as well as Evaporation Gases that Escape the Fuel Tank by Redirecting them Into a Carbon Canister as well as the Engine Intake) x1 Per Carburetor *Canister Hose, Carbon Canister are Included in the Kit
14. 121-4167 - FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank and from there Connect to the Carburetor - Fuel Filter Inserts into the Fuel Line) x1 Per Fuel Tank/Carb. *Come with Inside-Fuel Line Fuel Filter, Fuel Hose and Fuel Line Clamps
