Toro OEM 127-9394 Carburetor Rebuild Kit Fits Select 700 Series Power Clear, Snow Master, Snow Thrower, Snow MAX, Power MAX Snowblower Models - Toro Dealer.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



NOTE: Carburetor Rebuild Kits is the Cost-Effective Approach for Fixing Carburetor Issue - However, Hilly Ridge cannot Guarantee that a Carburetor Repair Kit will be an Effective Approach in Repairing your Carburetor Problems - Sometimes a Complete Carb. Assembly is the only Necessary to Repair Carburetor Issues.



• PRODUCT NUMBER AND VARIATIONS: 127-9394, 127 9394, 1279394
• PRODUCT TYPE: Carburetor Repair Kit
• SIZE: Weight 0.020 lbs.
• NOTES & DETAILS: Toro OEM  127-9394 IS COMMINLY USED -



Most Common Reason for Snowblower Repairs is a Fuel/Carburetor Issue in Which Fuel Commonly Causes Carburetor issues due to Ethanol and/or Gas Going Stale in The Carburetor Causing Engine Start and/or Run Failure and Possible Gas Spills or Leaks.



127-9394 Carburetor Rebuild Kit Contains Necessary Parts to Rebuild Select Carburetors Listed Below.



1. 127-9111 - Power Clear, Snow Master, Snow Thrower, Snow MAX, Power MAX 800 (Only Model 38838) & 700 Series (Excluding Model and Select Serial Number for - 37807, 37821, 38812, 38814 - Review Models Fit Chart Associated to Each Part Numbers)
2. 139-0749 - Power MAX, Snow MAX 700 Series (Only Power Max Models 38812, 38814 & Snow Max Model 38721 - Select Serial Number Range - Review Model Fit Chart Associated to Each Part Number)
3. 147-7081 - Power MAX 724 Series (Only Models Number 37807)

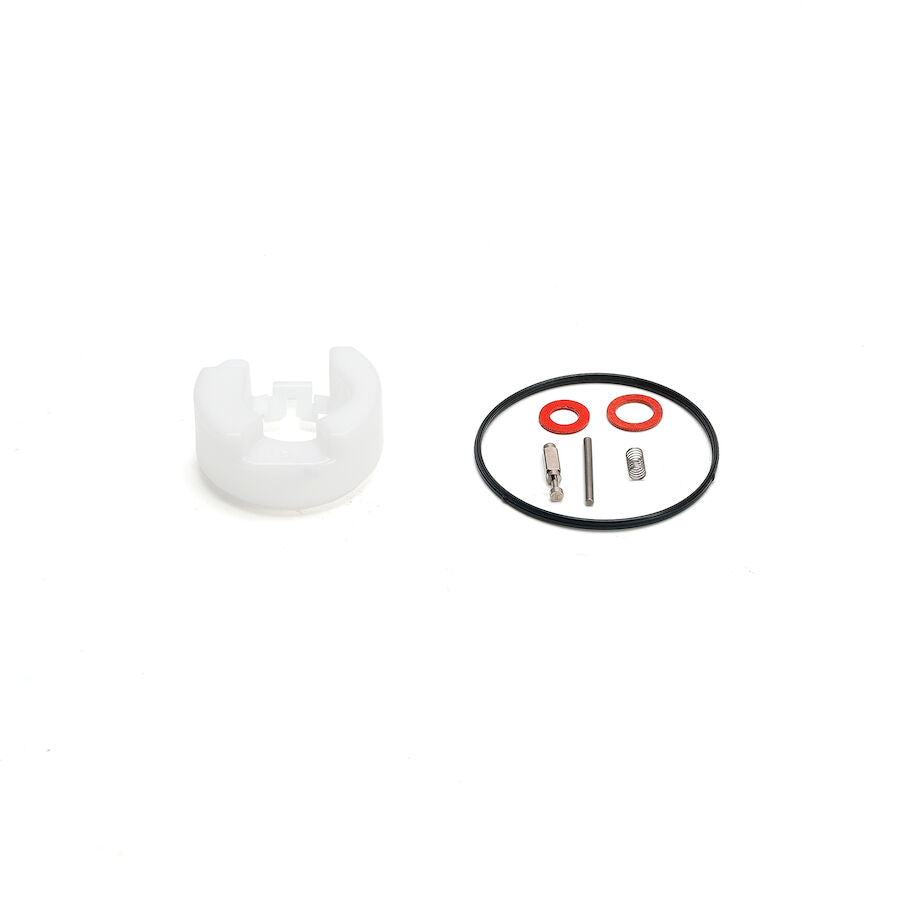

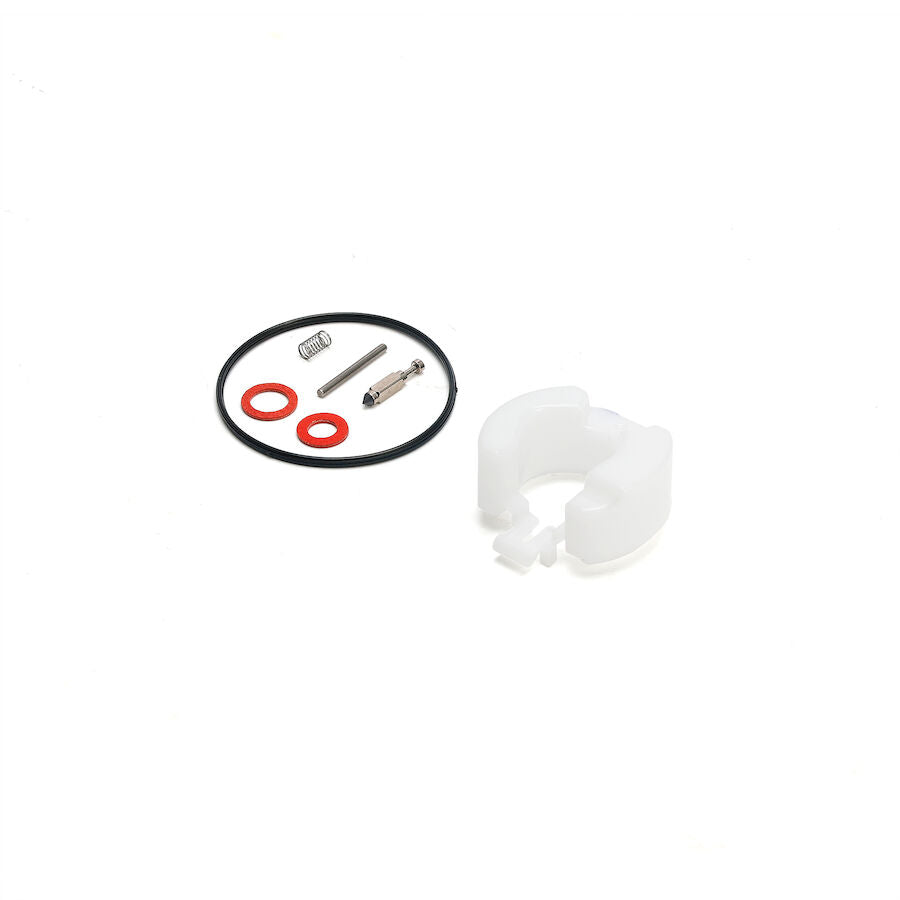

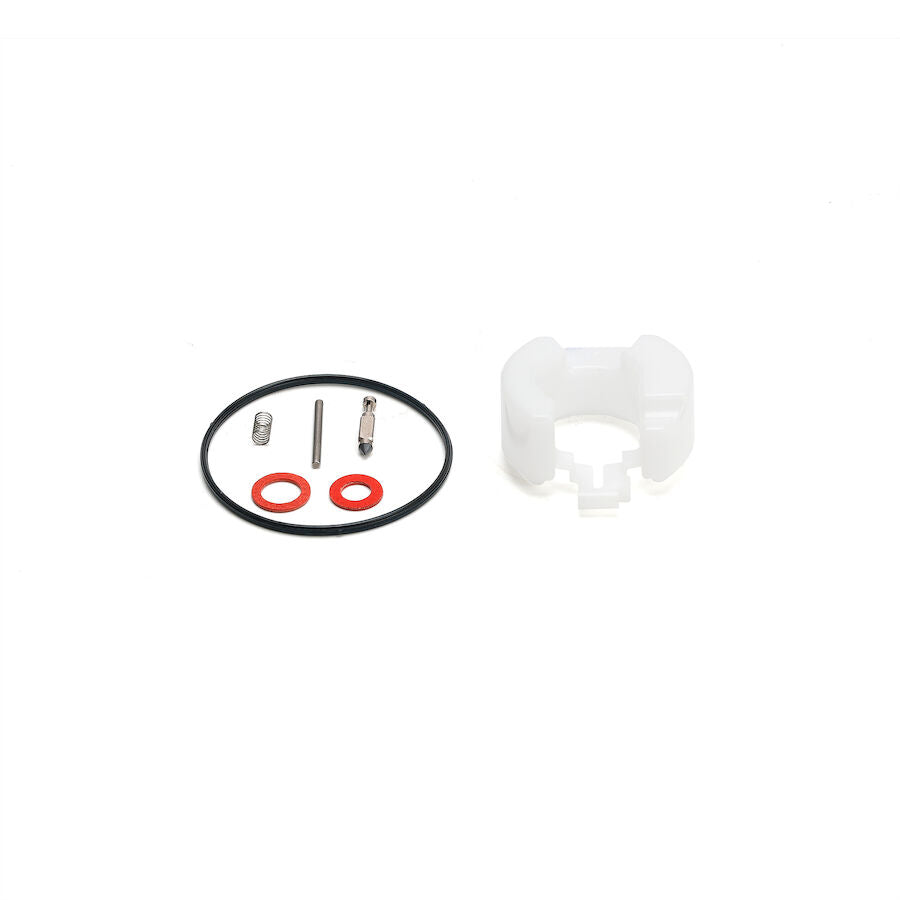

127-9394 Carburetor Repair Kits Come Contain the Following Part



1. Float or Inlet Needle
2. Inlet Needle Return Spring
3. Float Retaining Pivot Pin
4. Float
5. Bowl Sealing O-Ring
6. Bowl Retaining Bolt Gasket



• COMMON SERIES APPLICATIONS: Toro Select 700 Series Power Clear, SnowMaster, SnowThrower, Snow MAX and Power MAX Snow Blower Models



• MODEL FIT CHART:



SNOWBLOWER’S



POWER CLEAR Series – Model Numbers – (* Model Numbers 38752, 38753, 38754, 38756)



POWER MAX Series – Model Numbers – (* Model Numbers 37779, 37807, 38811, 38812, 38813, 38814)



SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)



SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-9394 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY





1. 127-9111 - Power Clear, Snow Master, Snow Thrower, Snow MAX, Power MAX 700 (Only Model 38838) & 800 Series (Excluding Model and Select Serial Number for - 37807, 37821, 38812, 38814 - Review Models Fit Chart Associated to Each Part Numbers)
2. 139-0749 - Power MAX, Snow MAX 700 Series (Only Power Max Models 38812, 38814 & Snow Max Model 38721 - Select Serial Number Range - Review Model Fit Chart Associated to Each Part Number)
3. 147-7081 - Power MAX 724 Series (Only Models Number 37807)






ASOCCIATED INDIVIDUAL PARTS & KITS





1. 121-0076 - INSUALTOR GASKET (Gasket That is Assembled Between the Isolator and Engine Block) x1 Per Carburetor
2. 121-0077 - INSULATOR - CARBURETOR (Insulator Assembled Between the Carburetor and Engine Block as well as Between 120-0076 Insulator Gasket and 120-0078 Carburetor Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
3. 121-0078 - CARBURETOR GASKET (Gasket That is Assembled Between the Carburetor and Insulator) x1 Per Carburetor
4. 121-0080 - CARBURETOR SHROUD or HEAT BOX GASKET (Gasket That is Assembled Between the Carburetor and Heat Box) x1 Per Carburetor
5. 127-9112 - CARBURETOR SHROUD or HEAT BOX (Installed Over the Carburetor to Enable the Carburetor to Retain Heat After Startup as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor
6. 121-0308 - CARBURETOR & HEAT BOX RETAINING NUT (Retains the Carburetor Assembly, Gasket and Heat Box to the Snowblower Engine) x2 Per Carburetor
7. 121-0148 - CARBURETOR/GOVENOR ROD (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor
8. 121-0153 - CARBURETOR/GOVENOR ROD TENSION SPRING or THROTTLE RETURN SPRING (Installed Between the Carburetor and Governor Linkage with the Governor Rod - Eliminates Play in Connection Between the Governor Rod, Governor Linkage and Carburetor Linkage - This Eliminates Throttle Surge) x1 Per Carburetor
9. 147-7095 - CHOKE LEVER (Inserts into the Choke Linkage and Enables the Operator to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures) x1 Per Carburetor
10. 127-9079 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit





FUEL LINE ASSOCIATED PARTS COMBINATIONS ONLY

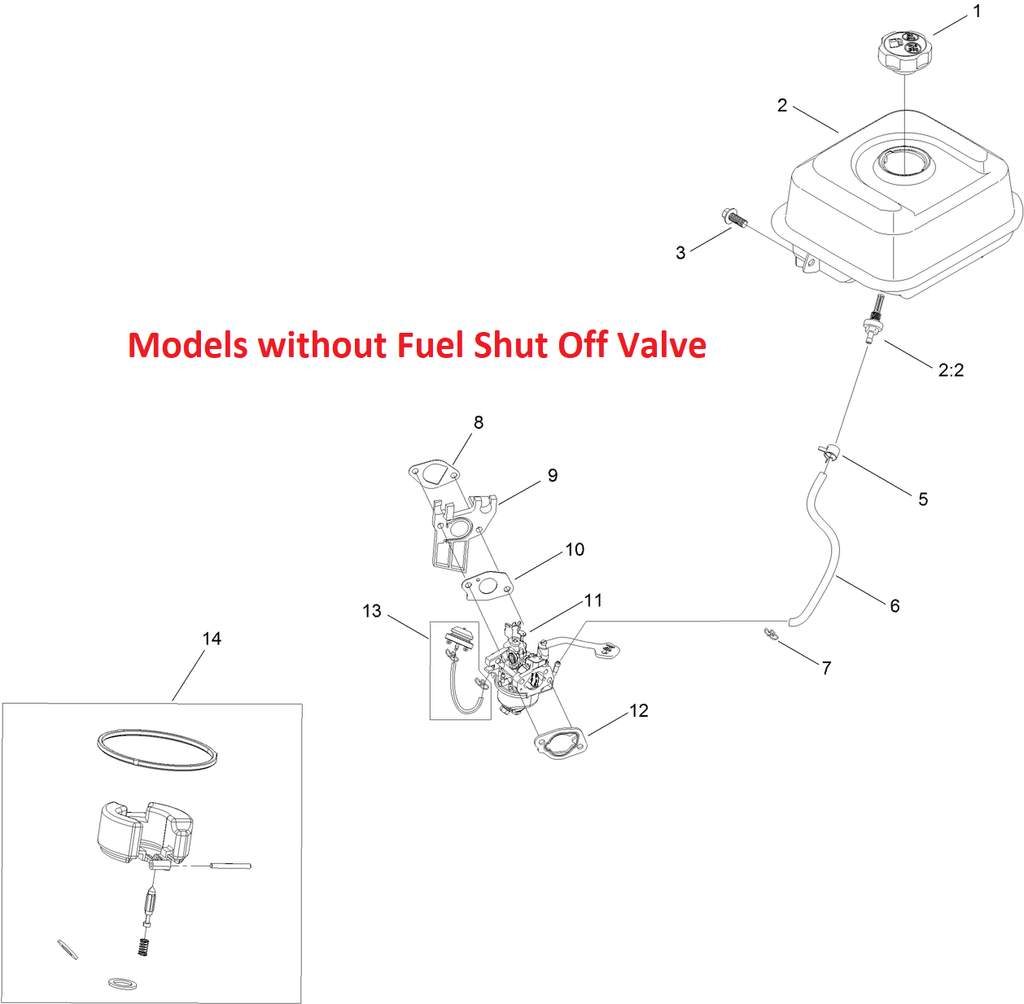

Models without Fuel Shut OFF Valve - Models Excluding Select Serial Number Ranges in Power Max Model 38812, 38814 - Excluding Full Power Max Serial Number Range for Models 37779, 37807





1. 121-0087 - FUEL LINE CLAMP - CARB. (Retains the Incoming Fuel Line Hose to the Carburetor) x1 Per Carburetor
2. 127-9403 - FUEL LINE HOSE - CARB. to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor
3. 127-9120 - FUEL LINE CLAMP - FUEL TANK (Retains the Fuel Line to the Bottom of the Fuel tank via the Screw-In Fuel Filter) x1 Per Fuel Line
4. 136-7773 - FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Tank Fuel Filter, Hose Clamps are Include in the Kit

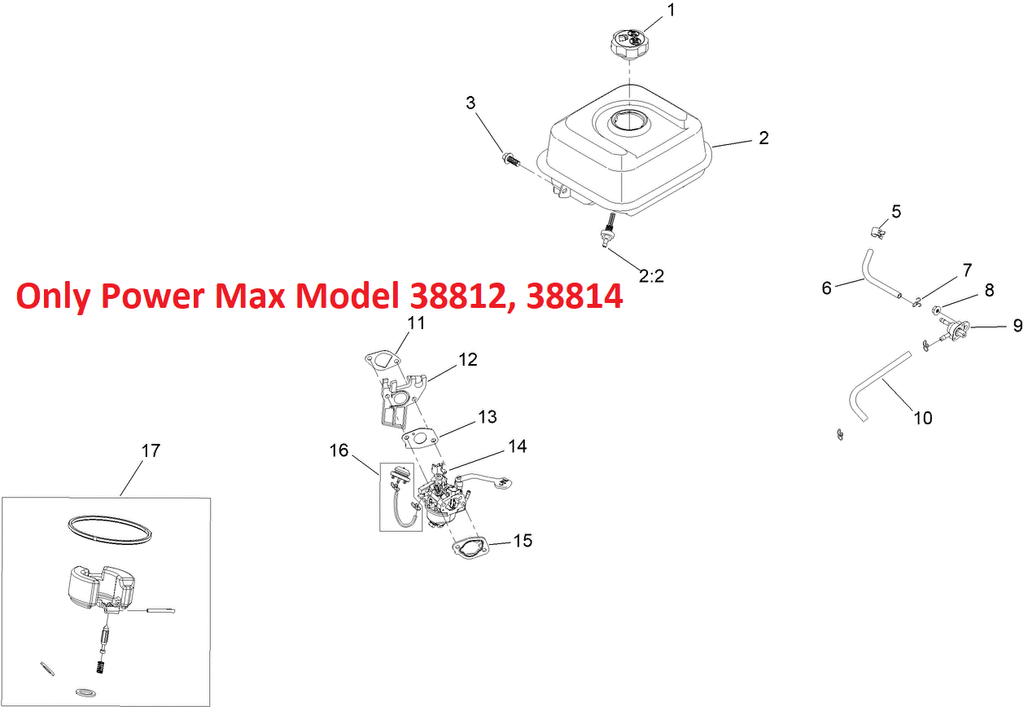

Models with Fuel Shut OFF Valve - Excluding Select Serial Number Range for Power Max Model 38812, 38814 and Full Model/Serial Number Range for Models 37779, 37807





1. 121-0087 - FUEL LINE CLAMP - CARB. & FUEL VALVE (Retains the Incoming Fuel Line Hose to the Carburetor and Fuel Valve) x3 Per Carburetor
2. 127-9384 - FUEL LINE HOSE - CARB. to FUEL VALVE (Enables the Fuel to Travel from the Fuel Valve to the Carburetor Bowl - Fuel Line Only Connects to the Fuel Valve and the Carburetor) x1 Per Carburetor
3. 127-9117 - FUEL VALVE (Enables the Operator to Eliminate Fuel Traveling to the Carburetor Bowl) x1 Per Fuel Tank
4. 127-9118 - FUEL LINE HOSE - FUEL VALVE to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Fuel Valve - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connects to the Fuel Valve - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Fuel Tank
5. 127-9120 - FUEL LINE CLAMP - FUEL TANK (Retains the Fuel Line to the Bottom of the Fuel tank via the Screw-In Fuel Filter) x1 Per Fuel Line

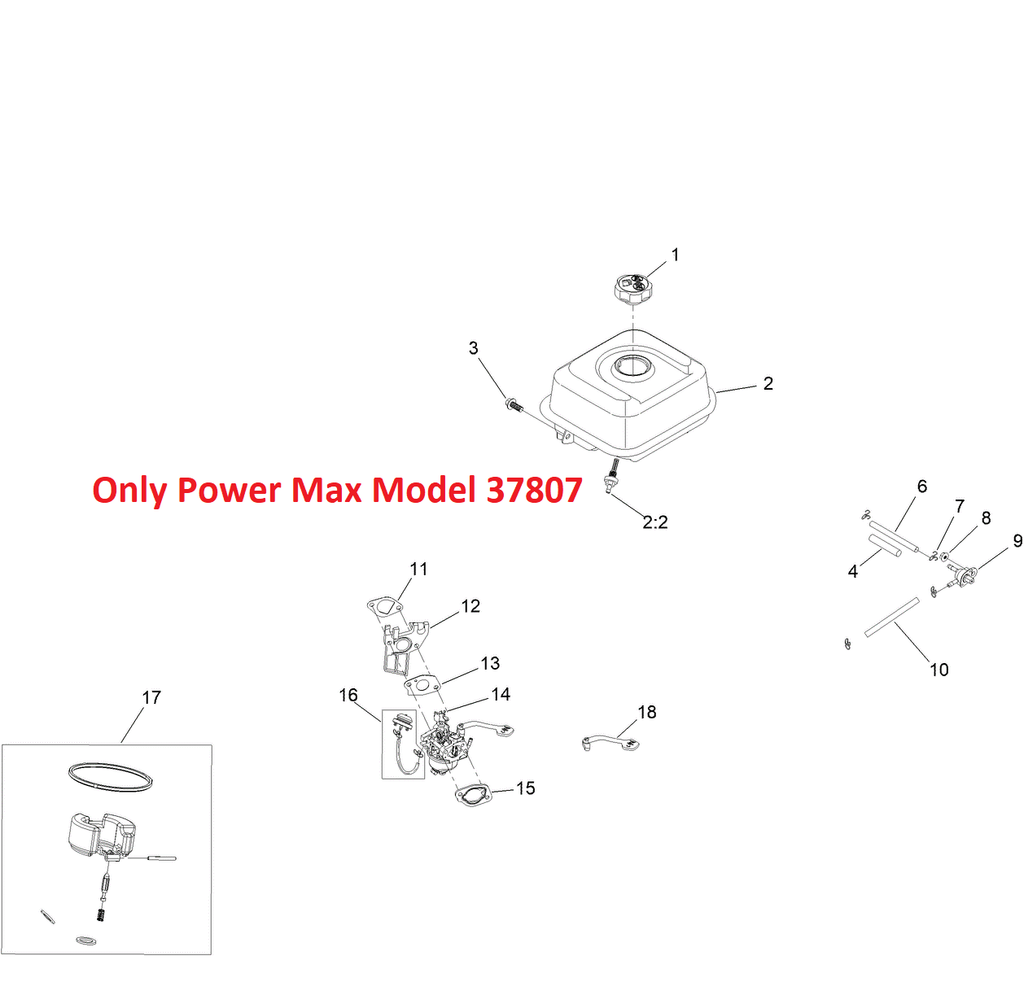

Model with Fuel Shut OFF Valve - Full Serial Number Range for Power Max Model 37779, 37807





1. 147-7077 - FUEL LINE CLAMP - CARB., FUEL TANK & FUEL VALVE (Retains the Incoming Fuel Line Hose to the Carburetor & Fuel Valve) x3 Per Carburetor
2. 147-7086 - FUEL LINE HOSE - CARB. to FUEL VALVE (Enables the Fuel to Travel from the Fuel Valve to the Carburetor Bowl - Fuel Line Only Connects to the Fuel Valve and the Carburetor) x1 Per Carburetor
3. 127-9117 - FUEL VALVE (Enables the Operator to Eliminate Fuel Traveling to the Carburetor Bowl) x1 Per Fuel Tank
4. 147-7087 - FUEL LINE HOSE - FUEL VALVE to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Fuel Valve - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connects to the Fuel Valve - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Fuel Tank
5. 147-7088 - FUEL LINE ABRASIVE SLEEVE (Insert over the Fuel Line Hose and Protects the Fuel Line from Abrasive Edge) x1 Per Fuel Line
