Toro OEM 127-9376 Primer Fuel Line Kit Fits 400, 600 and 700 Series Power Clear and Quick Clear Snowblower Models - Toro Dealer.

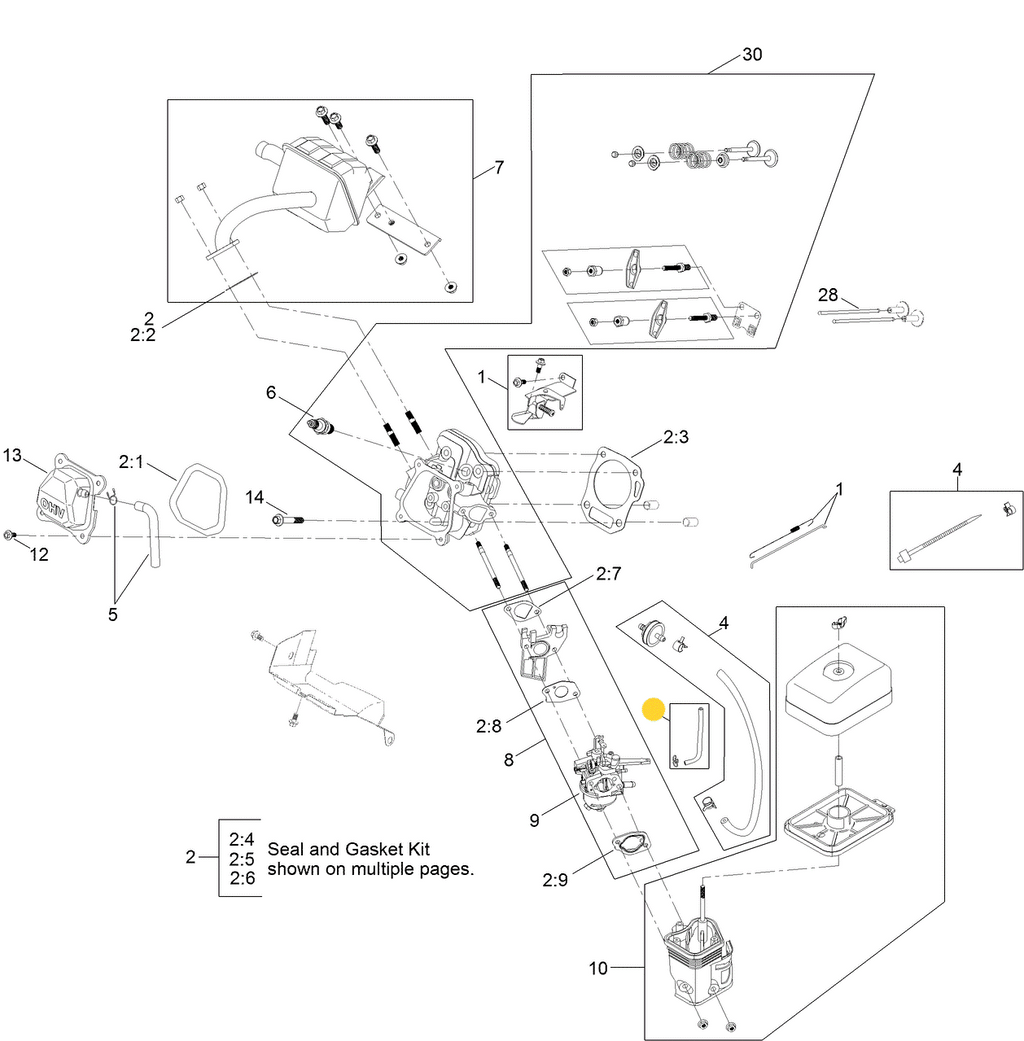

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Part Number 119-1949 Supersedes to Part Number 127-9376.



• PRODUCT NUMBER AND VARIATIONS: 127-9376, 127 9376, 1279376, 119-1949, 119 1949, 1191949
• PRODUCT TYPE: Primer Bulb Fuel Line Kit - Comes with Fuel Line & Fuel Line Clamp
• SIZE: Weight 0.029 lbs.
• NOTES & DETAILS: Toro OEM  127-9376 IS COMMINLY USED - 127-9376 is Commonly Used to Connect and Allow Fuel to Be Siphoned from the Primer Bulb or Primer Bulb Base to the Carburetor Primer Inlet Port on the Carburetor. 127-9376 Fuel Line Kit Enable Fuel to be Delivered to the Intake of the Carburetor Via the Primer Bulb Operation. 127-9376 Primer Bulb Fuel Line Kit Comes with all the Necessary Primer Bulb Line and Primer Bulb Line Clamp - For Additional Associated Parts Refer to the Associated Part Chart Below.
• COMMON SERIES APPLICATIONS: Toro Select 400, 600 & 700 Series Power Clear, Quick Clear Snow Blower Models





• MODEL FIT CHART:



  SNOWBLOWER’S



  QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569)



  POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38588, 38589, 38741, 38742, 38743, 38744, 38751)



• ASSOCIATED PARTS CHART:







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-9376 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY



1. 120-4418 - Power Clear, Quick Clear 400 &600 Series (Only Select Models - Review Models Fit Chart Associated to Each Part Numbers)
2. 127-9008 - Power Clear, Quick Clear 600 & 700 Series (Only Select Models - Review Model Fit Chart Associated to Each Part Number)





ASOCCIATED INDIVIDUAL PARTS & KITS





1. 120-4402 - FUEL LINE KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line is supposed to Connect to Both Sides of the Inline Fuel Filter and from there Connect to the Carburetor and Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Hose Guard, Inline Fuel Filter, Hose Clamps Include in the Kit *Only Select 400 & 600 Power Clear & Quick Clear Models
2. 121-4299 - FUEL LINE KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line is only supposed to Connect to the Inline Fuel Filter and from there Connect to the Carburetor) x1 Per Carburetor *Fuel Line Hose, Hose Guard, Inline Fuel Filter, Hose Clamps Include in the Kit *Only Select 600 & 700 Power Clear & Quick Clear Models
3. 127-9376 - PRIMER LINE KIT (Enables Fuel to be Drawn out of the Carburetor Bowl into the Intake Area of the Carburetor (by Pushing a Primer Bulb) Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Hose Clamps Include in the Kit
4. 44-2750 - PRIMER BULB BASE (Enable the Primer Bulb to Fit Over Top of the Base - Base Clips into the Snow Blower Dash) x1 Per Snow Blower Unit
5. 66-7460 - PRIMER BULB (The Rubber Bubble that Enables fuel to be Siphoned from the Carburetor Bowl) x1 Per Snow Blower Unit
