Toro OEM 127-9372 Primer Bulb/Fuel Line Kit Fits 900, 1000, 1200 Series and 1400 Series Power MAX and 1400 Series Power TRX Snowblower Models - Toro Dealer.

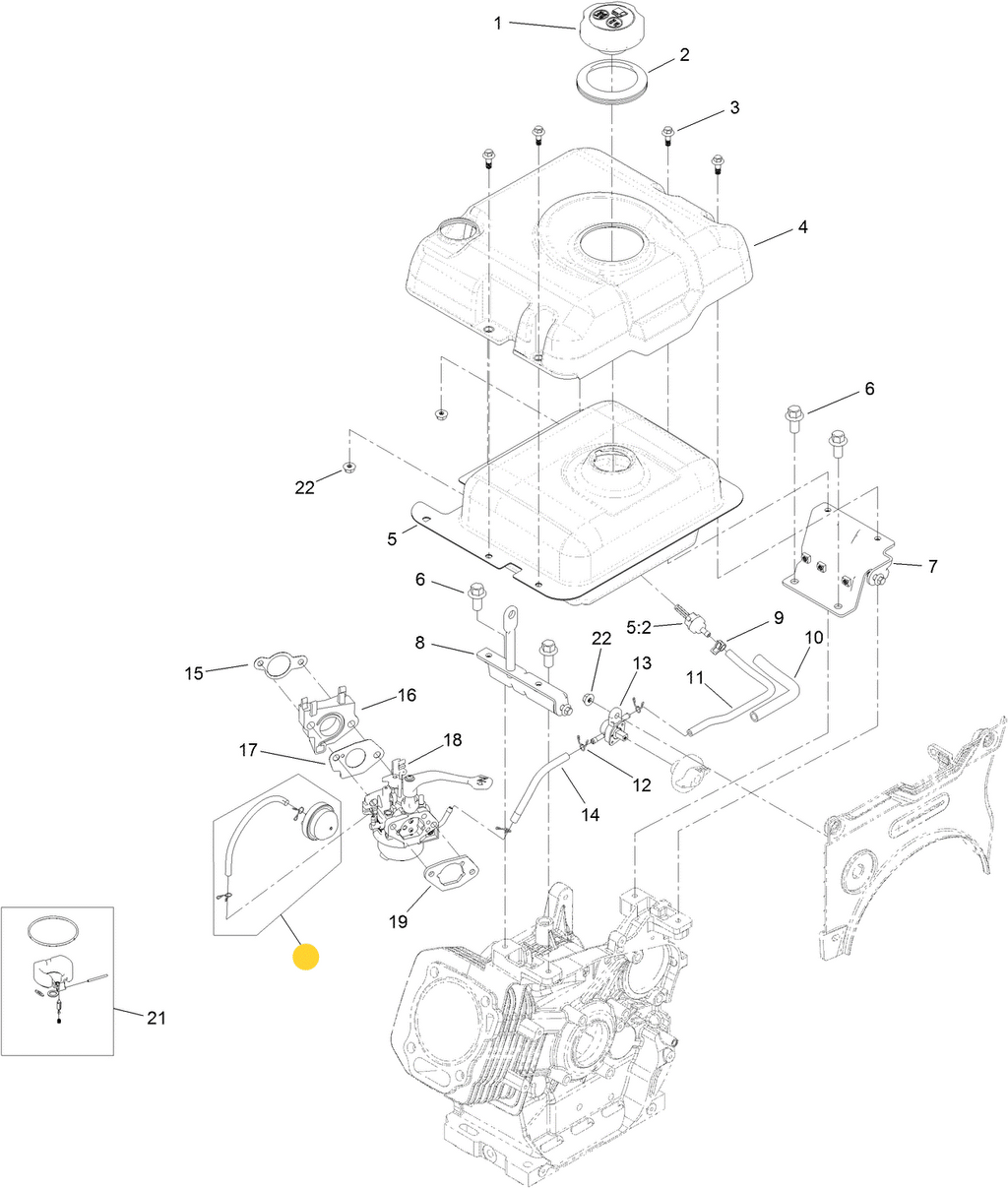

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Part Number 121-0344 Supersede to Part Number 127-9372





• PRODUCT NUMBER AND VARIATIONS: 127-9372, 127 9372, 1279372, 121-0344, 121 0344, 1210344

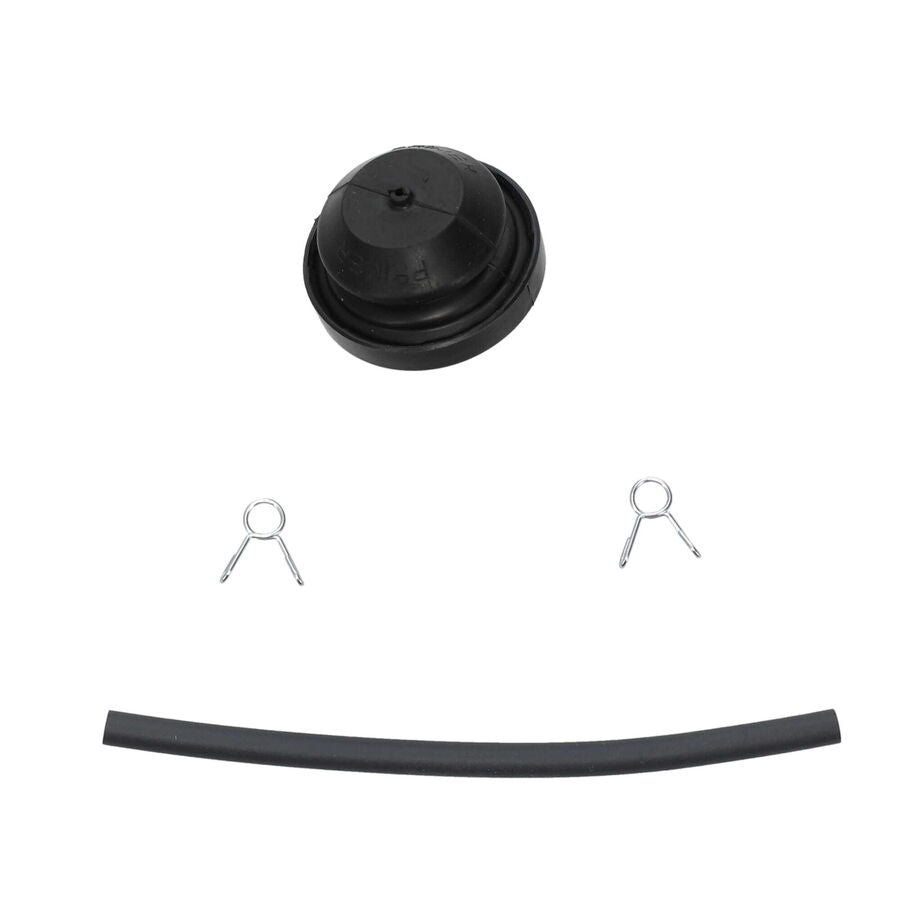

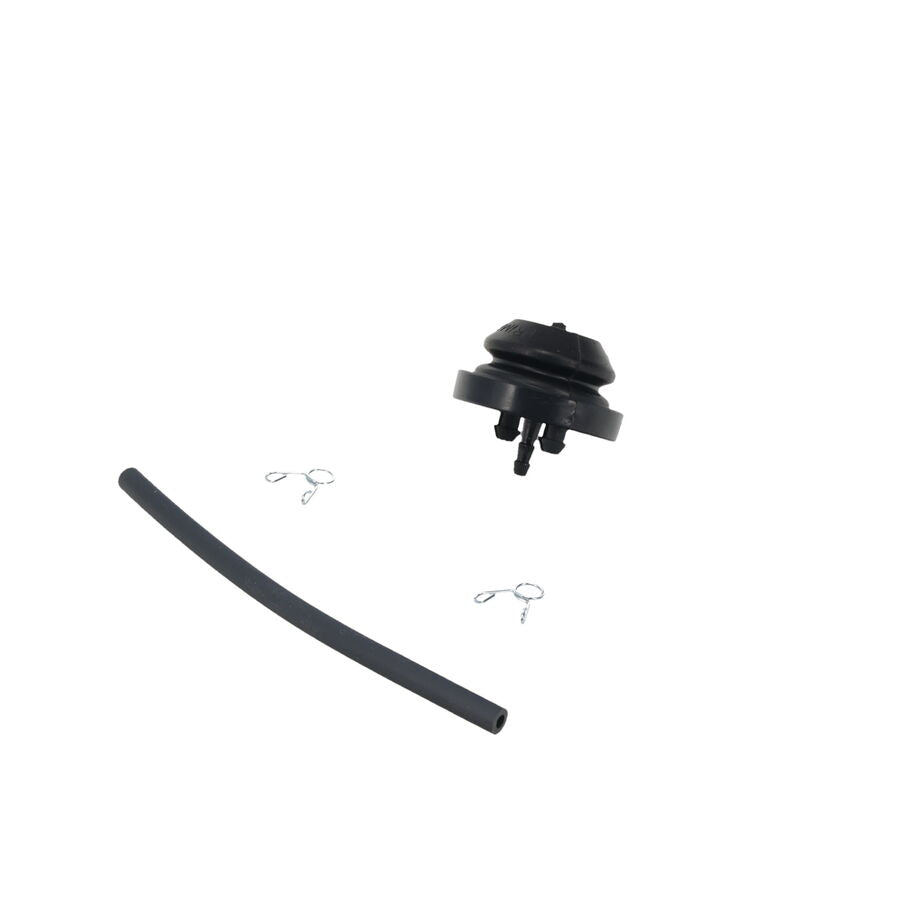

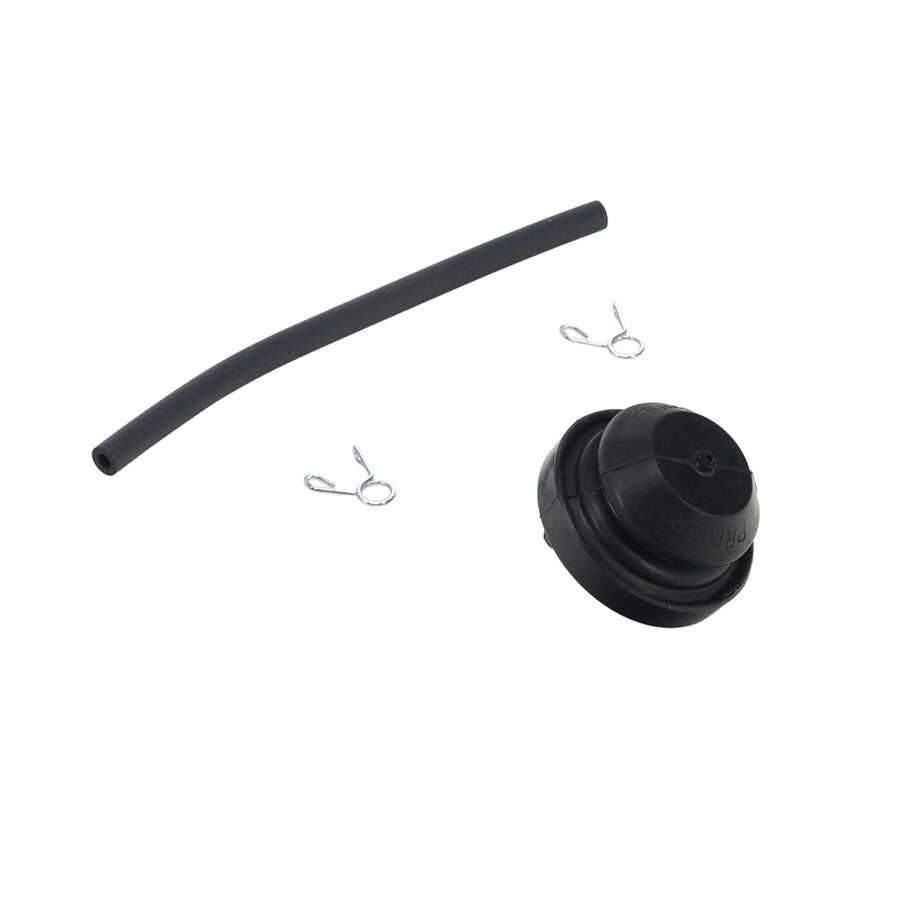

• PRODUCT TYPE: Primer Bulb & Fuel Line Kit - Comes with Primer Bulb Assembly, Primer Bulb Fuel Line & Fuel Line Clamp
• SIZE: Weight 0.055 lbs.
• NOTES & DETAILS: Toro OEM  127-9372 IS COMMINLY USED - 127-9372 Both Fuel Line and Primer Bulb Assembly is Commonly Used to Connect and Allow Fuel to Be Siphoned into the Carburetor Intake. 127-9372 Fuel Line Kit Enable Fuel to be Delivered to the Intake of the Carburetor Via the Primer Bulb Operation Allowing for a Faster Starting Procedure. 127-9372 Primer Bulb Fuel Line Kit Comes with all the Necessary Primer Bulb, Primer Bulb Line and Primer Bulb Line Clamp - For Additional Associated Parts Refer to the Associated Part Chart Below.
• COMMON SERIES APPLICATIONS: Toro Select 900, 1000, 1200 & 1400 Series Power MAX & 1400 Series Power TRX Snow Blower Models





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 38660, 38661, 38662, 38663, 38664, 38674, 38801, 38802, 38806, 38820, 38822, 38823, 38824, 38826, 38830, 38833, 38834, 38836, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)



POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-9372 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY





1. 121-0345 - Power MAX 900 Series
2. 121-0359 - Power Max 1000 Series
3. 139-0582 - Power MAX 1232 Series (Only Model 38842)
4. 139-0594 - Power Max & Power TRX 1400 Series (Select Model & Serial Number Variation)
5. 144-0964 - Power Max & Power TRX 1400 Series (Select Model & Serial Number Variation)




FUEL LINE ASSOCIATED PARTS COMBINATIONS ONLY



900 & 1000 SERIES



1. 121-0087 - FUEL LINE CLAMP - CARB., FUEL VALVE, FUEL TANK (Retains the Incoming Fuel Line Hose to the Carburetor, Fuel Valve & Fuel Tank) x4 Per Carburetor
2. 139-0598 - FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter to the Fuel Valve and from there Connect from the Fuel Valve to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Tank Fuel Filter, Hose Clamps, Abrasive Sleeves are Include in the Kit
3. 121-4109 - FUEL VALVE (Enables the Operator to Eliminate Fuel Traveling to the Carburetor Bowl) x1 Per Fuel Tank



1200 & 1400 SERIES



1. 121-0087 - FUEL LINE CLAMP - CARB. & FUEL VALVE (Retains the Incoming Fuel Line Hose to the Carburetor & Fuel Valve) x3 Per Carburetor
2. 139-0583 - FUEL LINE HOSE - CARB. to FUEL VALVE (Enables the Fuel to Travel from the Fuel Valve to the Carburetor Bowl - Fuel Line Only Connects to the Fuel Valve and the Carburetor) x1 Per Carburetor
3. 121-0258 - FUEL VALVE (Enables the Operator to Eliminate Fuel Traveling to the Carburetor Bowl) x1 Per Fuel Tank
4. 127-9064 - FUEL LINE HOSE - FUEL VALVE to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Fuel Valve - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connects to the Fuel Valve - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Fuel Tank
5. 127-9065 - FUEL TANK FILTER - (Screws into the Bottom of the Fuel Tank and Filter the Fuel as well as Enable the Fuel Line to Be Slid onto the End of it) x1 Per Fuel Tank
6. 139-0566 - FUEL LINE ABRASIVE SLEEVE (Insert over the Fuel Line Hose and Protects the Fuel Line from Abrasive Edge) x1 Per Fuel Line
7. 127-9120 - FUEL LINE CLAMP - FUEL TANK (Retains the Fuel Line to the Bottom of the Fuel tank via the Screw-In Fuel Filter) x1 Per Carburetor
