Toro OEM 127-9089 Carburetor Rebuild Kit Fits 400, 600 and 700 Series Power Clear and Quick Clear Snowblower Models - Toro Dealer.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Part Numbers 119-1972, 119-1993, 120-4416 Supersedes to Part Number 127-9089.



NOTE: Carburetor Rebuild Kits is the Cost-Effective Approach for Fixing Carburetor Issue - However, Hilly Ridge cannot Guarantee that a Carburetor Repair Kit will be an Effective Approach in Repairing your Carburetor Problems - Sometimes a Complete Carb. Assembly is the only Necessary to Repair Carburetor Issues.



• PRODUCT NUMBER AND VARIATIONS: 127-9089, 127 9089, 1279089, 119-1972, 119 1972, 1191972, 119-1993, 119 1993, 1191993, 120-4416, 120 4416, 1204416
• PRODUCT TYPE: Carburetor Repair Kit
• SIZE: Weight 0.050 lbs.
• NOTES & DETAILS: Toro OEM  127-9089 IS COMMINLY USED -



Most Common Reason for Snowblower Repairs is a Fuel/Carburetor Issue in Which Fuel Commonly Causes Carburetor issues due to Ethanol and/or Gas Going Stale in The Carburetor Causing Engine Start and/or Run Failure and Possible Gas Spills or Leaks.



127-9089 Carburetor Rebuild Kit Contains Necessary Parts to Rebuild Select Carburetors Listed Below.



1. 120-4418 - Power Clear, Quick Clear 400 &600 Series (Only Select Models - Review Models Fit Chart Associated to Each Part Numbers)
2. 127-9008 - Power Clear, Quick Clear 600 & 700 Series (Only Select Models - Review Model Fit Chart Associated to Each Part Number)

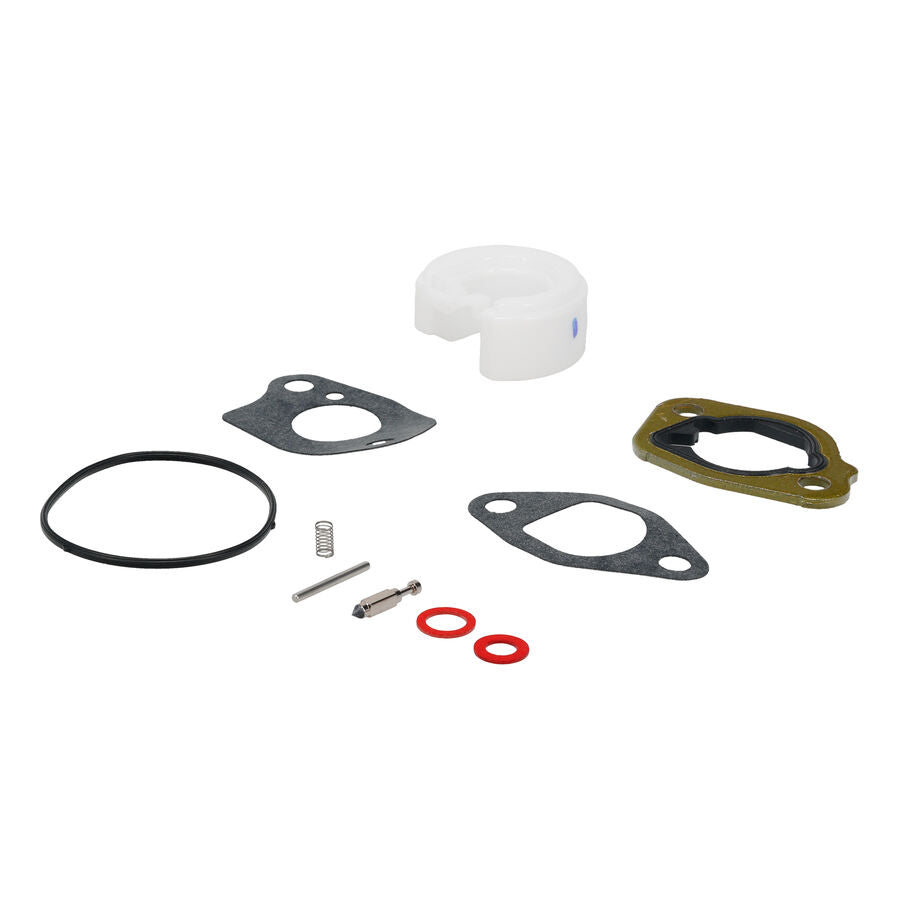

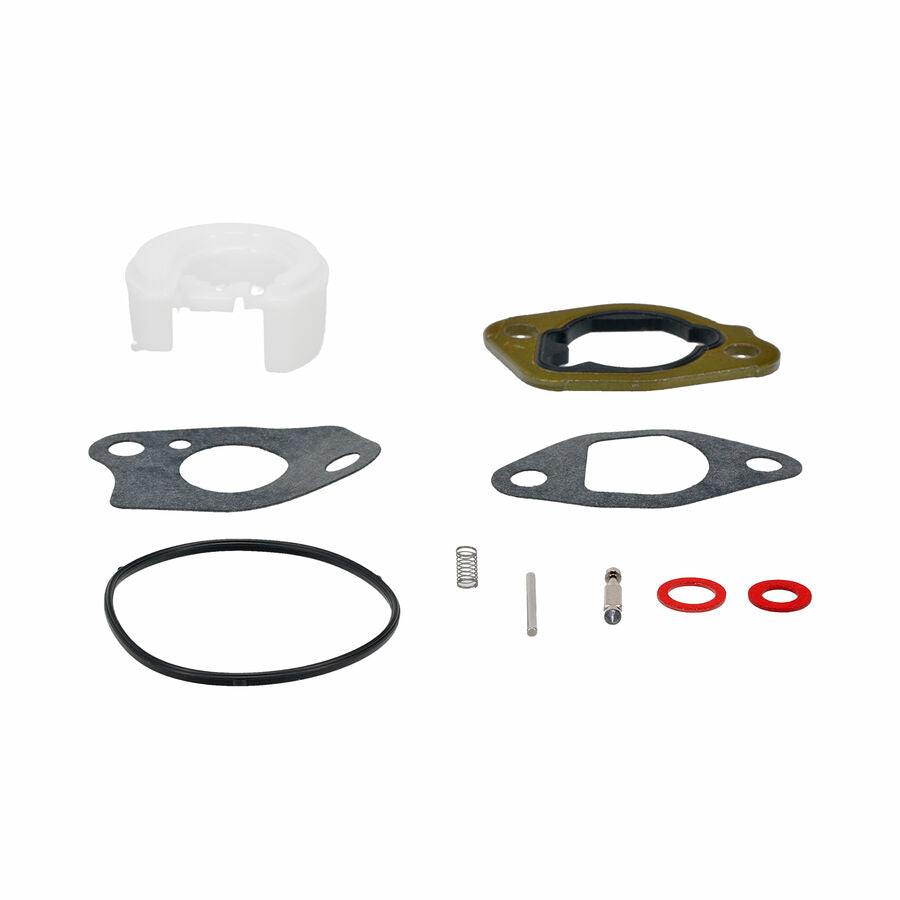

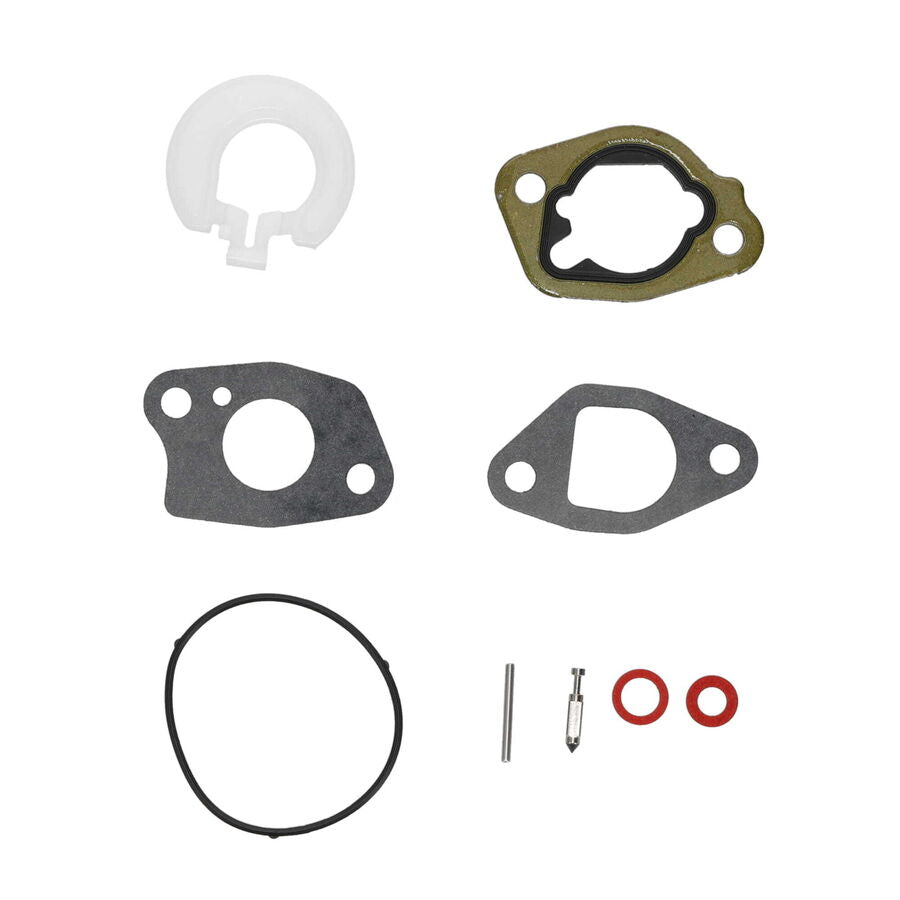

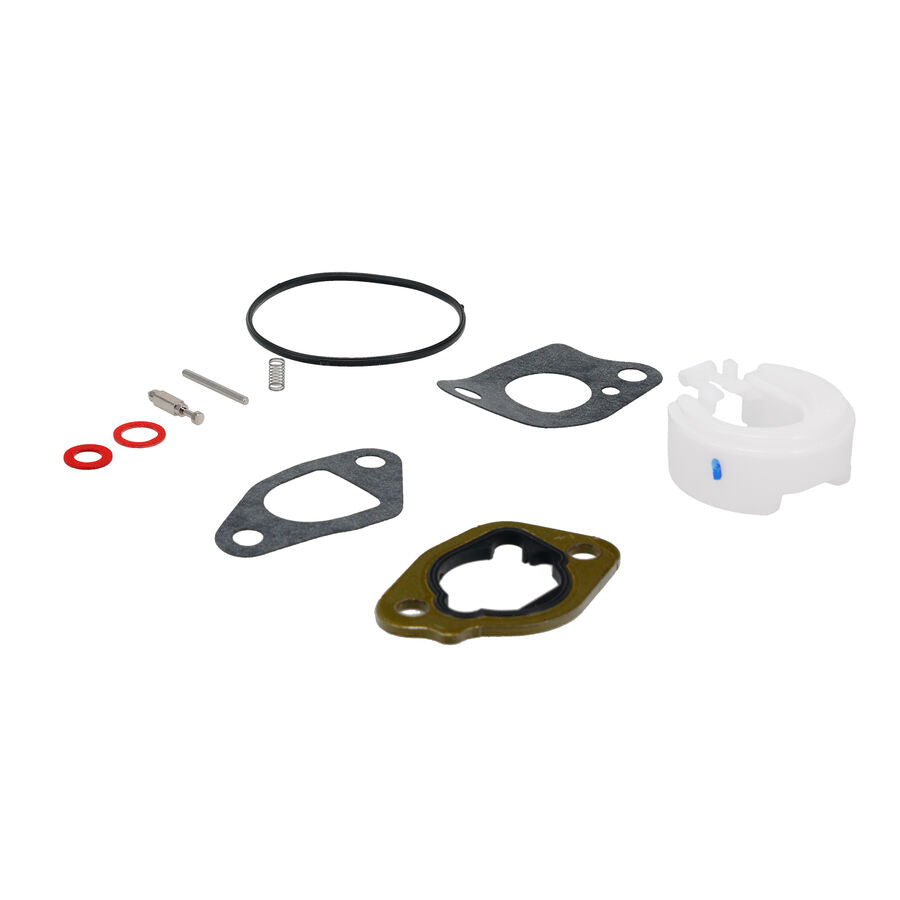

127-9089 Carburetor Repair Kits Come Contain the Following Part



1. Float or Inlet Needle
2. Inlet Needle Return Spring
3. Float Retaining Pivot Pin
4. Float
5. Bowl Sealing O-Ring
6. Bowl Retaining Bolt Gasket
7. Insulator Gasket
8. Carburetor Gasket
9. Heat Box/Carburetor Shroud Gasket




• COMMON SERIES APPLICATIONS: Toro Select 400, 600 & 700 Series Power Clear, Quick Clear Snow Blower Models





• MODEL FIT CHART:



SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38588, 38589, 38741, 38742, 38743, 38744, 38751)

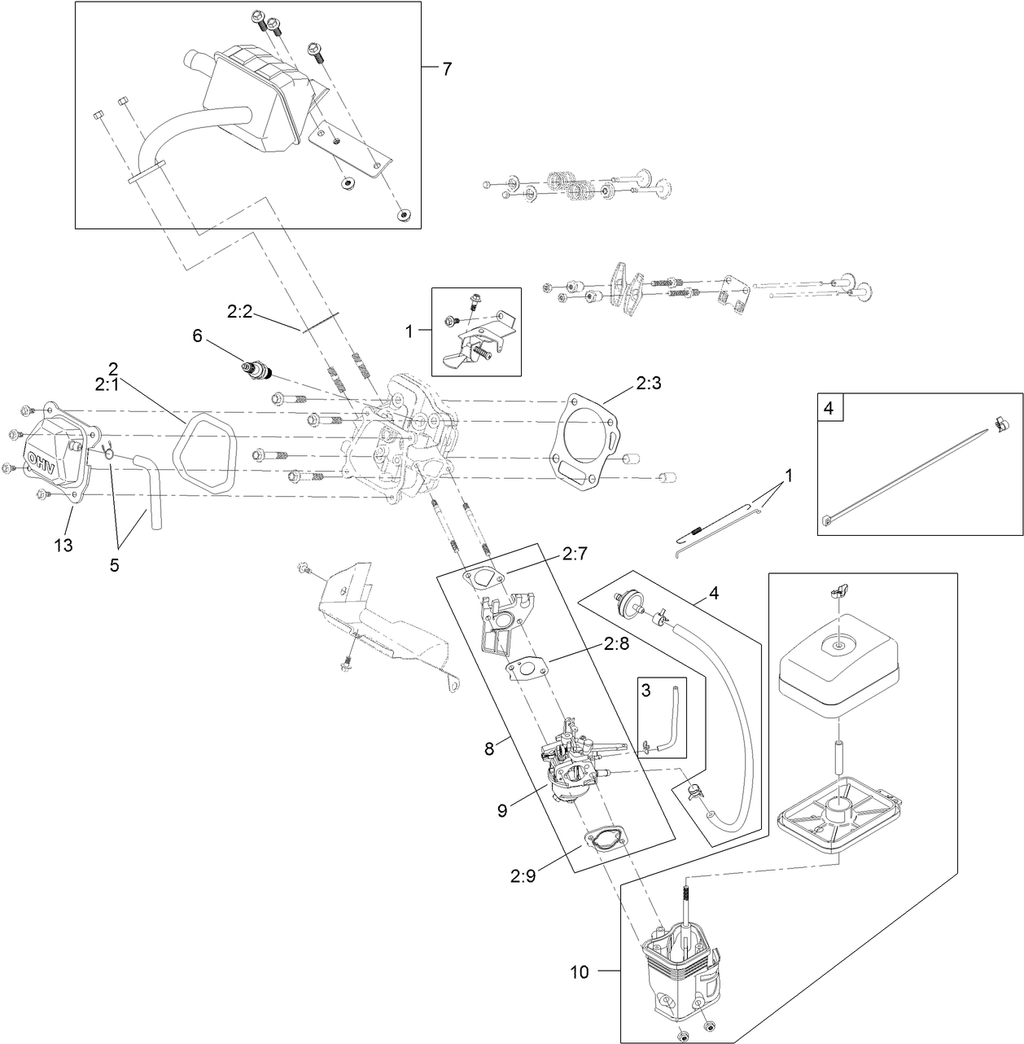

• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-9089 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY



1. 120-4418 - Power Clear, Quick Clear 400 &600 Series (Only Select Models - Review Models Fit Chart Associated to Each Part Numbers)
2. 127-9008 - Power Clear, Quick Clear 600 & 700 Series (Only Select Models - Review Model Fit Chart Associated to Each Part Number)






ASOCCIATED INDIVIDUAL PARTS & KITS



1. 1. 121-0252 - INSUALTOR GASKET (Gasket That is Assemble Between the Isolator and Engine Block) x1 Per Carburetor
   2. N/A - *Only Available with Complete Carburetor Kit - INSULATOR - CARBURETOR (Insulator Assemble Between the Carburetor and Engine Block as well as Between Insulator Gasket and Carburetor Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
   3. 121-0253 - CARBURETOR GASKET (Gasket That is Assemble Between the Carburetor and Insulator) x1 Per Carburetor
   4. 121-0254 - HEAT BOX/AIR FILTER BASE GASKET (Gasket That is Assemble Between the Air Filter Base and the Carburetor) x1 Per Carburetor
   5. 121-4282 - AIR FILTER BASE/COVER or HEAT BOX KIT (Installed Over the Carburetor to Enable the Carburetor to Draw Air Through an Air Filter as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor *Comes with Two-Piece Air Filter Base, Air Filter Spacer/Hardware and Carburetor/Air Filter Retaining Nut
   6. 119-1957 - CARBURETOR/GOVERNOR SPRING and ROD LINKAGE KIT (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor *Spring and Rod Included in the Kit
   7. N/A - *Only Available with Complete Carburetor Kit - CHOKE LEVER (Clip over the Choke Linkage and Enables the Operator to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures) x1 Per Carburetor
   8. 120-4402 - FUEL LINE KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line is only supposed to Connect to the Inline Fuel Filter and from there Connect to the Carburetor) x1 Per Carburetor *Fuel Line Hose, Hose Guard, Inline Fuel Filter, Hose Clamps Include in the Kit *Only Select 400 & 600 Power Clear & Quick Clear Models
   9. 121-4299 - FUEL LINE KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line is supposed to Connect to Both Sides of the Inline Fuel Filter and from there Connect to the Carburetor and Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Hose Guard, Inline Fuel Filter, Hose Clamps Include in the Kit *Only Select 600 & 700 Power Clear & Quick Clear Models
   10. 127-9376 - PRIMER LINE KIT (Enables Fuel to be Drawn out of the Carburetor Bowl into the Intake Area of the Carburetor (by Pushing a Primer Bulb) Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Hose Clamps Include in the Kit
   11. 44-2750 - PRIMER BULB BASE (Enable the Primer Bulb to Fit Over Top of the Base - Base Clips into the Snow Blower Dash) x1 Per Snow Blower Unit
   12. 66-7460 - PRIMER BULB (The Rubber Bubble that Enables fuel to be Siphoned from the Carburetor Bowl) x1 Per Snow Blower Unit
