Toro OEM 127-9079 Primer Bulb/Fuel Line Kit Fits 700 and 800 Series Power Clear, Snow Master, Snow Thrower, Snow MAX, Power MAX Snowblower Models - Toro Dealer.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 127-9079, 127 9079, 1279079

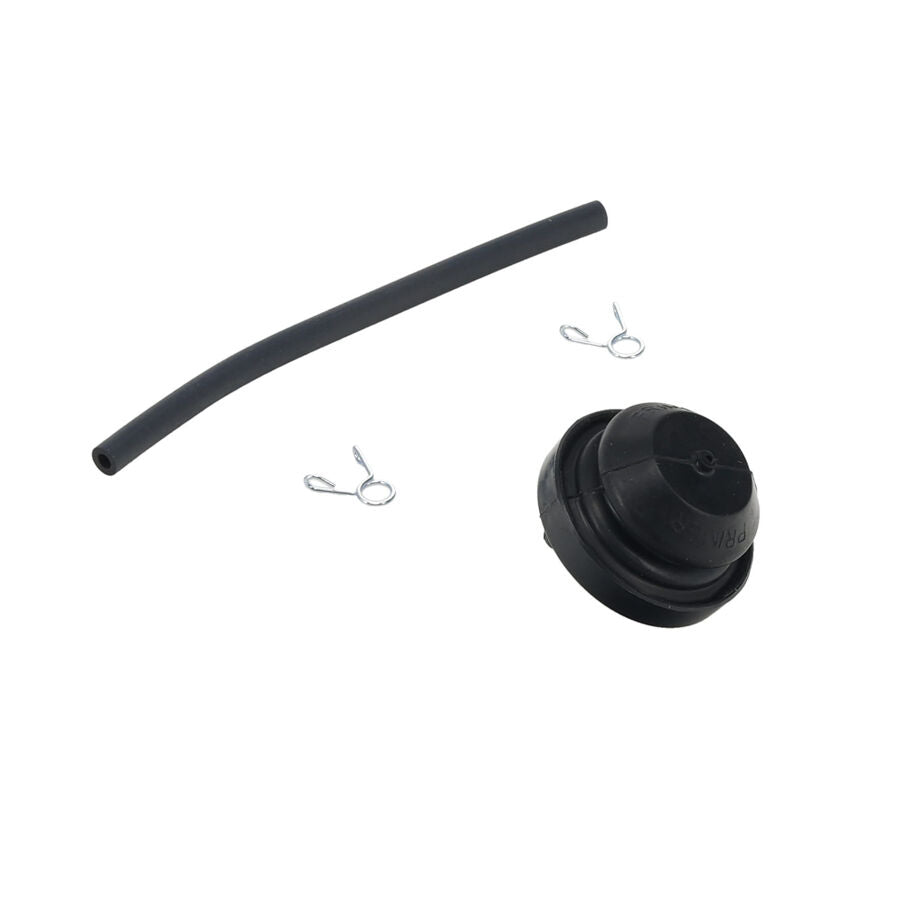

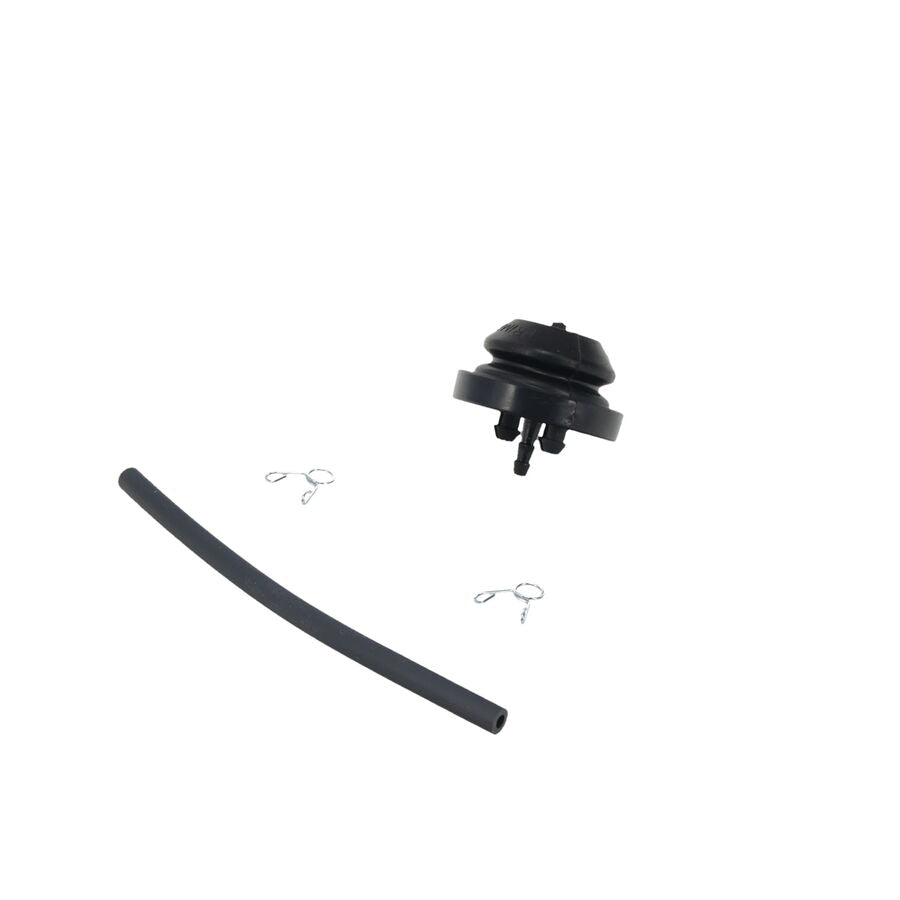

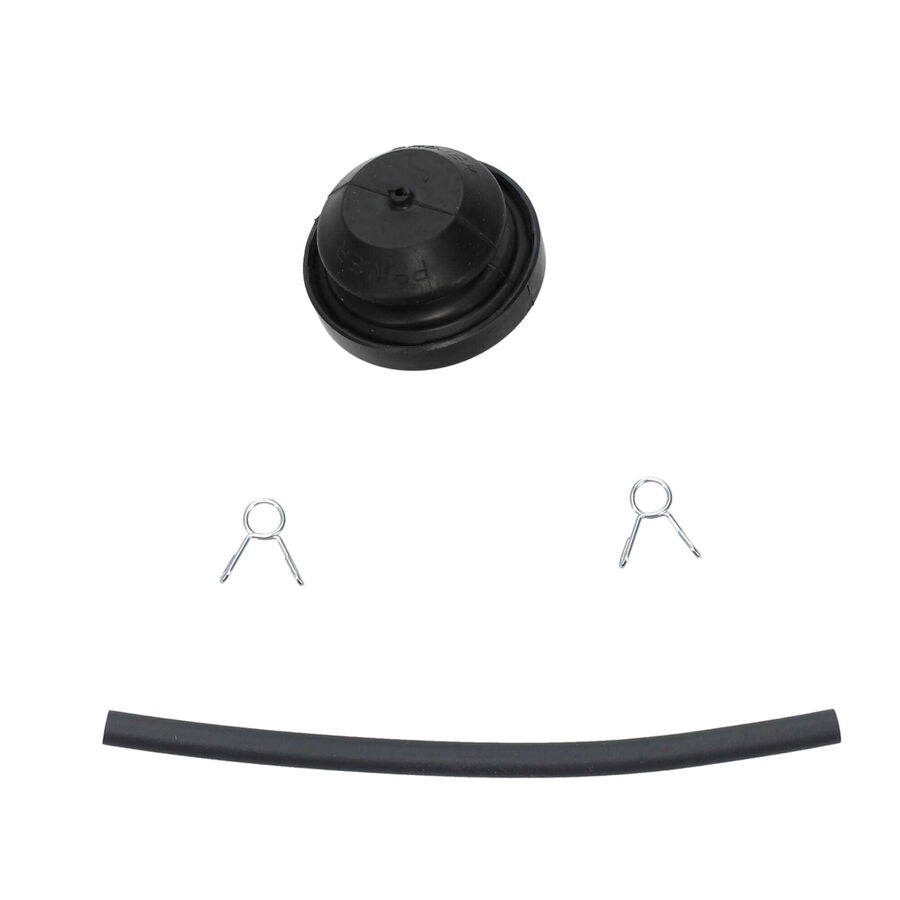

• PRODUCT TYPE: Primer Bulb & Fuel Line Kit - Comes with Primer Bulb Assembly, Primer Bulb Fuel Line & Fuel Line Clamp
• SIZE: Weight 0.042 lbs.
• NOTES & DETAILS: Toro OEM  127-9079 IS COMMINLY USED - 127-9079 Both Fuel Line and Primer Bulb Assembly is Commonly Used to Connect and Allow Fuel to Be Siphoned into the Carburetor Intake. 127-9079 Fuel Line Kit Enable Fuel to be Delivered to the Intake of the Carburetor Via the Primer Bulb Operation Allowing for a Faster Starting Procedure. 127-9079 Primer Bulb Fuel Line Kit Comes with all the Necessary Primer Bulb, Primer Bulb Line and Primer Bulb Line Clamp - For Additional Associated Parts Refer to the Associated Part Chart Below.
• COMMON SERIES APPLICATIONS: Toro Select 700 & 800 Series Power Clear, SnowMaster, SnowThrower, Snow MAX and Power MAX Snow Blower Models





• MODEL FIT CHART:



SNOWBLOWER’S





POWER CLEAR Series – Model Numbers – (* Model Numbers 38752, 38753, 38754, 38755, 38756, 38757)



POWER MAX Series – Model Numbers – (* Model Numbers 37779, 37798, 37799, 37780, 37781, 37793, 37797, 37802, 37805, 37807, 38805, 38811, 38812, 38813, 38814, 38815, 38819, 38838)



SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)



SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711, 38712)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-9079 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY





1. 127-9111 - Power Clear, Snow Master, Snow Thrower, Snow MAX, Power MAX 800 Series (Model 38838 with Select Serial Numbers) & 700 Series (Excluding Select Serial Numbers with Select Model Number for - 37807, 37821, 38812, 38814 - Review Models Fit Chart Associated to Each Part Numbers)
2. 133-1534 - Snow Master, Snow Thrower, Power MAX 800 Series (Select Models Only - Review Models Listed Under Part Numbers - Model 38838 with Select Serial Numbers)
3. 139-0700 - Power Clear 800 Series (Only Power Clear Models 38755, 38757)
4. 139-0749 - Power MAX, Snow MAX 700 Series (Power Max Models 38812, 38814 & Snow Max Model 38721 With Select Serial Number Range - Review Model Fit Chart Associated to Each Part Number)
5. 147-7081 - Power MAX 724 Series (Only Models Number 37807)

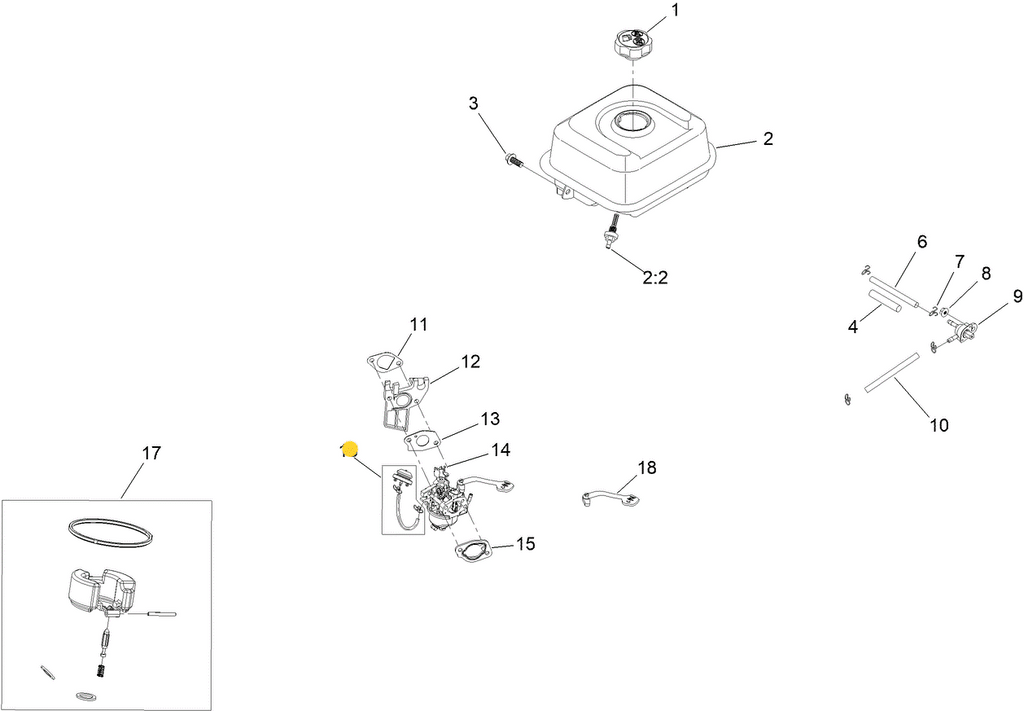

FUEL LINE ASSOCIATED PARTS COMBINATIONS ONLY



Models without Fuel Shut OFF Valve





1. 121-0087 or 147-7077 - FUEL LINE CLAMP - CARB. (Retains the Incoming Fuel Line Hose to the Carburetor) x1 Per Carburetor
2. 127-9403 or 147-7086 - FUEL LINE HOSE - CARB. to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor
3. 127-9120 or 147-7077 - FUEL LINE CLAMP - FUEL TANK (Retains the Fuel Line to the Bottom of the Fuel tank via the Screw-In Fuel Filter) x1 Per Fuel Line
4. 136-7773 - FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Tank Fuel Filter, Hose Clamps are Include in the Kit



Model with Fuel Shut OFF Valve





1. 121-0087 - 127-9120 -147-7077 - FUEL LINE CLAMP - CARB., FUEL TANK & FUEL VALVE (Retains the Incoming Fuel Line Hose to the Carburetor & Fuel Valve) x3 Per Carburetor
2. 127-9489 OR 147-7086 - FUEL LINE HOSE - CARB. to FUEL VALVE (Enables the Fuel to Travel from the Fuel Valve to the Carburetor Bowl - Fuel Line Only Connects to the Fuel Valve and the Carburetor) x1 Per Carburetor
3. 127-9117 - FUEL VALVE (Enables the Operator to Eliminate Fuel Traveling to the Carburetor Bowl) x1 Per Fuel Tank
4. 133-1556 OR 147-7087 - FUEL LINE HOSE - FUEL VALVE to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Fuel Valve - Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connects to the Fuel Valve - Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Fuel Tank
5. 133-9997 OR 147-7088 - FUEL LINE ABRASIVE SLEEVE (Insert over the Fuel Line Hose and Protects the Fuel Line from Abrasive Edge) x1 Per Fuel Line
