Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 127-9008, 127 9008, 1279008

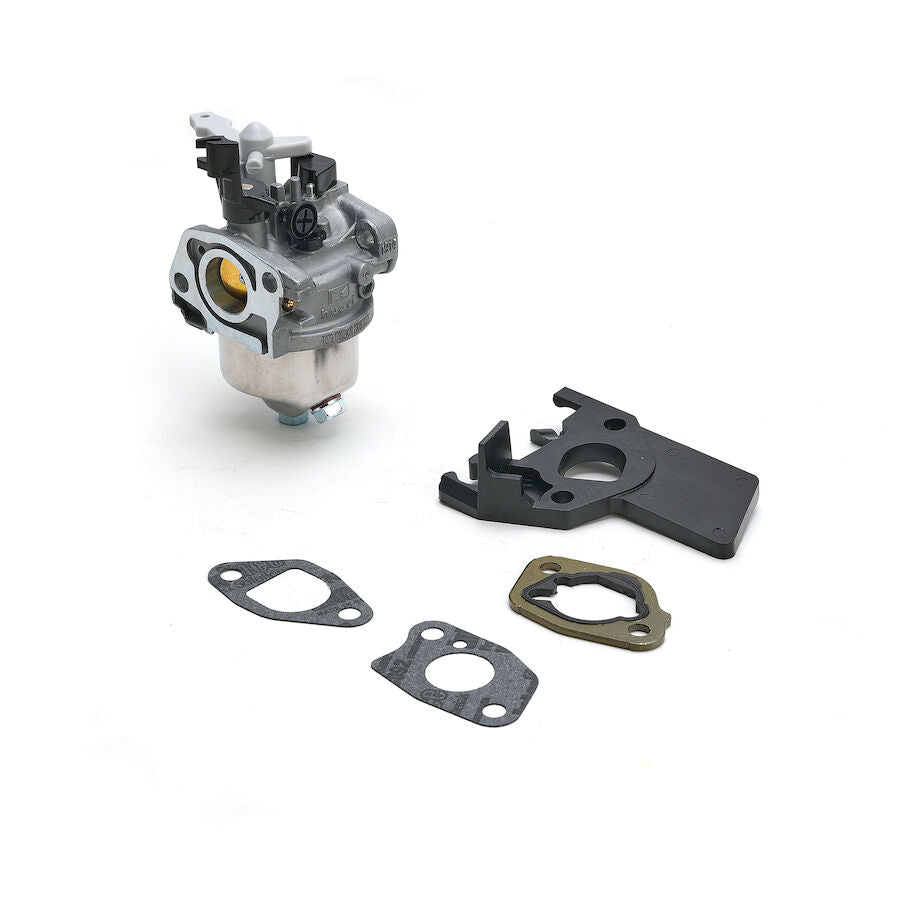

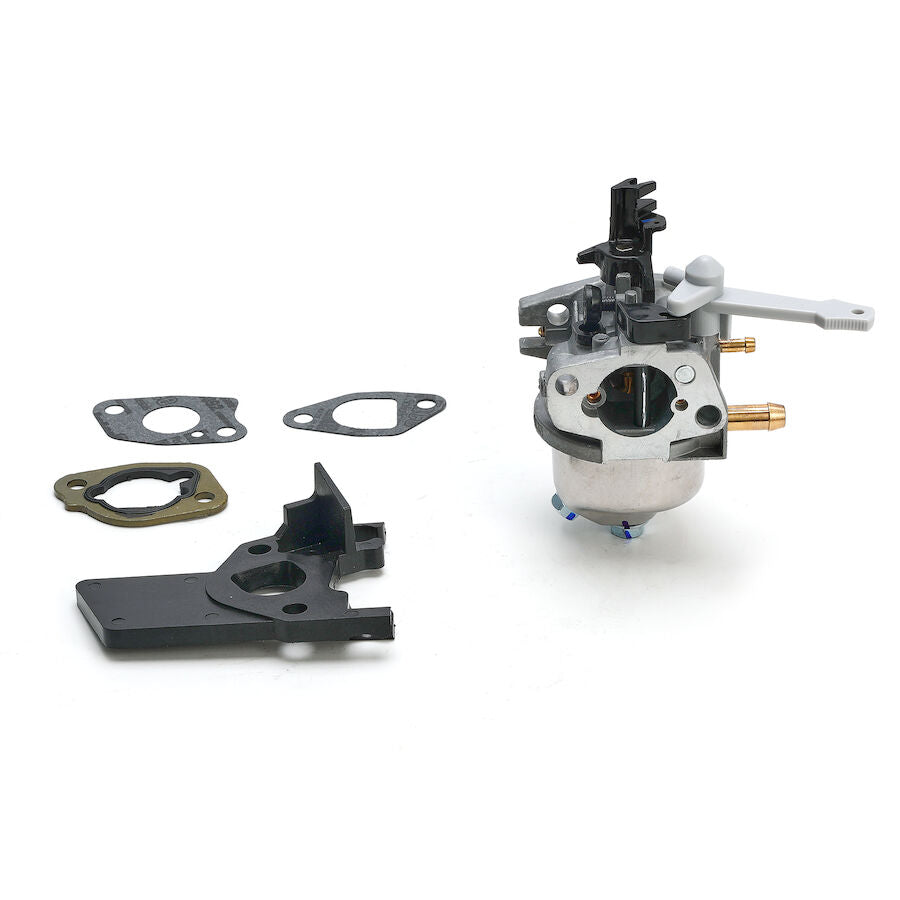

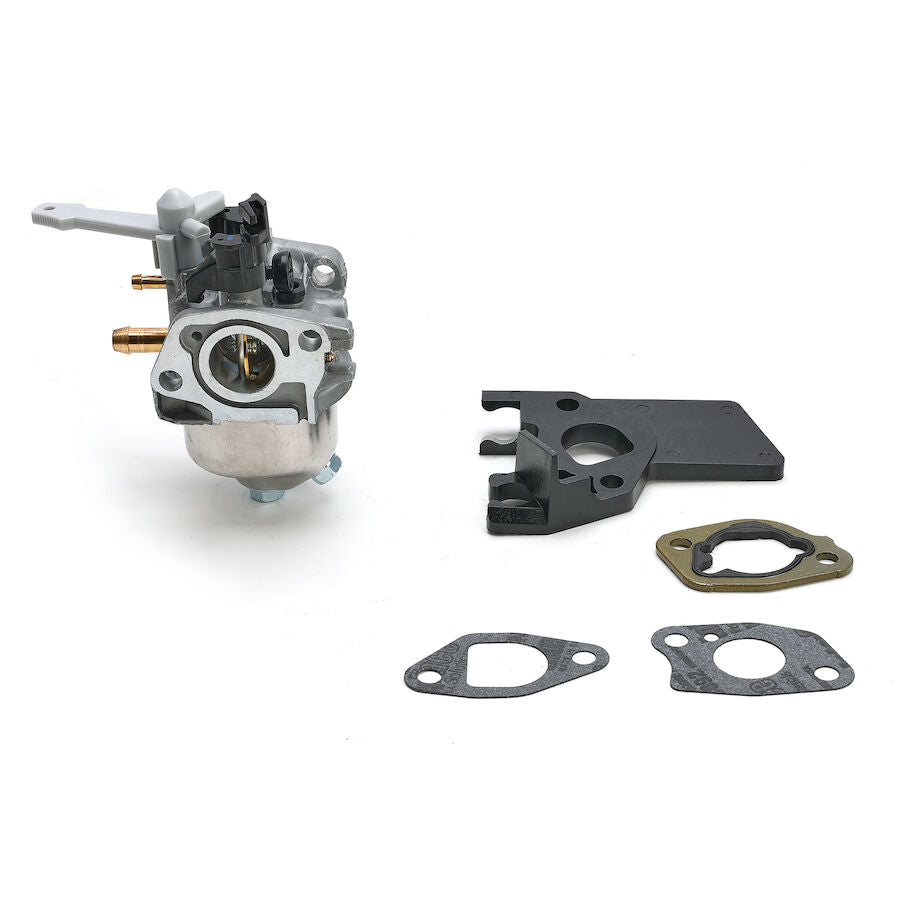

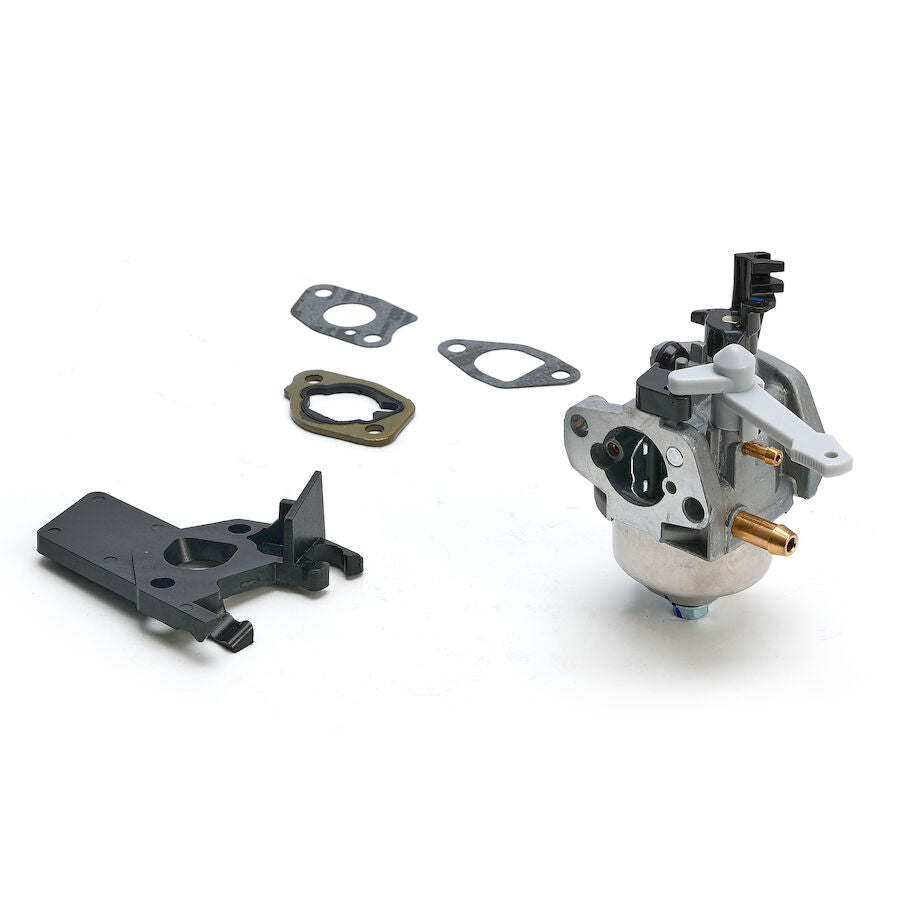

- PRODUCT TYPE: Carburetor Kit - Comes with Gasket's and Isolator
- SIZE: Length 5.500 in. - Width 5.250 in. - Height 2.750 in. - Weight 0.700 lbs.
- NOTES & DETAILS: Toro OEM 127-9008 IS COMMINLY USED - 127-9008 Carburetor is Installed on the Intake Side and Enables the Correct Air and Fuel Mixture to be Drawn Through the Valves and into the Cylinder or Combustion Chamber. Most Common Reason for Snowblower Repairs is a Fuel/Carburetor Issue in Which Fuel Commonly Causes Carburetor issues due to Ethanol and/or Gas Going Stale in The Carburetor Causing Engine Start and/or Run Failure. 127-9008 Carburetor Kit Does Come with Carburetor, Gasket and Isolator.
- COMMON SERIES APPLICATIONS: Toro Select 21" 600 Series Quick Clear and 700 Series Power Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38568)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38741, 38742, 38743, 38744, 38751)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-9008 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 121-0252 - INSUALTOR GASKET (Gasket That is Assemble Between the Isolator and Engine Block) x1 Per Carburetor
- N/A - *Only Available with Complete Carburetor Kit - INSULATOR - CARBURETOR (Insulator Assemble Between the Carburetor and Engine Block as well as Between Insulator Gasket and Carburetor Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
- 121-0253 - CARBURETOR GASKET (Gasket That is Assemble Between the Carburetor and Insulator) x1 Per Carburetor
- 121-0254 - AIR FILTER BASE GASKET (Gasket That is Assemble Between the Air Filter Base and the Carburetor) x1 Per Carburetor
- 121-4282 - AIR FILTER BASE/COVER or HEAT BOX KIT (Installed Over the Carburetor to Enable the Carburetor to Draw Air Through an Air Filter as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor *Comes with Two-Piece Air Filter Base, Air Filter Spacer/Hardware and Carburetor/Air Filter Retaining Nut
- 119-1957 - CARBURETOR/GOVENOR SPRING and ROD LINKAGE KIT (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor *Spring and Rod Included in the Kit
- N/A - *Only Available with Complete Carburetor Kit - CHOKE LEVER (Clip over the Choke Linkage and Enables the Operator to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures) x1 Per Carburetor
- 121-4299 - FUEL LINE KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line is only supposed to Connect to the Inline Fuel Filter and from there Connect to the Carburetor) x1 Per Carburetor *Fuel Line Hose, Inline Fuel Filter, Hose Clamps Include in the Kit
- 127-9376 - PRIMER LINE KIT (Enables Fuel to be Drawn out of the Carburetor Bowl into the Intake Area of the Carburetor (by Pushing a Primer Bulb) Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Hose Clamps Include in the Kit
- 44-2750 - PRIMER BULB BASE (Enable the Primer Bulb to Fit Over Top of the Base - Base Clips into the Snow Blower Dash) x1 Per Snow Blower Unit
-
66-7460 - PRIMER BULB (The Rubber Bubble that Enables fuel to be Siphoned from the Carburetor Bowl) x1 Per Snow Blower Unit
- 127-9089 - CARBURETOR REPAIR KIT (Complete Rebuild Kit Comes with Carburetor Gasket and Necessary Internal Carburetor O-Rings and Other Part Required to Rebuild the Carburetor) x1 Per Carburetor
