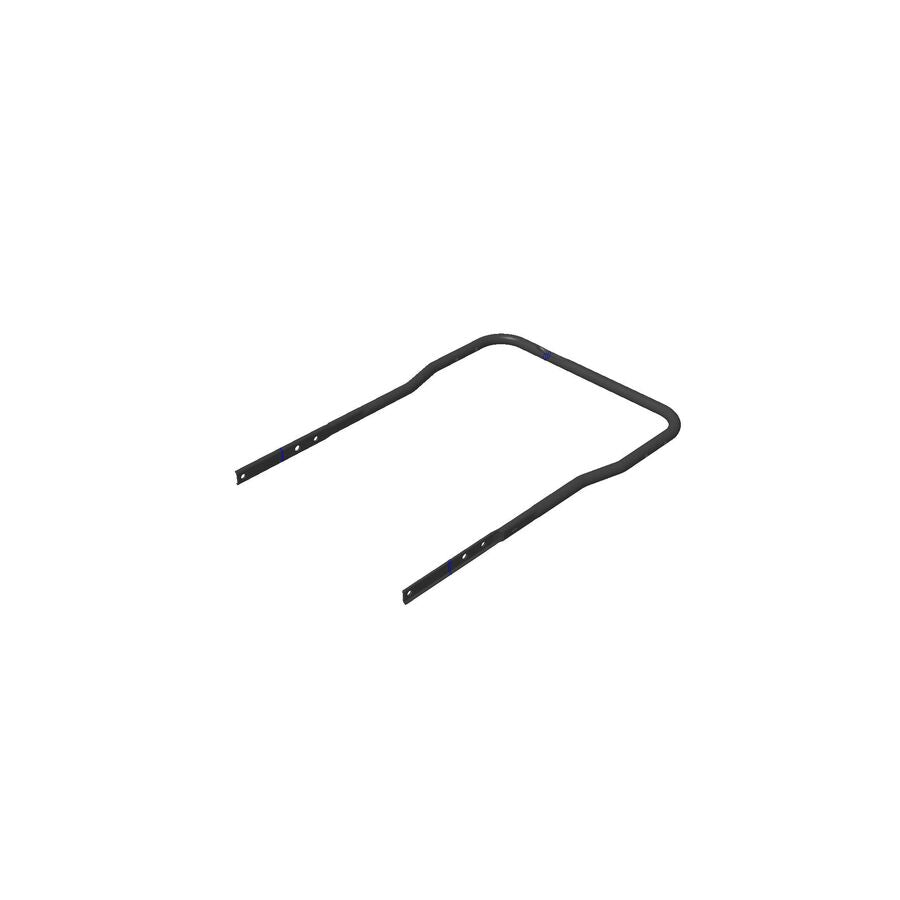

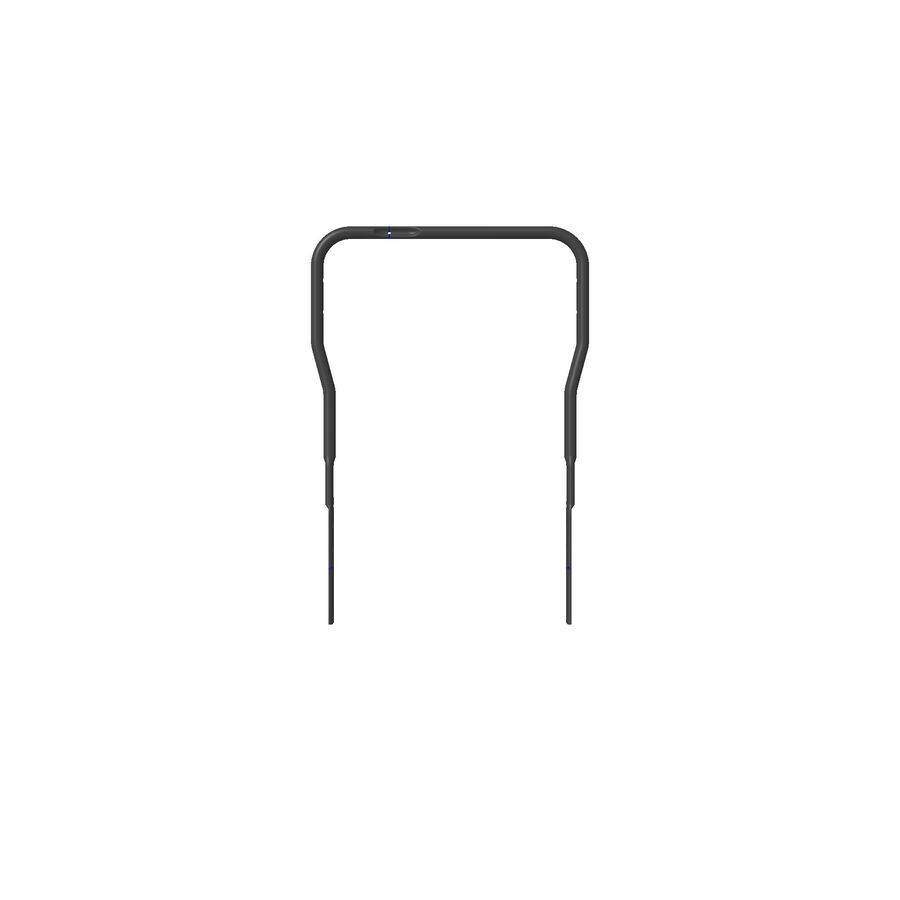

Toro OEM 127-5956-03 Lower Handle Section Fits Select 21" Toro Single Stage Power Clear and Quick Clear Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 127-5956-03, 127 5956 03, 127595603
• PRODUCT TYPE: Lower Handle Section
• SIZE: Length 28.000 in. - Width 1.200 in. - Height 18.600 in. - Weight 4.806 lbs.
• NOTES & DETAILS: Toro OEM  127-5956-03 IS COMMINLY USED - As the Lower of a Two-Piece Handle Assembly and Fastens to The Main Snowblower Assembly - Enabling the Operator to Fold the Upper Handle Section for Transporting and Storage.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.



• MODEL FIT CHART:

SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38567, 38568, 38569)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38458, 38741, 38742, 38743, 38744, 38751)

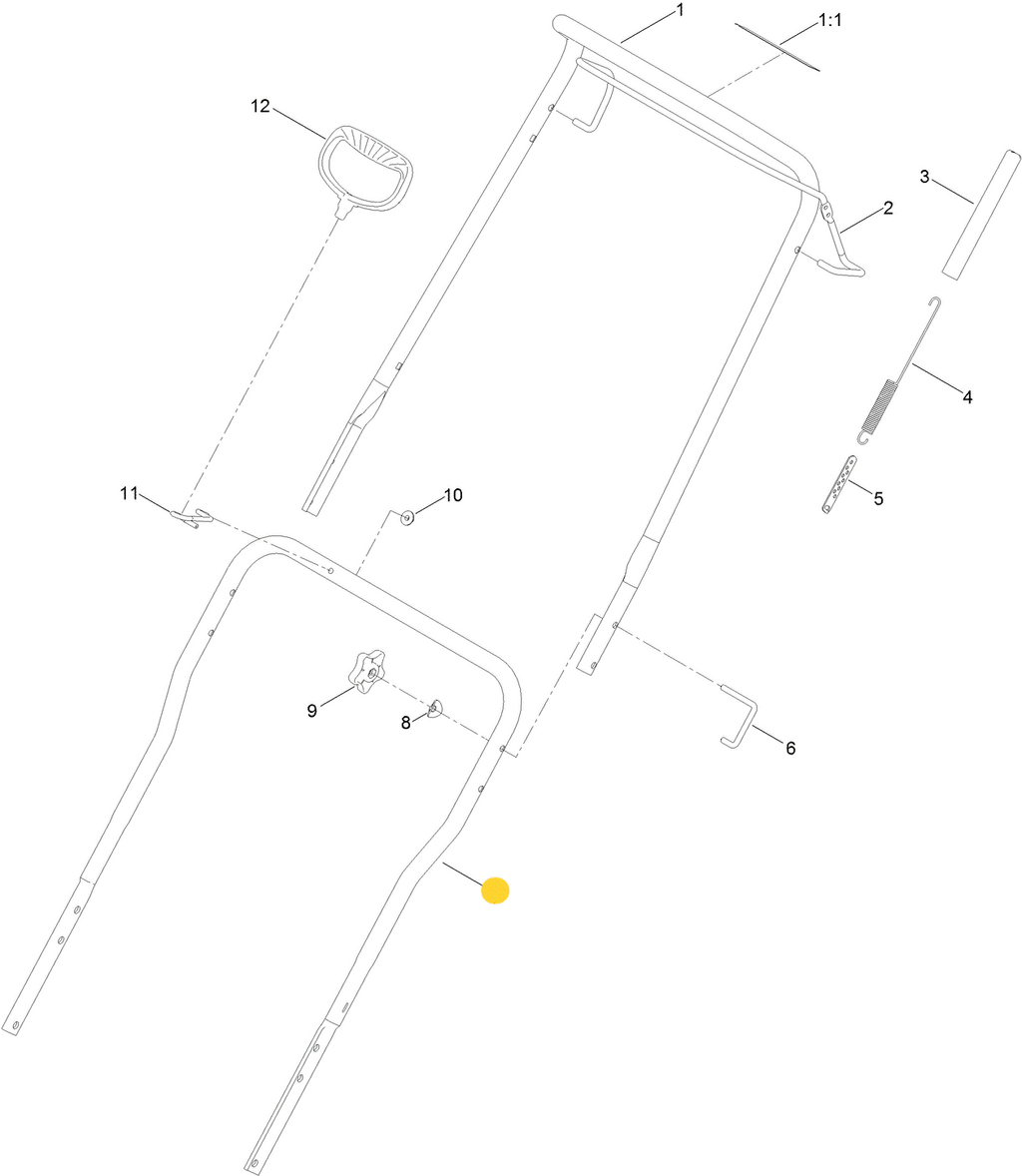

• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-5956-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



UPPER & LOWER HANDLE FASTNERS



1. 136-7130 - HANDLE LOCK BOLT/FASTNER (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x2 Per Handle Assembly
2. 107-3844 - CONTOUR WASHER (Shaped to contour the Handle and is Used Between the Handle and the Fastners to Protect the Handle and Support the Fastners) x1 Per Handle Lock Bolt/Fastner
3. 114-3779 - HANDLE KNOB (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x2 Per Handle Assembly



LOWER HANDLE & MAIN SNOWBLOWER UNIT FASTNERS & COMPONENTS



1. 701243 - FLANGE BOLT (Retains the Bottom Handle Section to the Main Snowblower Section - Upper Whole Only) x2 Per Handle Assembly
2. 1-633545 - SPACER (Inserts into the Handle Whole Eliminating the Slop from a Smaller Bolt Diameter Bolt that is Required for Screwing into the Transmission Assembly - Upper Bolt Whole Only) x2 Per Handle Assembly
3. 136-7198 - FLANGE SPACER BOLT (Retains the Bottom Handle Section to the Scraper Blade Using the Same Whole and Fastners in the Main Snowblower Auger Housing - Lower Whole Only) x2 Per Handle Assembly
4. 121-4600 - NYLON LOCK NUT (Retains the Bottom Handle Section to the Scraper Blade Using the Same Whole and Fastners in the Main Snowblower Auger Housing - Lower Whole Only) x2 Per Handle Assembly
5. 136-7135 - ROPE GUIDE (Fastened to the Lower Handle Section and Retains the Rope Handle within easy Access to the Operator) x1 Per Handle Assembly
6. 114-3778 - FLANGE NYLON LOCK NUT (Retains the Rope Handle Guide to the Lower Handle Section) x1 Per Handle Assembly
