Description

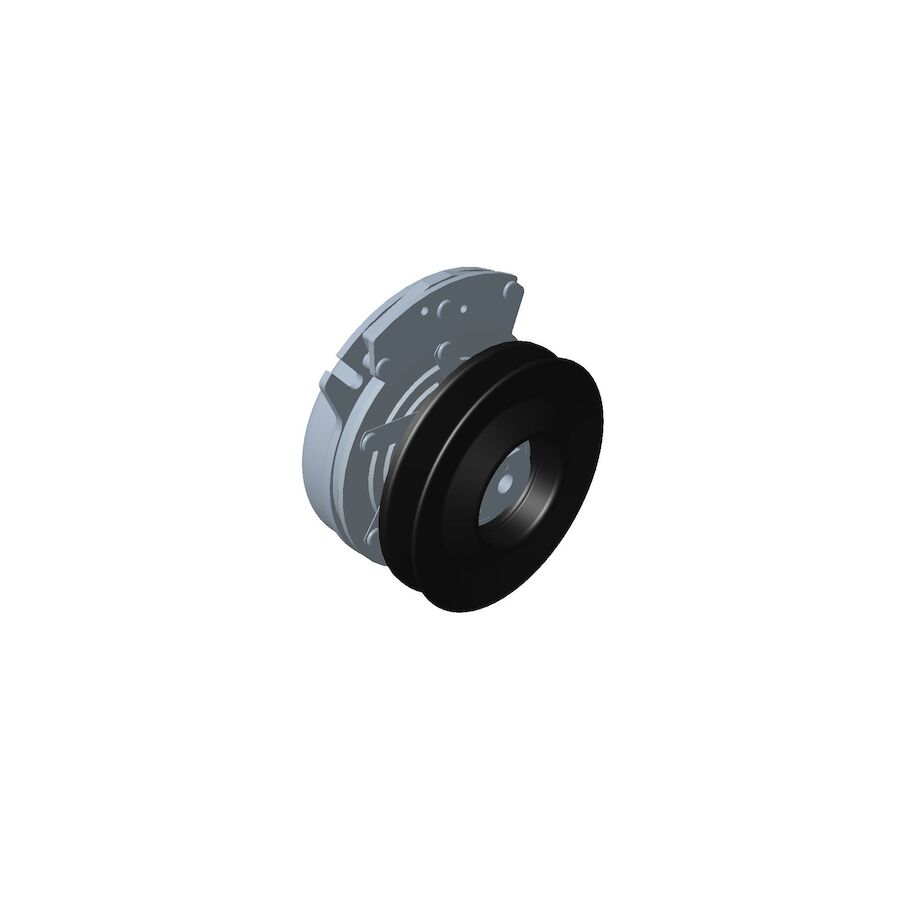

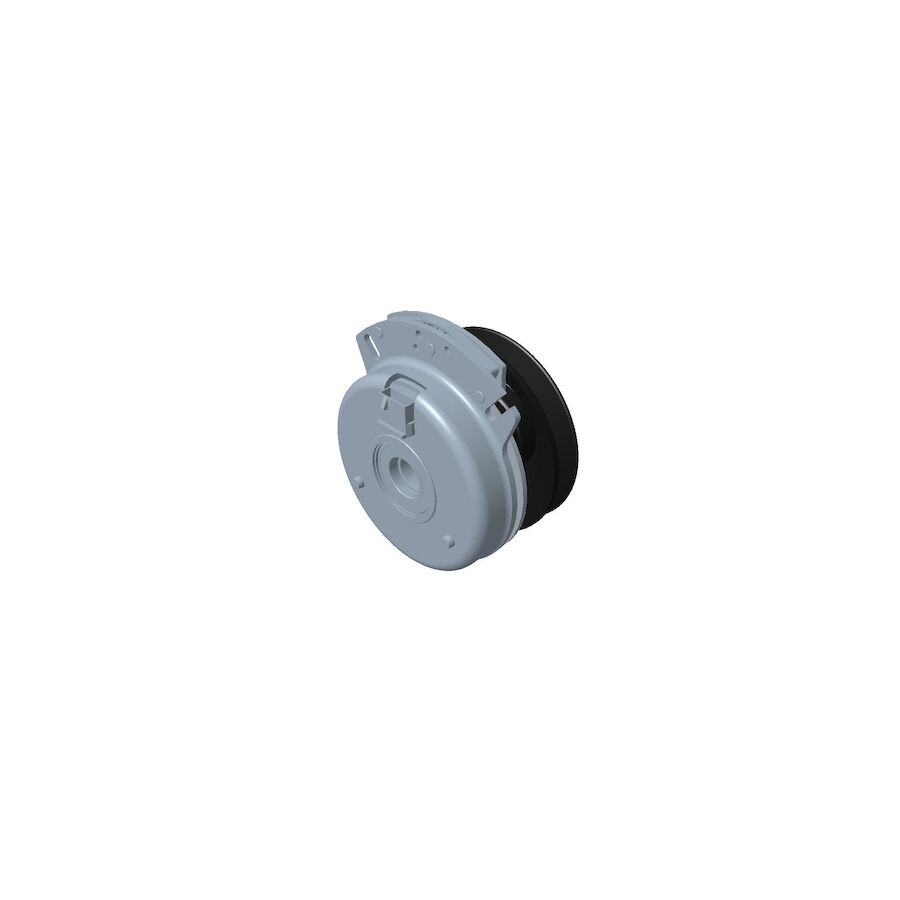

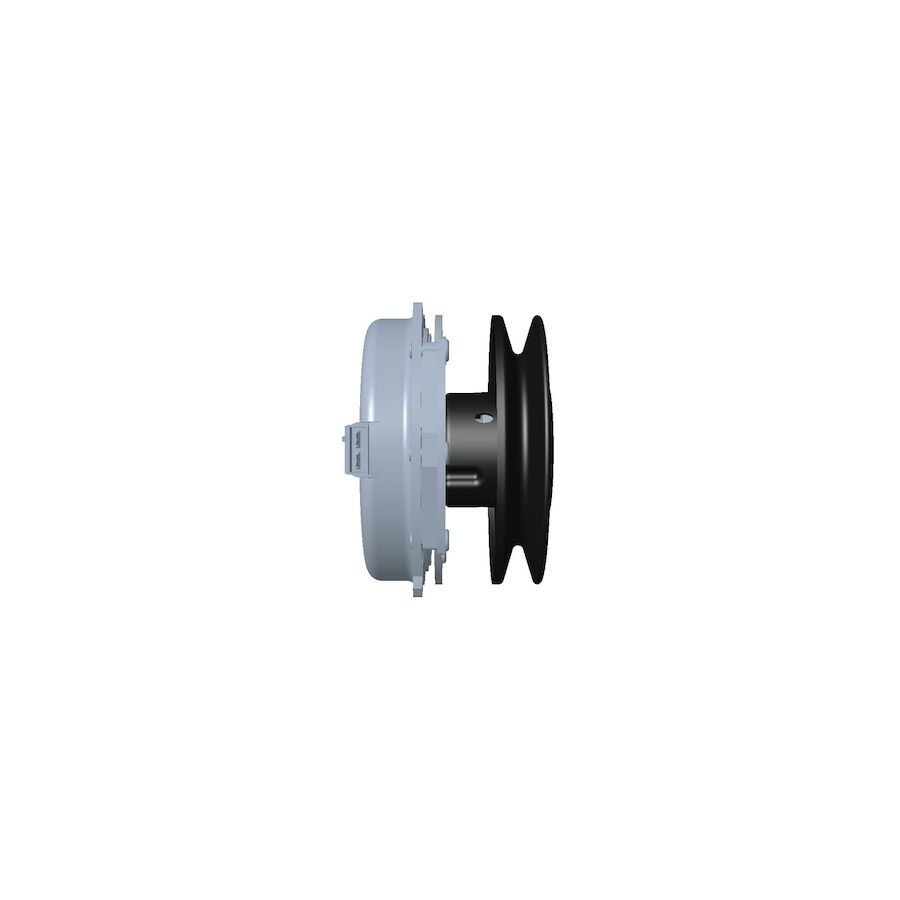

Toro OEM 127 3410 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 127 3410 PTO Clutch is Designed for Toro Current 50", 54", 60" Timecutter MAX Models (Standard and My-Ride) - Late 48" Timecutter HD - Late 50" Timecutter MX, SW, SWX, Models - Late 54" Timecutter SS, SW, HD, Standard, My-Ride - Late 60" Timecutter MX, HD, Standards and My-Ride Models - Current 48", 54", 60" Titan (Standard and My-Ride - I-Beam Framing) - Current 60" TITAN MAX (I-Beam Framing Models Only) - Late TITAN HD 1500 and 2000 Models - Early 48", 54", 60" TITAN MX, ZX, X, XS, 4800, 5400, 6000 Models - Late Z-Master 2000 Models (Tube Style Framing) - 48", 54", 60" Current/Late Proline Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. *Refer to the Engine Pulley and Associated Part Chart Below the Model Fit Chart for Reference for Appropriate PTO Clutch Fastner Parts and Pulleys Associated to Segregated Models/Series Associated to PTO Clutch 127-3410.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.
Specification
|
Product Number: |
1273410 |
|
Brand: |
Toro |
|
Length: |
10.000 IN (25.400 CM) |
|
Width: |
10.000 IN (25.400 CM) |
|
Height: |
6.000 IN (15.240 CM) |
|
Weight: |
10.340 LB (4.690 KG) |
Model Fit:
48”, 50”, 54”, 60” TIMECUTTER - 127-3410 MODEL/SERIES USAGE
48”
48” Timecutter HD – 48” Late Models Only - (* Model Numbers 74864, 74866, 74886, 75201, 75210, 75211)
50”
50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74643, 74770, 74771, 74776, 74778, 74727, 74768, 74774)
50” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74793)
50” TIMECUTTER SWX Series – Model Numbers – (* Model Numbers 74797, 74798)
50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)
50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)
54”
54” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74740, 74741)
54” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74793)
54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)
54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)
54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)
54” Timecutter HD Series – 54” Late Models Only - (* Model Numbers 74865, 74867, 75202, 75212, 74876, 74888)
60”
TIMECUTTER 60” MX Series – Model Numbers – (* Model Numbers 74777)
TIMECUTTER 60” (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)
TIMECUTTER 60” (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)
TIMECUTTER MAX 60” (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)
Timecutter HD My-Ride - 60" Late Models - (* Model Number 75213)
48”, 50”, 52”, 54”, 60” TITAN - 127-3410 MODEL/SERIES USAGE
48”
48” Titan ZX, X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74851, 74861, 74855, 74846, 74874, 74875, 74887, 74890, 74891)
48” TITAN 4800, TITAN MX4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers
75301, 75311, 75314, 75304)
48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)
48” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 48" Late Models / Tubed Framing - (* Model Numbers 78450, 74465, 74460, 74453, 74450)
52”
52” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 52" Late Models / Tubed Framing - (* Model Numbers 74451, 74454, 74461, 74466)
54”
54” Titan MX, ZX, X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74852, 74882, 74848, 74892, 74862, 74877, 74889 74898)
54” TITAN 5400, TITAN MX5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)
54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers – 76501, 76511, 76530, 76554)
60”
60” TITAN MX, ZX (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74853, 74863, 74883, 74893)
60” TITAN 6000, TITAN MX6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)
60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)
60” TITAN MAX (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 76601, 76602)
60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
60” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74452, 74462, 74467)
48”, 52”, 60” ZMASTER 2000 - 127-3410 MODEL/SERIES USAGE
48”
48” Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 48" Late Models / Tubed Framing - (* Model Numbers 74490, 77280)
52”
52” Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 52" Late Models / Tubed Framing - (* Model Numbers 74491, 74493, 77282)
60”
60” Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60" Late Models / Tubed Framing - (* Model Numbers 74492, 74494, 77284)
48”, 54”, 60” PROLINE - 127-3410 MODEL/SERIES USAGE
48”
48” Proline Series – 48” Current Models Only - (* Model Numbers 44423, 44424)
54”
54” Proline Series – 54” Current Models Only - (* Model Numbers 44427)
60”
60” Proline Series – 60” Current Models Only - (* Model Numbers 44430)

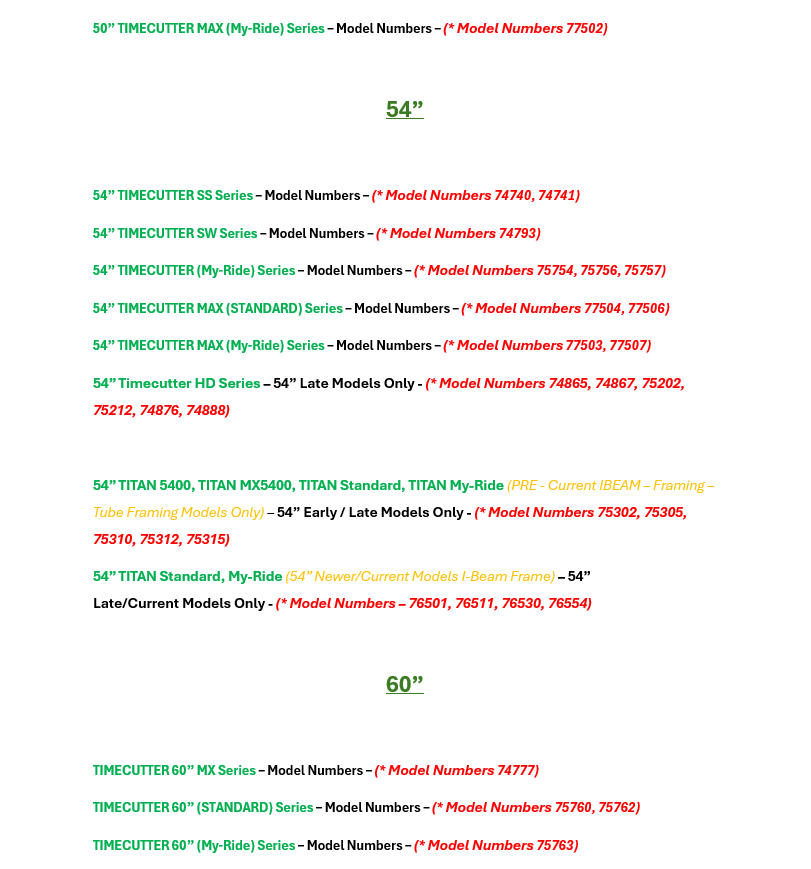

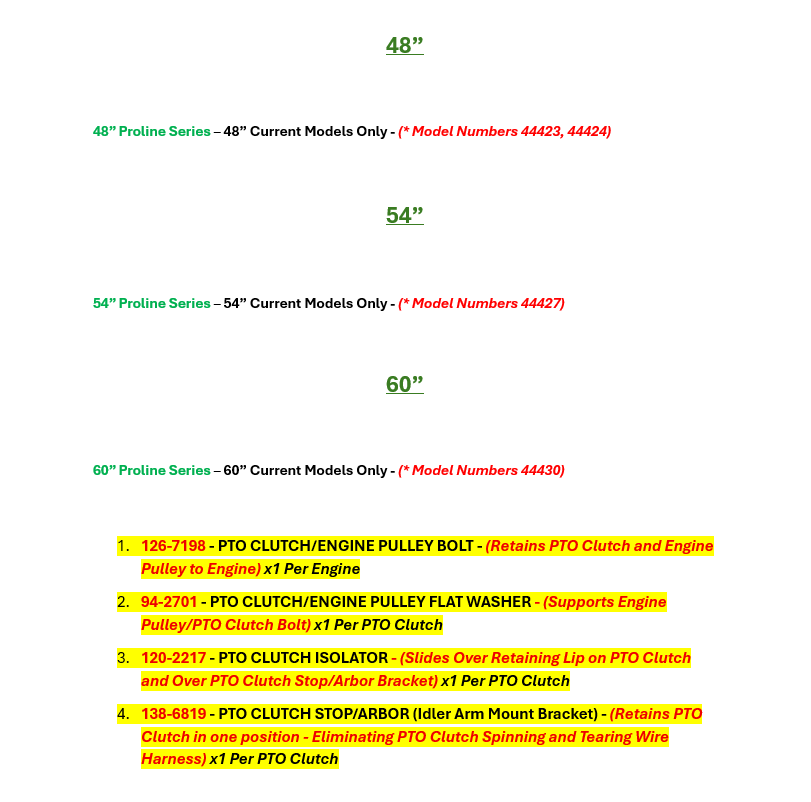

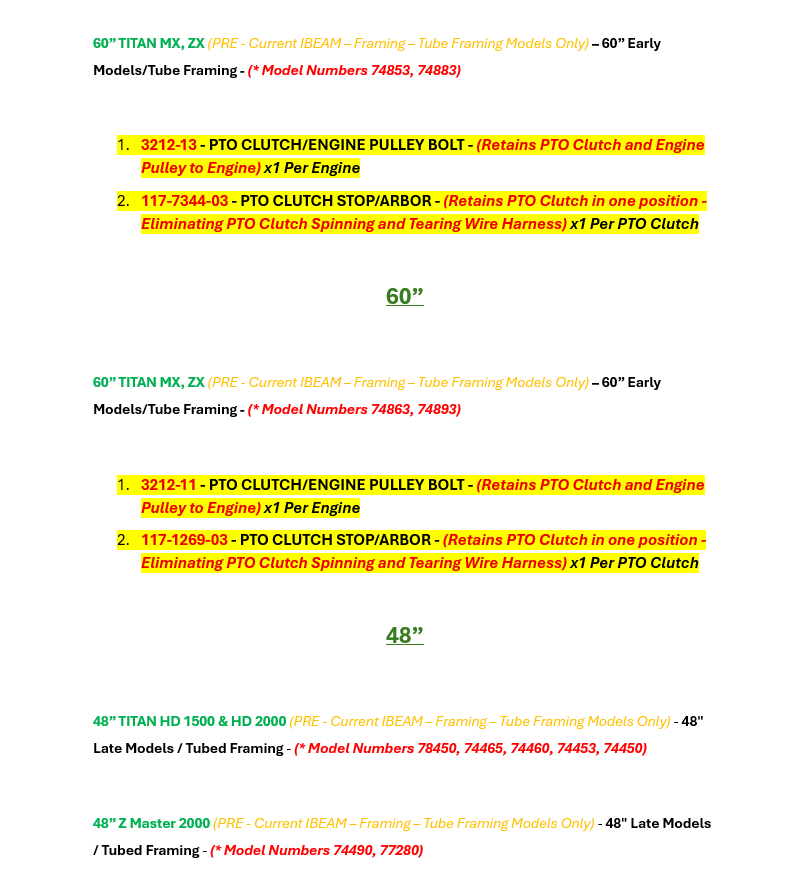

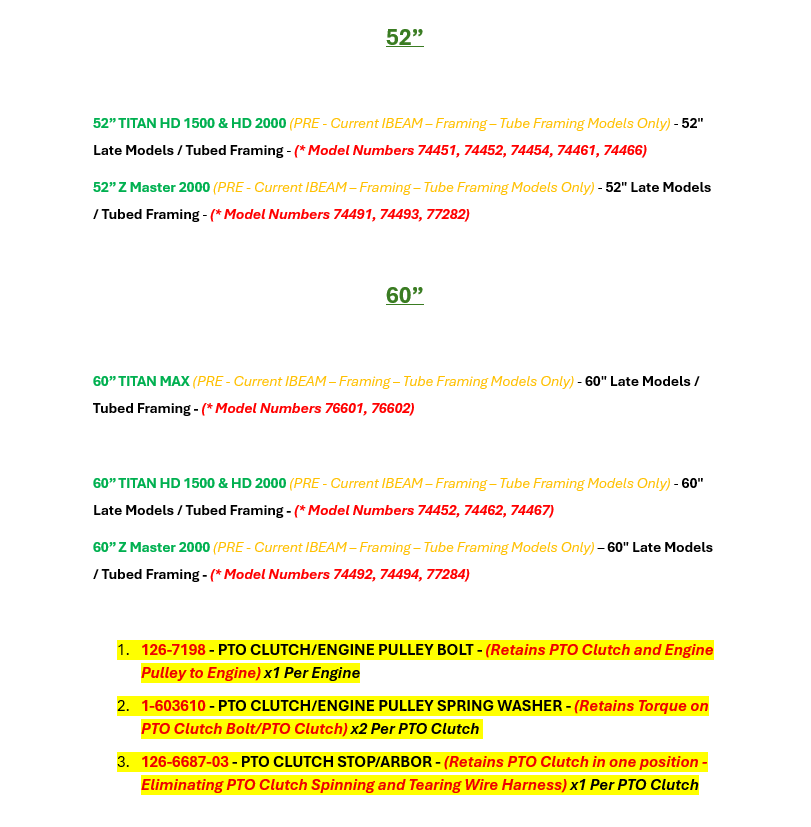

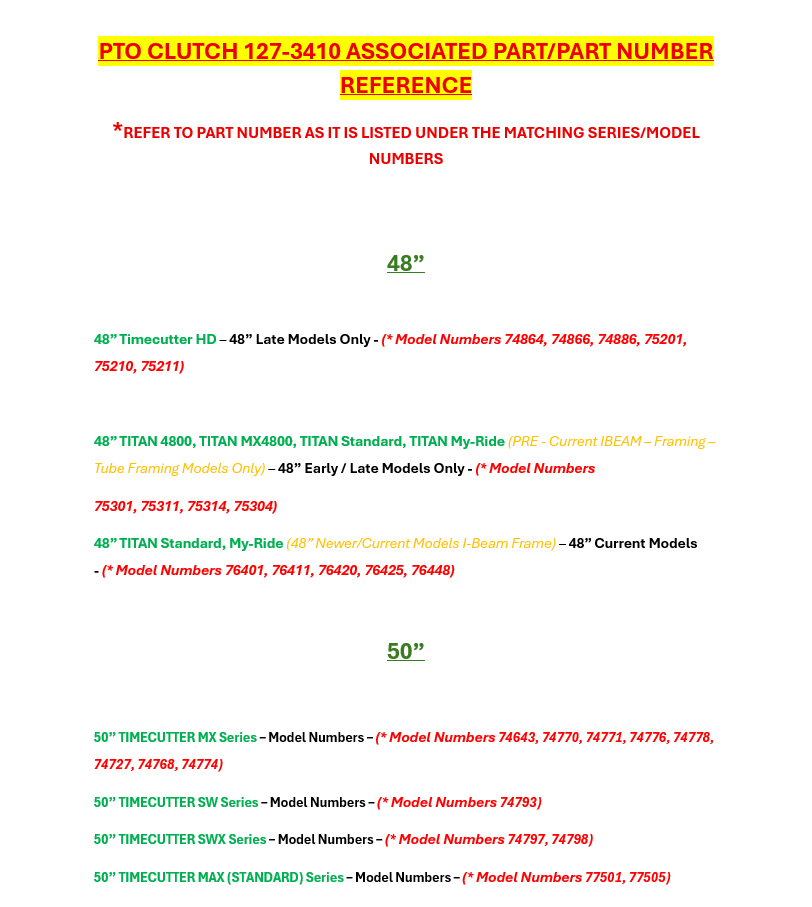

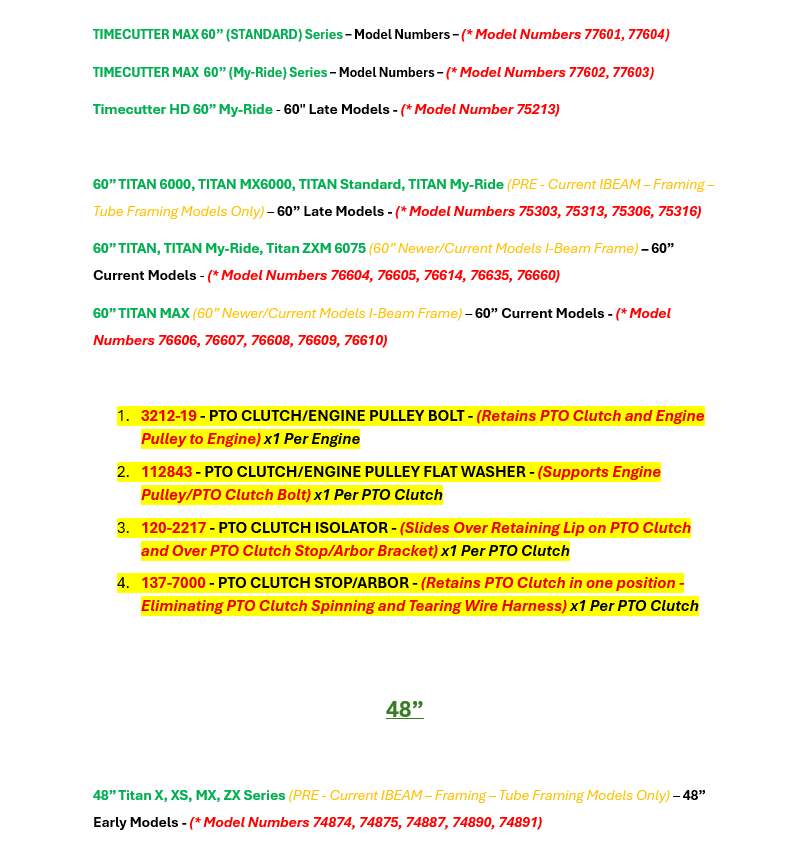

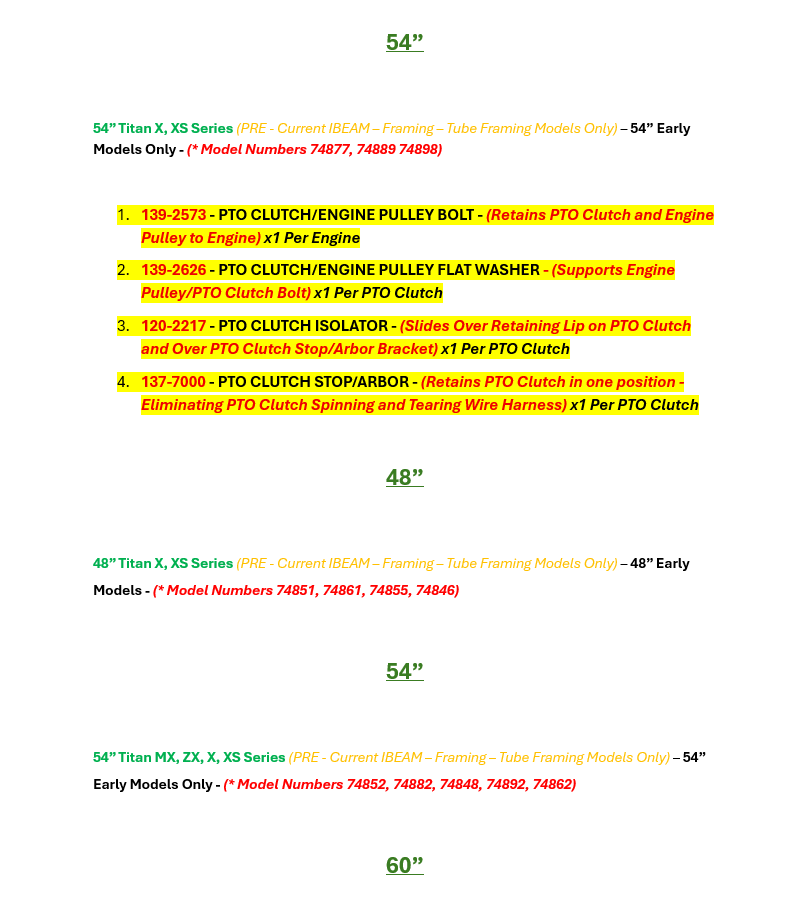

ASSOCIATED PARTS REFERENCE CHART FOR PART NUMBER 127-3410 ONLY
*DUE TO THE AMOUNT OF CONTENT PART REFERENCE IS IN CHART FORM ONLY

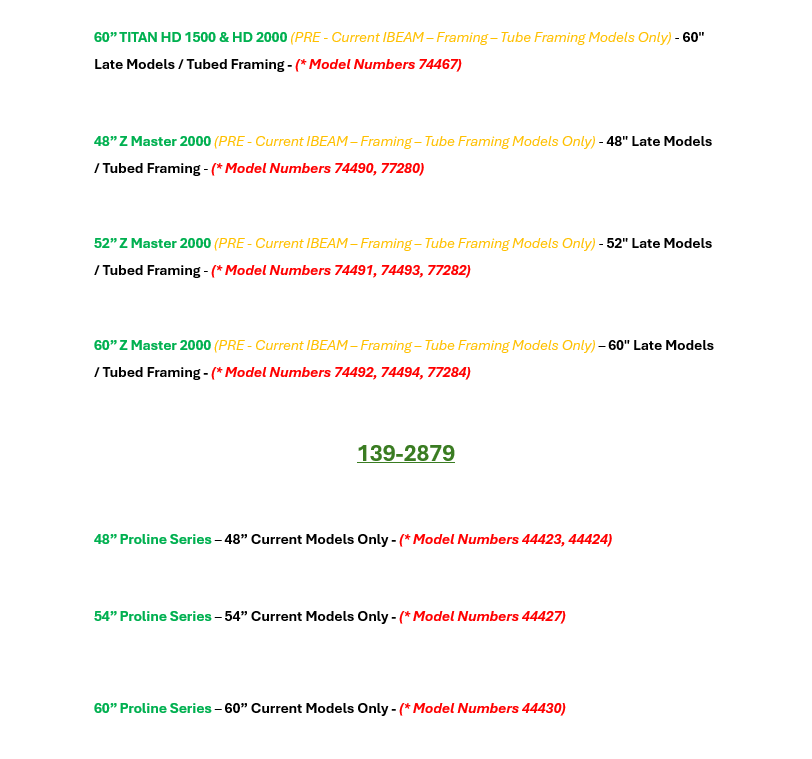

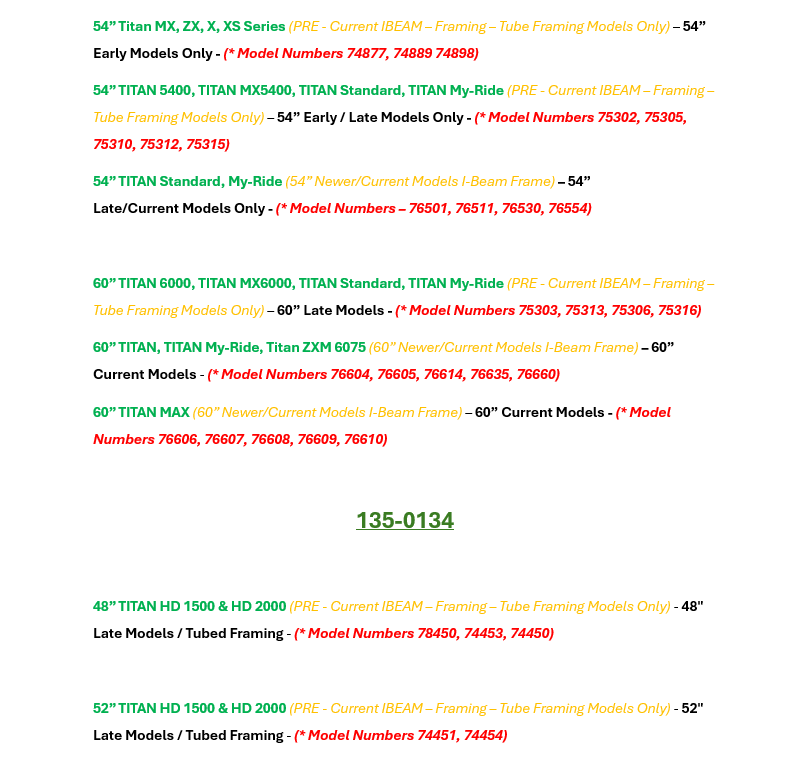

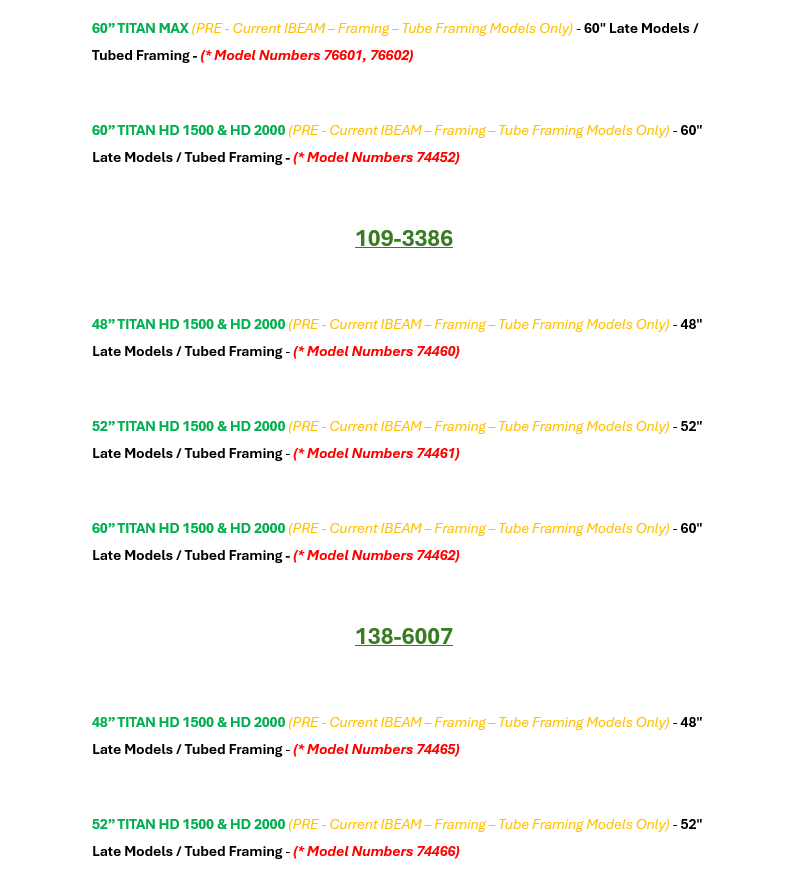

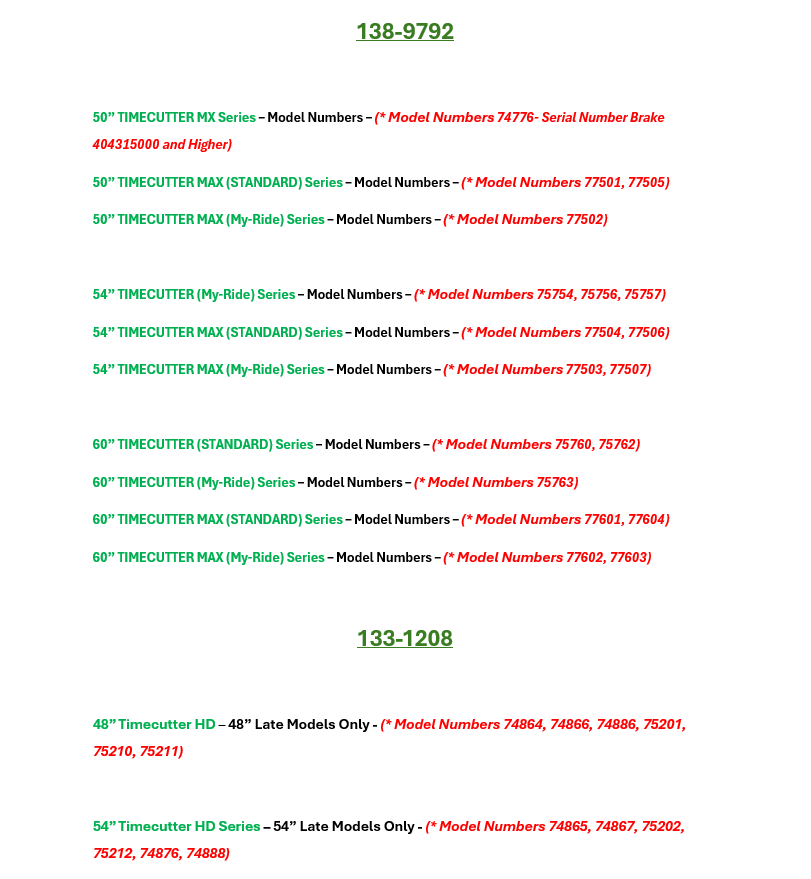

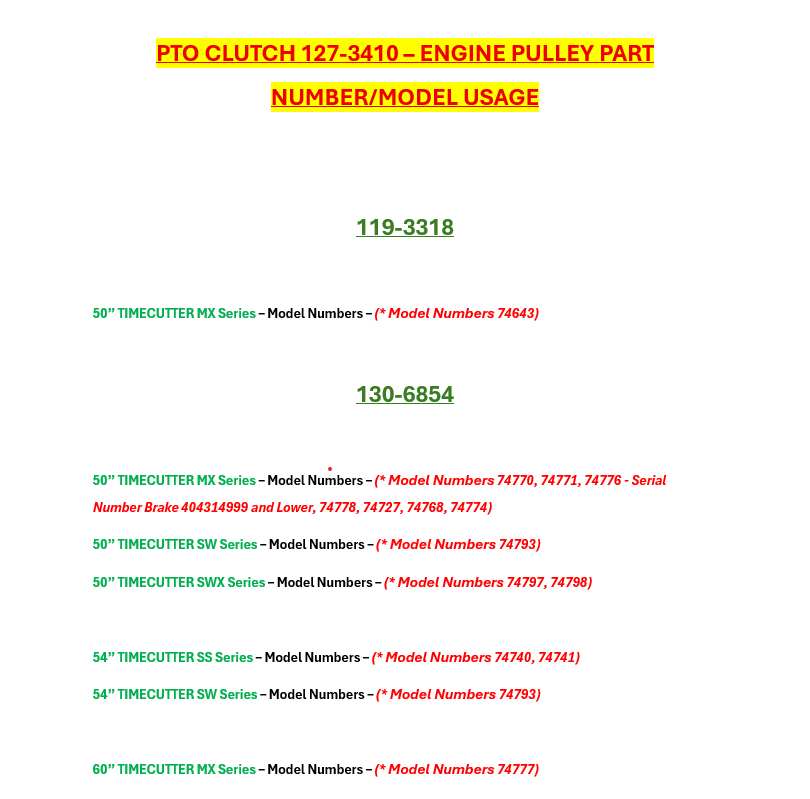

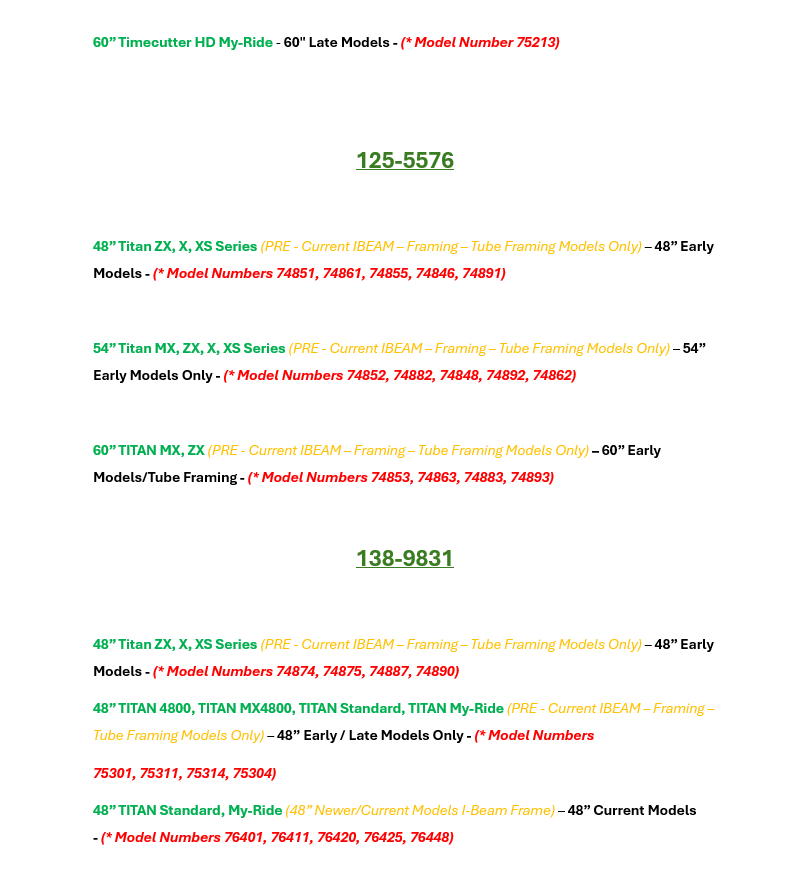

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES
