Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Roll over image to zoom in Click on image to zoom
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.
Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.

Toro OEM 127-3408 PTO Clutch Fits Late Toro 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride - Current/Late 36" PROLINE Models.

Toro
Price:
$322.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

Toro OEM 127 3408 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 127 3408 PTO Clutch is Designed for Toro Late 50" Timecutter MX, SS, SW, SWX, 5000, ZS, Standard, My-Ride Models - Late/Current 36" Proline Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.





NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-3408 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

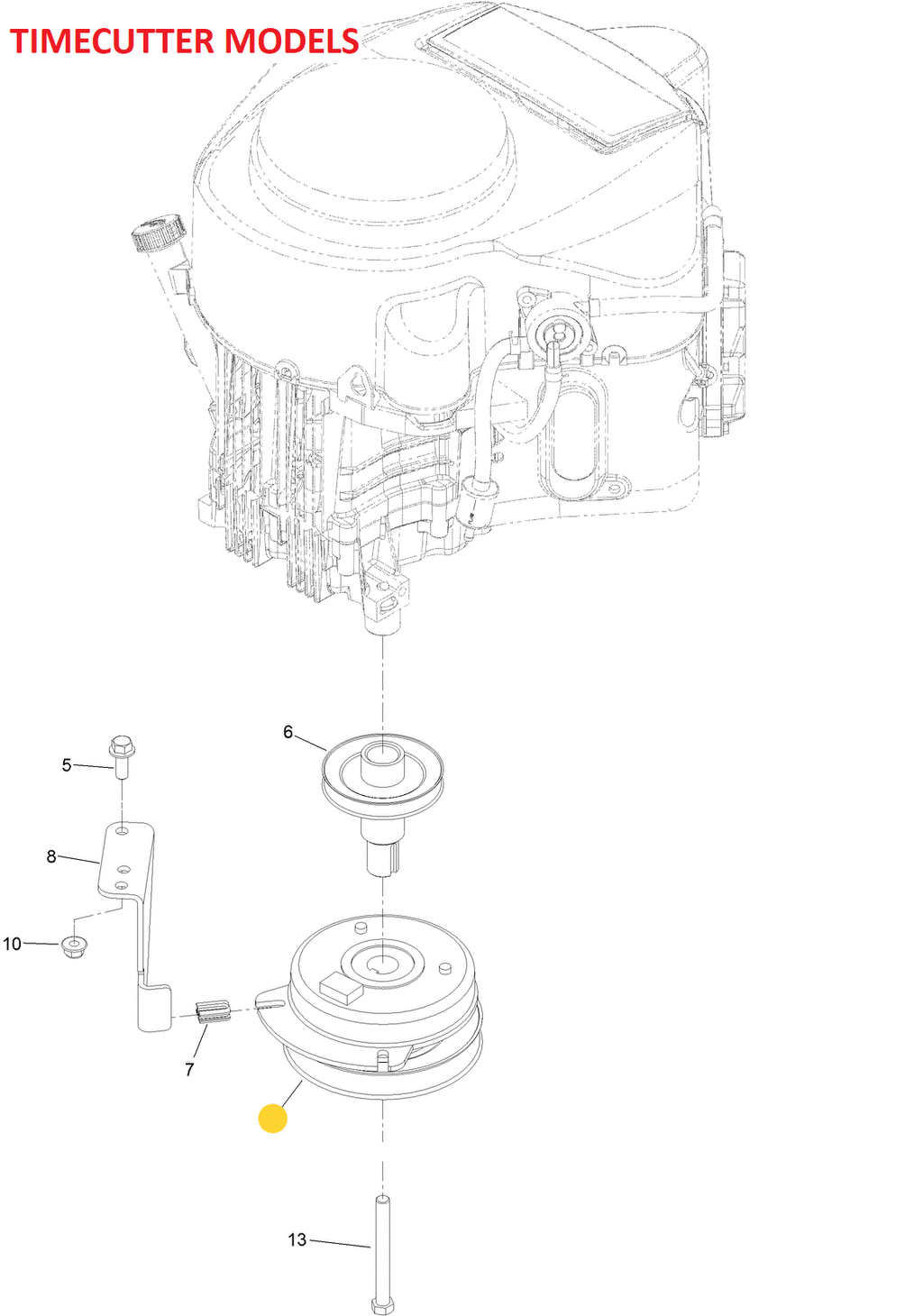

TIMECUTTER MODELS ONLY





  1. 3212-17 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
  2. 120-2217 - PTO CLUTCH ISOLATOR - (Slides Over Retaining Lip on PTO Clutch and Over PTO Clutch Stop/Arbor Bracket) x1 Per PTO Clutch
  3. 137-7000 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch

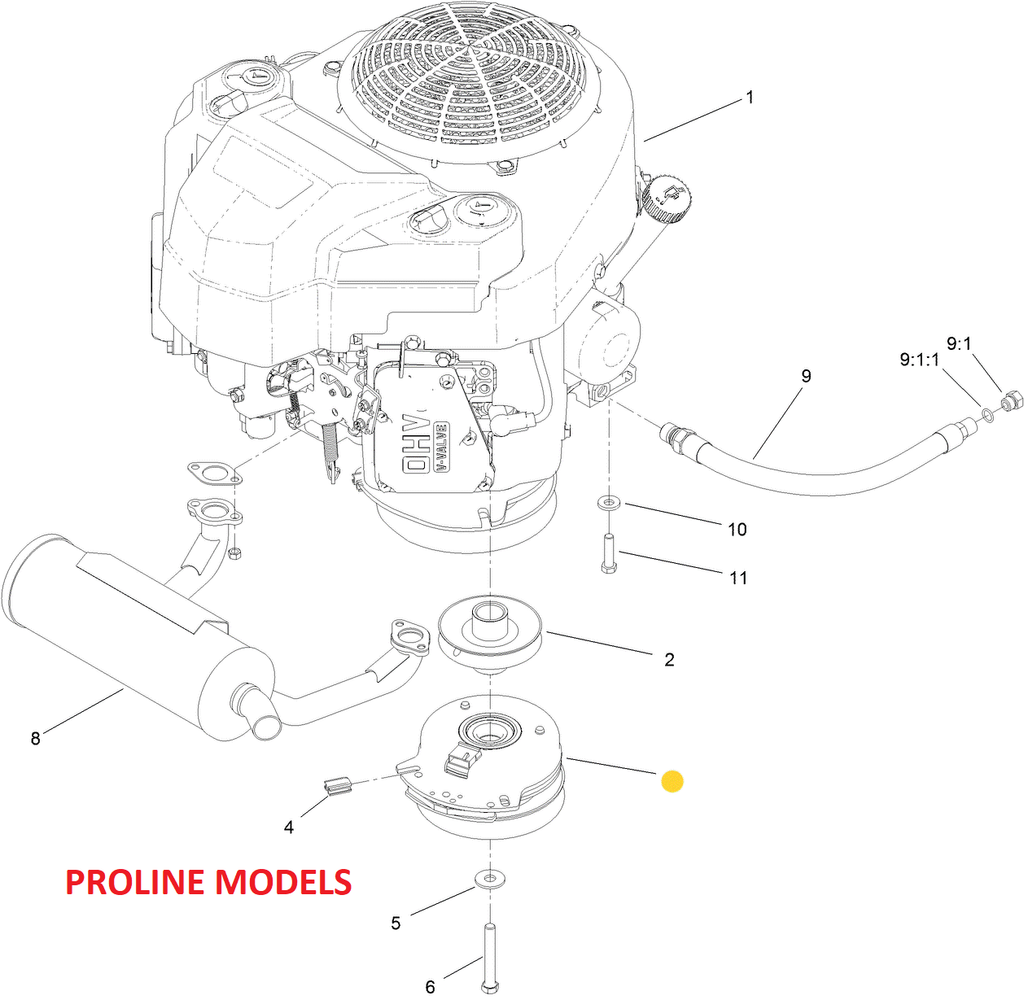

PROLINE MODELS ONLY





  1. 126-7198 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
  2. 94-2701 - PTO CLUTCH/ENGINE PULLEY FLAT WASHER - (Supports Engine Pulley/PTO Clutch Bolt) x1 Per PTO Clutch
  3. 120-2217 - PTO CLUTCH ISOLATOR - (Slides Over Retaining Lip on PTO Clutch and Over PTO Clutch Stop/Arbor Bracket) x1 Per PTO Clutch
  4. 138-6819 - PTO CLUTCH STOP/ARBOR (Idler Arm Mount Bracket) - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch

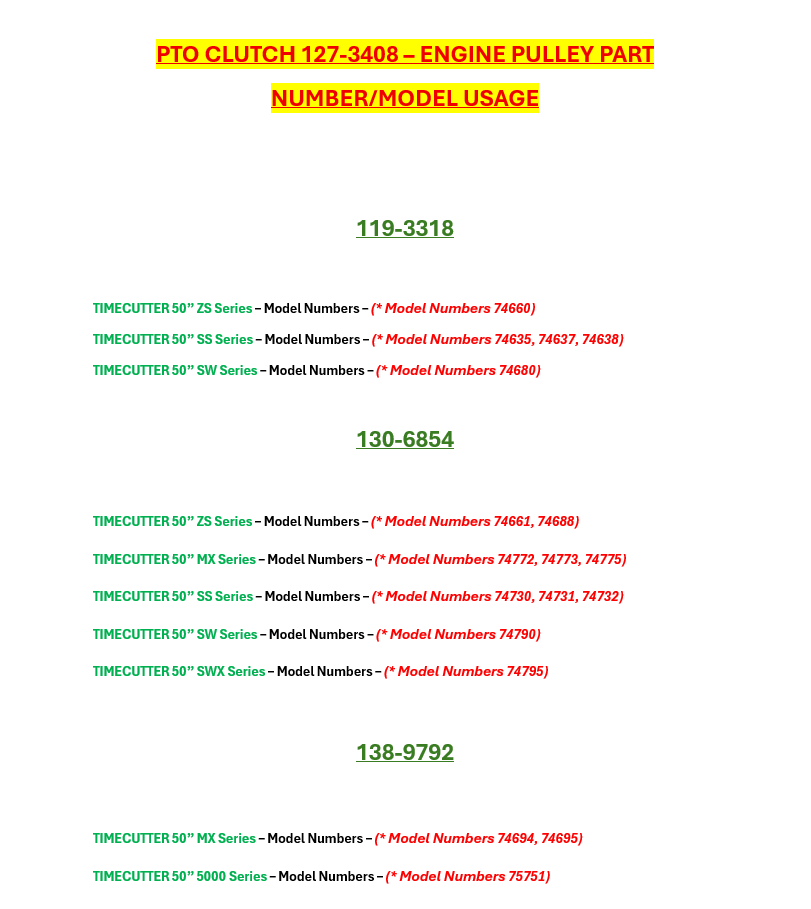

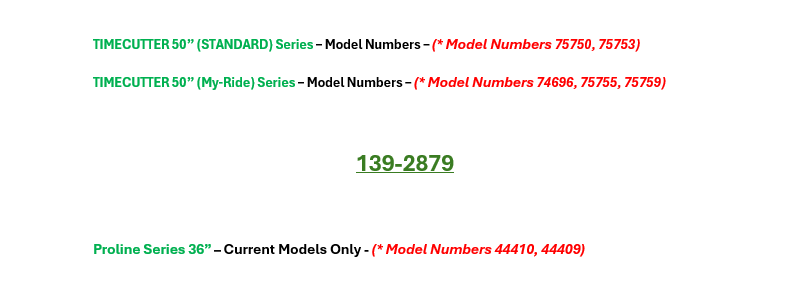

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES













Specification

Product Number:

1273408

Brand:

Toro

Length:

10.500 IN (26.670 CM)

Width:

10.500 IN (26.670 CM)

Height:

6.500 IN (16.510 CM)

Weight:

10.060 LB (4.563 KG)





Model Fit:



50” TIMECUTTER - 127-3408 MODEL/SERIES USAGE



TIMECUTTER 50” ZS Series – Model Numbers – (* Model Numbers 74660, 74661, 74688)



TIMECUTTER 50” MX Series – Model Numbers – (* Model Numbers 74694, 74695, 74772, 74773, 74775)



TIMECUTTER 50” SS Series – Model Numbers – (* Model Numbers 74635, 74637, 74638, 74730, 74731, 74732)



TIMECUTTER 50” SW Series – Model Numbers – (* Model Numbers 74680, 74790)



TIMECUTTER 50” SWX Series – Model Numbers – (* Model Numbers 74795)



TIMECUTTER 50” 5000 Series – Model Numbers – (* Model Numbers 75751)



TIMECUTTER 50” (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)



TIMECUTTER 50” (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



36” PROLINE - 127-3408 MODEL/SERIES USAGE



Proline Series 36” – Current Models Only - (* Model Numbers 44410, 44409)
