Toro OEM 127-3399 Mower Deck Pivot Pan Rod Fits Toro Late Titan MX, ZX Models (Tube Framing).

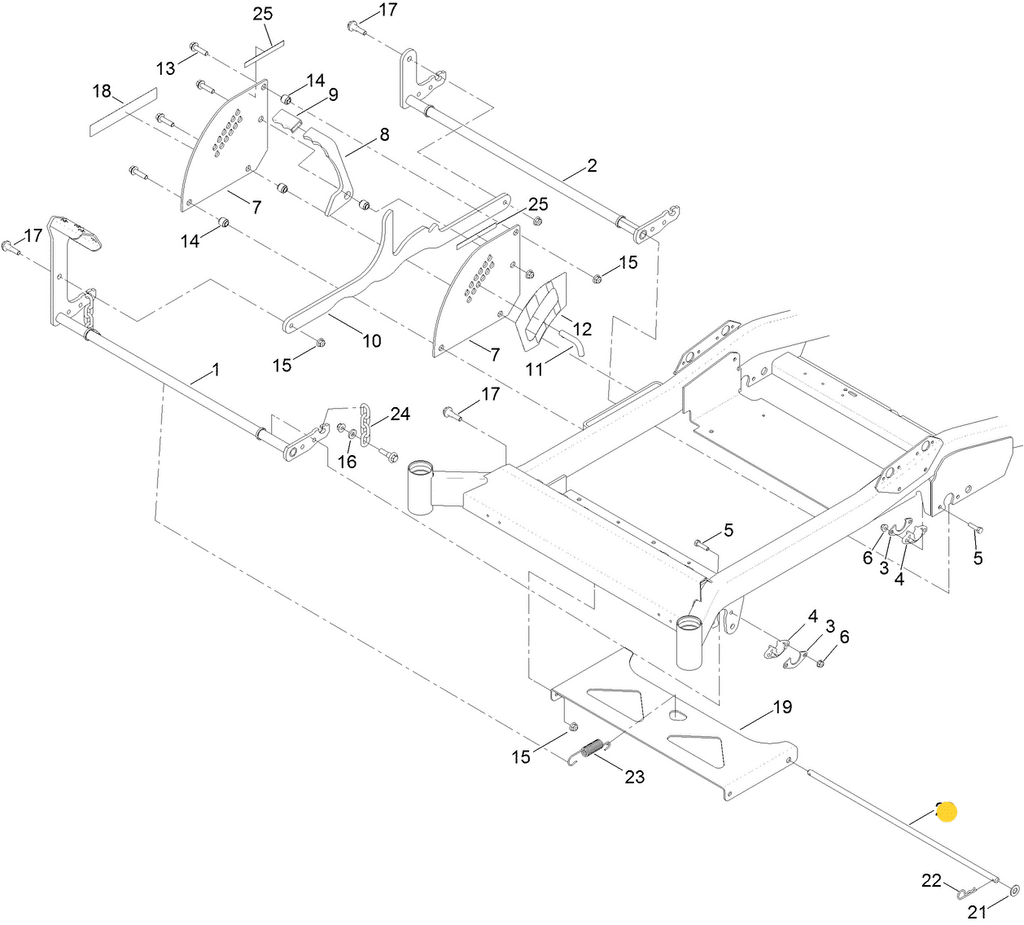

Toro OEM 127 3399 Mower Deck Pivot Pan Rod Retains the Mower Deck Pivot Pan to the Mower Deck Pivot Pan's Weldment Brackets on the Mower Deck. Toro OEM 127-3399 Pivot Pan Rod Enables the Mower Deck to be Effortlessly Disconnected without the Need of Any Tools. Toro 127 3399 Fits Toro Select Late TITAN ZX & MX Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-3399 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 127-3329-01 - PIVOT PAN - (Enables the Front of the Mower Deck to stay Fixed while permitting smooth, consistent horizontal movement as the operator raises and lowers the Mower Deck) x1 Per Mower Deck Pivot Pan
2. 1-806005 - CLIP or COTTER PIN - (Retains the Mower Deck Pivot Pan by Retaining the Mower Deck Pivot Pan Rod in the Mower Deck Pivot Pan Weldment Brackets Holes and Mower Deck Pivot Pan Holes) x2Per Mower Deck Pivot Pan
3. 3256-26 - FLAT WASHER - (Support the Clip/Cotter Pin Against the Mower Deck Pivot Pan or Mower Deck Pivot Pan Weldment Bracket Holes) x2 Per Mower Deck Pivot Pan
4. 130-0742 - FLANGE SHOULDER BOLT - (Retains the Mower Deck Pivot Pan to the Mower Deck Pivot Pan's Weldment Brackets on the Mower Frame) x2 Per Mower Deck Pivot Pan
5. 104-8301 - FLANGE NUT - (Retains the Mower Deck Pivot Pan to the Mower Deck and the Mower Deck Pivot Pan's Weldment Brackets on the Mower Frame) x2 Per Mower Deck Pivot Pan







Specification

Product Number:	1273399
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	1.328 LB (0.602 KG)





Model Fit:



TITAN



48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74846, 74851, 74855, 74861, 74891)



54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74848, 74852, 74862, 74882, 74892)



60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74853, 74863, 74883, 74893)
