ToroSKU: 1273391
Price:
$31.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

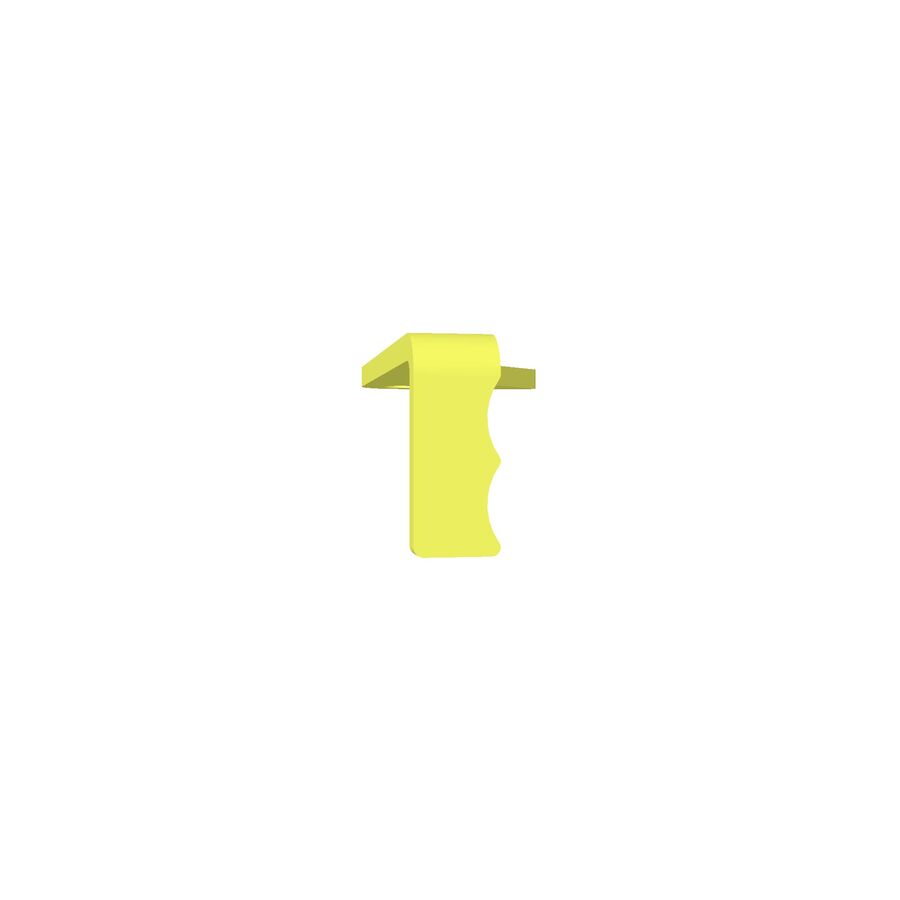

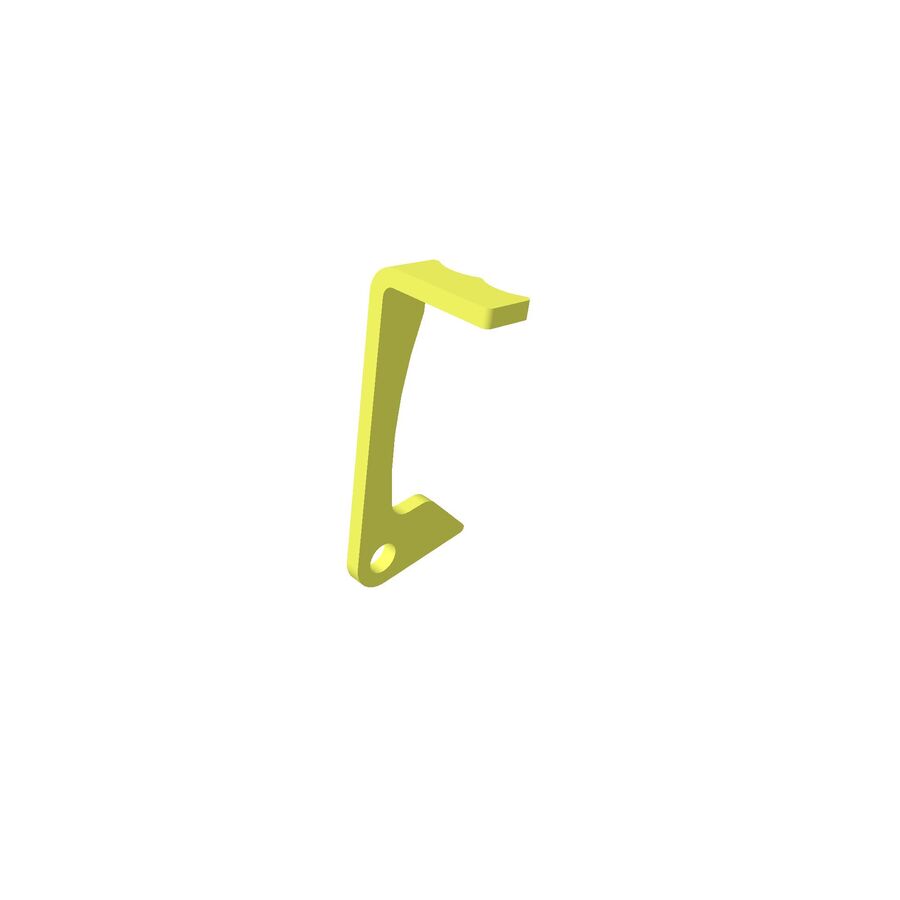

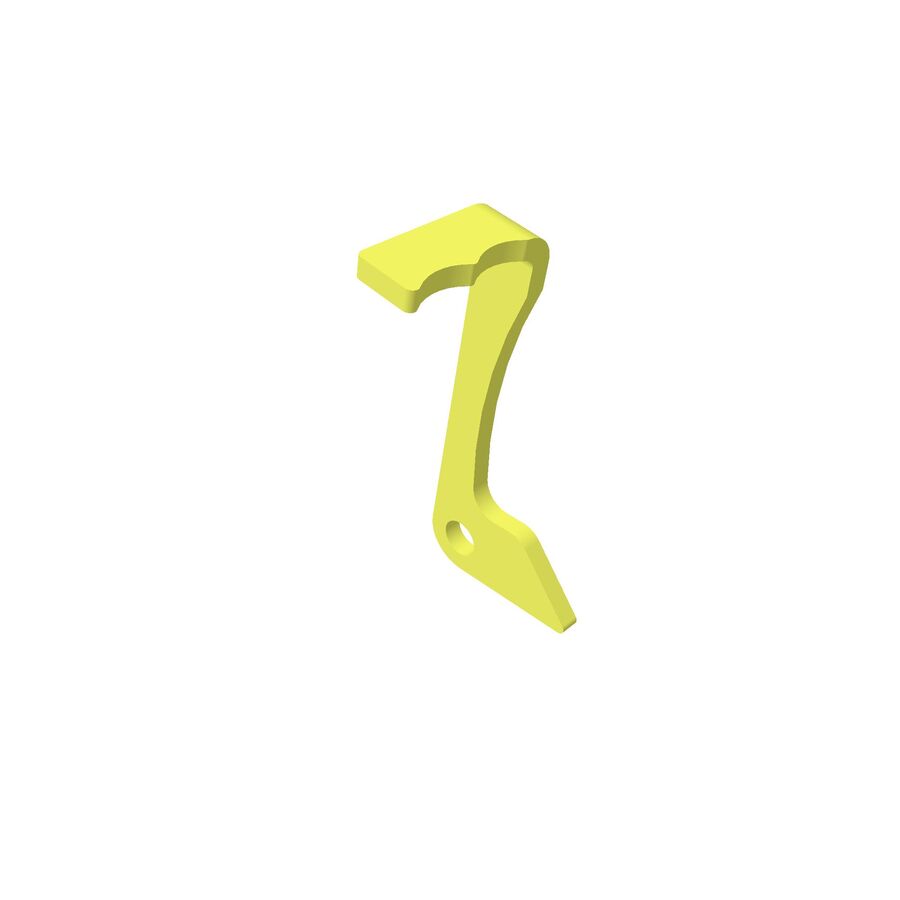

Toro OEM 127 3391 Height of Cut (HOC) Transport Latch/Lock Handle is Installed Between the Two (HOC) Selection Plate and Installed with a 116-4313 Spacer and 114-4681 Flange Bolt Running through the Installation Whole as well as 130-0734 on Each Side of the Transport Latch Handle. The Main Purpose of 127 3391 is to Latch the Mower Deck into the Transport Position While Operating the Mower Without Mowing. This is Fulfilled by Lifting the Mower High Enough that the Latch Falls into the Cut-Out Slots in the Mower Deck (HOC) Link. Toro OEM (HOC) Transport Latch/Handle Fits Toro Select Late Timecutter HD Models - Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (With Tube Style Framing).







 Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-3391 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

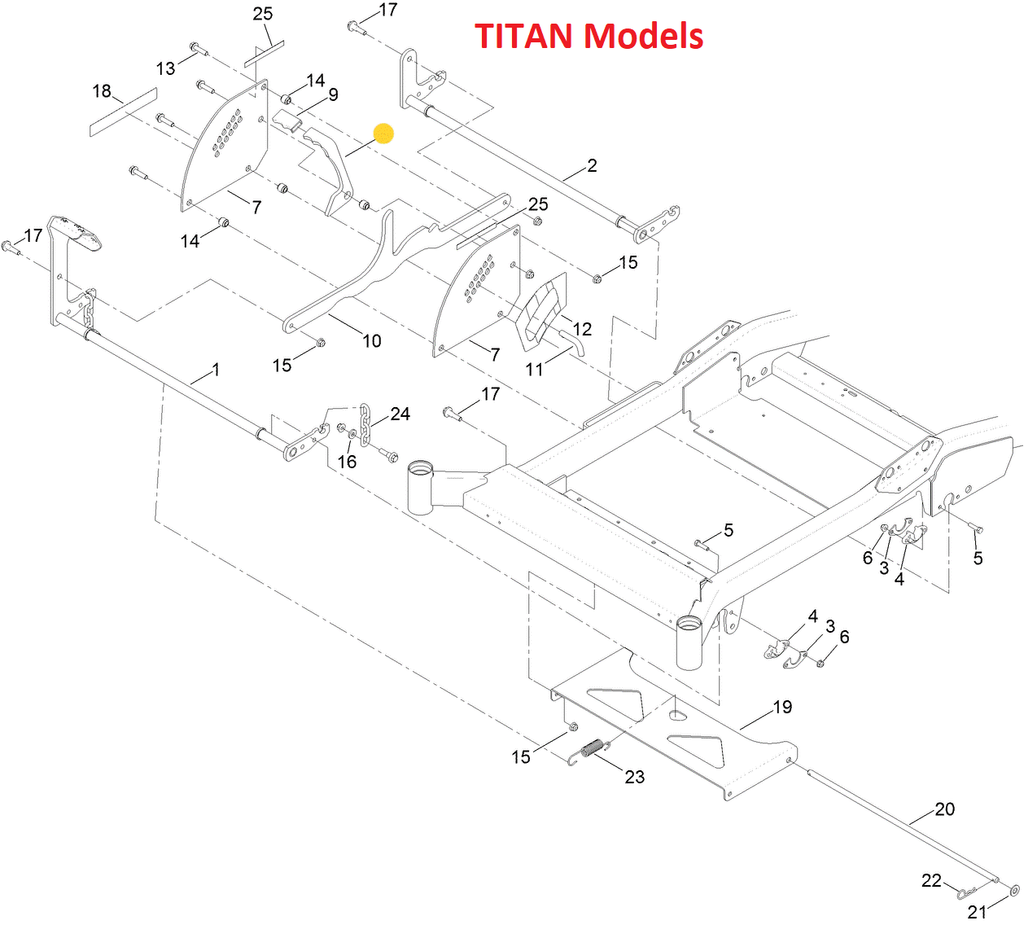

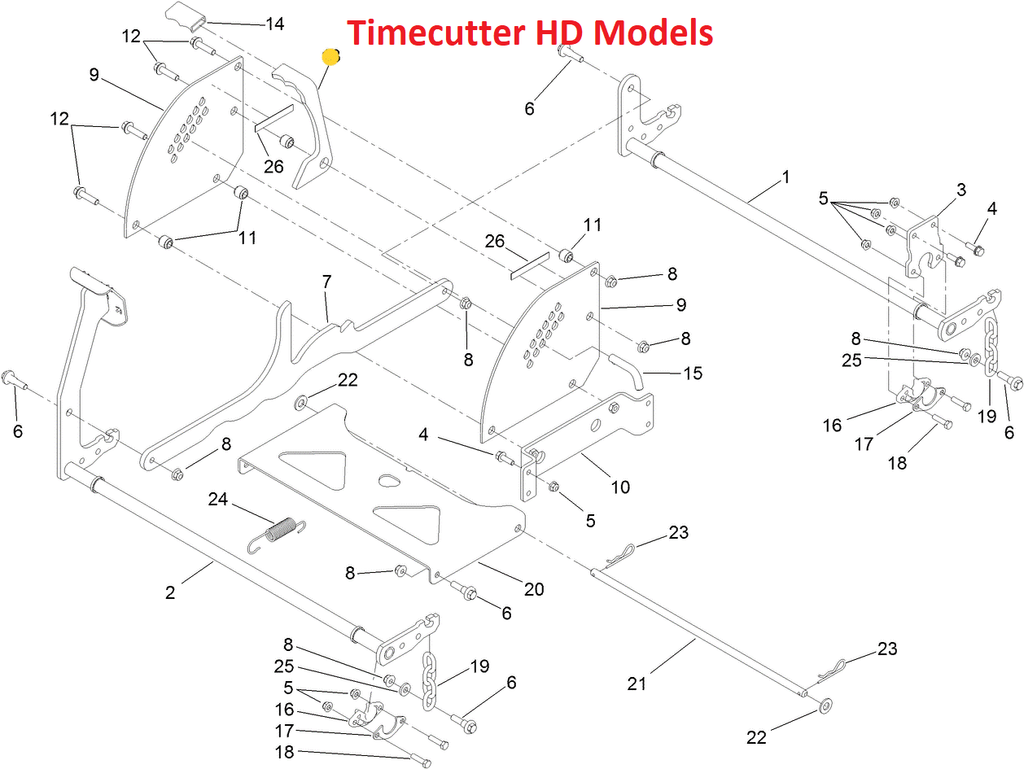

TIMECUTTER HD & TITAN MODELS





  1. 127-3389-03 - LIFT PLATE or HEIGHT OF CUT (HOC) SELECTION PLATE - (ONE OF TWO IDENTICAL PLATES that Bolt together using Spacers In-Between Both (HOC) Plates or Lift Plates and Allows the Height of Cut (HOC) Link to Travel Between Both Lift Plate or (HOC) Plates this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing Height Ect.) x2 Per Unit
  2. 130-0654 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Operator-Side Surface of the (HOC) Selection Plate) x1 Per (HOC) Selection Plate
  3. 114-4681 - FLANGE BOLTS - (Enables the Lift Plates or (HOC) Selection Plate to be Fastened together - Requires Spacer for every Bolt in order to Space the (HOC) Selection Plates Apart) x4 Per (HOC) Selection Plate or Lift Plate *Titan Models will use these bolts to fasten (HOC) Selection Plate directly to a weldment on the frame Whereas Timecutter HD Models will use the bolts fasten to a Spacing Bracket *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
  4. 116-4313 - DOUBLE STEP SPACERS - (Spacers are stepped to Fit into the Lift Plate or (HOC) Selection Plate at the same time Allowing Correct spacing for (HOC) Link - One of the Spacers is Required to Insert Through and Retain the Transport Latch Handle) x4 Per (HOC) Selection Plate or Lift Plate *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
  5. 130-0734 - RUBBER PAD - (Travels the Length of the Travel of the Transport Latch Handle - Spaces the Transport Latch Handle Away from the (HOC) Selection Plate and  Eliminates the Wear of Metal Against Metal as well as Reducing Slop from Excess Spacing) x2 Per Latch Handle and (HOC) Selection Plate * One Required to Be Installed on Both (HOC) Selection Plate - One on Each Side of the Transport Latch Handle
  6. 127-3391 - (HOC) TRANSPORT LATCH/LOCK HANDLE - (Installed Between the Two (HOC) Selection Plate and Installed with a 116-4313 Spacer and 114-4681 Flange Bolt Running through the Installation Whole as well as 130-0734 on Each Side of the Transport Latch Handle) x1 Per Unit *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
  7. 116-4312 - (HOC) TRANSPORT LATCH/LOCK HANDLE GRIP - (Slides Over the Operational Section of the (HOC) Transport Latch Handle and Eliminates the sharp Metal Edges) x1 Per (HOC) Transport Latch Handle
  8. 116-5584 - (HOC) Pin - (Fits into the (HOC) Selection Plate, providing a stable resting point for the Height Adjustment Link Notch to Rest Against at the operator’s chosen setting) x1 Per Transport Latch Handle *EXCLUDES TIMECUTTER HD MODELS 75210, 74888, 74886, 74876.
  9. 104-8301 - FLANGE NUT - (Enables the Lift Plates or (HOC) Selection Plates to be Fastened together - Requires Spacer for every Bolt & Nut in order to Space the (HOC) Selection Plates Apart) x4 Per (HOC) Selection Plate or Lift Plate
  10. 133-7049 - (HOC) SELECTION PLATE OR LIFT PLATE SPACING BRACKET - (Installed to the Frame of the Mower and Enables the (HOC) Selection Plate to be Fastened to it with Correct Spacing that Makes it Convenient for Operational Usage) x1 Per Unit *ONLY USED ON TIMECUTTER HD MODELS
  11. 3234-29 - FLANGE BOLTS - (Enables the (HOC) Selection Plate Spacing Bracket to Fastened to the Frame) x4 Per (HOC) Selection Plate Spacing Bracket *TIMECUTTER HD MODELS ONLY
  12. 104-8300 - FLANGE NUT - (Enables the (HOC) Selection Plate Spacing Bracket to Fastened to the Frame) x4 Per (HOC) Selection Plate Spacing Bracket *TIMECUTTER HD MODELS ONLY
  13. 127-3390-03 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut Assembly and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit *DOES NOT FASTENS DIRECTLY TO ANY ONE OF THE COMPONENTS BUT IS ESSENTIAL WITH AND COMES IN CONTACT WITH THE TRANSPORT LATCH.







Specification

Product Number:

1273391

Brand:

Toro

Length:

NA

Width:

NA

Height:

NA

Weight:

1.284 LB (0.582 KG)





Model Fit:



TIMECUTTER



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 75201, 75210, 75211)



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 75202, 75212)



60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)



TITAN



48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74851, 74855, 74846, 74891, 74861)



54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74852, 74882, 74848, 74892, 74862)



60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74853, 74863, 74883, 74893)

You may also like

Recently viewed
