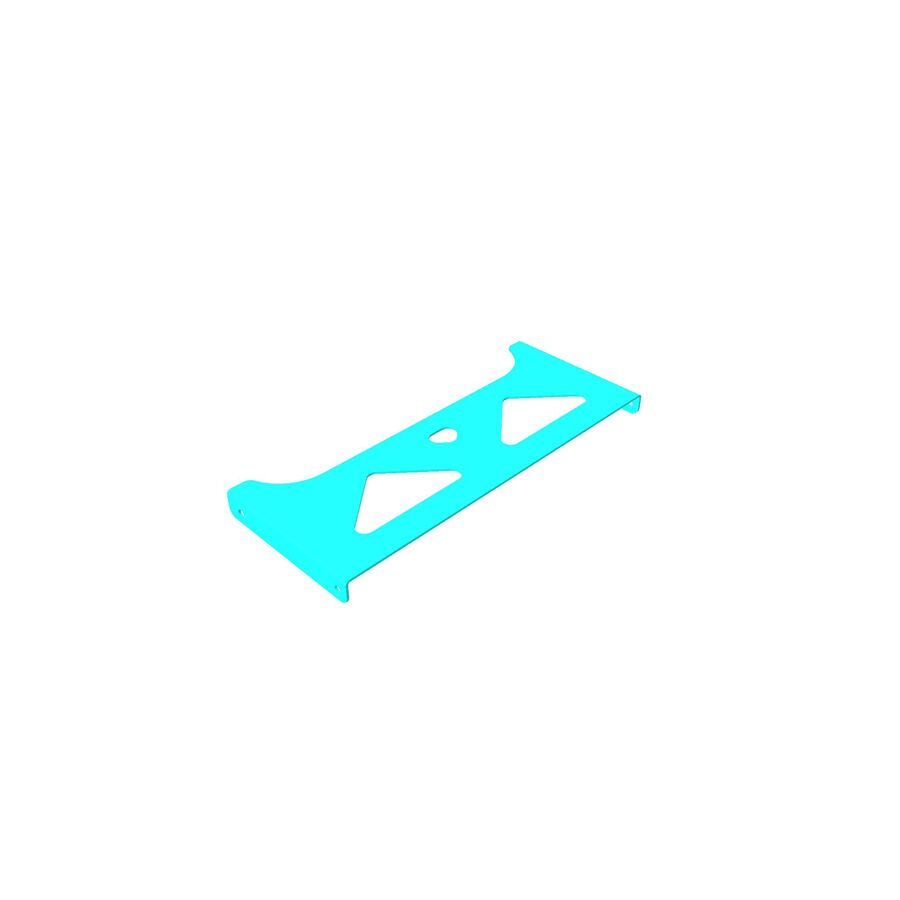

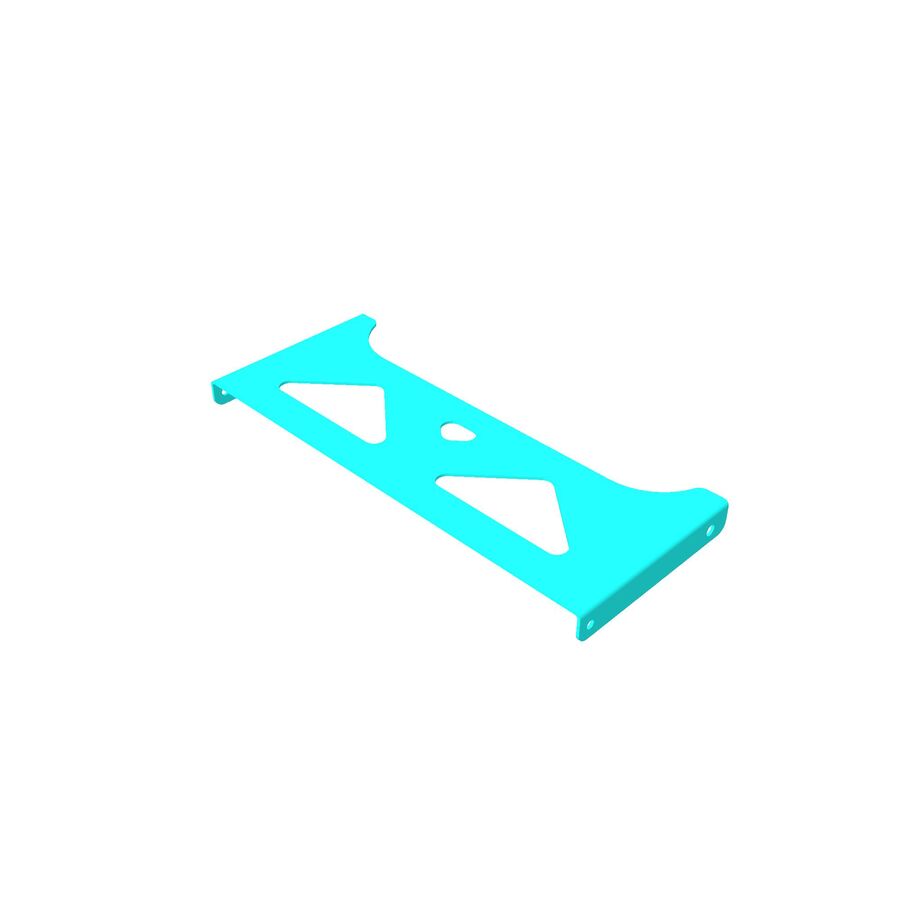

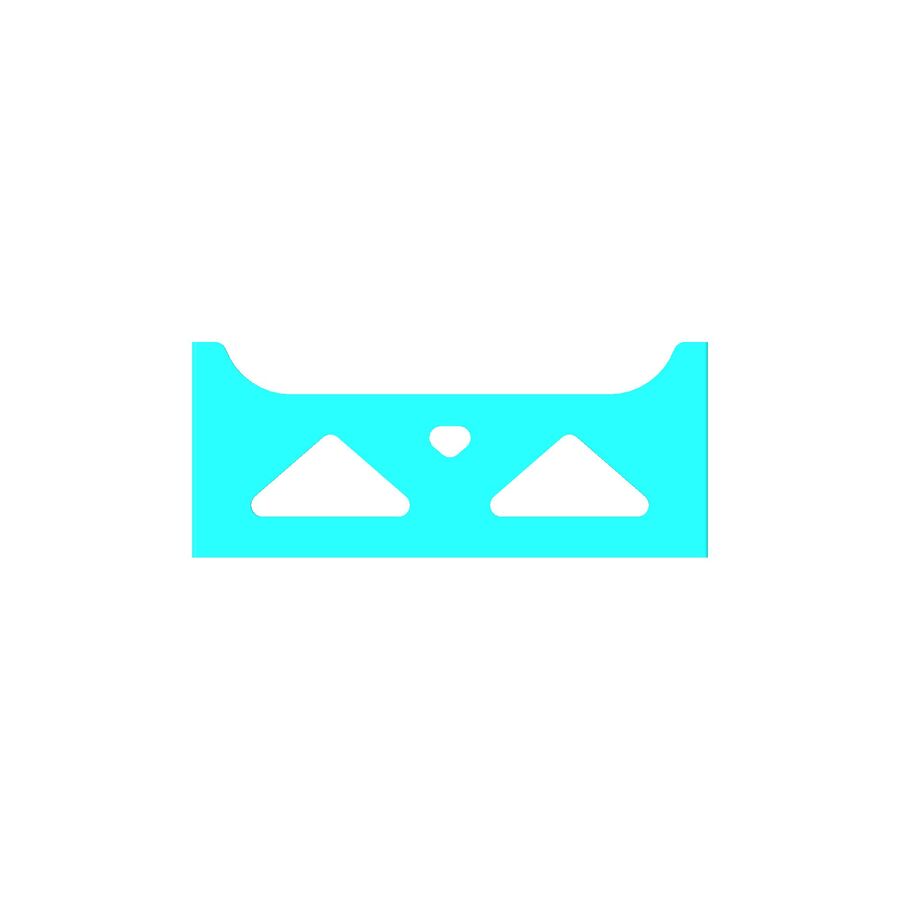

Toro OEM 127-3329-01 Mower Deck Pivot Pan Fits Toro Late Titan MX, ZX Models (Tube Framing).

The Toro OEM 127 3329 01 Mower Deck Pivot Pan allows the Front of the Mower Deck to stay Fixed while permitting smooth, consistent horizontal movement as the operator raises and lowers the Mower Deck. Toro OEM 127 3329 01 Pivot Pan is Designed to Fit on Toro Select Late TITAN ZX & MX Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.





• Genuine spare parts are tested to fit and work properly, avoiding further breakdowns, and are more likely to last longer, reducing downtime, further lost business opportunity and additional repair costs.



• OEM parts are made by the same manufacturer as original vehicle components in accordance with exact design specifications, ensuring greater reliability and performance.

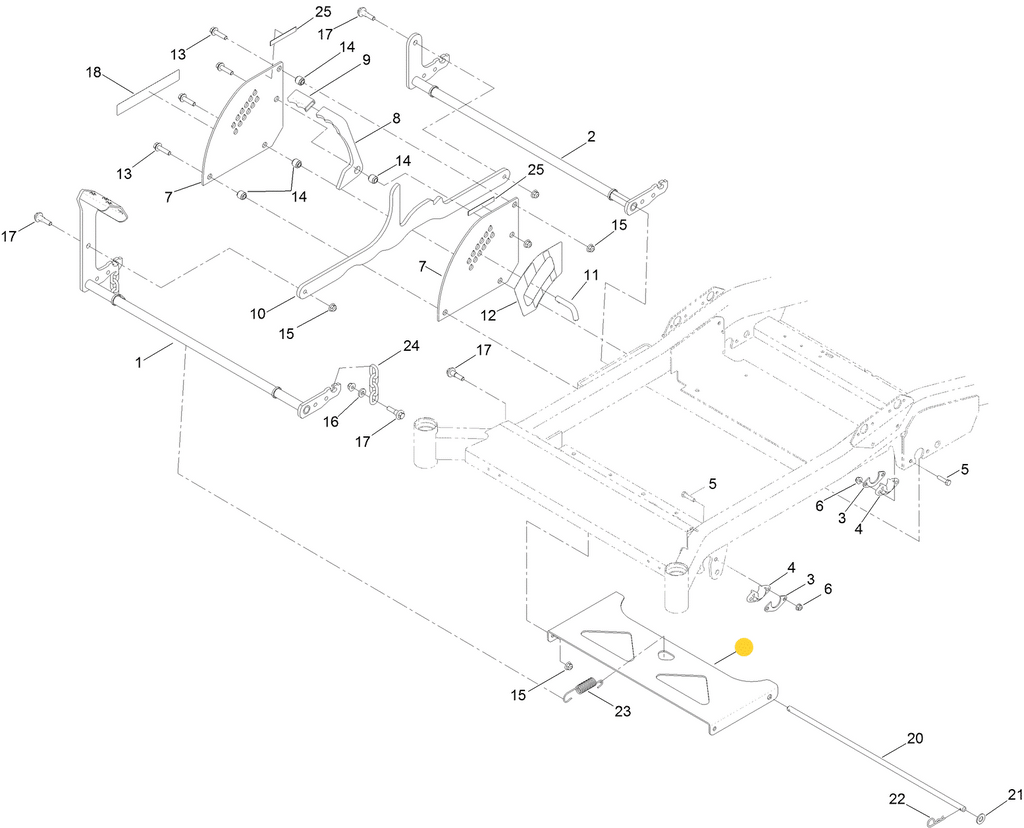

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 127-3329-01 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 127-3399 - PIVOT PAN ROD - (Retains the Mower Deck Pivot Pan to the Mower Deck Pivot Pan's Weldment Brackets on the Mower Deck) x1 Per Mower Deck Pivot Pan
2. 1-806005 - CLIP or COTTER PIN - (Retains the Mower Deck Pivot Pan by Retaining the Mower Deck Pivot Pan Rod in the Mower Deck Pivot Pan Weldment Brackets Holes and Mower Deck Pivot Pan Holes) x2Per Mower Deck Pivot Pan
3. 3256-26 - FLAT WASHER - (Support the Clip/Cotter Pin Against the Mower Deck Pivot Pan or Mower Deck Pivot Pan Weldment Bracket Holes) x2 Per Mower Deck Pivot Pan
4. 130-0742 - FLANGE SHOULDER BOLT - (Retains the Mower Deck Pivot Pan to the Mower Deck Pivot Pan's Weldment Brackets on the Mower Frame) x2 Per Mower Deck Pivot Pan
5. 104-8301 - FLANGE NUT - (Retains the Mower Deck Pivot Pan to the Mower Deck and the Mower Deck Pivot Pan's Weldment Brackets on the Mower Frame) x2 Per Mower Deck Pivot Pan
6. 115-9652 - TENSION SPRING - (Connect to the Front Mower Deck Pivot Arm Foot Pedal/Combo and Front Mower Deck Pivot Pan and Retains Tension on the Pivot Pan) x1 Per Mower Deck Pivot Pan







Specification

Product Number:	127332901
Brand:	Toro
Length:	22.250 IN (56.515 CM)
Width:	9.500 IN (24.130 CM)
Height:	1.500 IN (3.810 CM)
Weight:	5.944 LB (2.696 KG)





Model Fit:



TITAN



48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74846, 74851, 74855, 74861, 74891)



54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74848, 74852, 74862, 74882, 74892)



60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74853, 74863, 74883, 74893)
