Toro OEM Hydro Belt 126-9835 Fits Early Model Titan Z - Early/Late/Current Z-MASTER 3000, 4000, 5000, 6000, 7500-G Models.

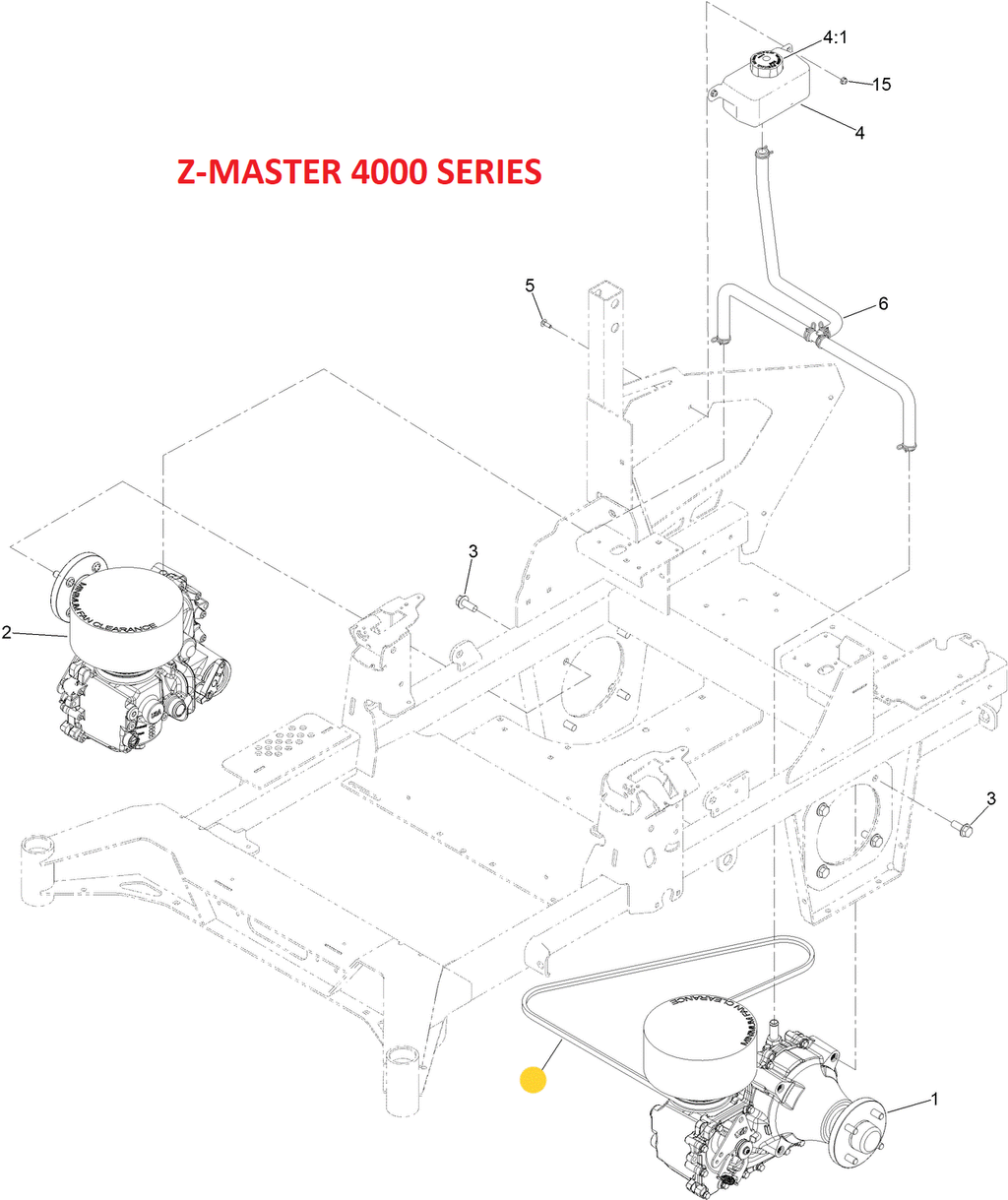

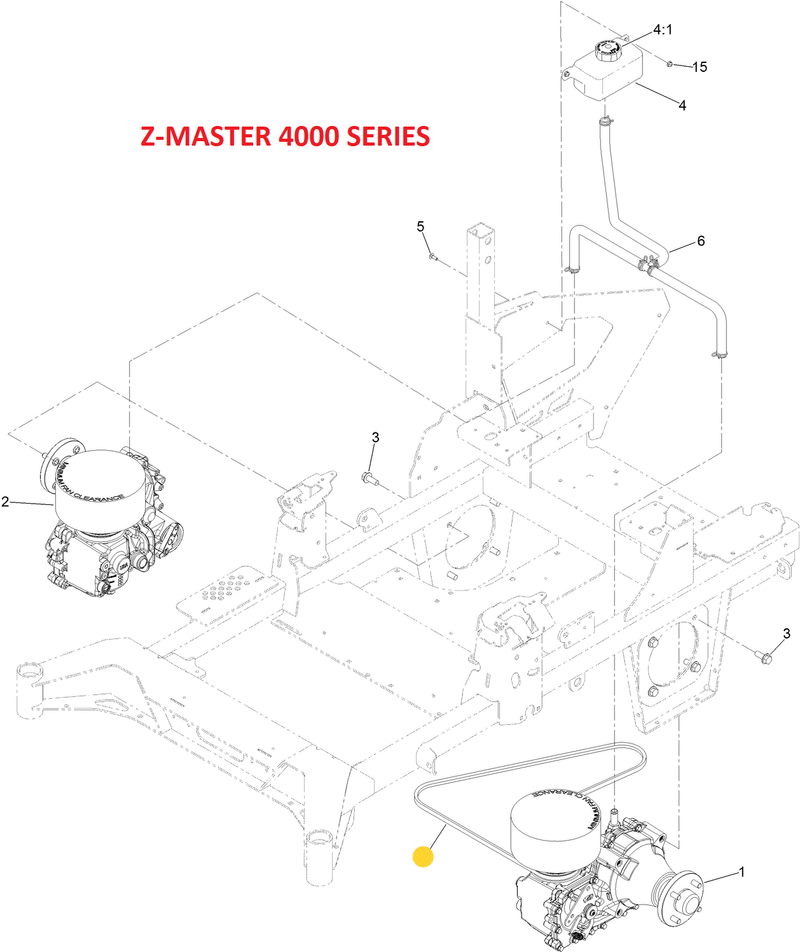

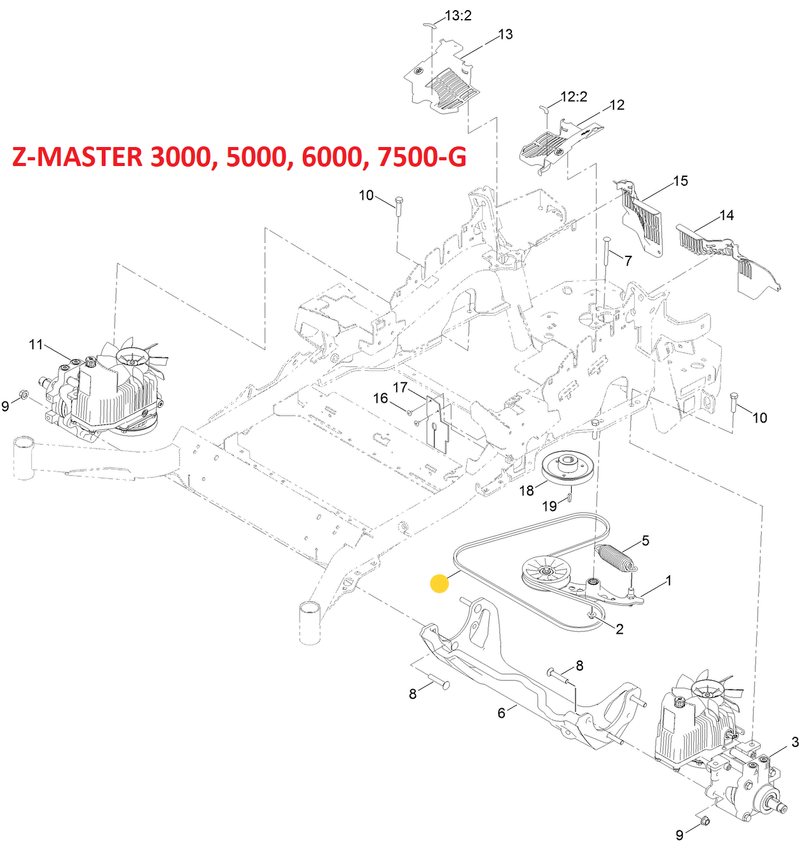

Toro OEM 126 9835 Hydraulic Drive Belt is made with the best of Materials Aramid/Kevlar/Rubber and is rigorously tested to ensure they have the Correct Combination of Materials, Made to Engineering Specifications and Superior Quality to Eliminate Disappointment in the functionality of Toro Equipment. So, with an Attitude (That No Hill is too Big) replace Those Worn-Out Hydraulic Drive Belt with the Confidence and the Peace of Mind that you have recreated your Machines Functionality with Toro OEM (Original Equipment Manufacturer). Toro OEM 126-9835 Hydraulic Drive Belt is a Made to Fit on Toro Early Model Titan Z - Early ZMaster 4000 Models (* Used with Metal Idler Pulleys Only) Early/Late/Current Z-Master 3000, 5000, 6000 and 7500-G Models (* Refer to Model Fit Chart, Images, Associated Parts Chart and Special Notes). Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit. Part Number 109-8069 and 109-3388 Supersede to Part Number 126-9835.

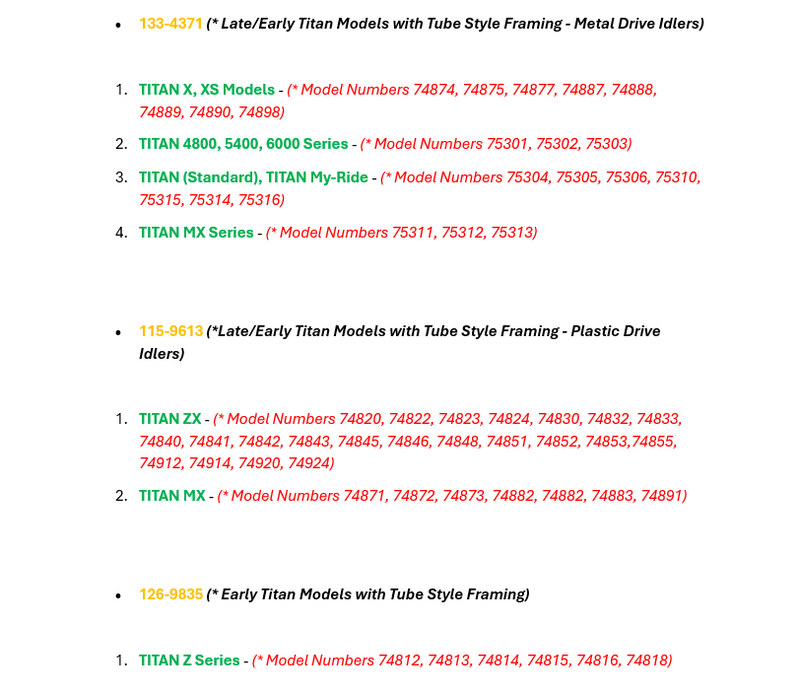

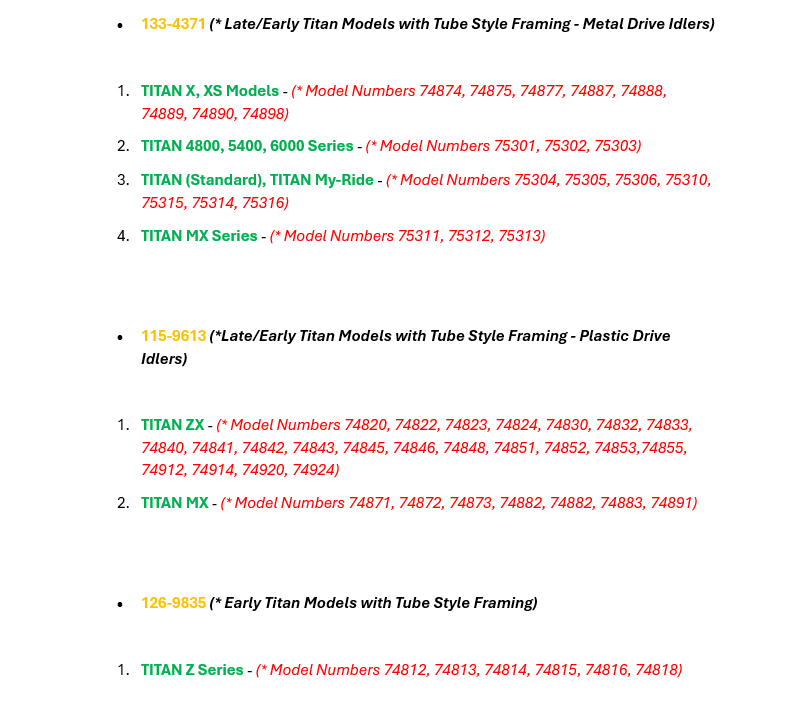

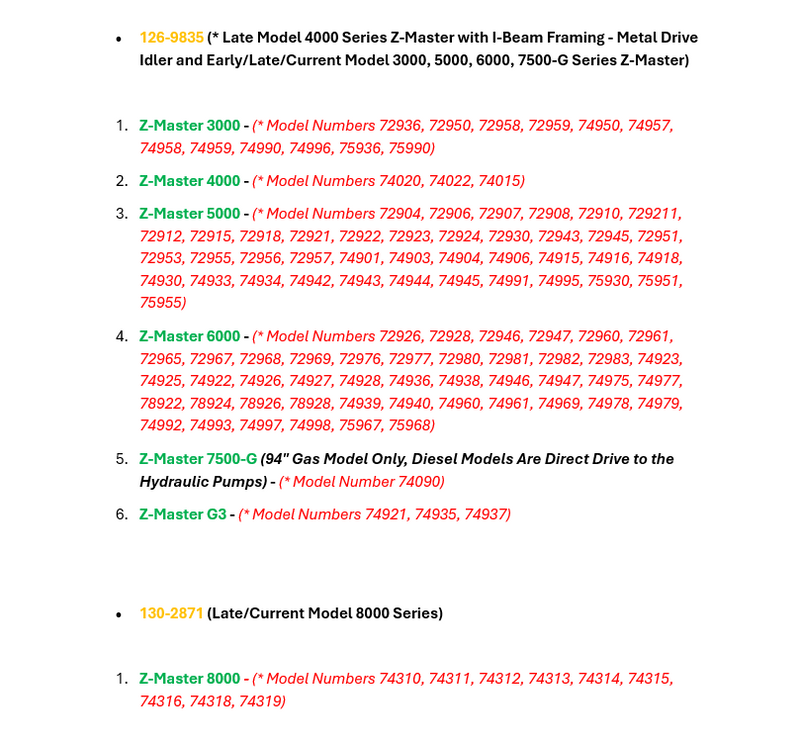

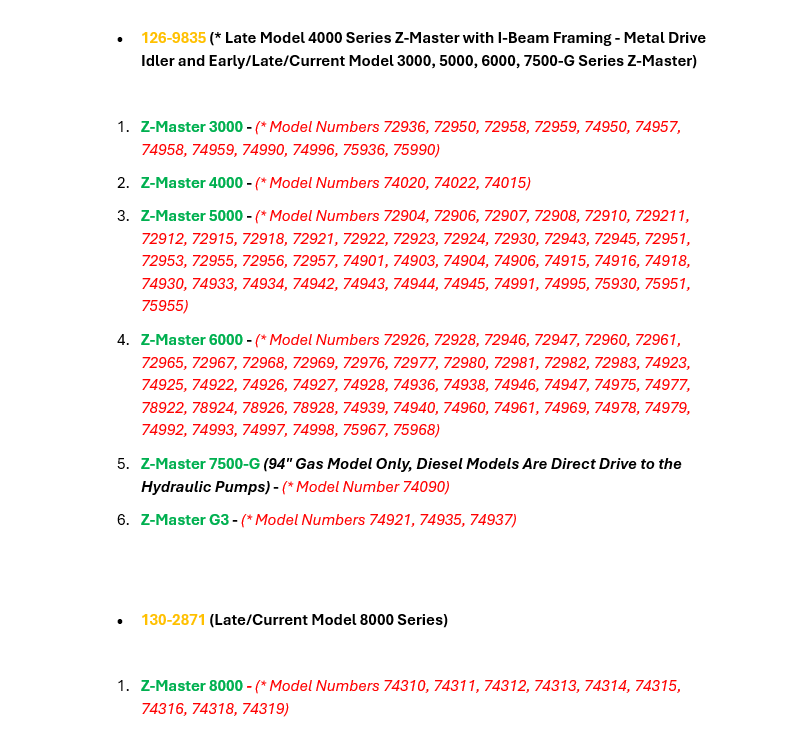

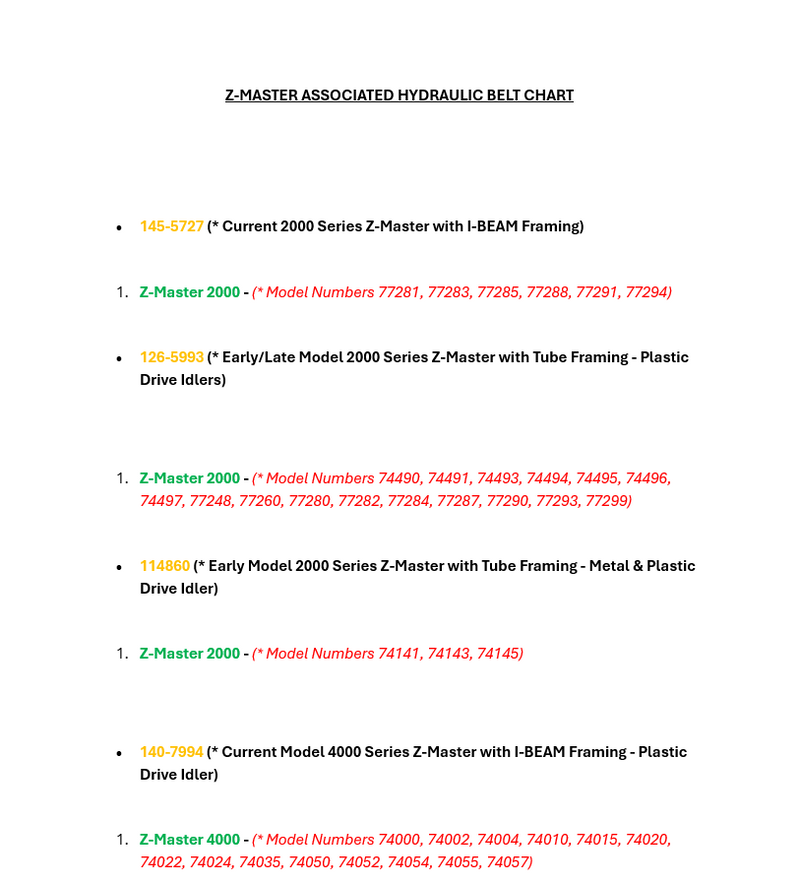

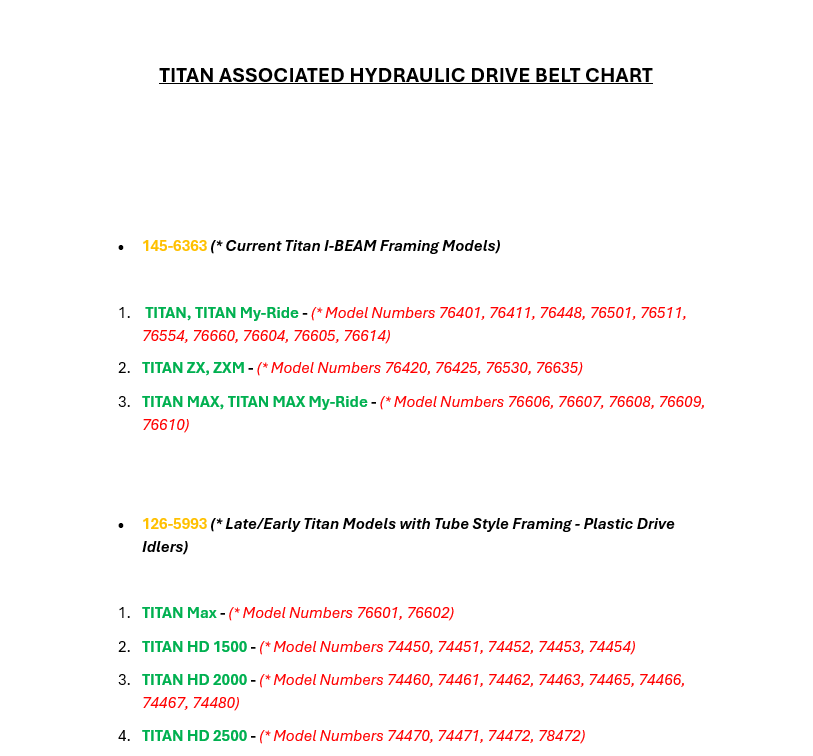

NOTE 1: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second Method is to refer to the Part Numbers under the TITAN and Z-Master Hydraulic Drive Belt Associated Part Number Reference Chart and Visually Match the correct Part Number with the Correct Series/Model Combo. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with.







Note 2: Due to a SERIAL Number break some Z-Master 4000 Series Model numbers might overlap with Hydro Drive Belt 126-9835 (* Uses Metal Idler Pulleys) and 140-7994 (* Uses Plastic Idler Pulley). This is a difference between a metal versus plastic Drive Idler Pulley on the tensioner arms refer to the list bellow and click on the appropriate part number to be redirected.













ASSOCIATED IDLER PULLEYS FOR MODELS USING HYDRAULIC DRIVE BELT 126-9835

CLICK ON THE ASSOCIATED PART NUMBER TO BE RE-DIRECTED





• PLASTIC IDLER PULLEY (* Current Z-Master 6000 Series)

1. TENSIONER ARM IDLER PULLEY - 109-8076



• METAL IDLER PULLEY - (* Early/Late Z-Master 4000 Series)

1. TENSIONER ARM IDLER PULLEY - 140-4964



• PLASTIC IDLER PULLEY - (* Early/Late TITAN Z Series)

1. TENSIONER ARM IDLER PULLEY - 109-3397







  Specification

Product Number:	1269835, 1093388, 1098086
Brand:	Toro
Length:	75 1/2
Width:	1/2
Height:	NA
Weight:	0.376 LB (0.050 KG)





Model Fit:



72950, 72958, 72946, 72947, 72969, 72959, 72936, 72904, 72906, 72915, 72918, 72930, 72943, 72945, 72955, 72951, 72926, 72928, 74090, 72960, 72961, 72967, 72968, 72921, 72922, 72911, 72912, 72910, 72965, 74015, 72980, 72982, 74020, 74022, 74024, 72907, 72923, 72953, 72956, 72908, 72924, 72957, 72976, 72977, 72981, 72983, 74010, 74812, 74814, 74813, 74815, 74816, 74818, 94818, 74915, 74923, 74925, 74935, 74937, 74901, 74903, 74927, 74922, 78922, 78924, 74926, 74928, 78926, 74975, 74977, 78928, 74936, 74938, 74916, 74930, 74939, 74940, 74906, 74978, 74979, 74942, 74944, 74957, 74958, 74959, 74918, 74933, 74934, 74946, 74947, 74904, 74990, 74991, 74992, 74993, 74995, 74996, 74997, 74998, 74950, 74960, 74961, 74943, 74945, 75955, 75936, 75951, 75967, 75968, 75930, 75990, 74969, 74090
