Description

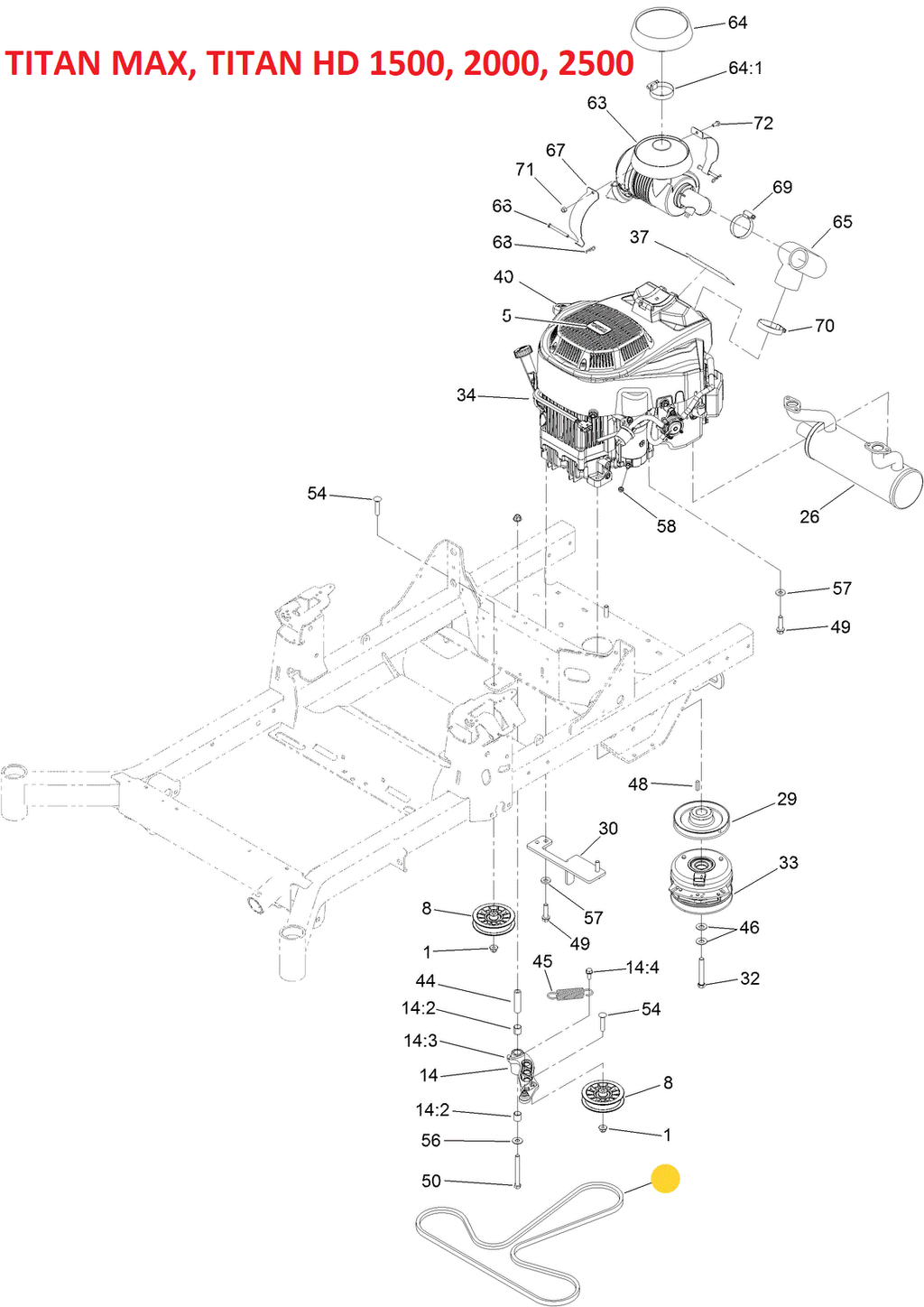

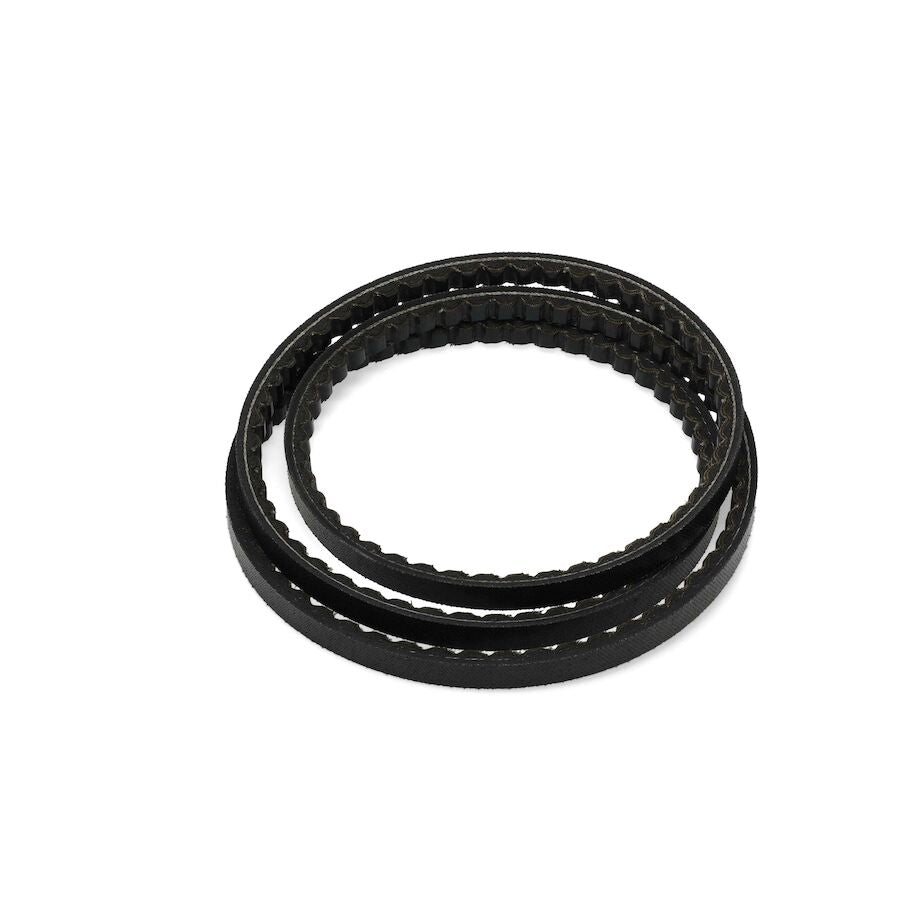

Toro OEM 126 5993 Cogged Hydraulic Drive Belt is made with the best of Materials Aramid/Kevlar/Rubber and is rigorously tested to ensure they have the Correct Combination of Materials, Made to Engineering Specifications and Superior Quality to Eliminate Disappointment in the functionality of Toro Equipment. So, with an Attitude (That No Hill is too Big) replace Those Worn-Out Hydraulic Drive Belt with the Confidence and the Peace of Mind that you have recreated your Machines Functionality with Toro OEM (Original Equipment Manufacturer). Toro OEM 126-5993 Cogged Hydraulic Drive Belt is a Made to Fit on Toro Early/Late Tubed Framing TITAN HD 1500, 2000, 2500 - TITAN MAX - ZMaster 2000 (* Used with Metal Drive Idler Pulleys Only) Models - (* Refer to Model Fit Chart, Images, Associated Parts Chart and Special Notes). Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.

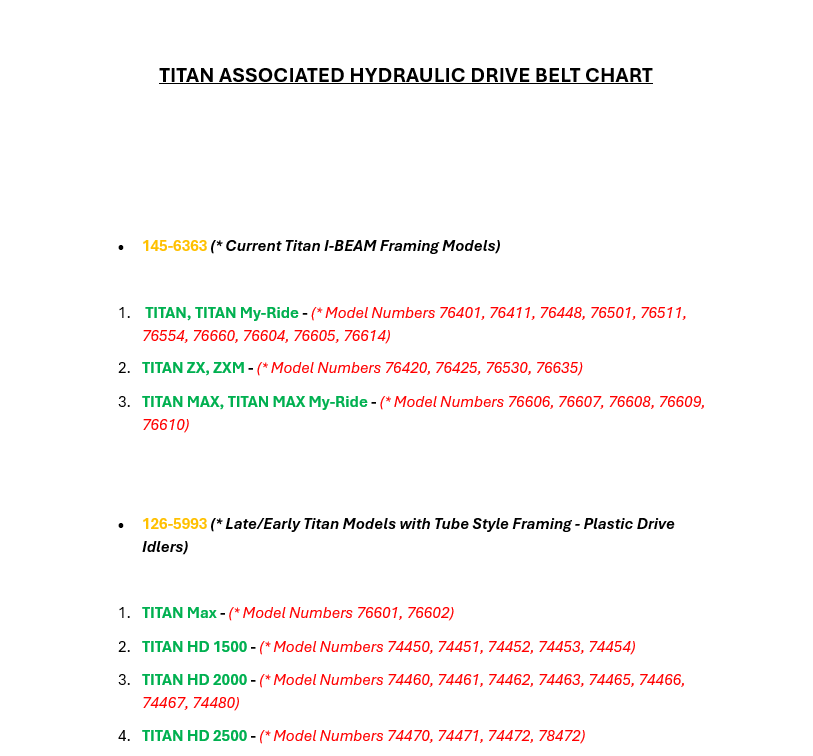

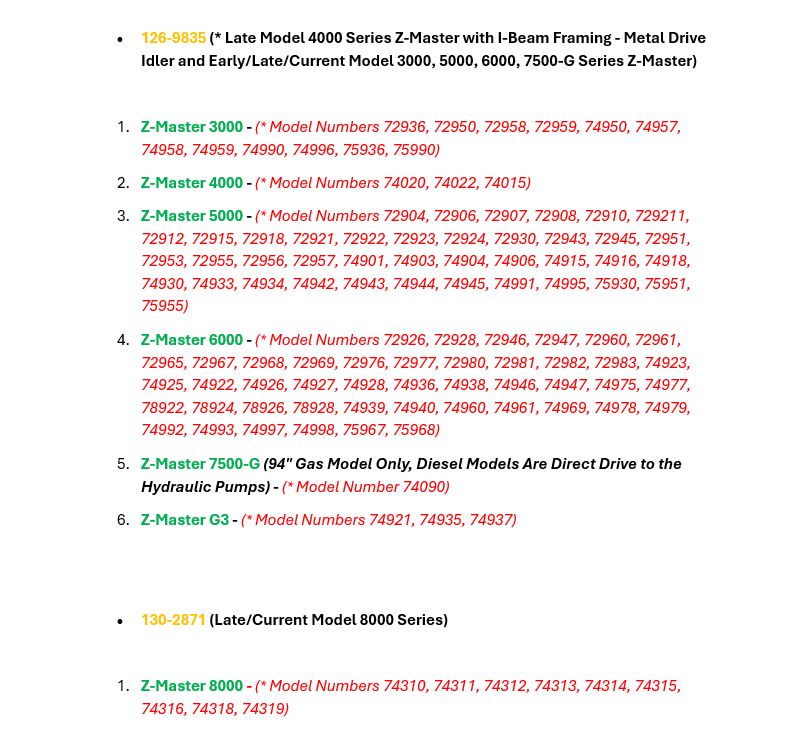

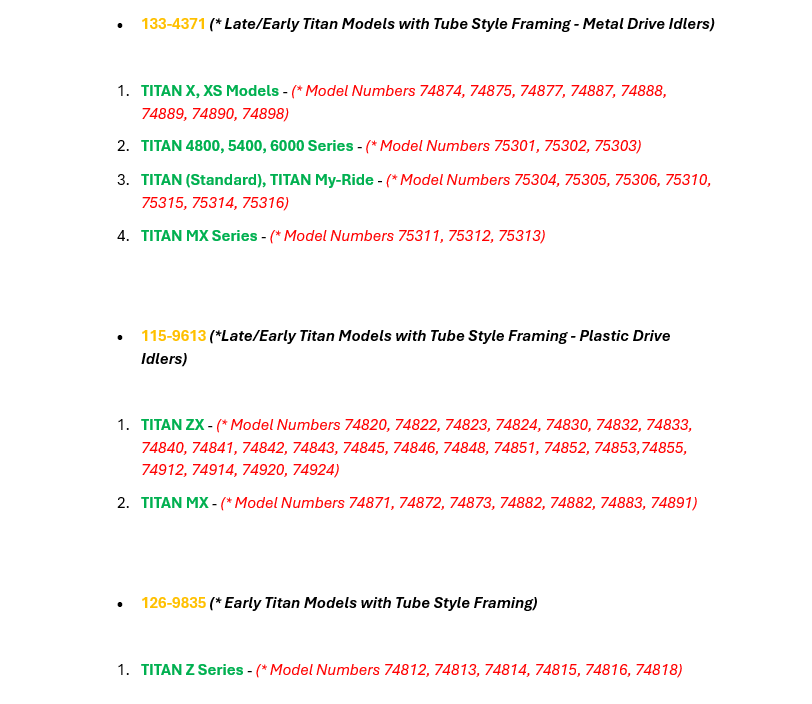

NOTE 1: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second Method is to refer to the Part Numbers under the TITAN and Z-Master Hydraulic Drive Belt Associated Part Number Reference Chart and Visually Match the correct Part Number with the Correct Series/Model Combo. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with.

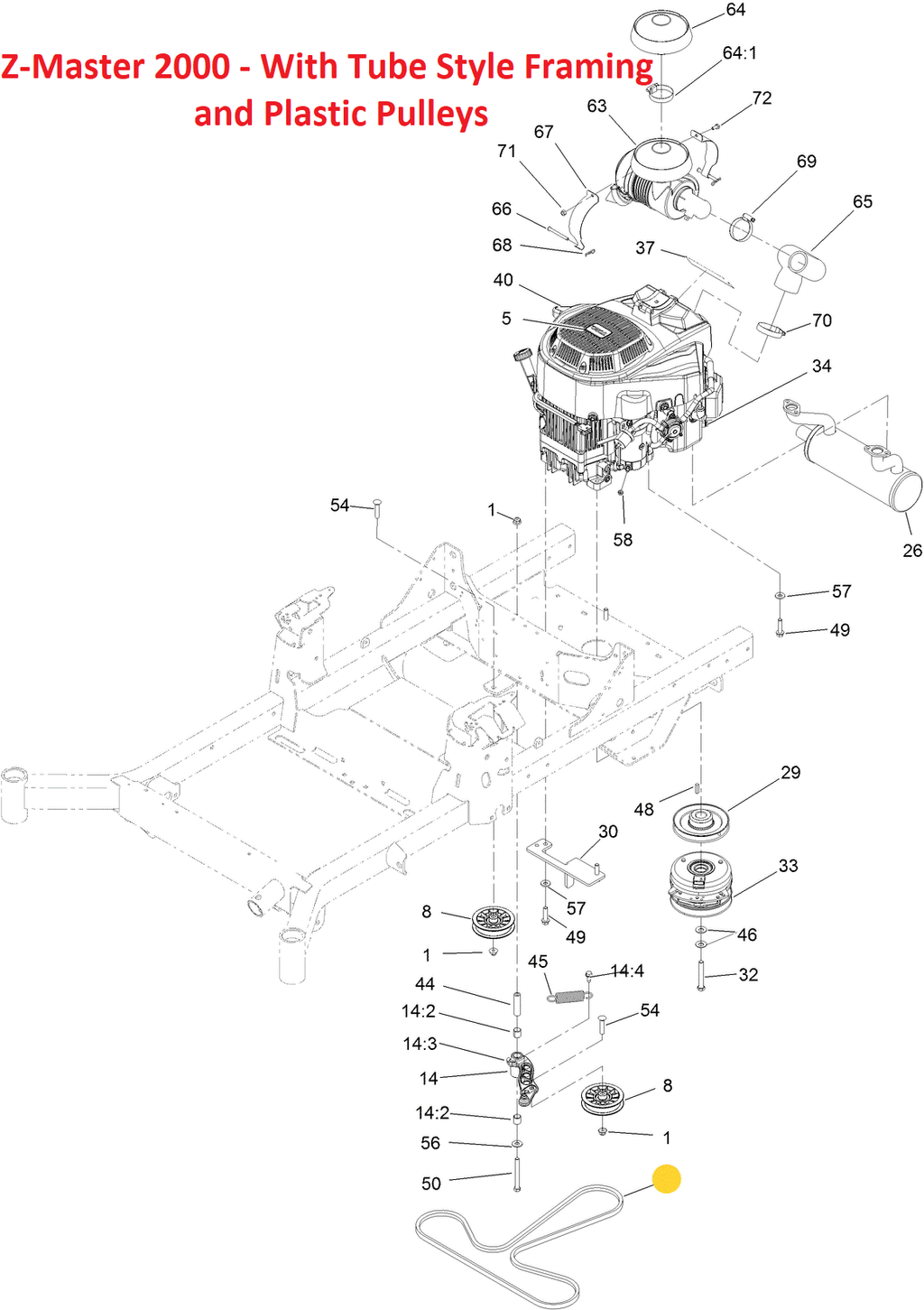

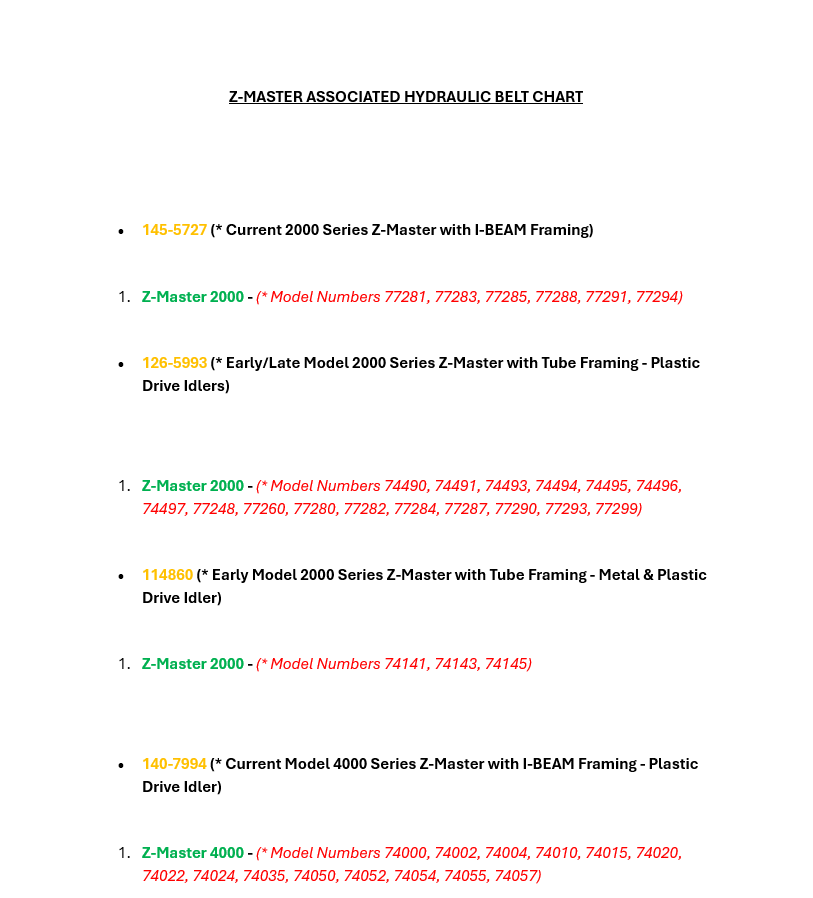

Note 2: Due to a SERIAL Number break some Z-Master 2000 Model Numbers might overlap with Hydro Drive Belt 145-5727 (* Uses Metal Idler Pulleys), 126-5993 (* Uses Plastic Idler Pulley) and 114860 (* Uses Plastic and Metal Idler Pulleys). This is a difference between a metal versus plastic Stationary Drive Idler Pulley. For Current I-BEAM Z Master 2000 Models or for additional reference and part numbers, refer to the part numbers bellow.
ASSOCIATED IDLER PULLEYS FOR MODELS USING HYDRAULIC DRIVE BELT 126-5993
CLICK ON THE ASSOCIATED PART NUMBER TO BE RE-DIRECTED
PLASTIC FLAT IDLER PULLEY - 116-2456
Specification
|
Product Number: |
1265993 |
|
Brand: |
Toro |
|
Length: |
77 13/20” |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
|
Model Fit:
78450, 74450, 74451, 74452, 74460, 74461, 74462, 74463, 74470, 74471, 74472, 74465, 74466, 74467, 78472, 74453, 74454, 74480, 74490, 74491, 74492, 74493, 74494, 74495, 74496, 74497, 76601, 77248, 77260, 77280, 77282, 77284, 77287, 77290, 77293, 77299, 76602
