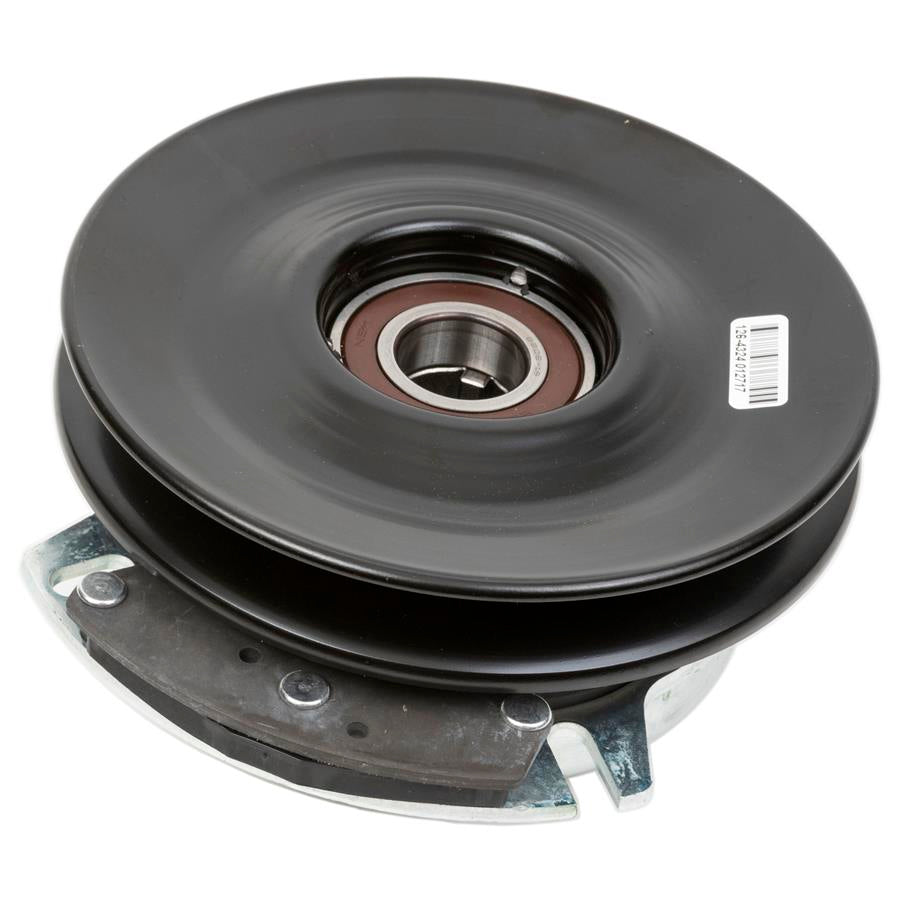

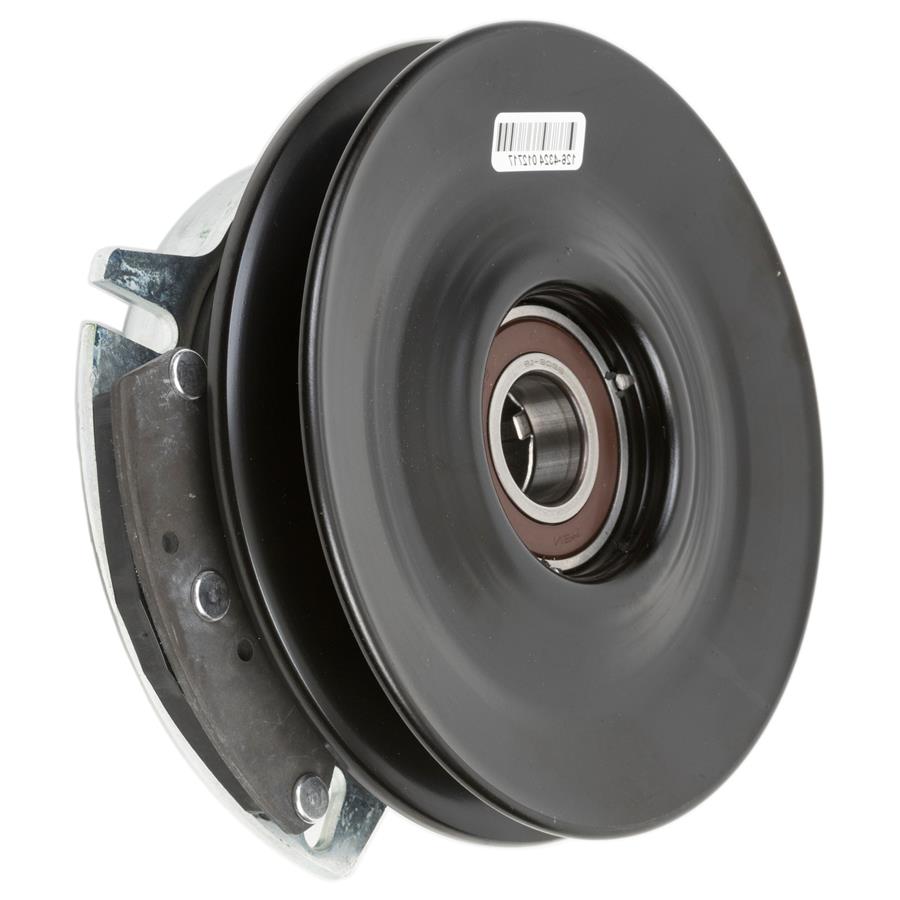

Toro OEM 126-4324 PTO Clutch Fits Late Toro 60" TITAN HD 2500 (Models 74470, 74471) - (With Tube Style Framing).

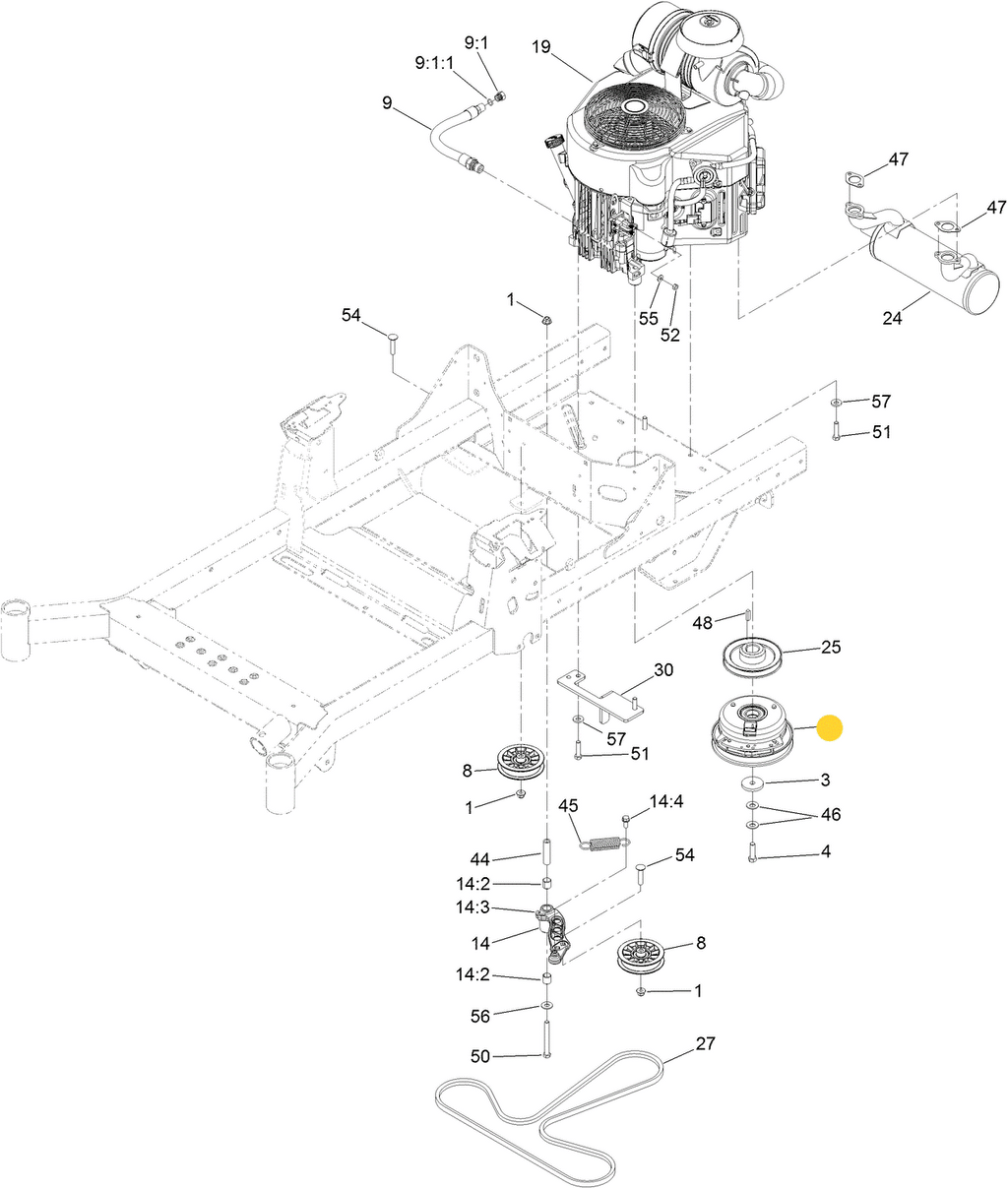

Toro OEM 126 4324 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 126 4326 PTO Clutch is Designed for Toro Late 60" TITAN HD 2500 Models (Tube Style Framing). Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.





NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 126-4324 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





TITAN HD 2500 MODELS ONLY



1. 109-9761 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
2. 109-6919 - PTO CLUTCH/ENGINE PULLEY FLAT WASHER - (Supports Engine Pulley/PTO Clutch Bolt) x1 Per PTO Clutch
3. 1-603610 - PTO CLUTCH/ENGINE PULLEY SPRING WASHER - (Retains Torque on PTO Clutch Bolt/PTO Clutch) x2 Per PTO Clutch
4. 126-6687-03 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch

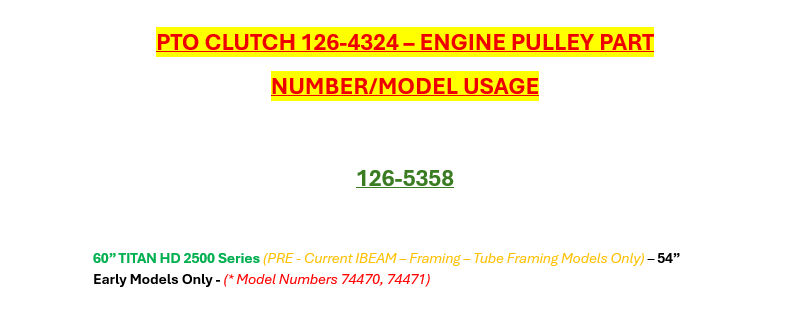

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES













 Specification

Product Number:	1264324
Brand:	Toro
Length:	9.500 IN (24.130 CM)
Width:	9.500 IN (24.130 CM)
Height:	6.000 IN (15.240 CM)
Weight:	12.000 LB (5.443 KG)





Model Fit:



60” TITAN HD 2500 - 126-4324 MODEL/SERIES USAGE



60” TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74470, 74471)
