Description
Toro OEM 126 4185 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 126 4185 PTO Clutch is Designed for Toro Current/Late/Early 60", 72" ZMaster 6000 Models - Current 96" ZMaster 7500 Model 74090 - Early 60", 72" ZMaster G3 Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. *Refer to the Engine Pulley and Associated Part Chart Below for Reference for Appropriate PTO Clutch Fastner Parts and Pulleys Associated to Segregated Models/Series Associated to PTO Clutch 126-4185. Part Numbers 116-1608, 116-1621 and 109-5004 Supersede to Part Number 126-4185.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.

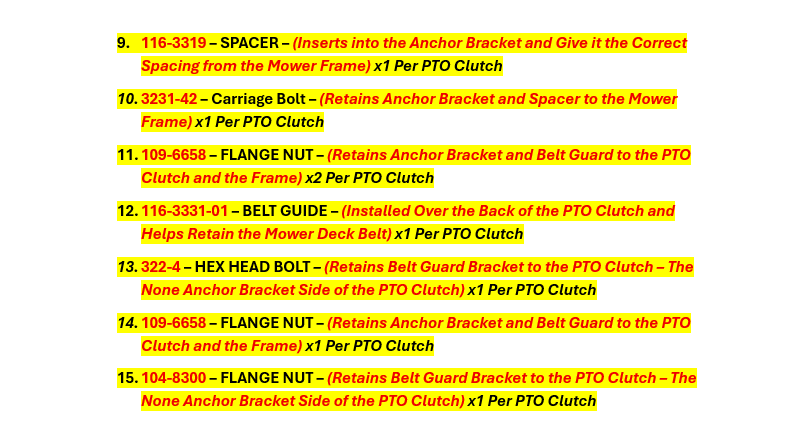

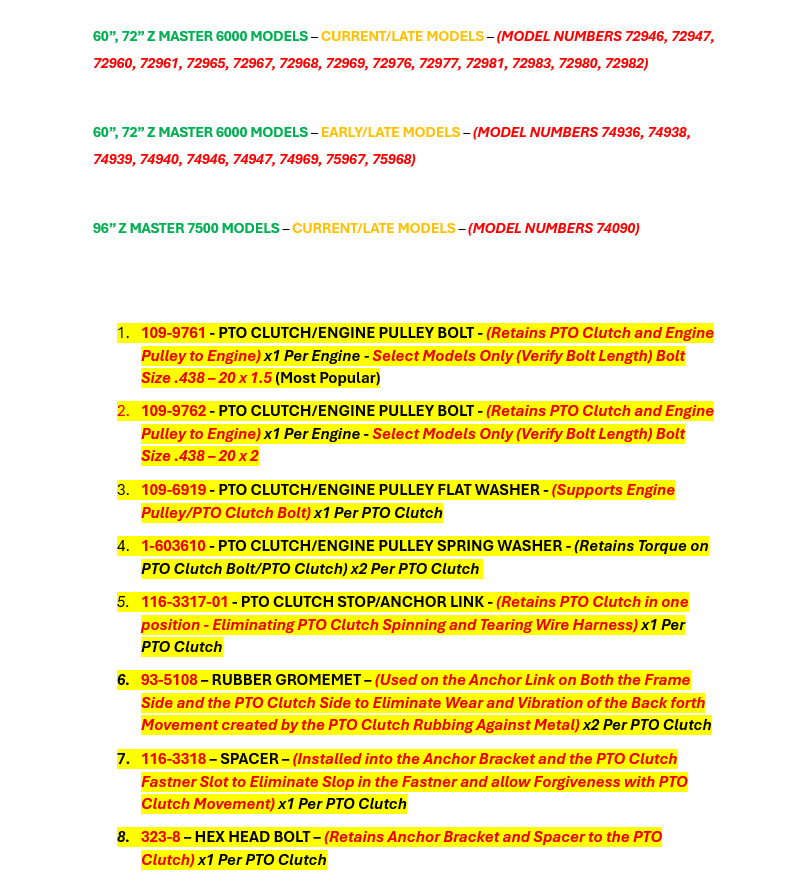

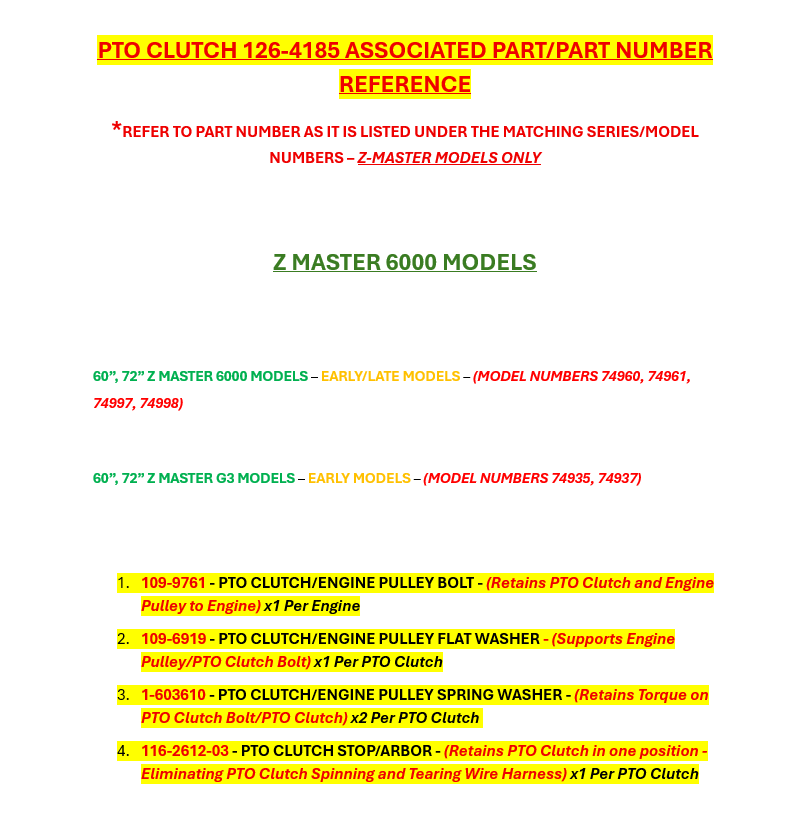

ASSOCIATED PARTS REFERENCE CHART FOR PART NUMBER 126-4185 ONLY
*DUE TO THE AMOUNT OF CONTENT PART REFERENCE IS IN CHART FORM ONLY

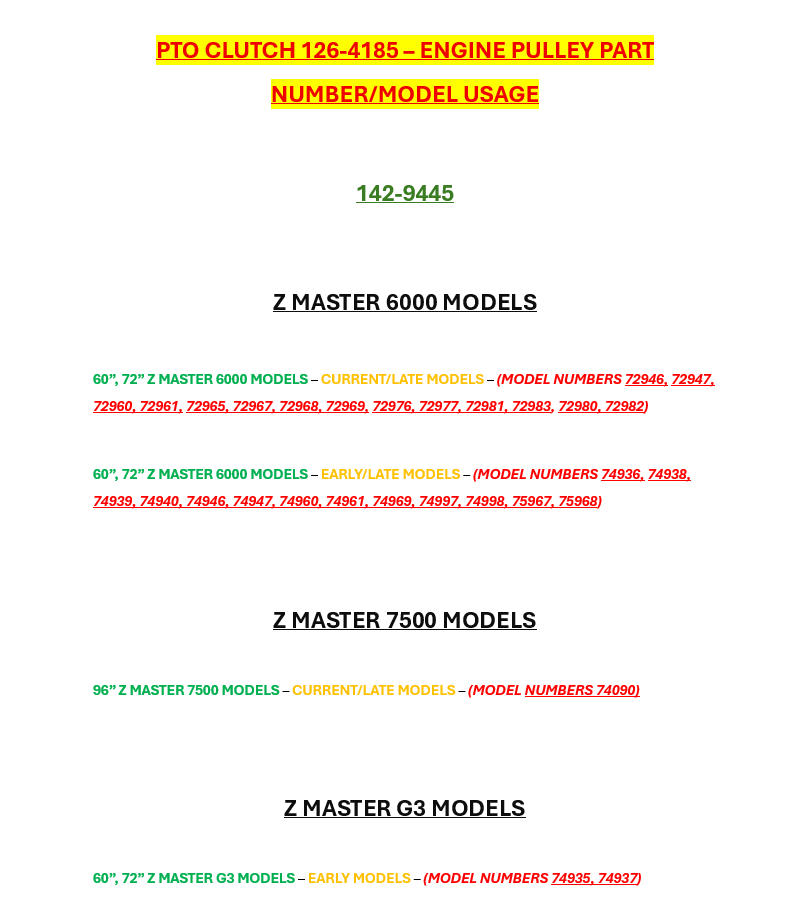

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES
Specification
|
Product Number: |
1264185, 1095004, 1161621, 1161608 |
|
Brand: |
Toro |
|
Length: |
9.700 IN (24.384 CM) |
|
Width: |
9.700 IN (24.638 CM) |
|
Height: |
8.500 IN (21.590 CM) |
|
Weight: |
17.625 LB (7.995 KG) |
Model Fit:
60”, 72”, 96” Z-MASTER 6000, 7500, G3 - 126-4185 MODEL/SERIES USAGE
*Gasoline Models Only
· Z MASTER 6000 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72946, 72947, 72960, 72961, 72965, 72967, 72968, 72969, 72976, 72977, 72981, 72983, 72980, 72982)
· Z MASTER 6000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74936, 74938, 74939, 74940, 74946, 74947, 74960, 74961, 74969, 74997, 74998, 75967, 75968)
· Z MASTER 7500 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 74090)
Z MASTER G3 MODELS – EARLY MODELS – (MODEL NUMBERS 74935, 74937)
74935, 74936, 74937, 74938, 74939, 74940, 74946, 74947, 72946, 72947, 72960, 72961, 72965, 72967, 72968, 72969, 72976, 72977, 72980, 72981, 72982, 72983, 74090, 74946, 74947, 74960, 74961, 74969, 74997, 74998, 75967, 75968
