Description

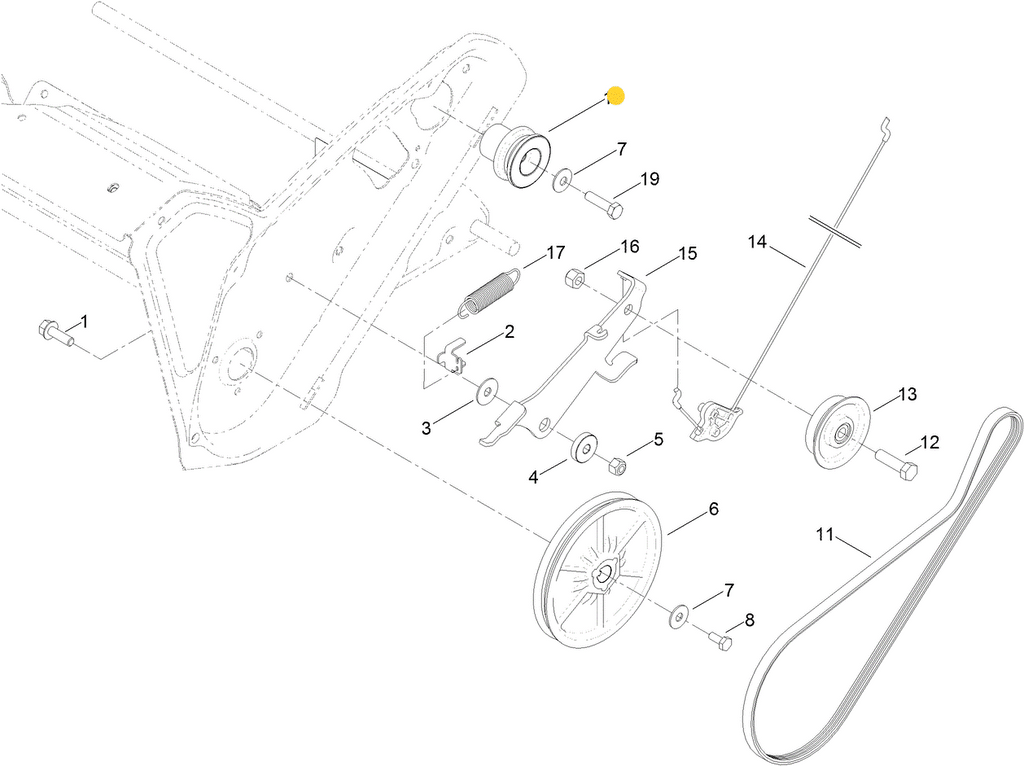

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 125-7927, 125 7927, 1257927

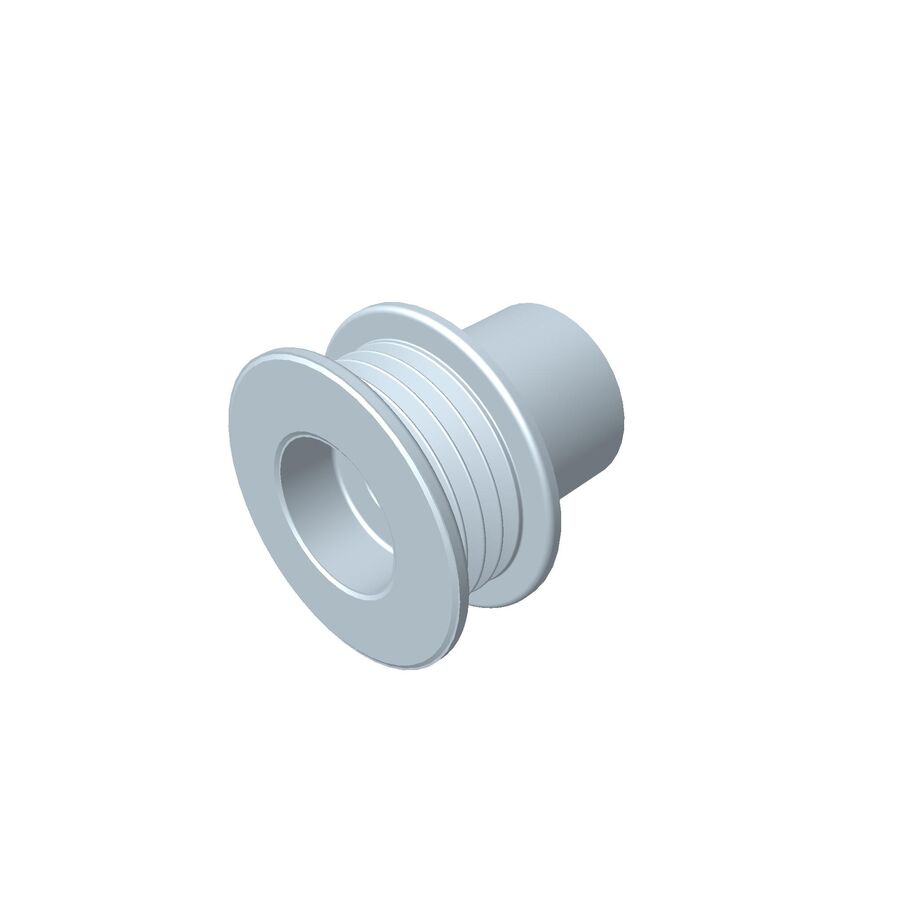

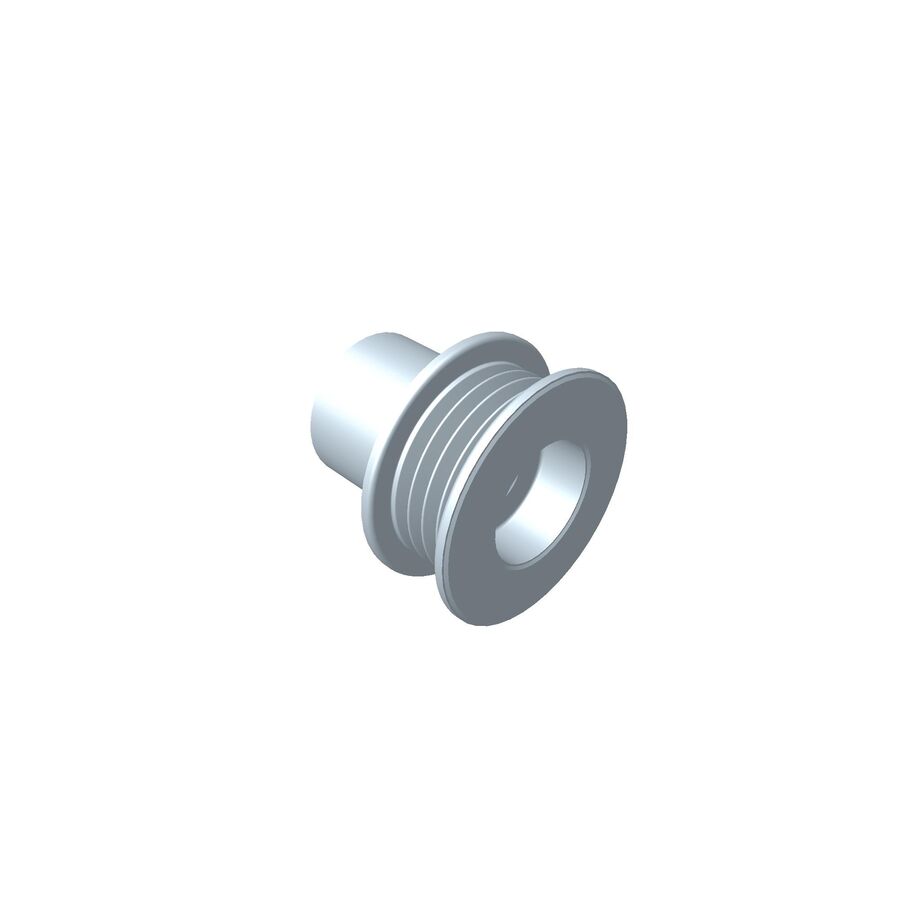

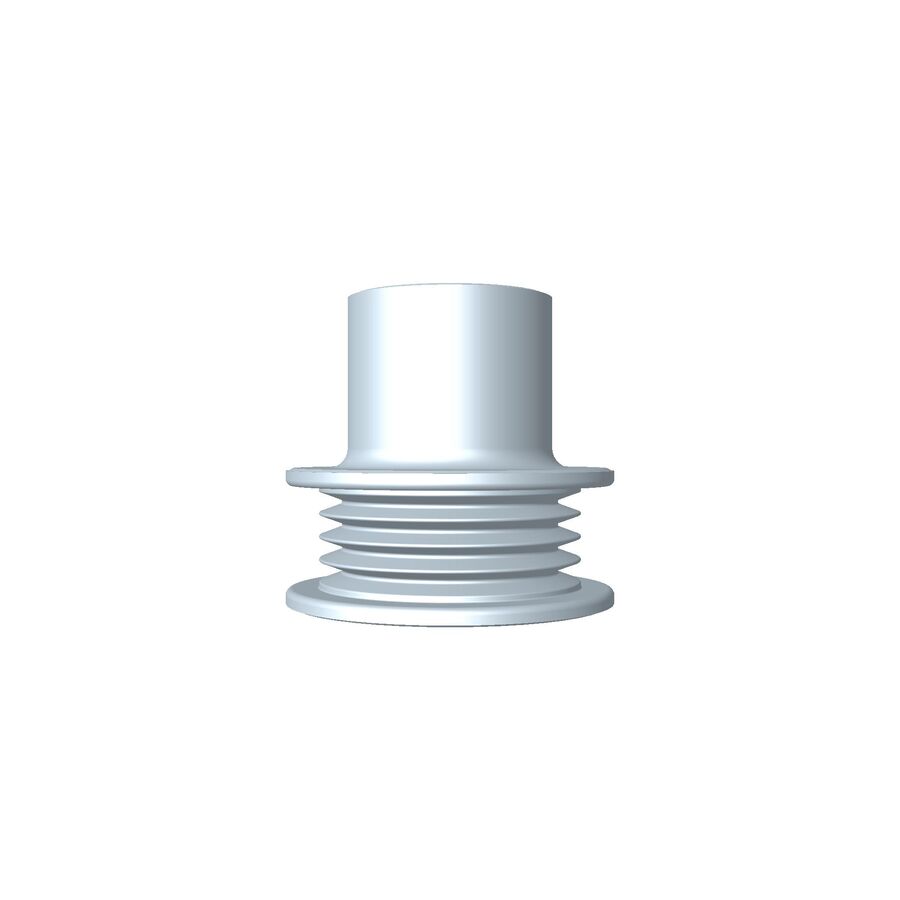

- PRODUCT TYPE: Engine Crankshaft Pulley Assembly
- SIZE: Weight 0.533 lbs.
- NOTES & DETAILS: Toro OEM 125-7927 IS COMMINLY USED - 125-7927 Is Assembled Directly to the Engine Crankshaft and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle.
- COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear and Quick Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38568)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38741, 38742, 38743, 38744, 38751)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 125-7927 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 121-6646 - HEX HEAD BOLT (Retains 125-7927 Engine Crankshaft Pulley to the Engine Crankshaft) x1 Per Engine
- 3290-456 - BELLEVILLE WASHER (Used Between 125-7927 Engine Pulley and 121-6646 Hex Head Bolt - When Tightened or Compressed it Applies Pressure on the Bolt Head and Pulley Not Allowing the Bolt to Rotate as Easy if the Augers where to come in Contact with anything and Forcibly Stopped causing Reversal Rotational Torque that Could Loosen the Pulley) x1 Per Engine Pulley
