Description

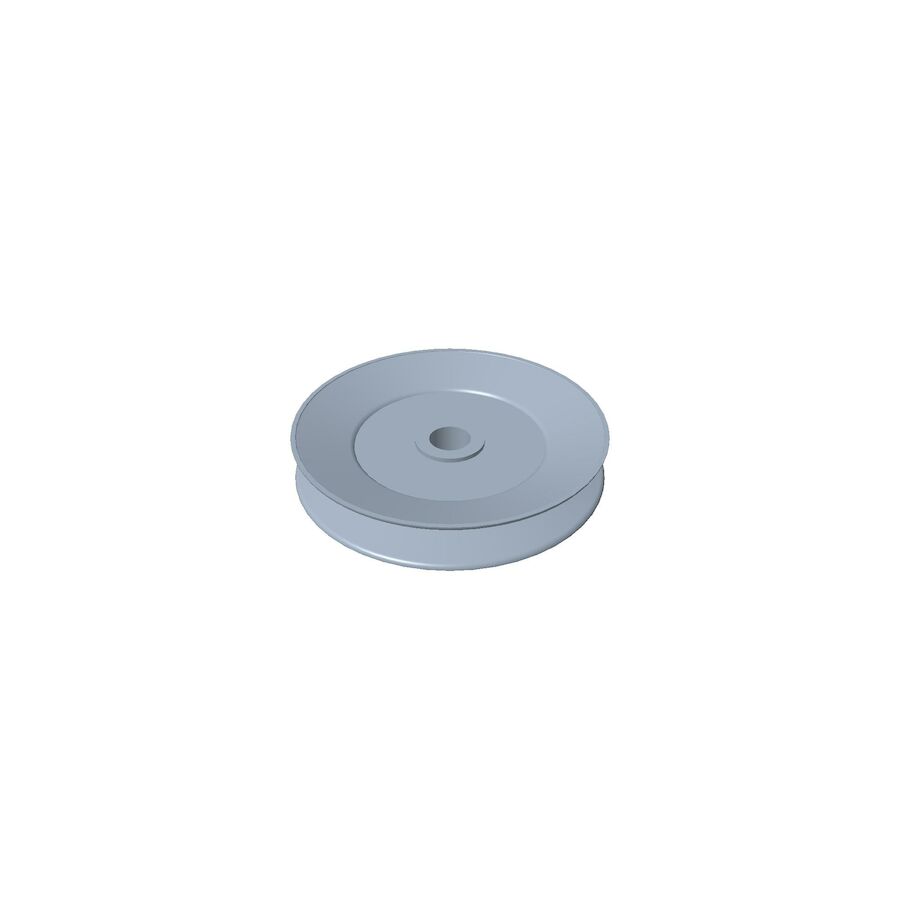

Expertly crafted from durable metal, the Toro OEM 125 5575 Spindle Assembly Pulley is designed for precision and efficiency. Specifically made to fit Toro Spindle Assemblies on all Toro Early/Late 50" Timecutter Z5000, MX, SS, SW, ZS Models - Early TITAN ZX 5000 Models - Early 42" Timecutter ZS (Model 74686 Only). This high-quality pulley ensures accurate blade speed for optimal performance. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Number 110-6865 Supersedes to Part Number 125-5575.

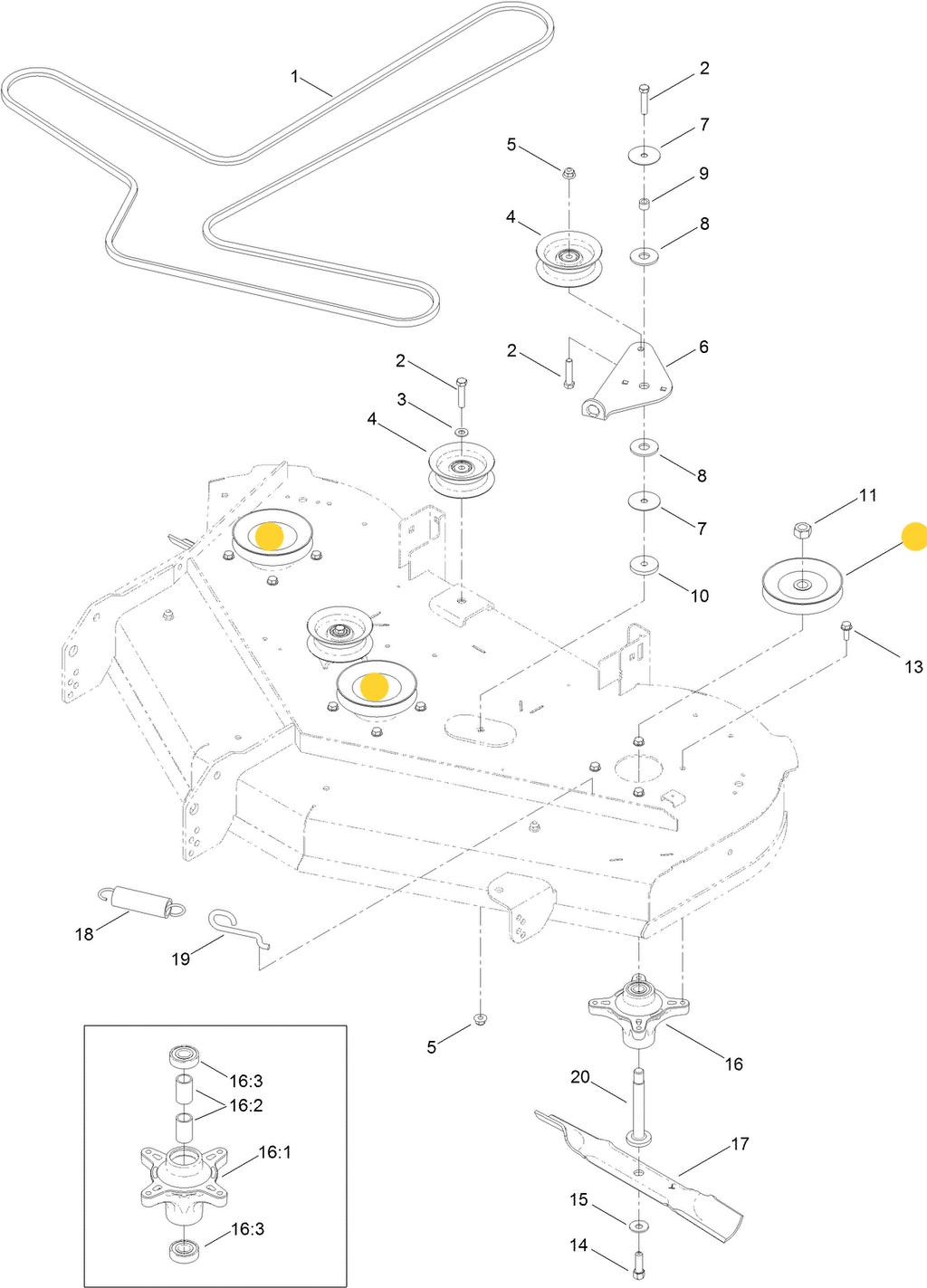

NOTE: To gain a better understanding of part number variations for Timecutter Models by referencing the 50" Spindle Pulley Chart below. The chart also includes Models/Series not listed within the Timecutter Model/Series to clarify their corresponding part numbers.
ASSOCIATED MOWER DECK SPINDLE ASSEMBLY FOR PART NUMBER 125-5575 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
* EXCLUDING 50" TIMECUTTER Z 5000 MODELS
139-3214 - SPINDLE ASSEMBLY - REQUIRES THREE PER MOWER DECK
Specification
|
Product Number: |
1106865, 1255575 |
|
Brand: |
Toro |
|
Length: |
5.000 IN (12.700 CM) |
|
Width: |
5.000 IN (12.700 CM) |
|
Height: |
0.700 IN (1.778 CM) |
|
Weight: |
1.020 LB (0.463 KG) |
Model Fit:
1. Timecutter and Timecutter MX, SS, SW, ZS Series - Early - Late Models Only (* Model Numbers 74387, 74630, 74632, 74641, 74631, 74395, 74635, 74637, 74638, 74643, 74730, 74770, 74660, 74680, 74790, 74797, 74731, 74798, 74732, 74775, 74661, 74771, 74776, 74795, 74727, 74772, 74773, 74774, 74688)
2. Timecutter MX 5075 Series - Late Models Only (* Model Numbers 74778, 74768).
3. Timecutter Z 5000 Series - Early Models Only (* Model Numbers 74370, 74372, 94370, 94372, 74391, 74399, 74374, 74375, 81271, 74373, 94375, 74376, 74398).
4. TITAN ZX5000 Series - Early Models Only (* Model Numbers 74820, 74840).
