Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 125-1113, 125 1113, 1251113

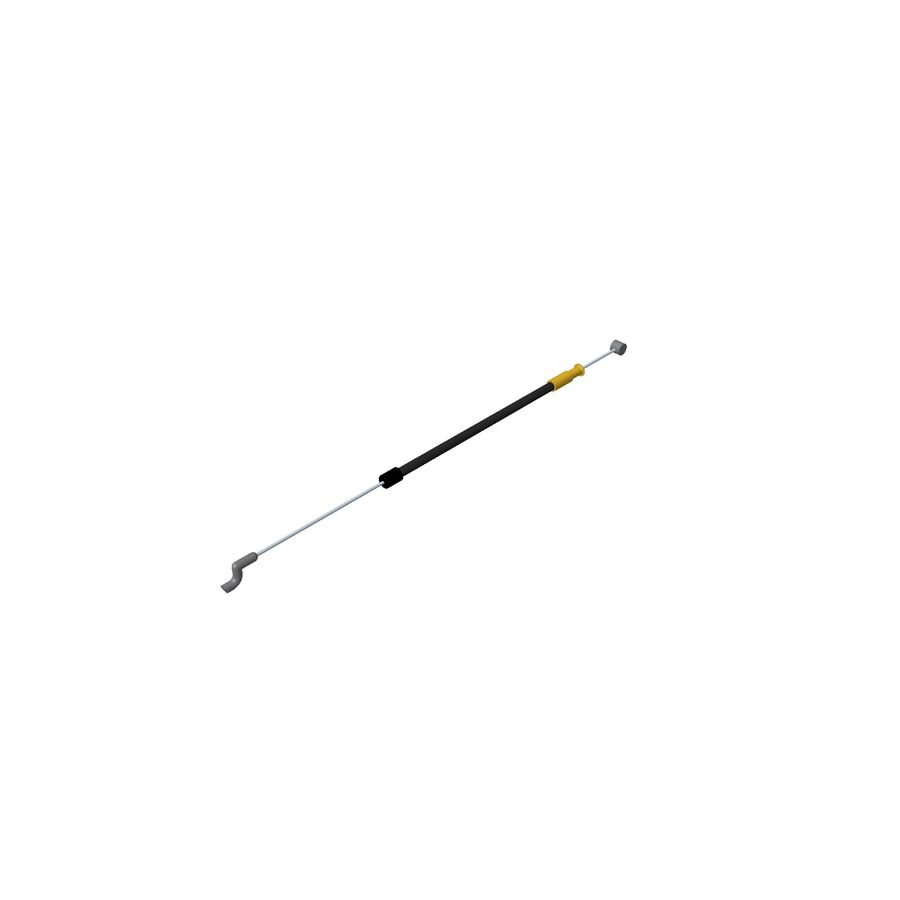

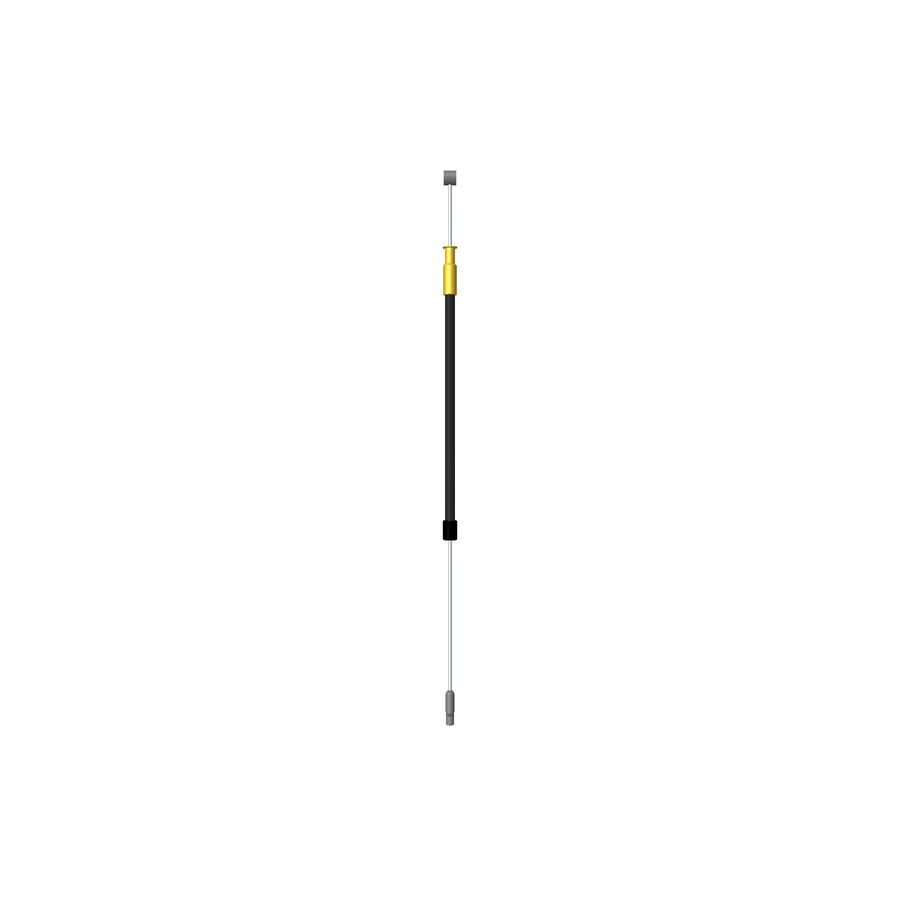

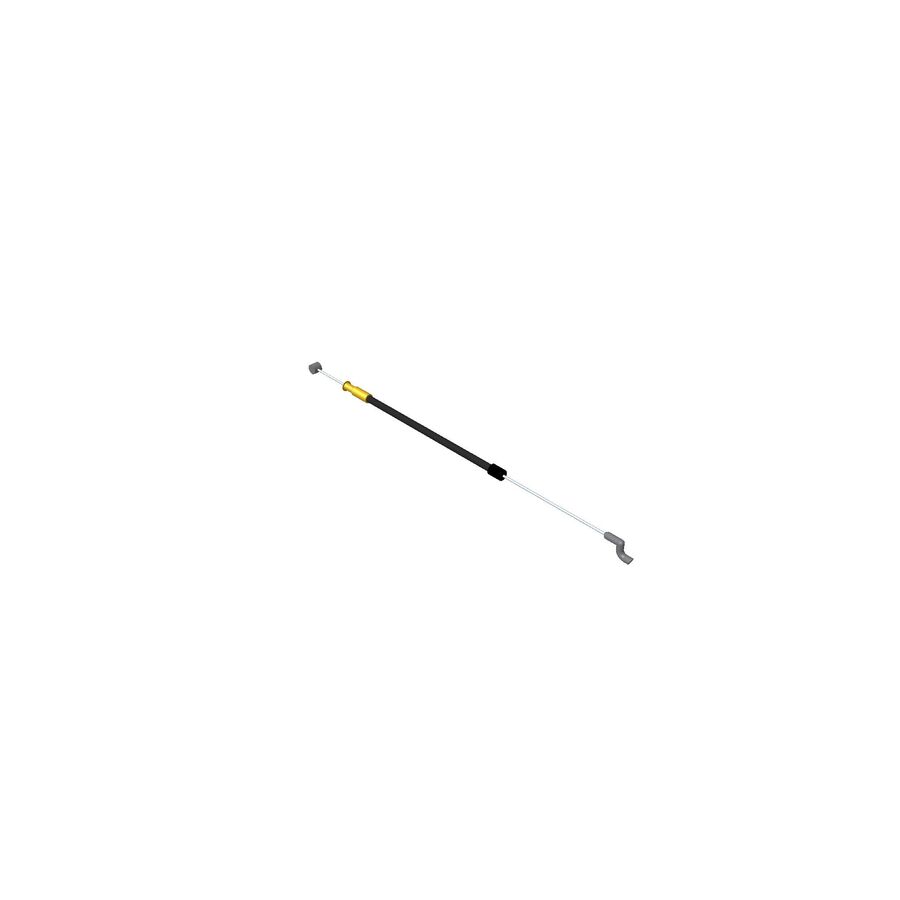

- PRODUCT TYPE: Discharge Chute Latch Release Cable
- SIZE: Length N/A - Width N/A - Height N/A - Weight 0.200 lbs.

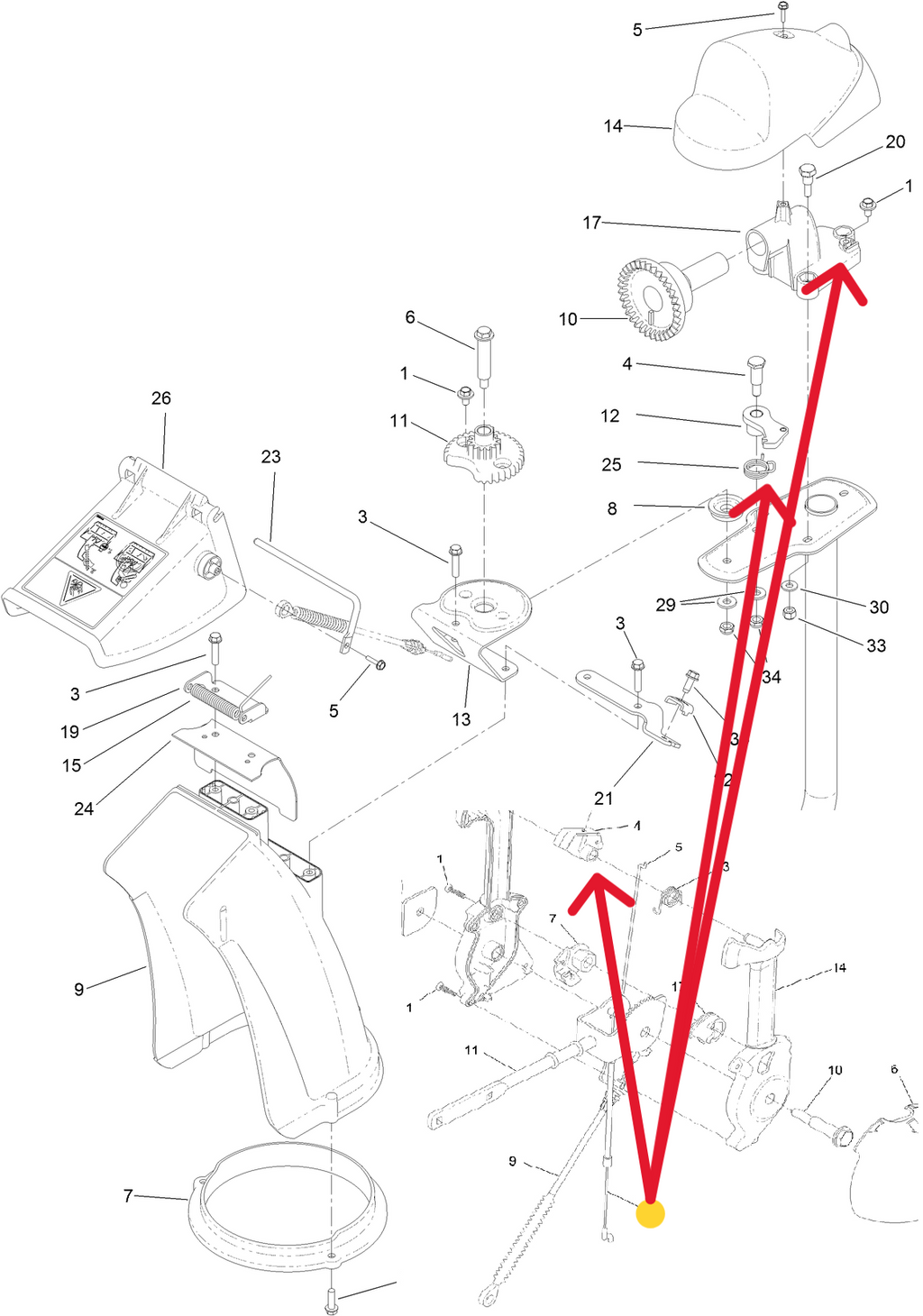

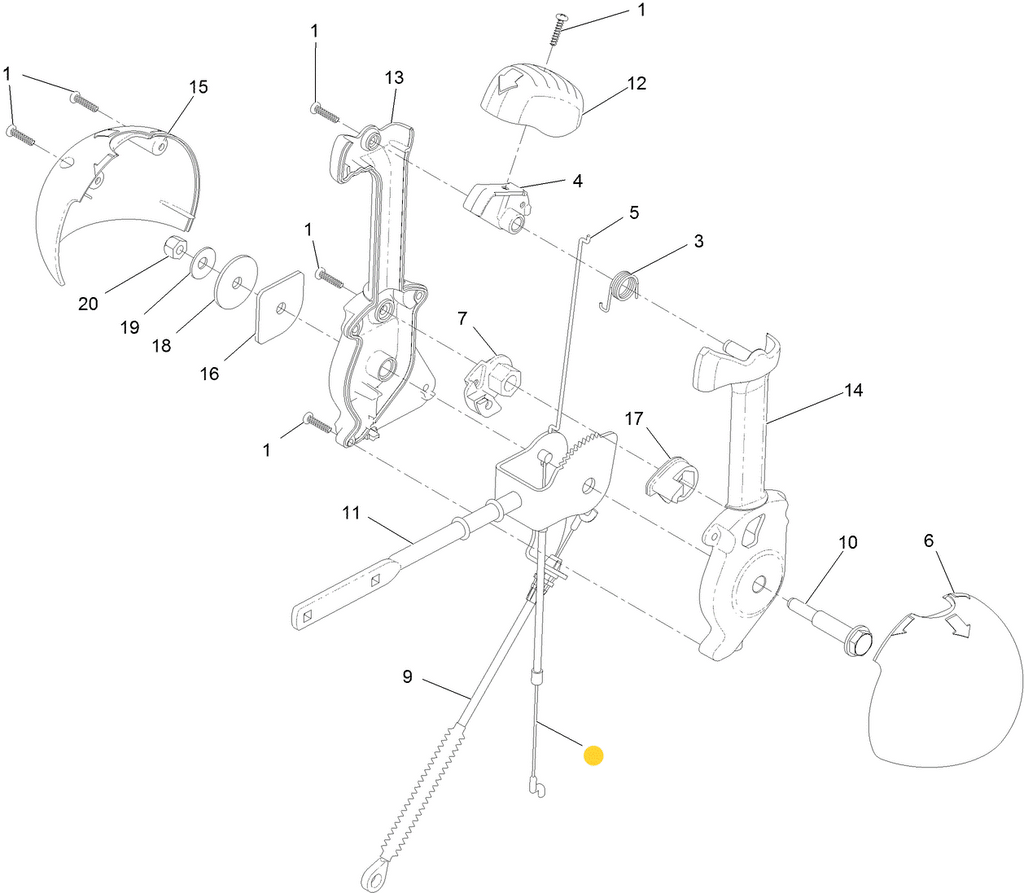

- NOTES & DETAILS: Toro OEM 125-1113 IS COMMINLY USED - 125-1113 Cable Ends - 125-1113 Chute Release Cable Attaches to the Chute Release Cable's QuickStick or Latch Lever 105-9988 that is Assembled inside the Handle or Quickstick assembly. The Lower End of the Chute Release Cable (With the Hook or Shoe) Attaches to the Quickstick Chute Latch 106-4476 (Latch is Responsible from Disabling the Discharge Chute to Rotation). - 125-1113 The Cable Itself - 125-1113 Chute Release Cable is Routed from the Chute Control Lever or Quistick Assembly Across the Discharge Chute Rod 106-7283 and Fastened to the Chute Control Rod with the Factory Installed Cable Clamp By Using the Bolt Whole on the Chute Control Rod and Carriage Bolt 137-3056 and Nylon Lock Nut 137-3094 - Next the Cable Continues Its Route Directly to and Insert Into the Cable Anchor on the Chute Gear Mount 106-7257 and Retained Using the Anchor Screw Washer Assembly 46-6810. - 125-1113 Deflector Cable Assembly - Enables the Operator to Push on the Blue Lever/Button on the Control Handle or Quick stick, By Pushing the Button/Lever the Cable Pulls the Toothed Latch Away from the Discharge Chute Gear Allowing the Discharge Chute to Rotate Left to Right as the Operator Rotate the Quickstick Left to Right. Click on the Associated Part Numbers to Be Redirected.
- COMMON SERIES APPLICATIONS: Select Toro Standard Power MAX & Power MAX HD Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER MAX Series – Model Numbers – (* Model Numbers 38660, 38664, 38674, 38680, 38800, 38801, 38802, 38803, 38805, 38806, 38820, 38822, 38823, 38824, 38826, 38828, 38833, 38834, 38836)
