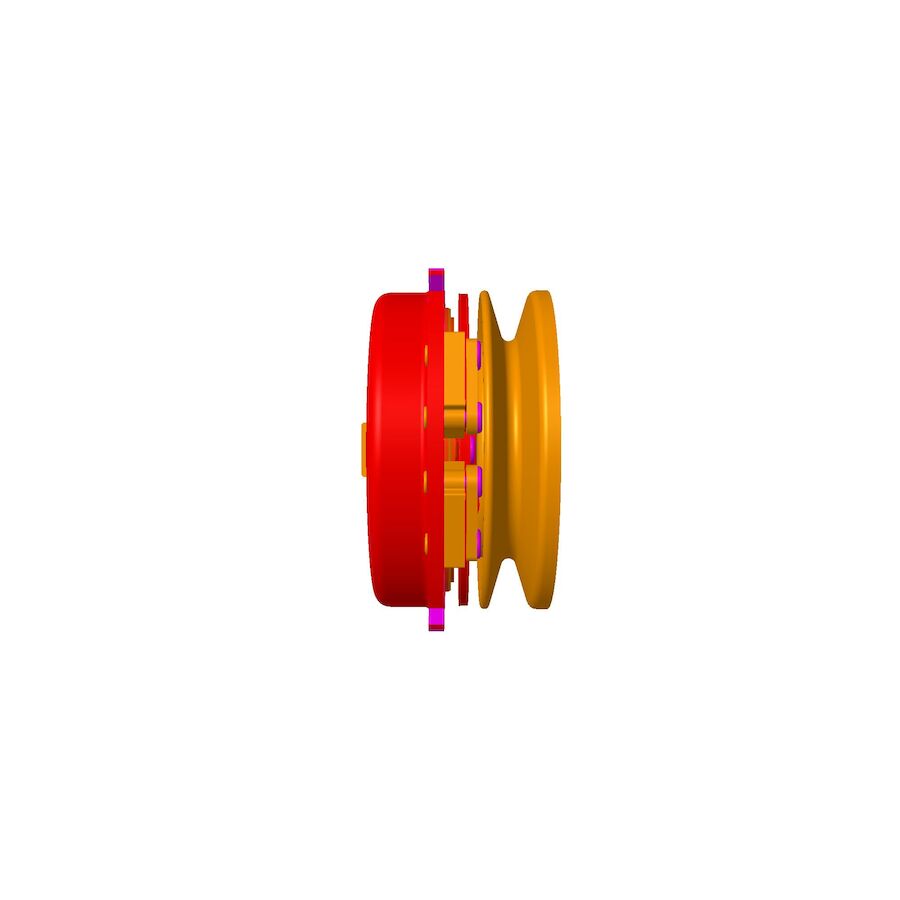

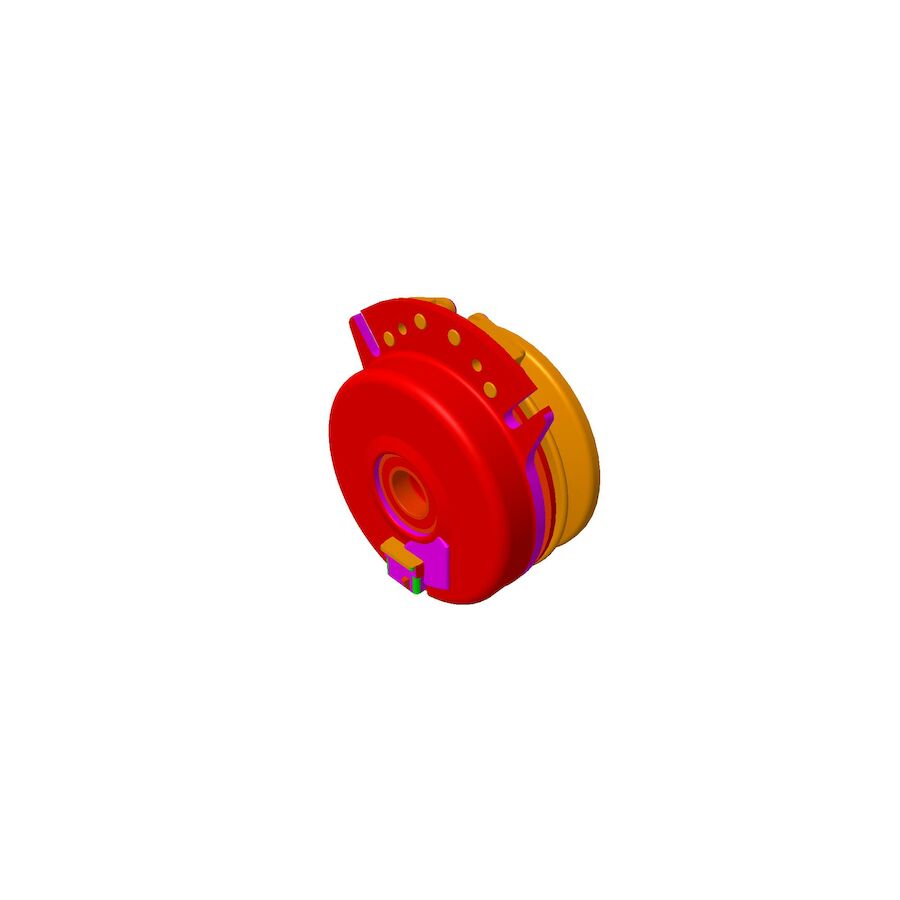

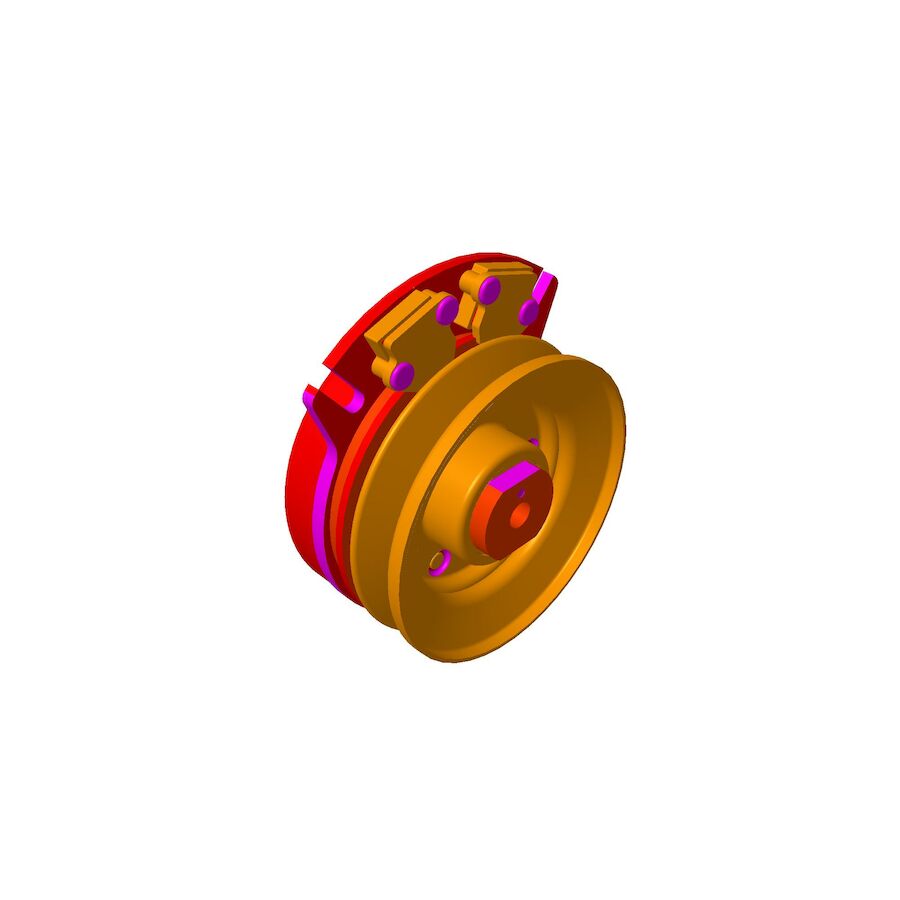

Toro OEM 125-0038 PTO Clutch Fits Early/Late Toro 32" Timecutter ZS, SS, SW Models.

Toro OEM 125 0038 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 125 0038 PTO Clutch is Designed for Toro Early/Late 32" Timecutter ZS, SS, SW Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.

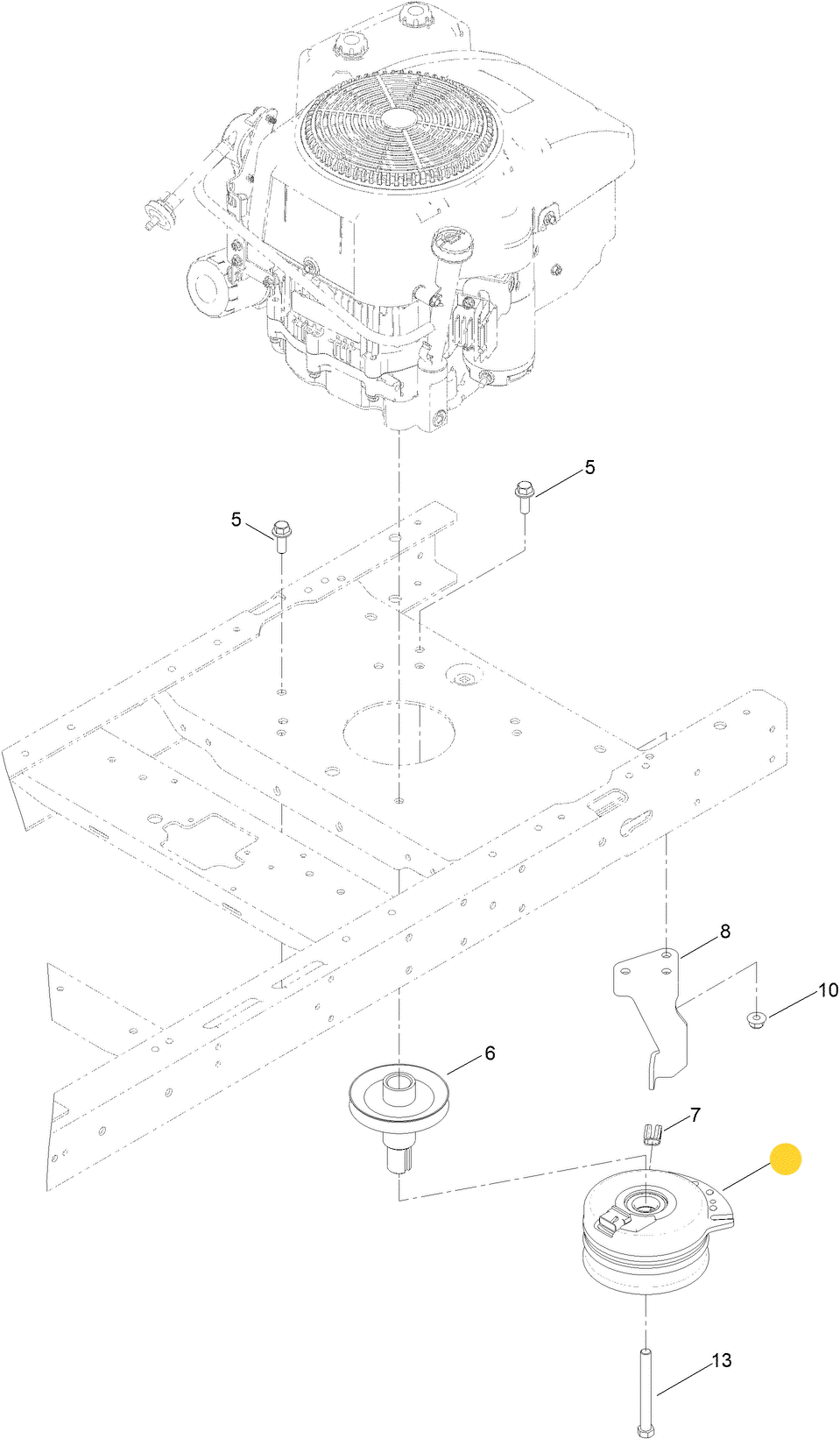

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 125-0038 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT





1. 3212-16 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
2. 120-2217 - PTO CLUTCH ISOLATOR - (Slides Over Retaining Lip on PTO Clutch and Over PTO Clutch Stop/Arbor Bracket) x1 Per PTO Clutch
3. 119-8884 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch - EXCEPTION OF MODEL 74682
4. 138-7275 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch - MODEL 74682 ONLY

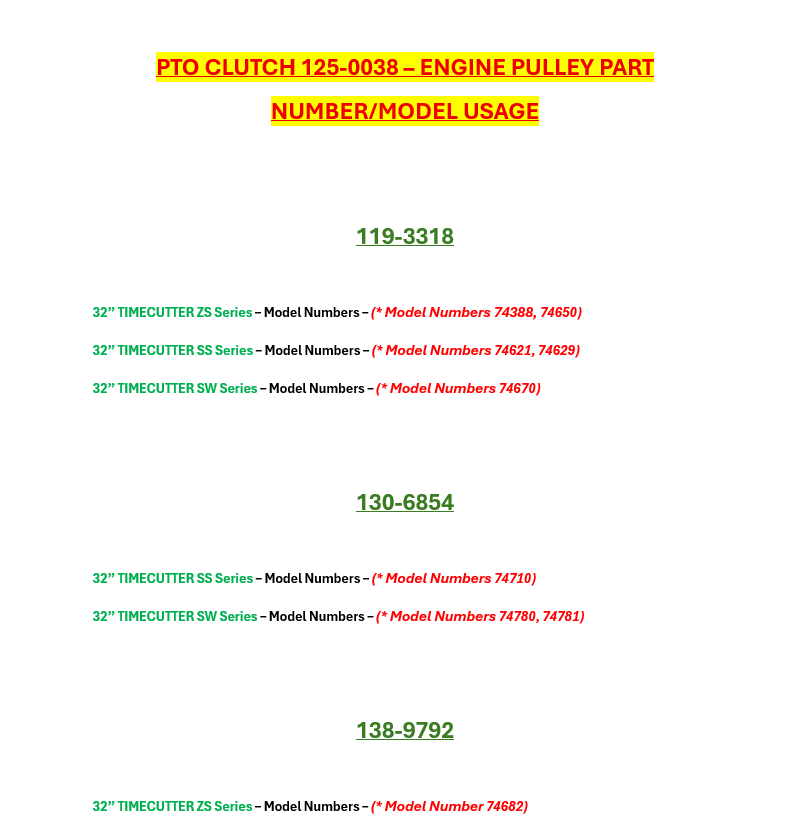

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES













Specification

Product Number:	1250038
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	7.200 LB (3.266 KG)





Model Fit:



32” TIMECUTTER MODELS - 125-0038 MODEL/SERIES USAGE



32” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74388 Serial Number 314000001 and Above, 74650, 74682)

32” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74621, 74629, 74710)

32” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74670, 74780, 74781)
