Description

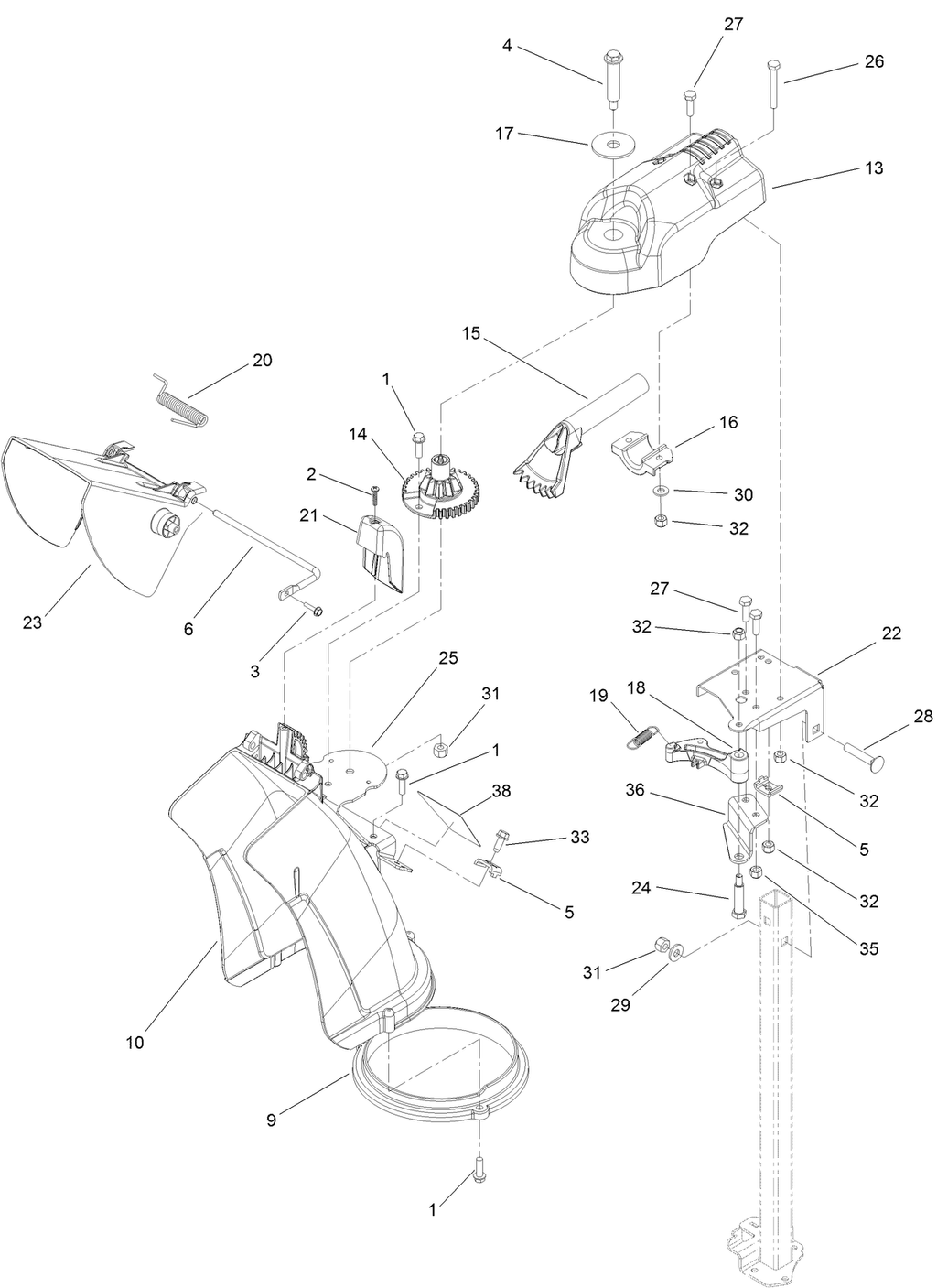

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 121-6815, 121 6815, 1216815

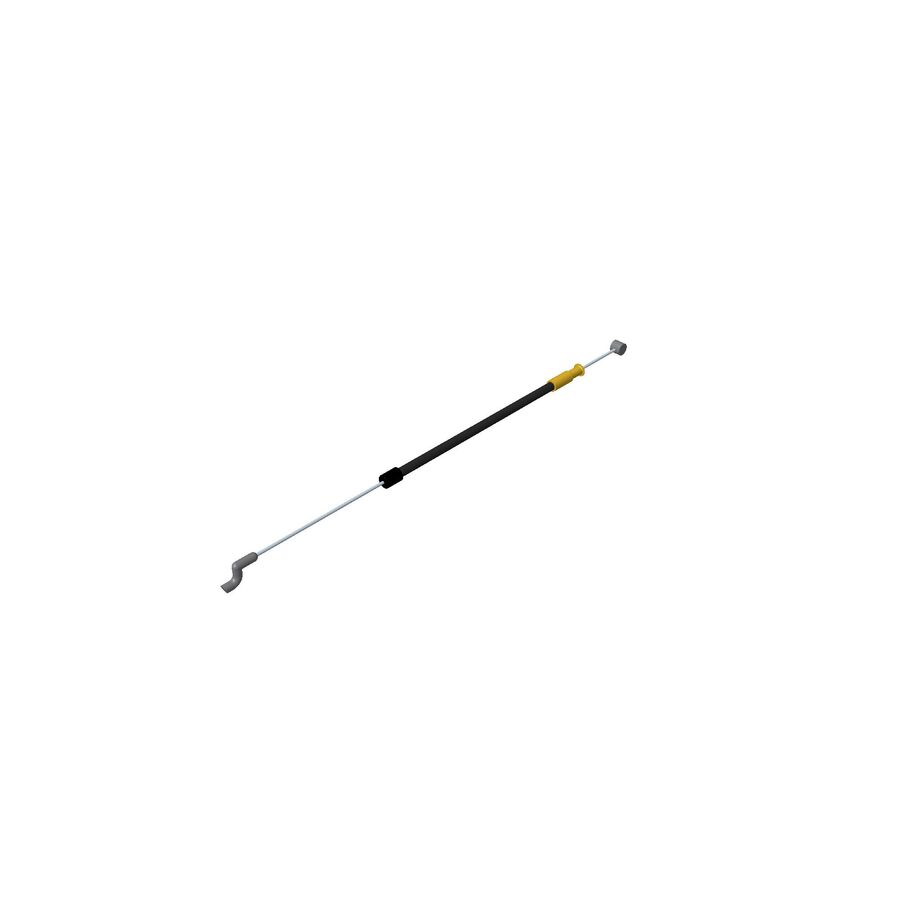

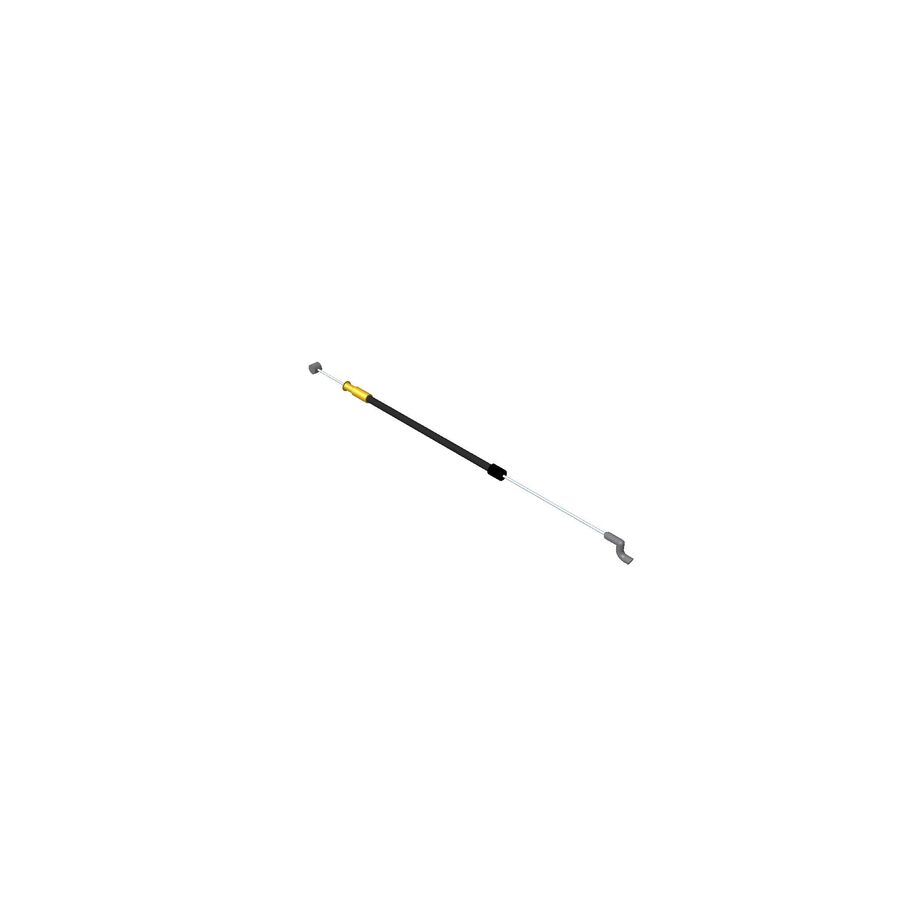

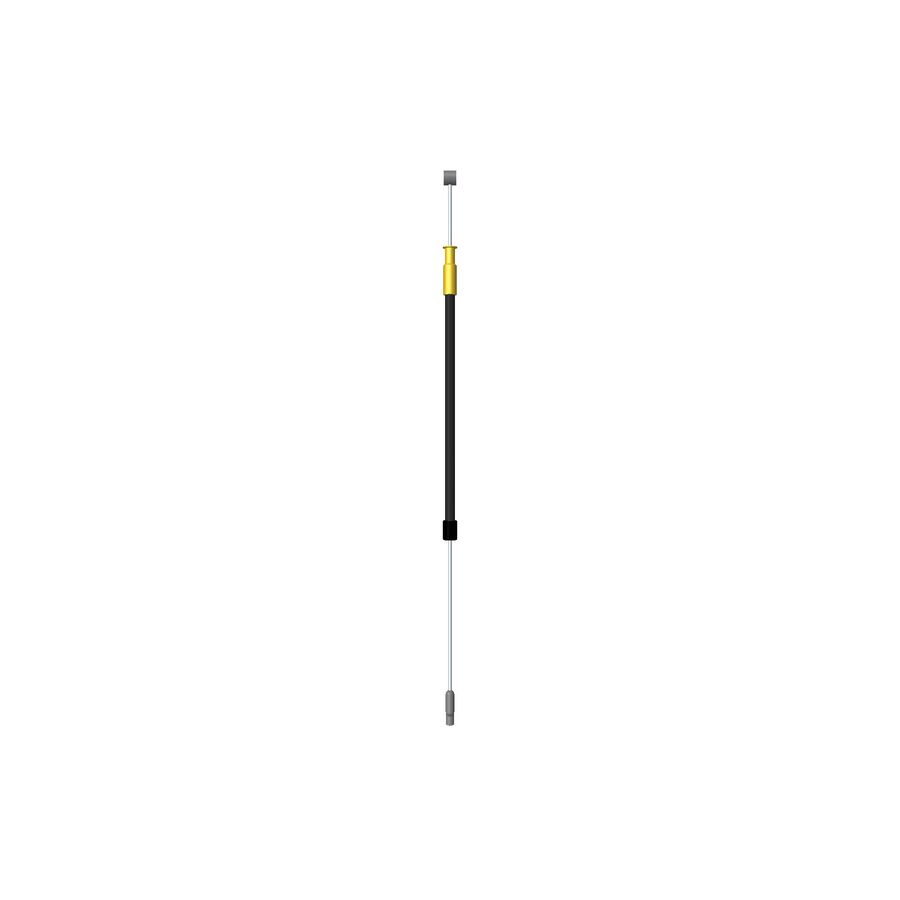

- PRODUCT TYPE: Discharge Chute Latch Release Cable
- SIZE: Length N/A - Width N/A - Height N/A - Weight 0.200 lbs.

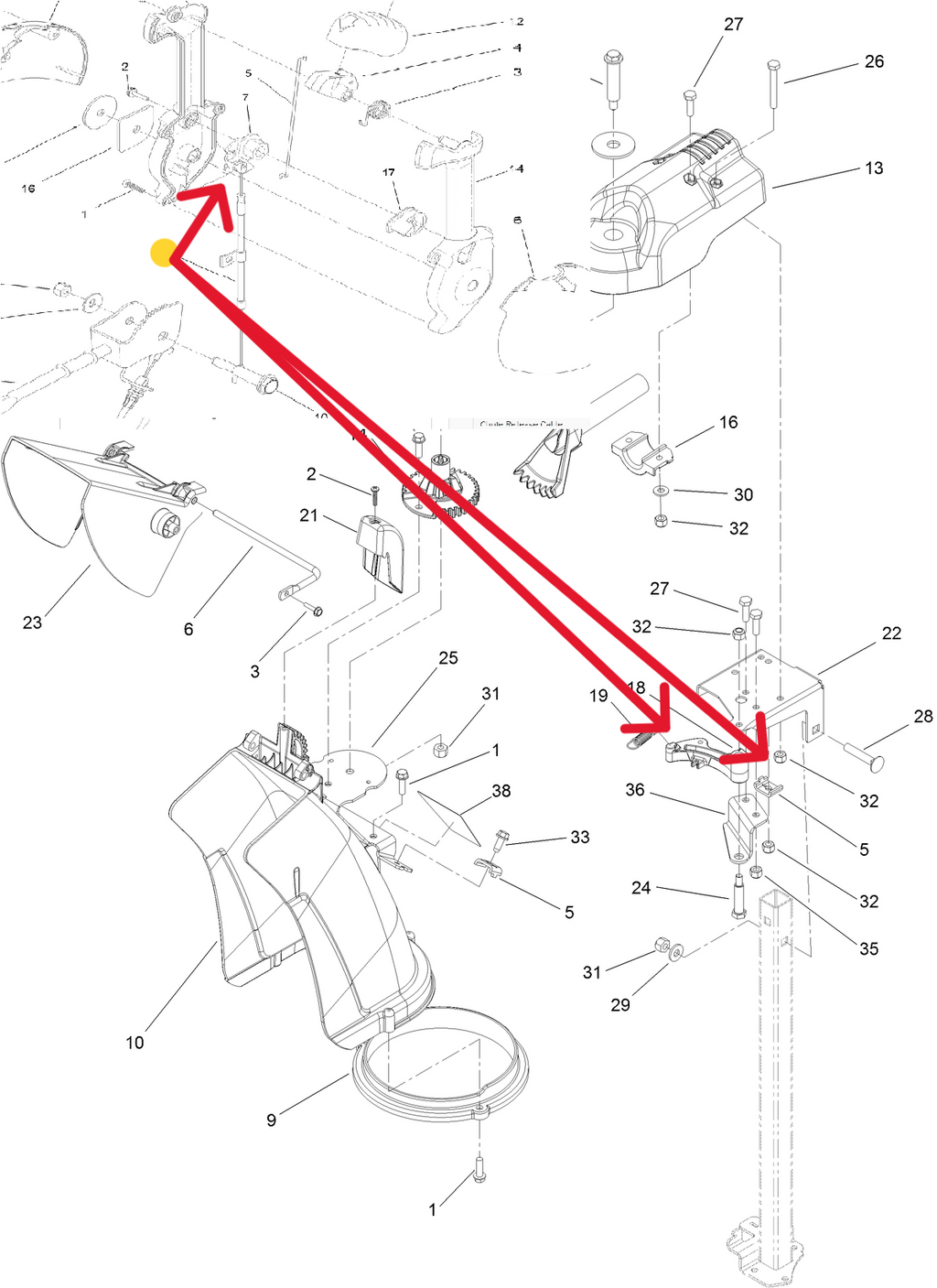

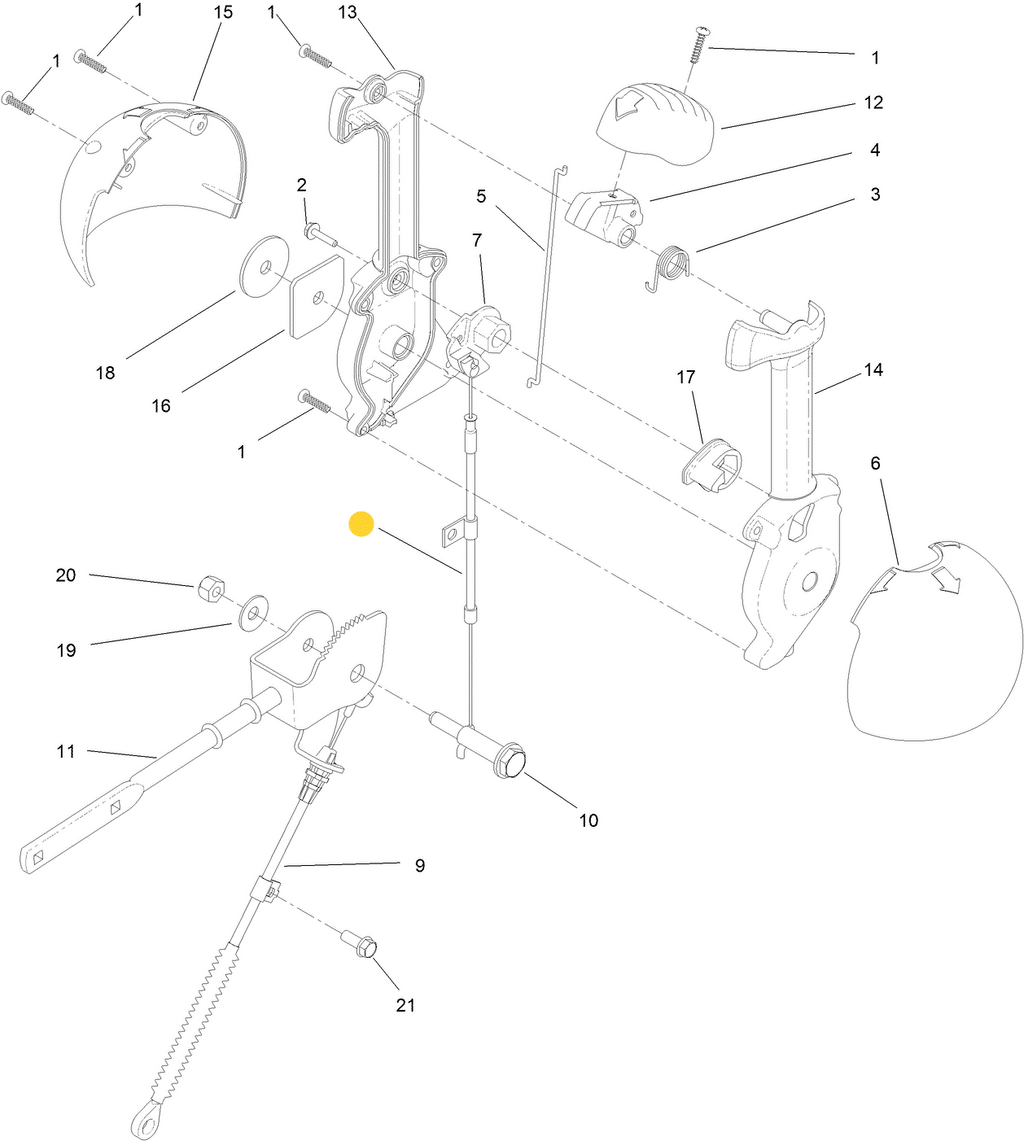

- NOTES & DETAILS: Toro OEM 121-6815 IS COMMINLY USED - 121-6815 Cable Ends - 121-6815 Chute Release Cable Attaches to the Chute Release Cable's QuickStick or Latch Lever 105-9988 that is Assembled inside the Handle or Quickstick assembly. The Lower End of the Chute Release Cable (With the Hook or Shoe) Attaches to the Quickstick Chute Latch 120-3869 (Latch is Responsible from Disabling the Discharge Chute to Rotation). - 121-6815 The Cable Itself - 121-6815 Chute Release Cable is Routed from the Chute Control Lever or Quistick Assembly Across the Discharge Chute Rod 120-3881 and Fastened to the Chute Control Rod with the Factory Installed Cable Clamp By Using the Bolt Whole on the Chute Control Rod and Carriage Bolt 3229-30 and Nylon Lock Nut 3296-73 - Next the Cable Continues Its Route Directly to and Insert Into the Removable Cable Clamp 136-7191 Mounted on the Chute Latch Bracket 121-1207-03 and Retained Using the Anchor Hex Head Bolt 321-5 and Nylon Lock Nut 3296-42. - 121-6815 Deflector Cable Assembly - Enables the Operator to Push on the Blue Lever/Button on the Control Handle or Quick stick, By Pushing the Button/Lever the Cable Pulls the Toothed Latch Away from the Discharge Chute Gear Allowing the Discharge Chute to Rotate Left to Right as the Operator Rotate the Quickstick Left to Right. Click on the Associated Part Numbers to Be Redirected.
- COMMON SERIES APPLICATIONS: Select Toro Standard Power MAX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER MAX Series – Model Numbers – (* Model Numbers 37771, 37772, 37775, 37777, 37779, 37780, 37781, 37793, 37797, 38813, 38815, 38816, 38817)
