Description

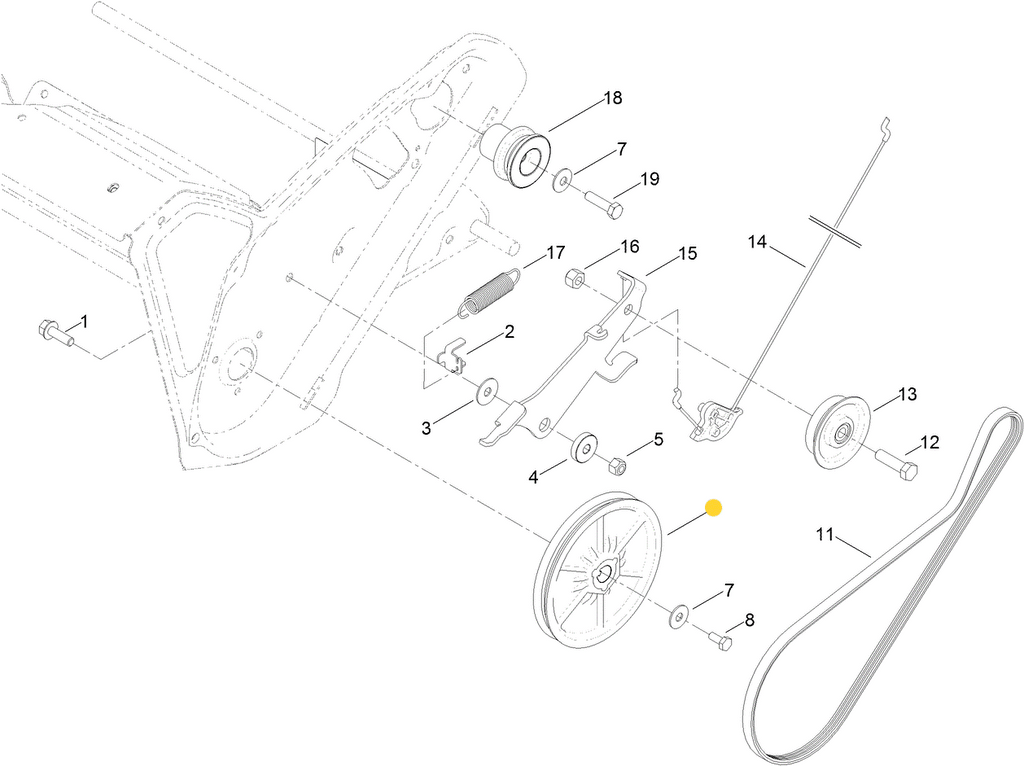

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 121-6624, 121 6624, 1216624

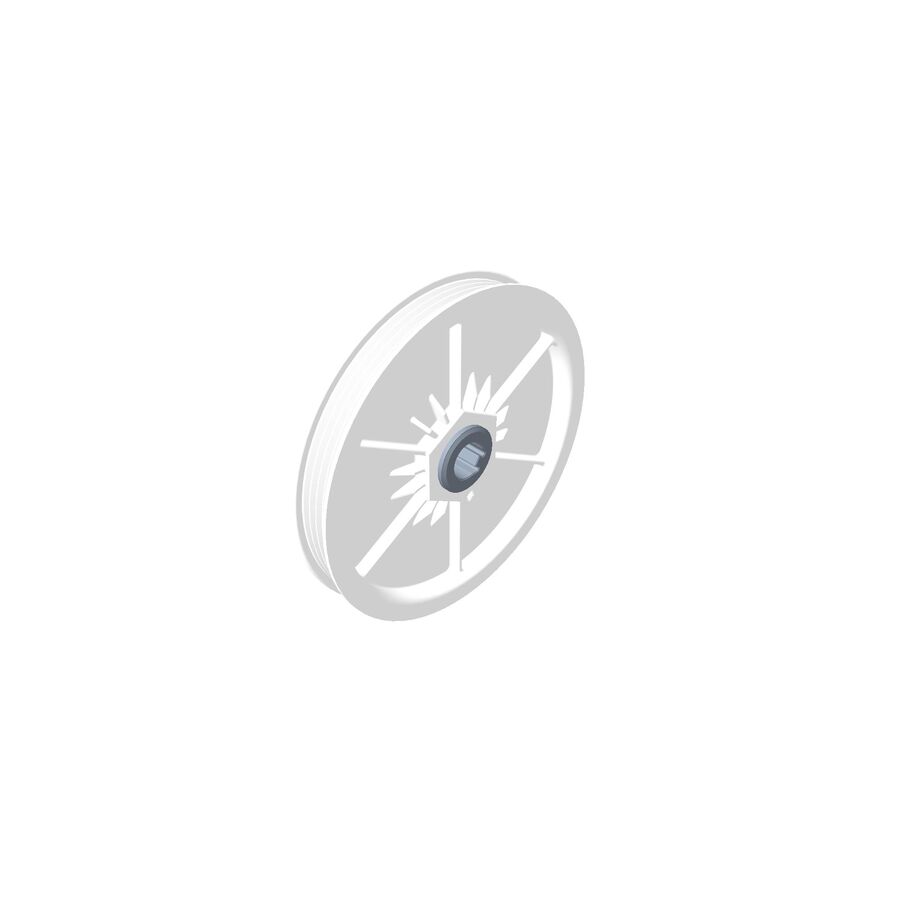

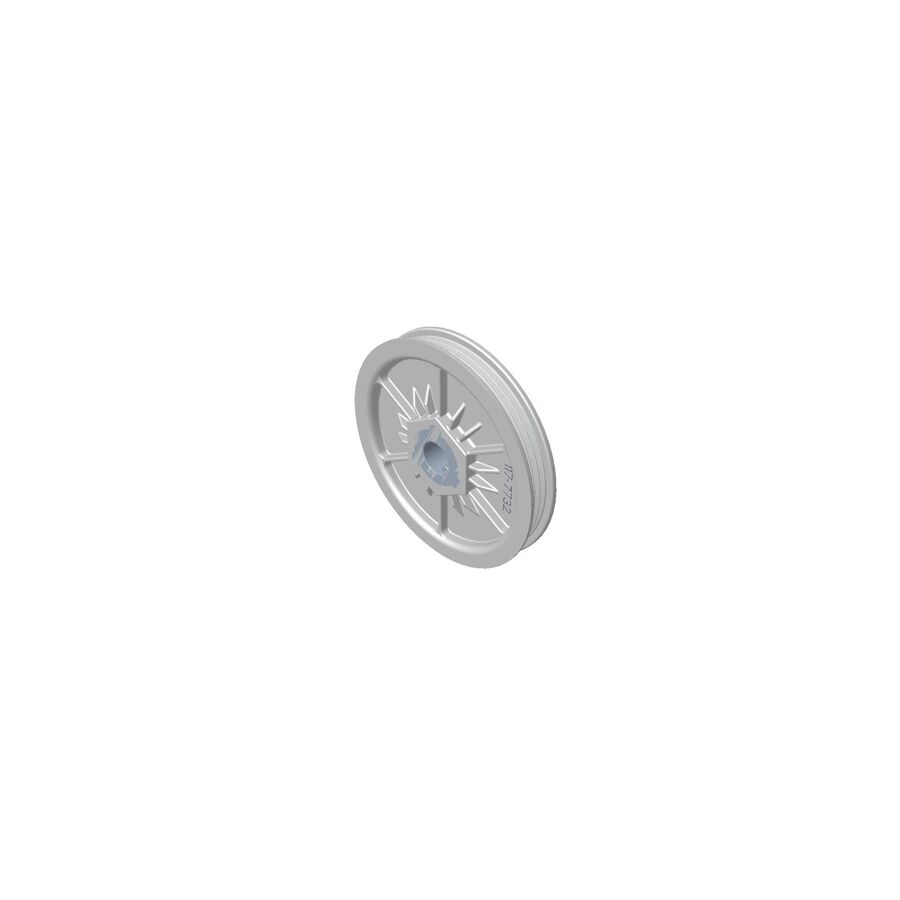

- PRODUCT TYPE: Auger/Rotor Pulley Assembly
- SIZE: Length 5.700 in. - Width 5.700 in. - Height 0.700 in. - Weight 0.442 lbs.
- NOTES & DETAILS: Toro OEM 121-6624 IS COMMINLY USED - 121-6624 Is Assembled Directly to the Auger/Rotor Assembly Shaft and Enables the Auger/Rotor to Rotate when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle.
- COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38568)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38741, 38742, 38743, 38744, 38751)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 121-6624 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 110-9381 or 137-3003 - HEX HEAD BOLT (Retains 121-6624 Auger/Rotor Pulley to the Auger/Rotor Assembly Shaft) x1 Per Auger/Rotor Pulley *Same Bolt Size for Both Bolt Part Numbers (1/4 x 5/8 - 20).
- 3290-456 - BELLEVILLE WASHER (Used Between 121-6624 Auger/Rotor Pulley and 137-3003 Hex Head Bolt - When Tightened or Compressed it Applies Pressure on the Bolt Head and Pulley Not Allowing the Bolt to Rotate as Easy if the Augers where to come in Contact with anything and Forcibly Stopped causing Reversal Rotational Torque that Could Loosen the Pulley) x1 Per Auger/Rotor Pulley
- 121-6622 - AUGER/ROTOR DRIVE BELT (Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley) x1 Per Snowblower Unit
