Toro OEM 121-5726 Black/Negative Battery Cable (8 Gauge Wire) Fit Select Late 34", 42", 50", 54", 60" Timecutter 4200, 5000, MX, ZS, SS, SW, SWX, Standard, MyRide Models.

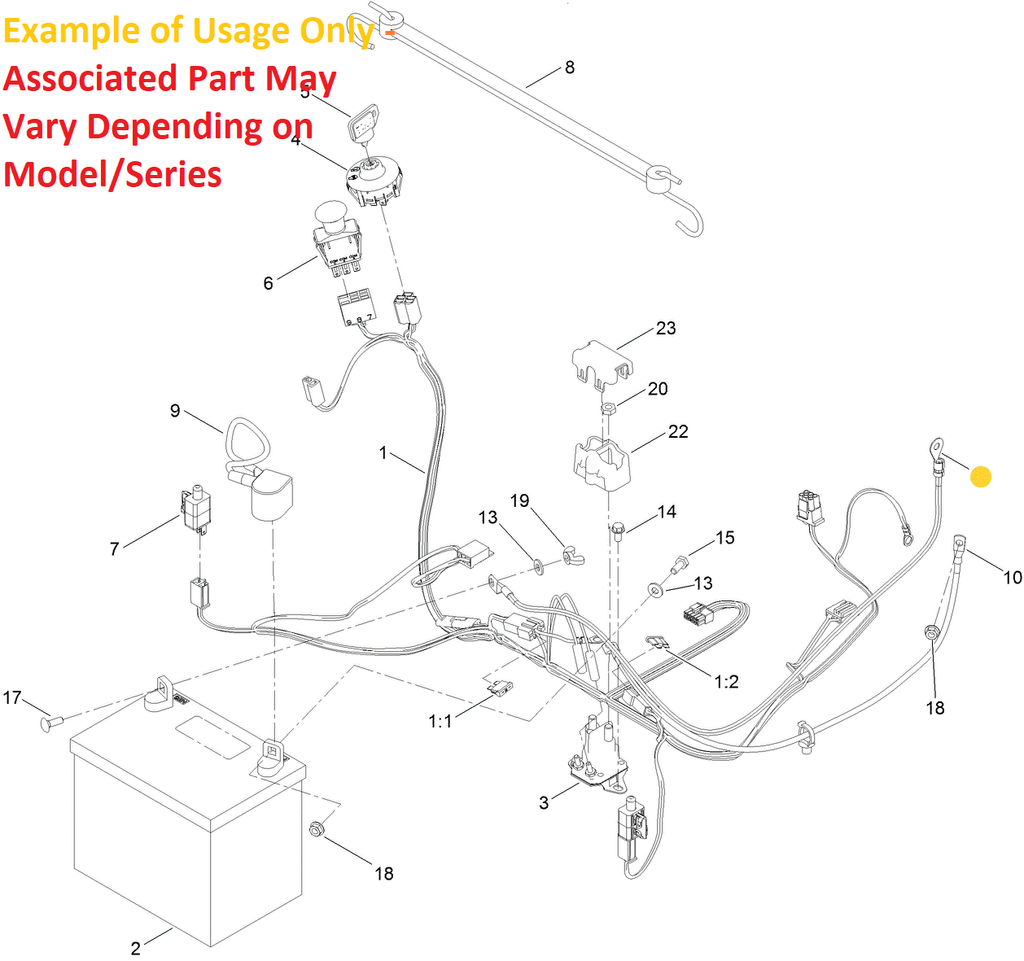

Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.



• PRODUCT NUMBER AND VARIATIONS: 121-5726, 121 5726, 1215726
• PRODUCT TYPE: TORO OEM BLACK/NEGATIVE BATTERY CABLE
• NOTES & DETAILS: Toro OEM 121-5726 Black Negative Battery Cable is Primarily Used Between the Battery and the Engine (Most Commonly Fasten to the Engine Starter Mounting Bolt's) or Mower Framing. 121 5726 Serves the Purpose of Grounding the Engine and Other Mower Components to The Negative Battery Current Enabling the Closing and Opening of Electrical Circuits as Requested by the Ignition Switch, Electrical Solenoid and Other Components. 121 5726 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
• SIZE: -- in.
• COMMON SERIES APPLICATIONS: Select Late 34" Timecutter Standard Model - Select Late 42" Timecutter SW, SS, MX, ZS, 4200, My-Ride, Standard Models - Select Late 50" Timecuter SWX, SS, MX, 5000 Models - Select Late 54" Timecutter SS, My-Ride Models - Select Late 60" Timecutter Standard, My-Ride Models.



• ASSOCIATED PARTS CHART:



BATTERY

• TORO Uses a Different Bolt System However We here @ Hilly Ridge Would Recommend the Following Hardware to Ensure a Stronger Grounding Connection and to Eliminate Potential Frustrations. Battery Fasteners Only List Due To Variation on Engine Options - Most Ground Source are Connected directly to the Engine Starter Assembly or The Engine Fastner Bolts to Find Starter Assembly Fastners Look Under the Engine Individual Engine Make and Model.





1. 137-3041 - HEX HEAD BOLT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Eyelet or Post
2. 119-8952 - FLAT WASHER (Eliminates the Head of the Hex Head Bolt from being drawn in to the softer Battery Post and Supports the Battery Post Bolt) x1 Per Positive Battery Post Bolt
3. 139-2575 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Post





• MODEL FIT CHART:



TIMECUTTER



TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 75747

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679

TIMECUTTER 42” MX Series – Model Numbers – 74642, 74691

TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683

TIMECUTTER 42” SS Series – Model Numbers – 74627, 74633, 74636, 74721

TIMECUTTER 42” SW Series – Model Numbers – 74785



TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” MX Series (MOWER DECK) – Model Numbers – 74695, 74770, 74773

TIMECUTTER 50” SS Series (MOWER DECK) – Model Numbers – 74637, 74732

TIMECUTTER 50” SWX Series (MOWER DECK) – Model Numbers – 74798



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75756

TIMECUTTER 54” SS Series (MOWER DECK) – Model Numbers – 74740



TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763
