Toro OEM 121-1759 Spacer contains a wide Range of Usages.

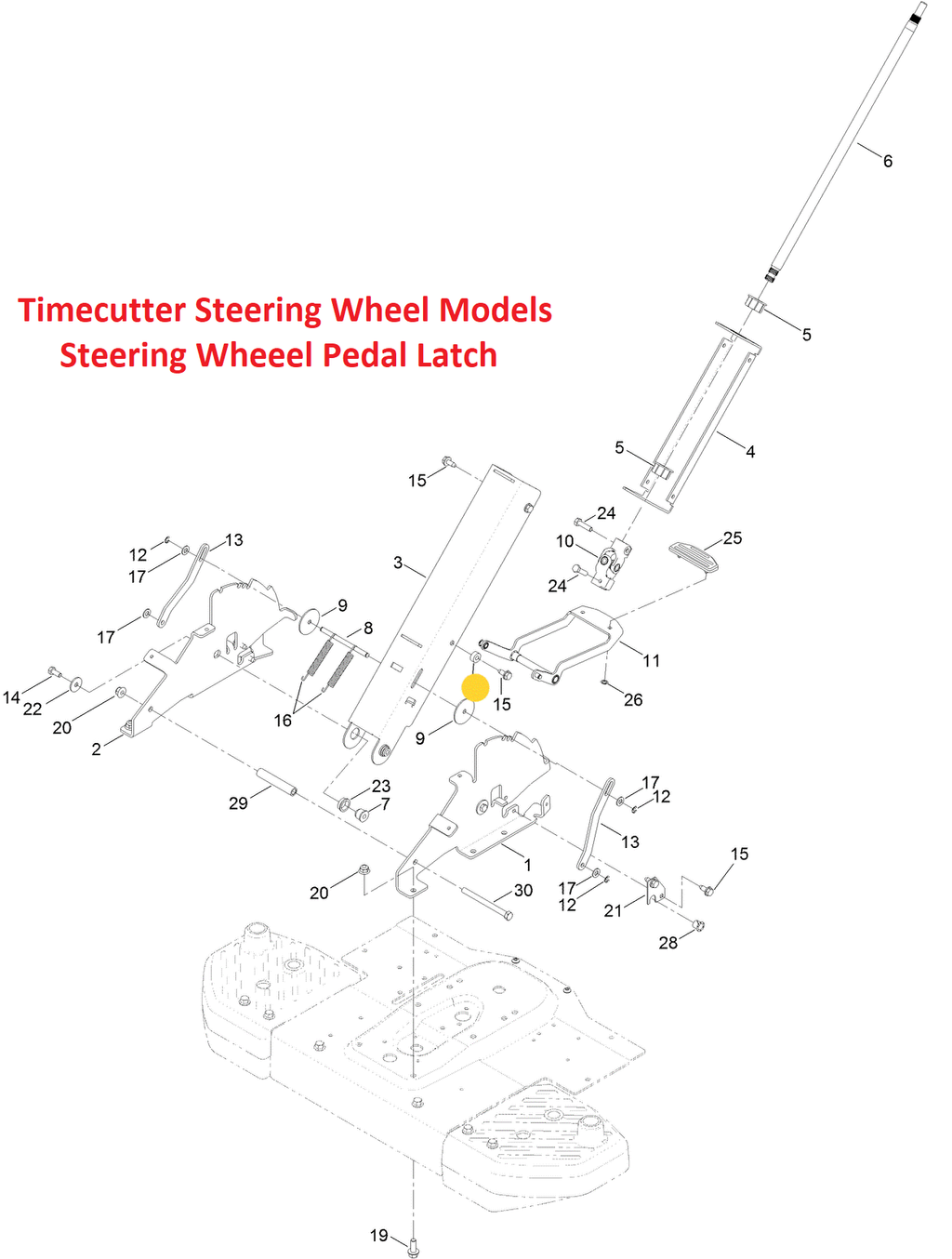

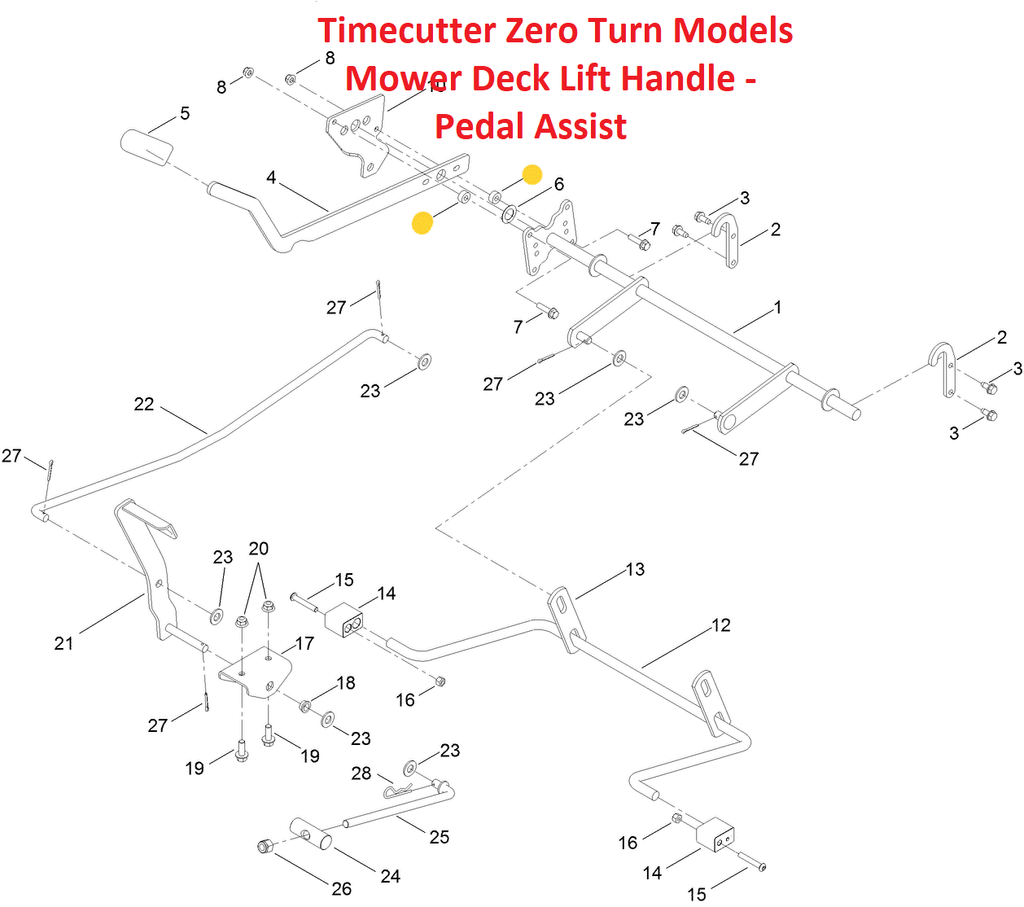

Toro OEM 121 1759 Spacer has a wide range of Usage on a Wide Range of Toro Equipment. Toro Oem 121 1759 is most Commonly used in Early/Late Timecutter Zero Turn Models on the Mower Deck Lift Handle when a Foot-Pedal Assist is Installed, on Timecutter Steering Wheel Models on Steering Wheel Adjustment Pedal and many More Applications. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







Specification

Product Number:	1211759
Brand:	Toro
Length:	0.330 IN (0.838 CM)
Width:	0.750 IN (1.905 CM)
Height:	0.750 IN (1.905 CM)
Weight:	0.004 LB (0.002 KG)





Model Fit:



* Factory Install Models with Numerous Applications:

3401, 3402, 3403, 3404, 4384, 31598, 31599, 31698, 31699, 41707, 41708, 74387, 74390, 74395, 74626, 74632, 74636, 74638, 74640, 74641, 74642, 74643, 74670, 74675, 74676, 74680, 74750, 74760, 74770, 74771, 74774, 74777, 74780, 74781, 74784, 74785, 74787, 74788, 74790, 74793, 74795, 74797, 74798



Optional Pedal Assist Models - Installed as Mower Deck Lift Handle Spacer:





TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793





TIMECUTTER 60” MX Series – Model Numbers – 74777
