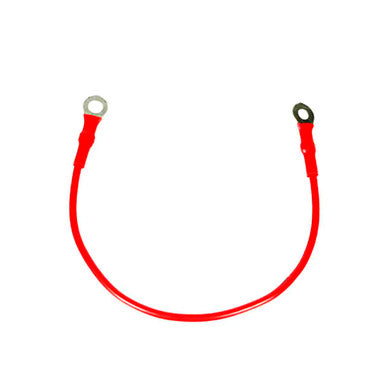

Toro OEM 121-0711 Red/Positive Battery Cable (8 Gauge Wire - 5/16" Eyelet/Bolt Whole - 1/4" Eyelet/Bolt Whole) Fits Select Late Timecutter Models - Current Timecutter MAX Models - Current Titan and Titan MAX Models (I-Beam Framing).

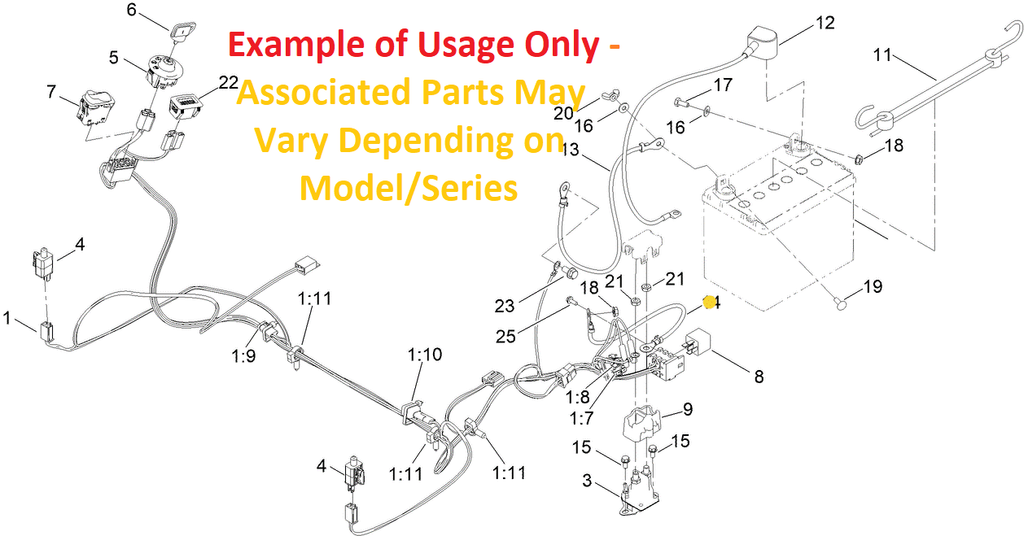

Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.



• PRODUCT NUMBER AND VARIATIONS: 121-0711, 121 0711, 1210711
• PRODUCT TYPE: TORO OEM RED/POSITIVE BATTERY CABLE
• NOTES & DETAILS: Toro OEM 121-0711 Red Positive Battery Cable is Primarily Used Between the Electrical Solenoid and the Engine's Starter Assembly. 121 0711 Main Purpose is Service by Transferring Electrical Current from the Solenoid to the Engine's Electric Starter under the Direction and Functions of the Ignition Switch and Electric Solenoid. 121 0711 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
• SIZE: 14 in.
• COMMON SERIES APPLICATIONS: Toro All Current Timecutter MAX Models - Select Late Timecutter Models (Review the Model Fit Chart for More Details) - All Current Titan and Titan MAX Models (Models With I-Beam Framing)



• ASSOCIATED FASTNER PARTS CHART:



STARTER ASSEMBLY



1. 139-2575 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Engine Starter Assembly) x1 Per Engine Starter Assembly



SOLENOID



1. 117-1197 - SOLENOID (Retains the One End of the Battery Wire and Transfers Battery Current with the Different Functions of the Ignition Switch and Individual Safety Switch Circuits) x1 Per Unit
2. 139-2580 - NUT (Retains Solenoid Cable End or Eyelet to the Solenoid Post) x1 Per Solenoid Post



• MODEL FIT CHART:



TIMECUTTER



TIMECUTTER 32” SS Series – Model Numbers – 74621, 74629, 74710

TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781

TIMECUTTER 32” ZS Series – Model Numbers – 74388, 74650, 74682



TIMECUTTER 34” MX Series – Model Numbers – 74750



TIMECUTTER 42” SS Series – Model Numbers – 74627, 74628, 74633, 74616, 74636, 74705, 74711, 74720, 74721, 74723, 74725, 74726

TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788

TIMECUTTER 42” SWX Series – Model Numbers – 74787

TIMECUTTER 42” ZS Series – Model Numbers – 74655, 74657, 74665, 74667, 74684, 74686

TIMECUTTER 42” MX Series – Model Numbers – 74642, 74760, 74765, 74766

TIMECUTTER MAX 42” (STANDARD) Series – Model Numbers – 77402

TIMECUTTER MAX 42” (My-Ride) Series – Model Numbers – 77403



TIMECUTTER 50” ZS Series – Model Numbers – 74661, 74688

TIMECUTTER 50” MX Series – Model Numbers – 74770, 74771, 74775, 74778, 74768, 74773, 74774

TIMECUTTER 50” SS Series – Model Numbers – 74637, 74731, 74732

TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790

TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505

TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502



TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741

TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506

TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507



TIMECUTTER 60” MX Series – Model Numbers – 74777

TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601

TIMECUTTER MAX  60” (My-Ride) Series – Model Numbers – 77602, 77603



TITAN



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)

54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)

60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
