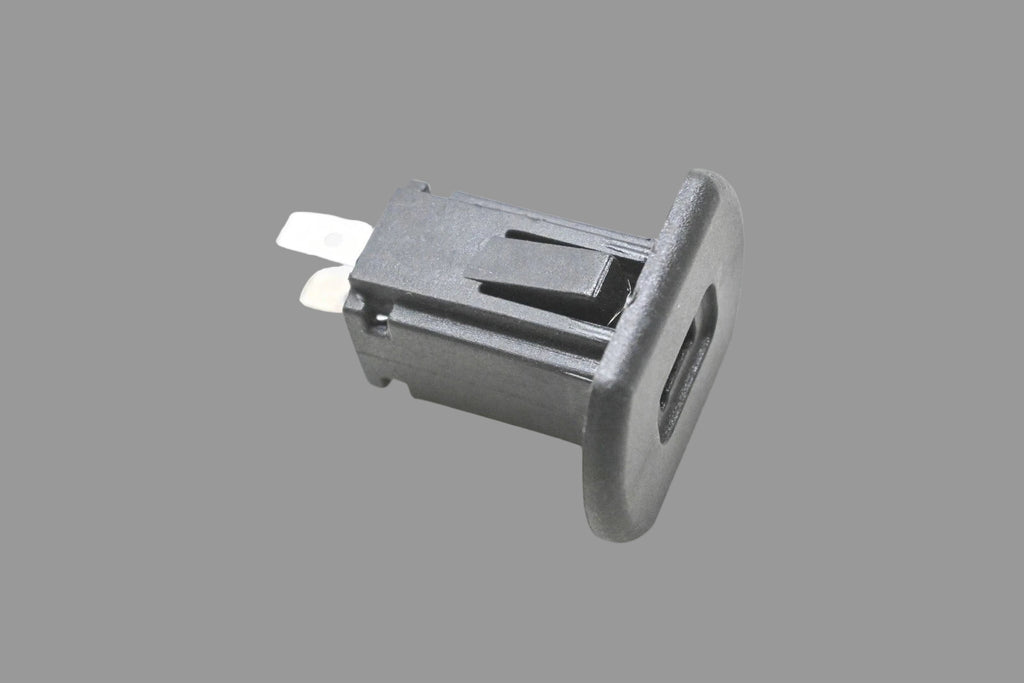

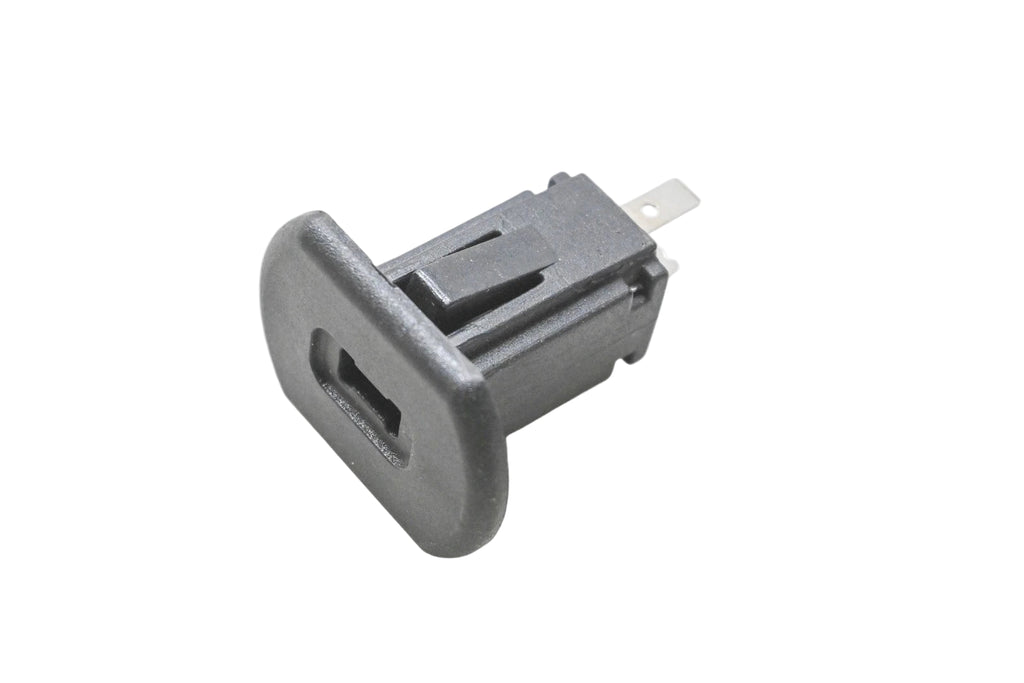

Toro OEM 121-0283 Ignition or Stop/Run Switch Fits Power Clear, E Power Clear, Snow Master, Snow Thrower, Snow Max, Power Max and Power TRX Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 121-0283, 121 0283, 1210283
• PRODUCT TYPE: IGNITION or START/STOP KEY SWITCH
• SIZE: Weight 0.026 lbs.

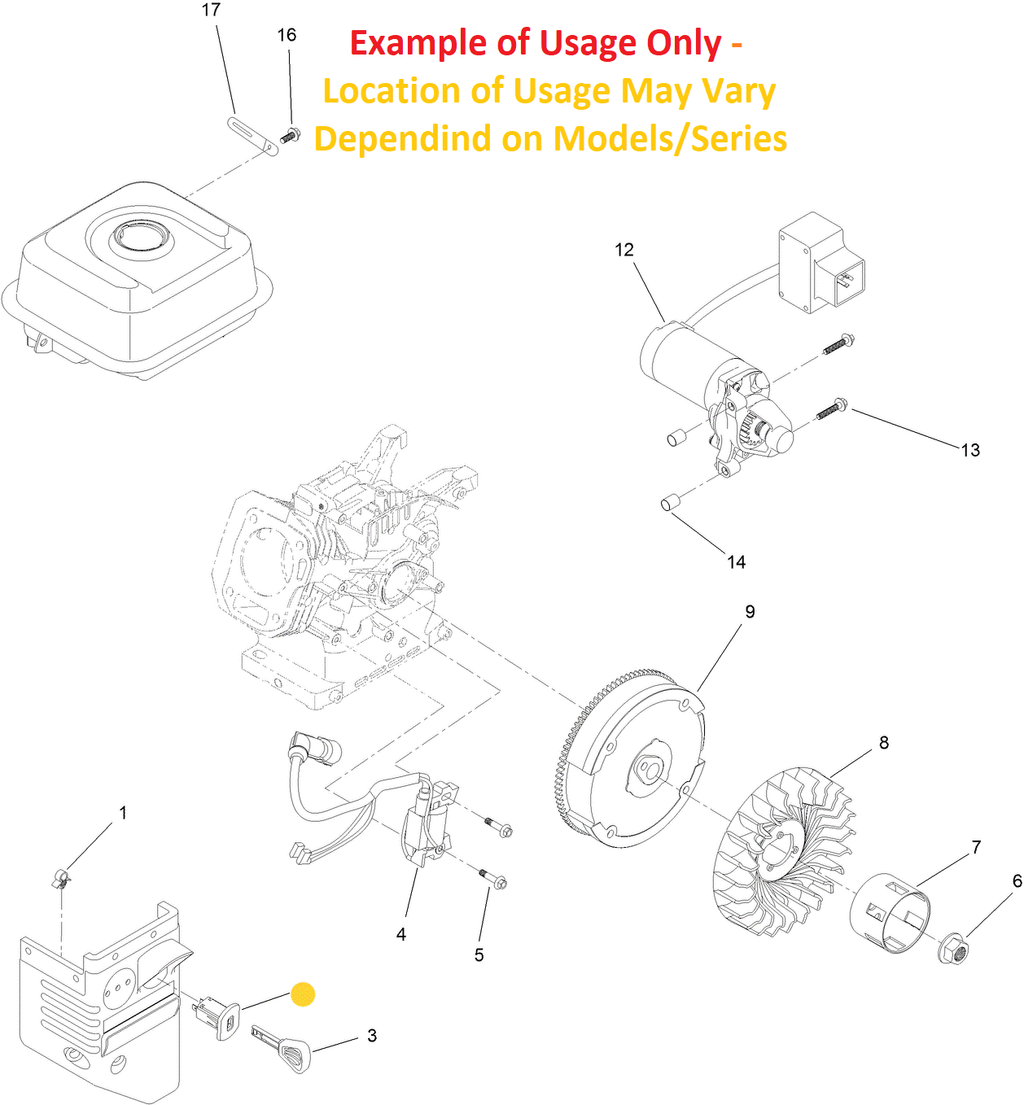

• NOTES & DETAILS: Toro OEM  121-0283 IS COMMINLY USED - 121-0283 Start/Stop Ignition Switch is a Made to Fit for Toro Snowblower Engine Shrouds and Typically Inserts into the Carburetor Shroud. 121-0283 Start/Stop Ignition Switch Contains a Simple 2-Point Functionality. Functionality of 121-0283 Start /Stop Ignition Switch is - Key in = Neutralizes Ground and Enable the Engine to Start and Run - Key out = Established Ground and Grounds out the Ignition Coil, Eliminating Spark to the Spark Plug and Shutting the Engine Down. For Additional reference Regarding Ignition or Sop/Start Keys Refer to the Additional Part Reference Charts Below.
• COMMON SERIES APPLICATIONS: Toro Select Power Clear, E Power Clear, Snow Master, Snow Thrower, Snow MAX, Power MAX and Power TRX Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



POWER CLEAR Series – Model Numbers – (* Model Numbers 38752, 38753, 38754, 38755, 38756, 38757)



SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711, 38712)



POWER MAX Series – Model Numbers – (* Model Numbers 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38660, 38661, 38662, 38663, 38664, 38674, 38801, 38802, 38805, 38806, 38811, 38812, 38813, 38814, 38815, 38819, 38820, 38822, 38823, 38824, 38826, 38830, 38833, 38834, 38836, 38838, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)



POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)



SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 121-0283 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 117-7728 - INDIVIDUAL KEY (Same as 119-1929 Except it Comes as an Individual Key) x1 Per Ignition Switch
2. 119-1929 - PAIR of KEYS with LANYARD (Same as 117-7728 Except it Comes as a set of Two Key with a Lanyard) x1 Per Ignition Switch
