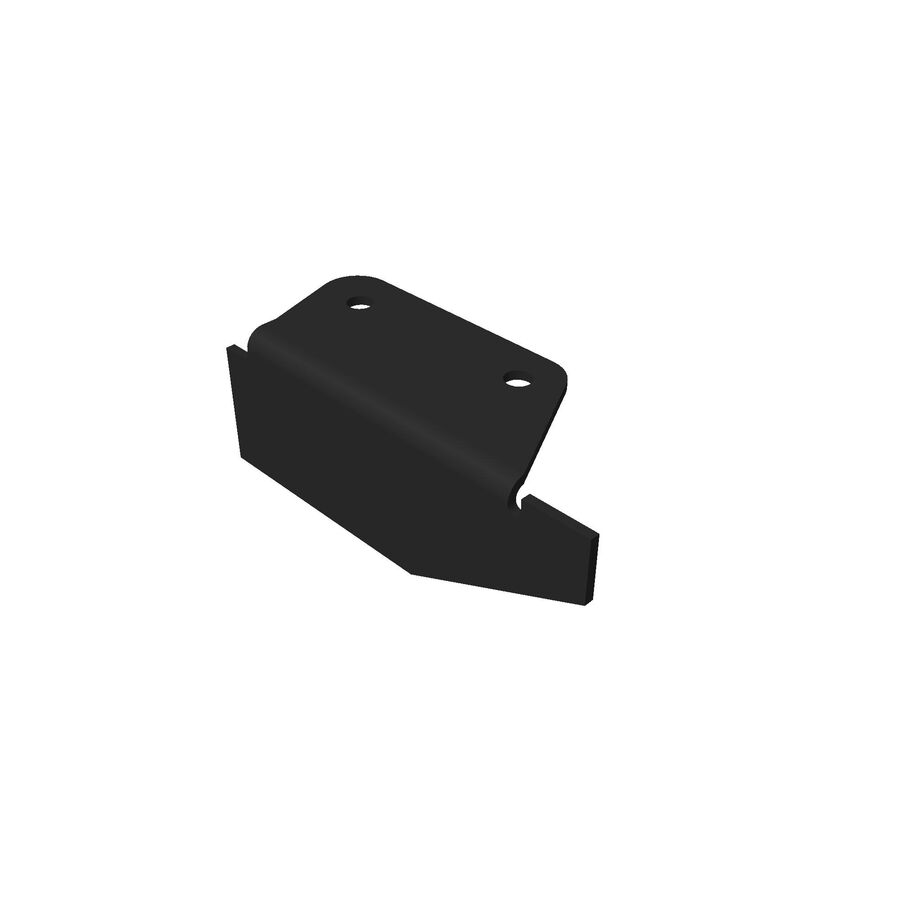

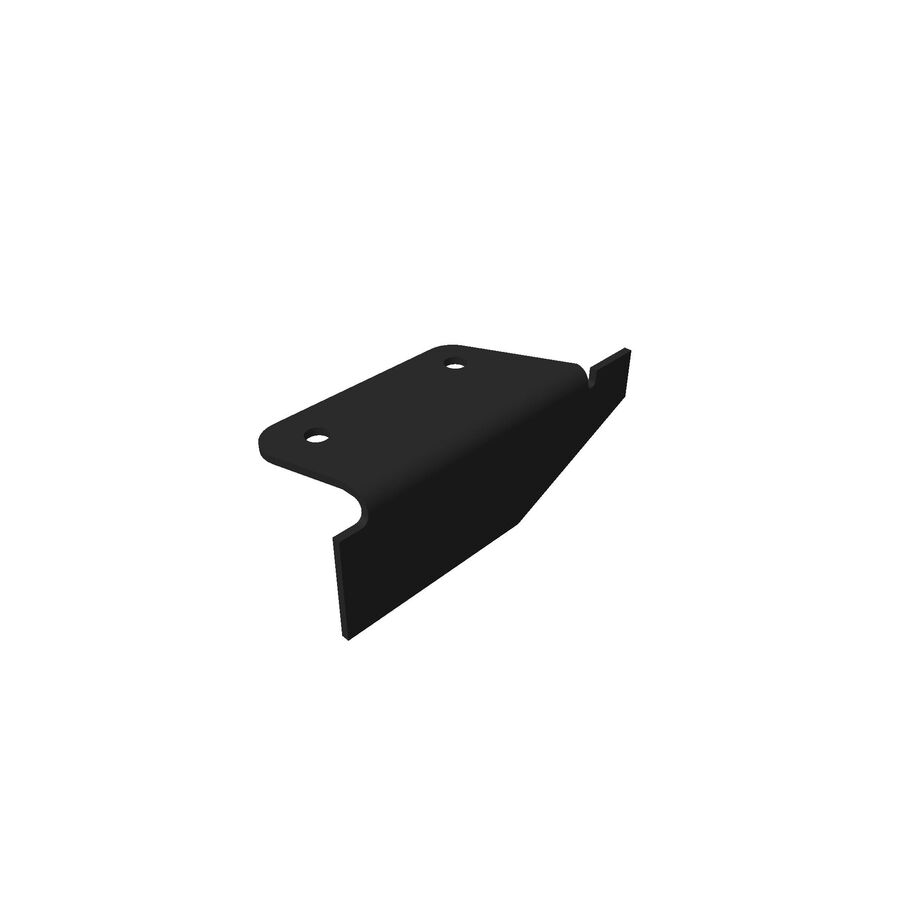

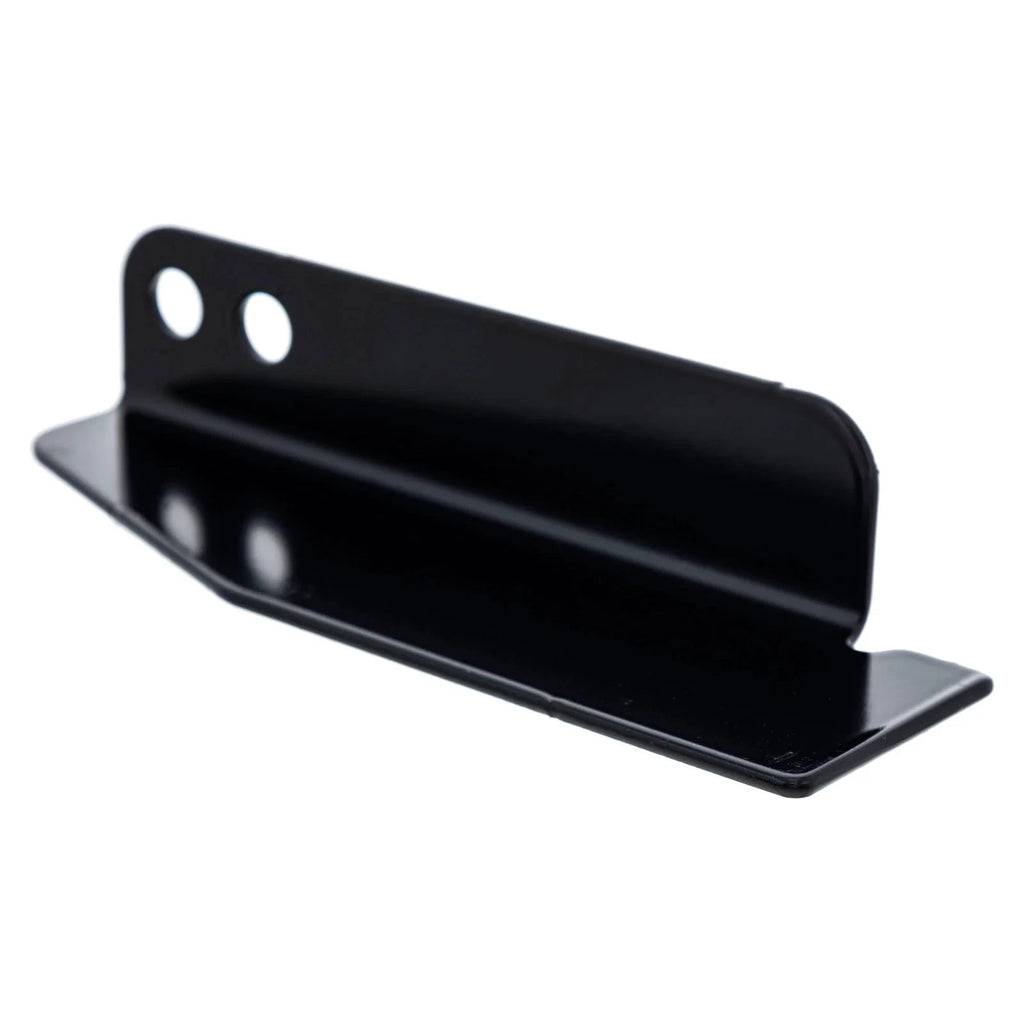

Toro OEM 120-7951-03 Discharge Baffle Fits Select Late 42" and 50" Timecutter ZS, MX, SWX Model (Models with Welded Reinforced or Fabricated Mower Decks).

Toro OEM 120 7951 03 Mower Deck Discharge Baffle is used under or inside the Mower Deck by the Discharge Opening. Toro 120 7951 03 Discharge Baffle is used for the Purpose of Redirecting or Interrupting Air Flow and Grass, Stemming Circular Air Flow Toward the Discharge Opening. Toro OEM 120-7951-03 is Designed to fit Select Late 42" & 50" Timecutter ZS, MX, SWX Models (Select Models with Fabricated or Welded Reinforced Mower Decks). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS FOR PART NUMBER 120-7951-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 3230-22 - CARRIAGE BOLT - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck
2. 104-8300 - NYLON LOCK NUT - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck Discharge Baffle








Specification

Product Number:	120795103
Brand:	Toro
Length:	5.500 IN (13.970 CM)
Width:	2.000 IN (5.080 CM)
Height:	1.750 IN (4.445 CM)
Weight:	0.512 LB (0.232 KG)





Model Fit:



TIMECUTTER



TIMECUTTER 42” SWX Series – Model Numbers – (* Model Numbers 74787)

TIMECUTTER 42” ZS Series – Model Numbers – (* Model Numbers 74390)

TIMECUTTER 42” MX Series – Model Numbers – (* Model Numbers 74640, 74642, 74760, 74765, 74766)



50” TIMECUTTER SWX Series – Model Numbers – (* Model Numbers 74797, 74798, 74795)

50” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74395)

50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74641, 74643, 74727, 74768, 74770, 74771, 74772, 74773, 74774, 74775, 74776, 74778)
