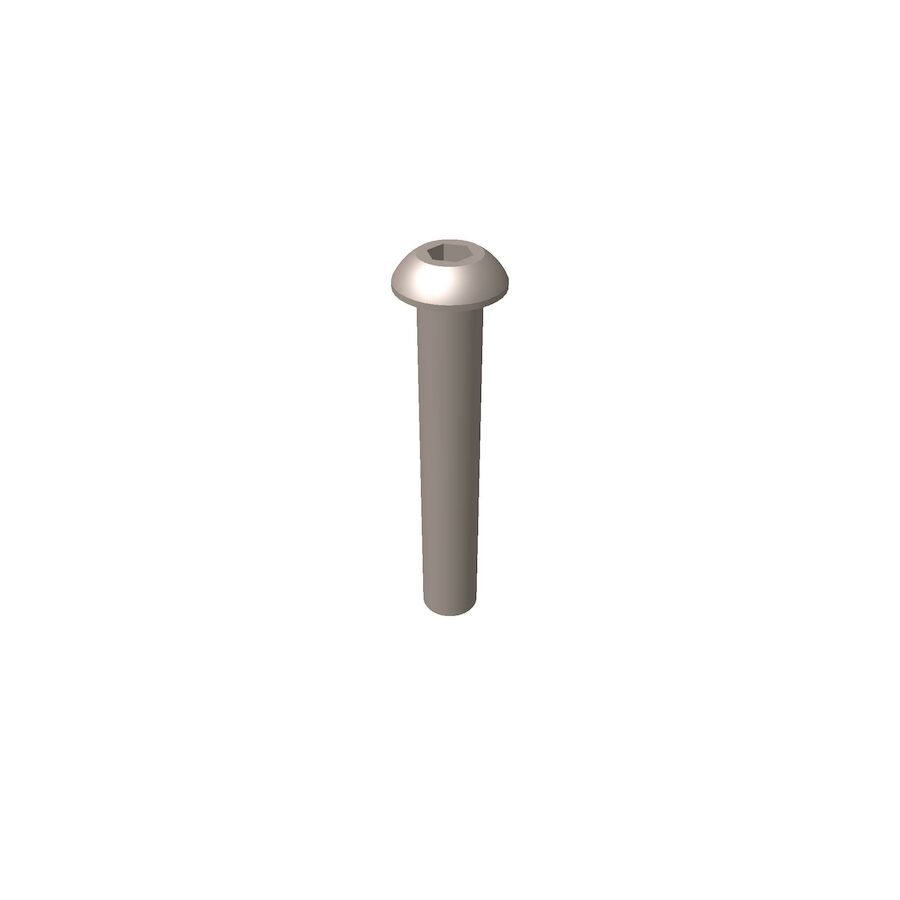

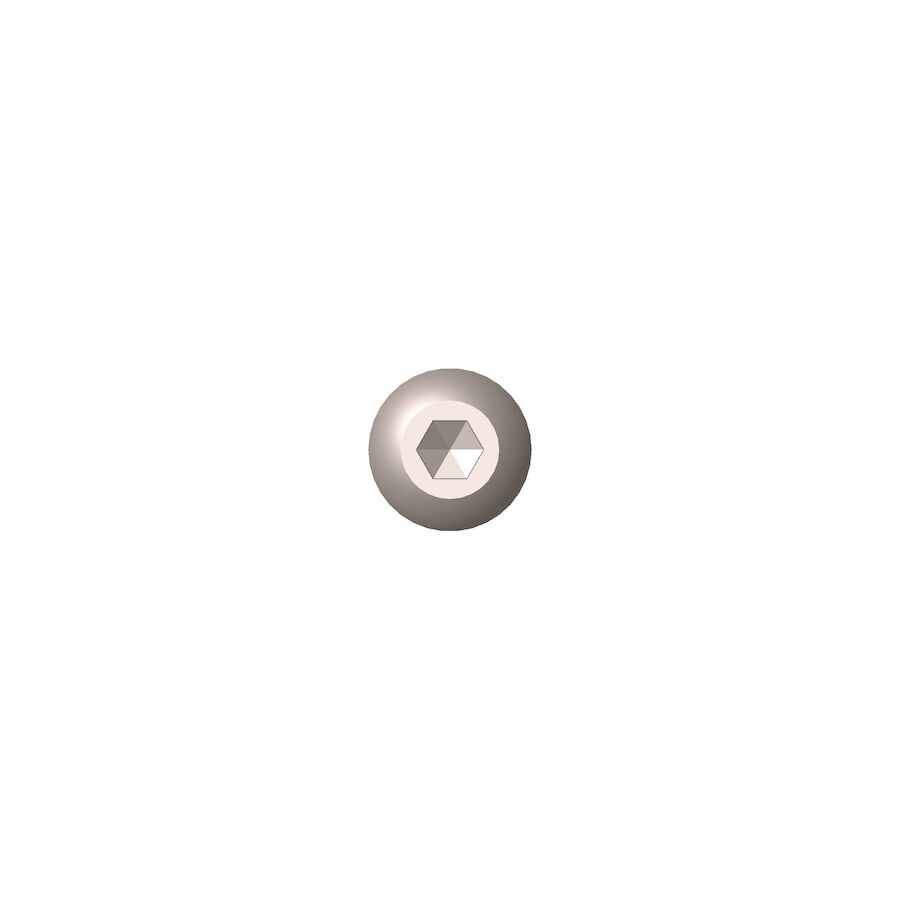

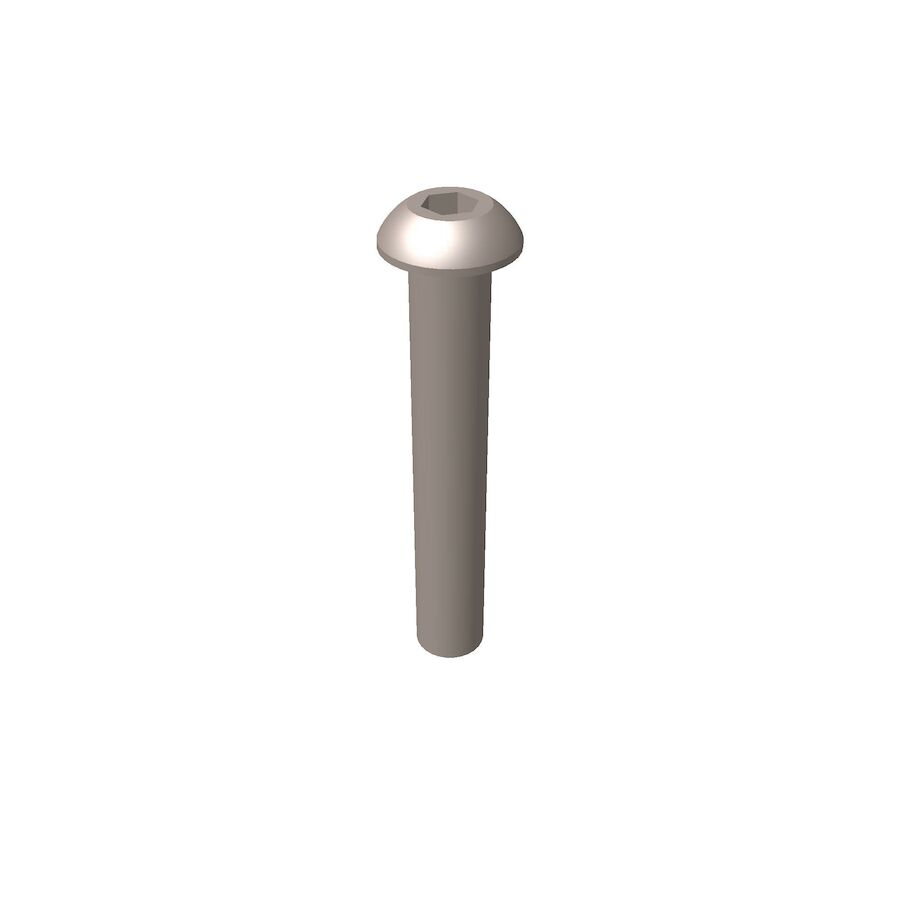

Toro OEM Hex Socket Button Head Bolt 120-5499 Fits Toro Timecutter 32" SS, SW, ZS - 34" MX - 42" MX, SS, SW, SWX, ZS - 50" MX, SS, SW, SWX, ZS - 54" SS, SW - 60" MX Models.

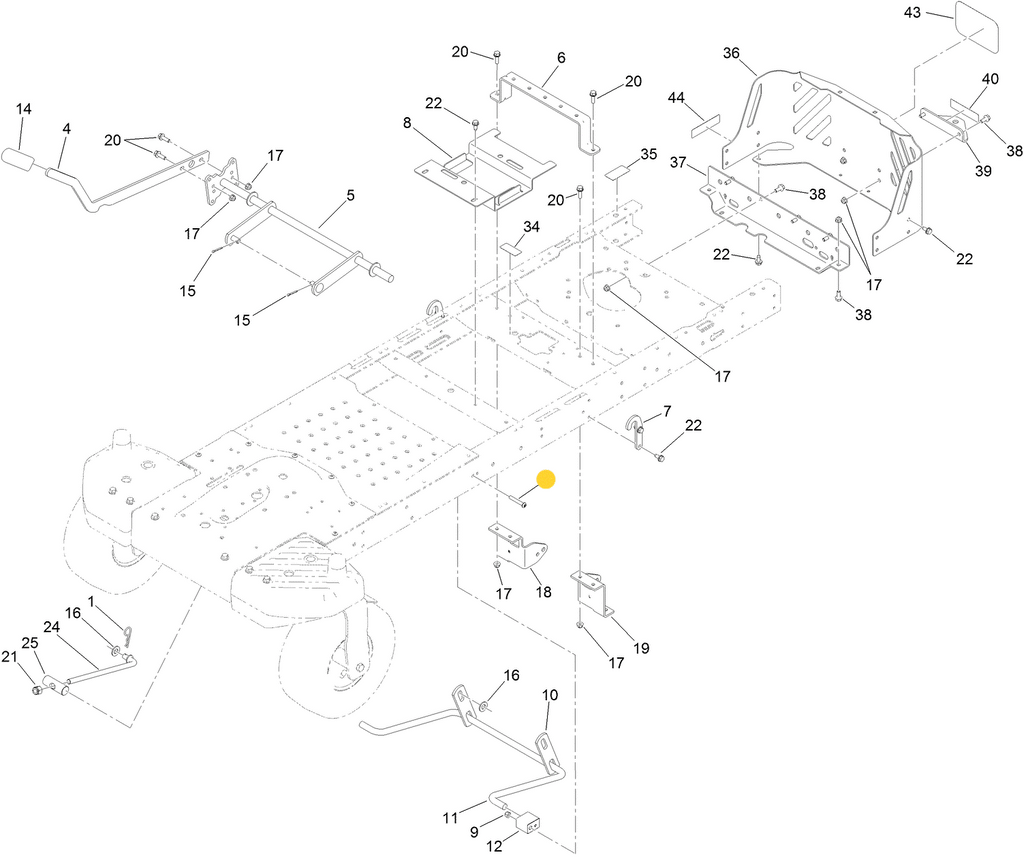

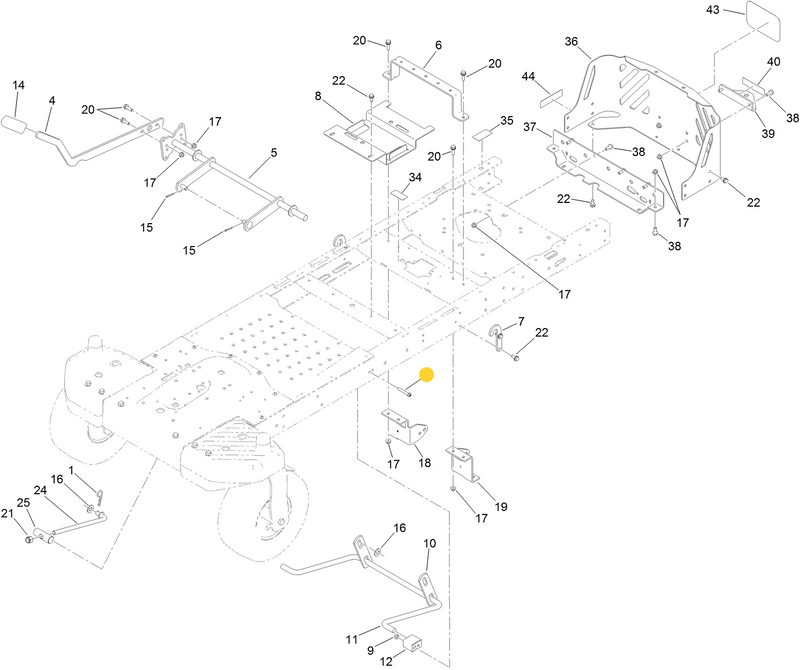

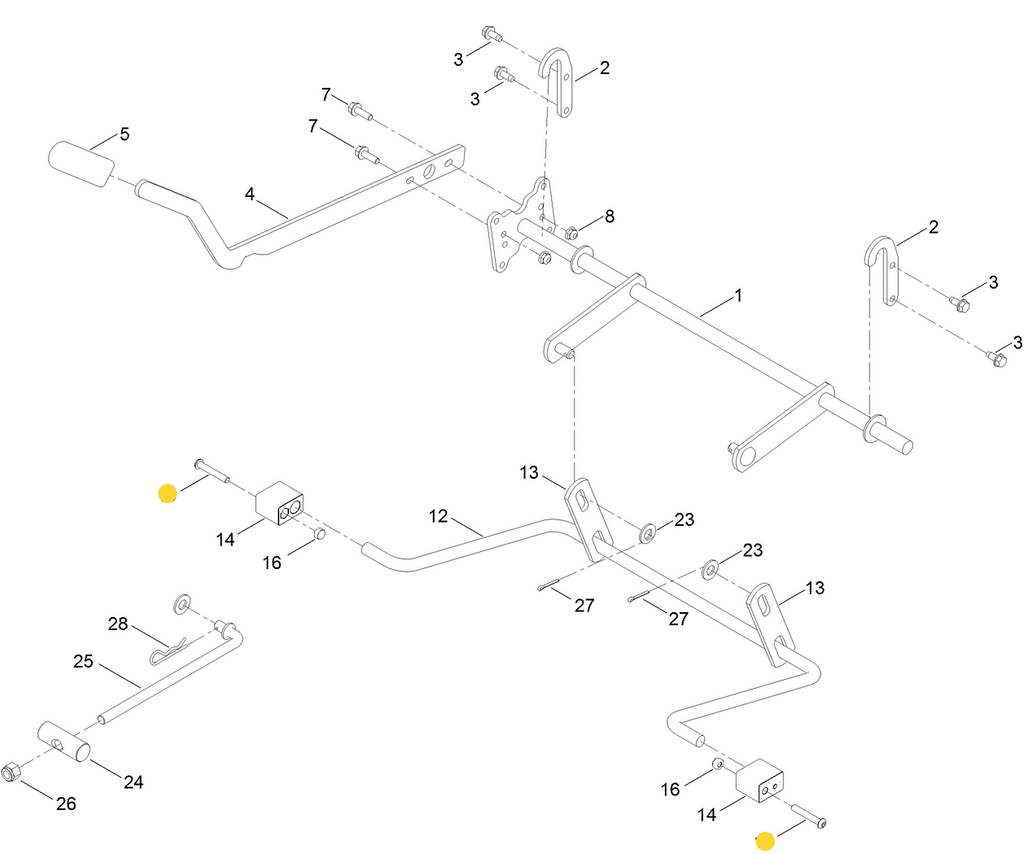

Toro OEM 120 5499 Hex Socket/Button Head Bolt is on Select Toro Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, SWX, ZS), 50" (MX, SS, SW, SWX, ZS), 54" (SS, SW) and 60" (MX) Timecutter Models.  120 5499 Purpose is served as a fastener for Toro Pivot/Pillow Block on Mower Deck Lift Linkage System. Buy Toro OEM and Rest Assure of a "Job Well Done". Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 120-5499 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 108-7845 - PIVOT BLOCK (Pivot Block Retains and Allows Mower Deck Lift Arm Pivot) x1 Per Unit
2. 3296-29 - LOCK NUT - (Retains Mower Pivot Block) x1 Per Pillow Block







Specification

Product Number:	1205499
Brand:	Toro
Length:	2.100 IN (5.334 CM)
Width:	0.400 IN (1.016 CM)
Height:	0.400 IN (1.016 CM)
Weight:	0.050 LB (0.023 KG)





Model Fit:



TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74649, 74760, 74765, 74766



TIMECUTTER 42” Z Series – Model Numbers – 74360, 74380, 74363, 74381, 74365, 74366



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” Z Series – Model Numbers – 74370, 74372, 74391, 74399, 74374, 74375, 74373, 74376, 74398



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793





TIMECUTTER 60” MX Series – Model Numbers – 74777
