Toro OEM 120-4402 Snowblower Fuel Line Kit Fits Select 400 & 600 Series Power Clear and Quick Clear Snowblower Models - Toro Dealer.

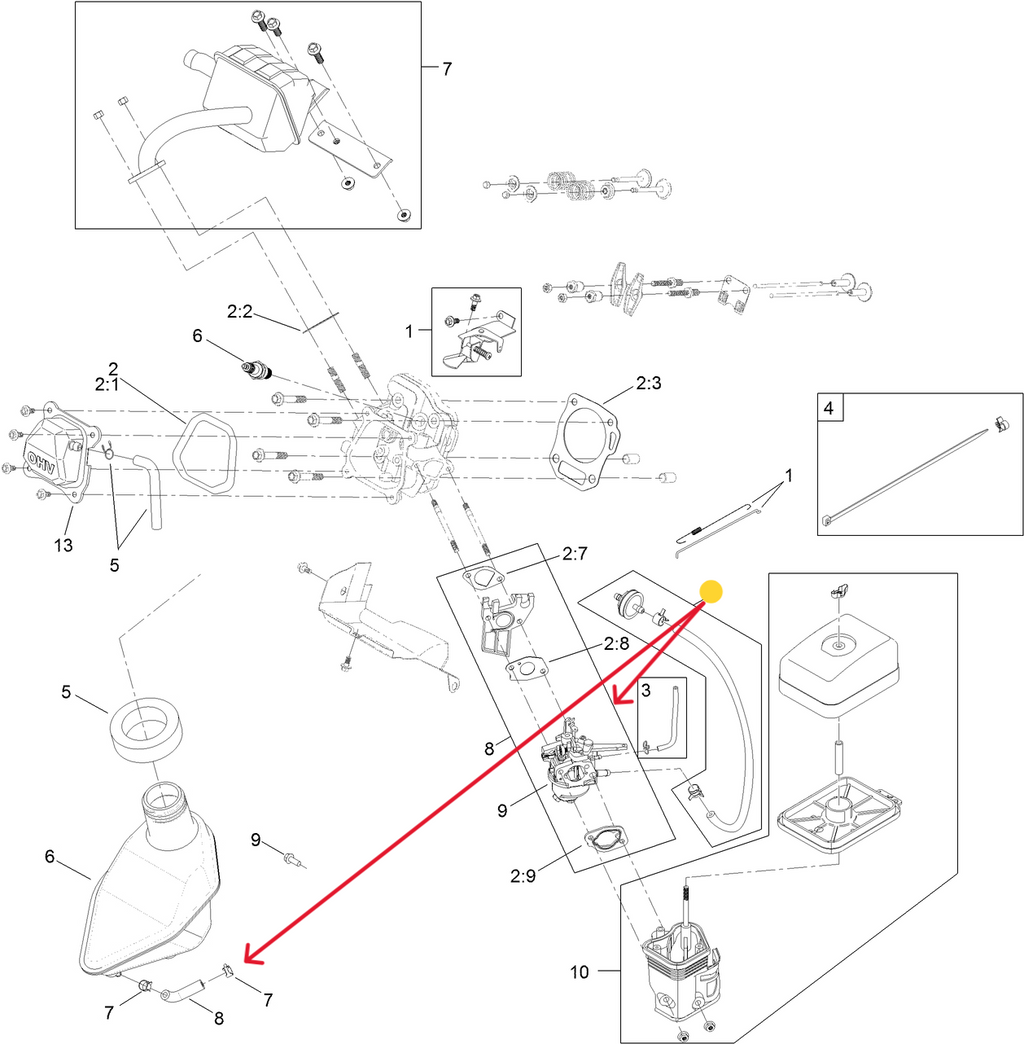

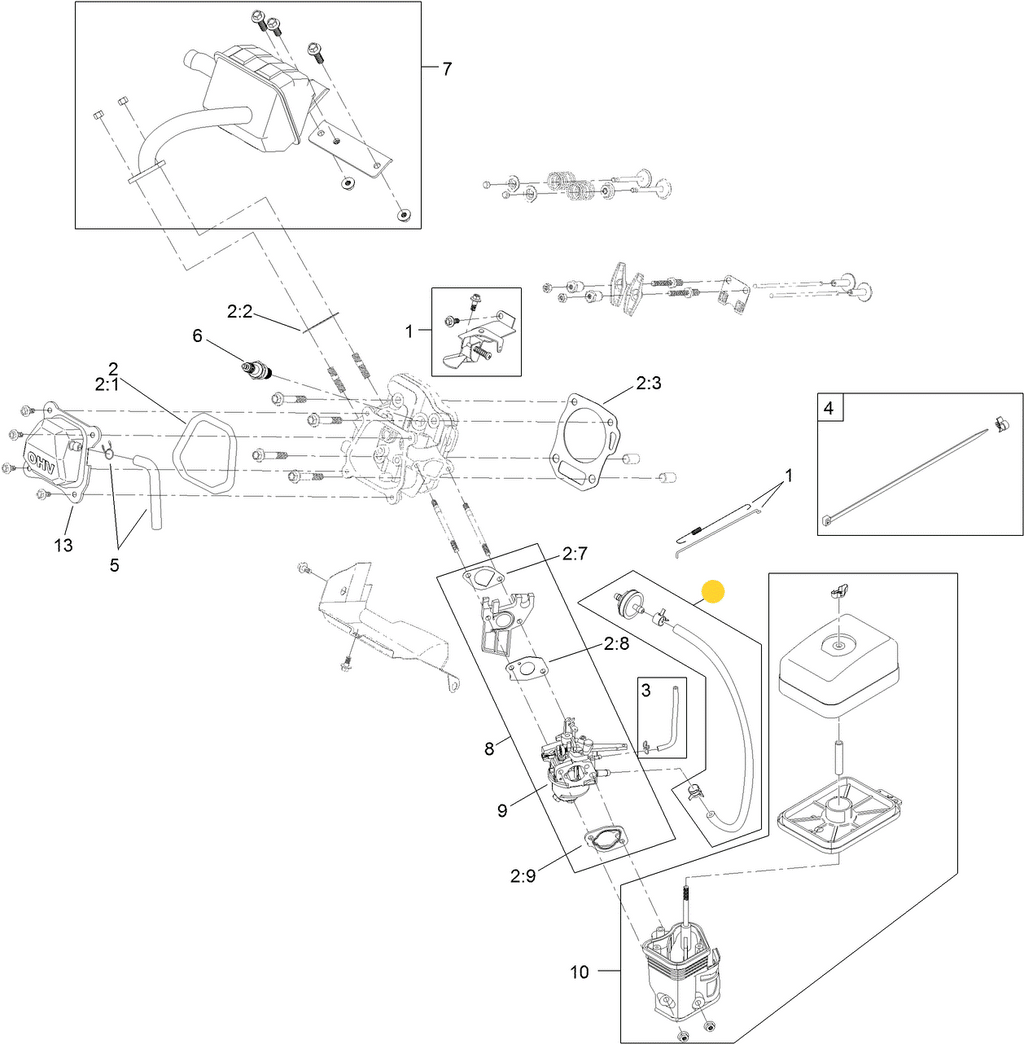

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Part Number 119-1953 Supersedes to Part Number 120-4402





• PRODUCT NUMBER AND VARIATIONS: 120-4402, 120 4402, 1204402, 119-1953, 119 1953, 1191953
• PRODUCT TYPE: Fuel Line Kit
• SIZE: Length 5.100 in. - Width N/A in. - Height N/A in. - Weight 0.0196 lbs.

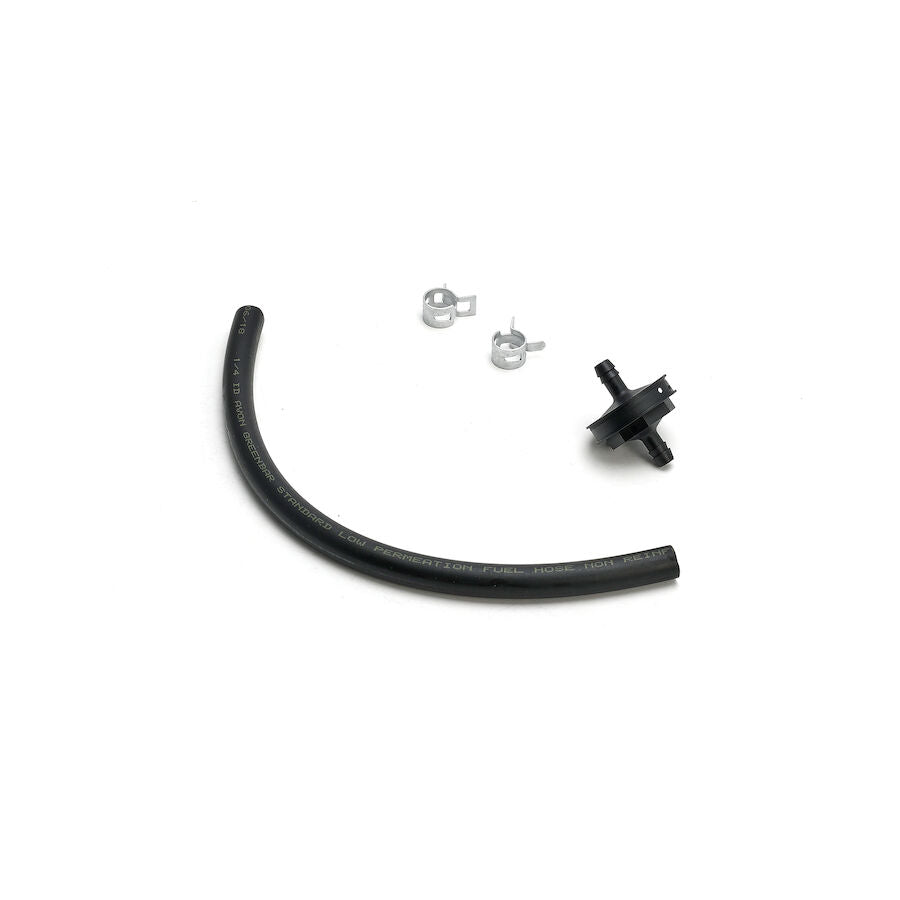

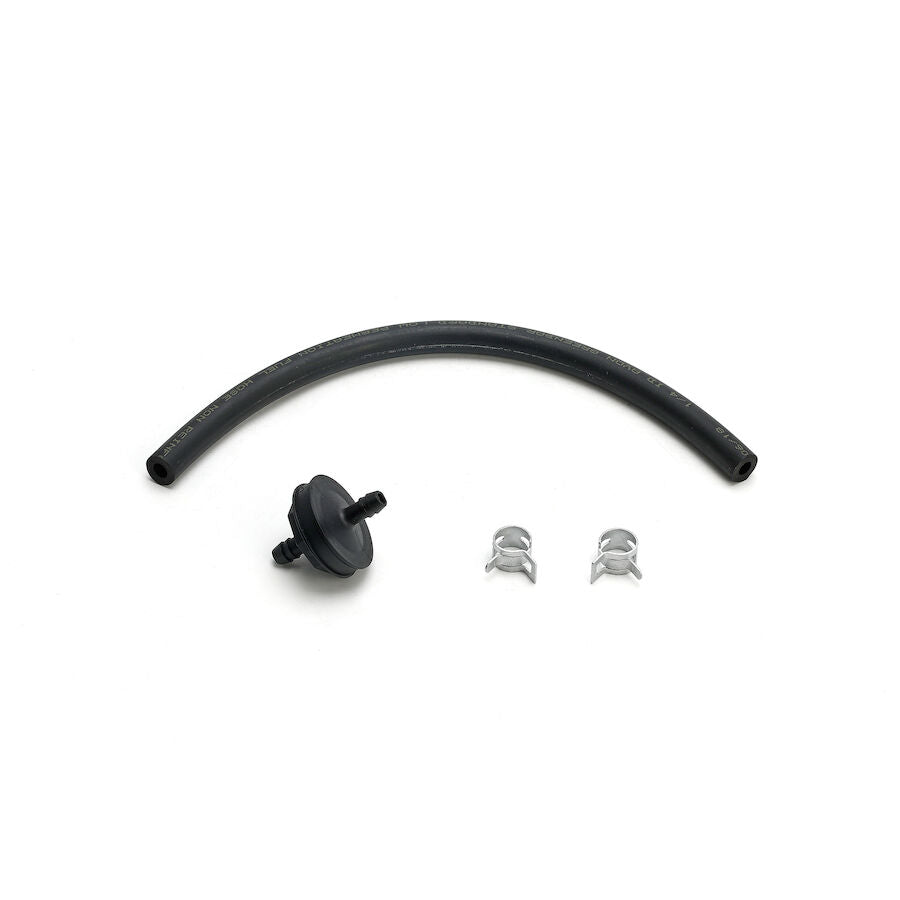

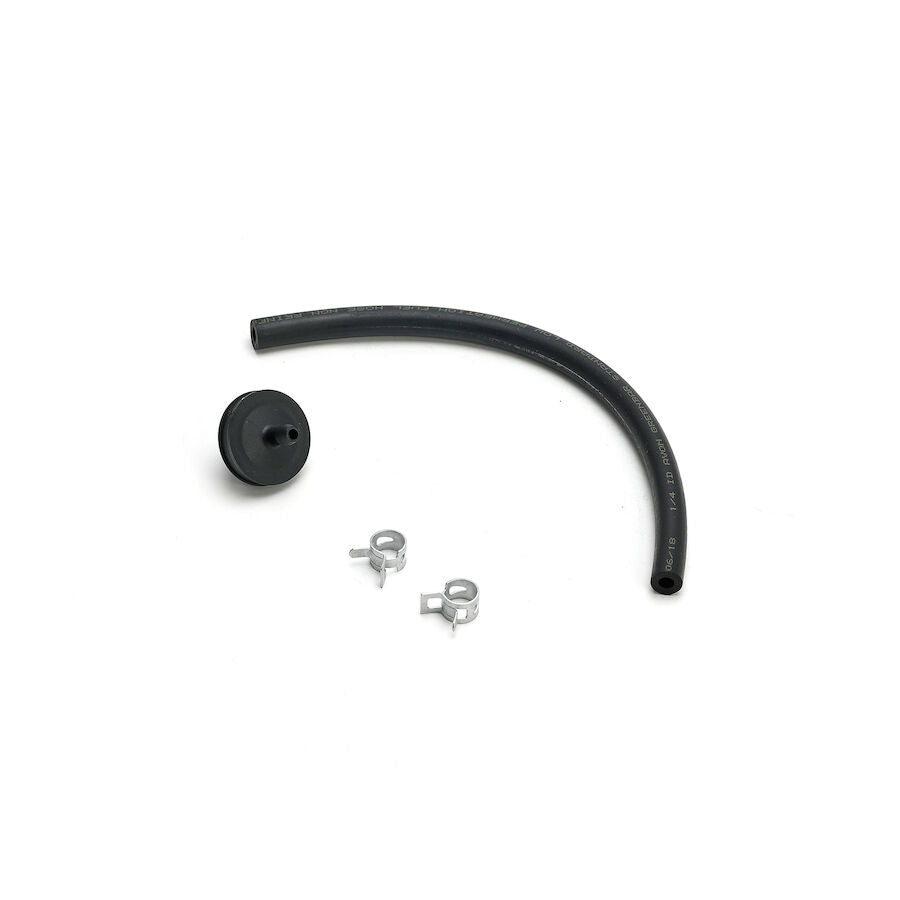

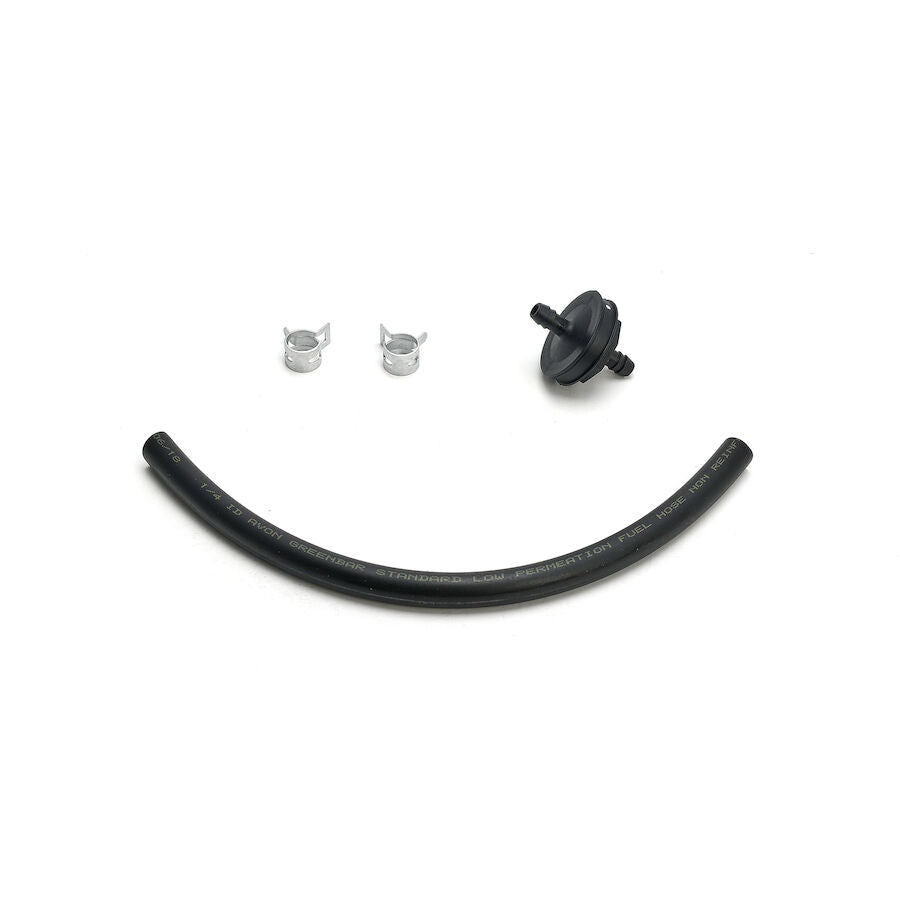

• NOTES & DETAILS: Toro OEM  120-4402 IS COMMINLY USED - 120-4402 Fuel Line Kit Fuel Line Contains a thicker Fuel Line that is a more abrasive resistant and helps enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - 120-4402 Fuel Line Kit Fuel Line Only Comes as a one piece and will Only Connect the Inline Fuel Filter to the Carburetor - For the Fuel Line Inline Fuel Filter Section to the Fuel Tank Refer to Part Number 114-3765. * Fuel Line Kit Contains Fuel Line Hose (Only Carb. to Fuel Filter End), Fuel Line Abrasive Sleeves, Inline Fuel Filter and Hose Clamps.
• COMMON SERIES APPLICATIONS: Toro Select 21" 400 & 600 Series Quick Clear and Power Clear Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38564, 38567, 38569)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38588, 38589)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 120-4402 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY





1. 120-4418 - Power Clear, Quick Clear 400 & 600 Series (Only Select Models - Review Models Fit Chart Associated to Each Part Numbers)





ASSOCIATED COMPLETE PRIMER BULB KIT





1. 127-9376 - Power Clear, Quick Clear 400 & 600 Series (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)





COMMON FUEL LINE KIT INDIVIDUAL PARTS ONLY





1. 114-3765 - FUEL LINE HOSE - INLINE FUEL FILTER to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Inline Fuel Filter and from there Connects to the Fuel Tank) x1 Per Carburetor (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)
2. ONLY AVAILABLE IN FUEL LINE KIT 120-4402 - FUEL LINE HOSE - CARB. to INLINE FUEL FILTER (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line Only Connects to the Inline Fuel Filter and from there Connect to the Carburetor) x1 Per Carburetor (* Select Models and Serial Numbers Only - Review Part Number's Model Fit Chart to Ensure Correct Fit)
3. ONLY AVAILABLE IN FUEL LINE KIT 120-4402 - FUEL LINE CLAMP - CARB. to INLINE FUEL FILTER (Retains the Thicker more Abrasive Carburetor Side Fuel Line to the Bottom of the Carburetor, Fuel Filter)
4. 2412-98 - FUEL LINE CLAMP - FUEL TANK to INLINE FUEL FILTER (Retains the Thinner Tank Side Fuel Line to the Bottom of the Fuel tank, Fuel Filter) x1 Per Fuel Line
